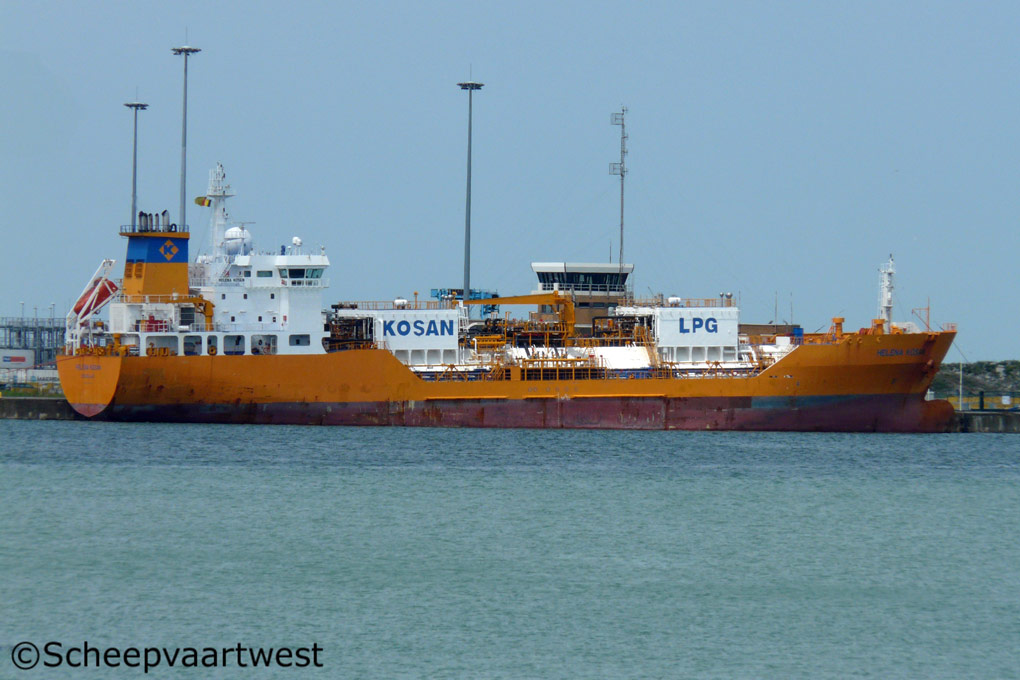

Helena Kosan 04
Zeebrugge 04 July 2011



Name

HELENA KOSAN

Type

Liquefied gas tanker

Transport type

Semi-refrigerated

IMO-number

9342396

Call sign

MQWF3

Flag

Isle of Man - United kingdom

Port of registry

Douglas

GT

7.465 t

DWT

Summer: 8.555 t

NT

2.239 t

Length

115,00 m overall

107,81 m between perpendiculars

Breadth

18,60 m

Draught

Summer: 8,67 m

Freeboard

1.962 mm

Depth

10,60 m

Speed

15,3 knots

Built

2007

Date of completion

07.09.2007

Builder

Sekwang Heavy Industries Co., Ltd. (ex INP HI)
Ulsan
South Korea

Yard number

1148

Hull material

Steel

Hull type

Double side

Watertight compartments

5

Continuous decks

1

Main engine

1x MAN & BW - 4 stroke 8 cylinder 350 x 1.400 mm diesel engine - 5.930 kW / 8.057 hp at 173 rpm

Built: 2006

Builder: MAN B & W Diesel A/S Service Center, Frederikshavn - Denmark

Propeller

1x Screw propeller controllable pitch at 173 rpm

Boilers

1x CHO Aalborg 28,00 m² - 13,0 bar
1x CHR Aalborg 154,00 m² - 10,0 bar

Electrical installation

Power voltage: 440 V

Lighting voltage: 220 V

Frequency: 60 Hz

Generators

1x Diesel generatorset 712 kVA - 570 kW - 823 hp
3x Diesel generatorsets each 912 kVA - 730 kW - 1046 hp

Number of tanks

2

Total capacity of tanks

8.054 m³

Minimum temperature

-104°C

Cargo handling

2x Pumps each 960 m³/h

Fuel capacity

1.051,9 m³

Crew

19

Manager

Lauritzen Kosan
Copenhagen
Denmark

Owner

Lauritzen Kosan A/S
