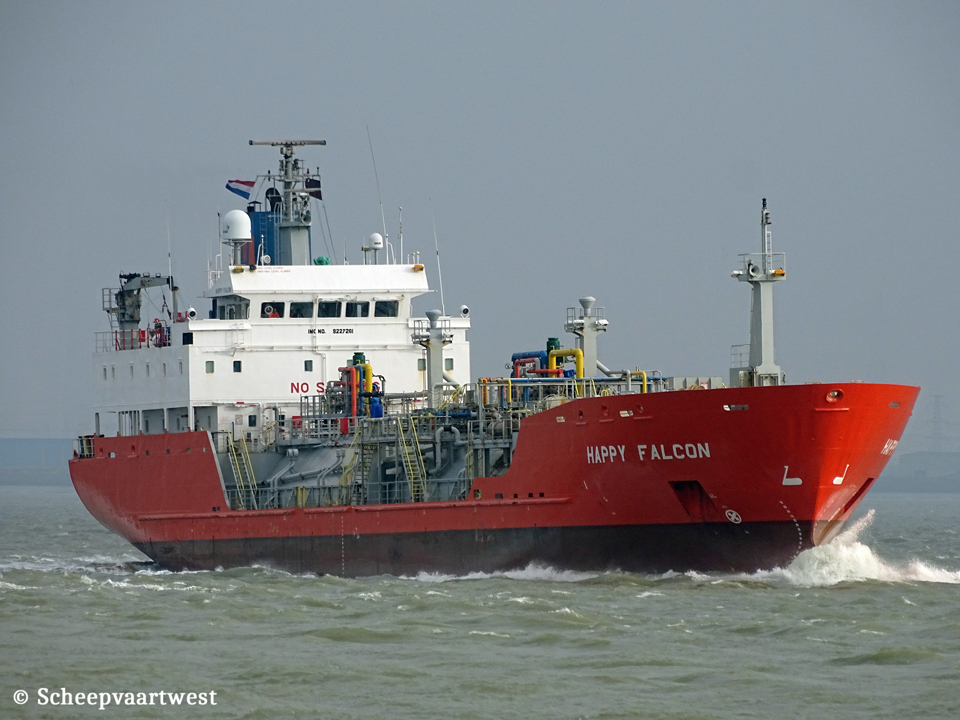

| Westerschelde 27 January 2018 |
 |
|

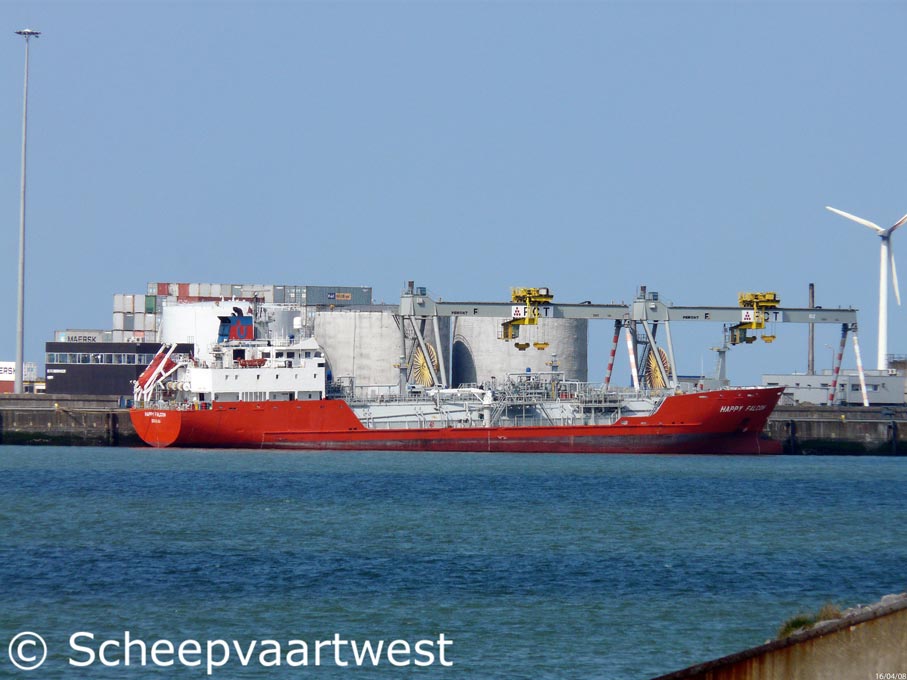

| Zeebrugge 16/04/08 | |
|
Name |
HAPPY FALCON |
|
Type |
Liquefied gas tanker - LPG |
|
Main products |
Ammoniac - Butane - Ethylene - Liquefied petroleum gases - Propylene oxide - Vinyl-Chloride monomer |
|
IMO-number |
9227261 |
|
Call sign |
OXPC2 |
|
Flag |
Denmark |
|
Port of registry |
København |
|
Previous flag |
Isle Of Man (United Kingdom), Douglas - Call sign: ZINK4 Republic of Panama, Panama City - Call sign: 3EBB4 |
|
GT |
3.366 t registered |
|
DWT |
2.789 t |
|
NT |
1.022 t registered |
|
Light displacement |
2.279 t |
|
Length |
95,54 m overall 89,37 m between perpendiculars |
|
Breadth |
14,40 m |
|
Draught |
Summer: 6,25 m |
|
Keel to mast end |
26,70 m |
|
Freeboard |
1.260 mm |
|
Depth |
7,50 m |
|
Speed |
15,0 knots |
|
Built |
2002 |
|
Keel laid |
20/12/2000 |
|
Date of completion |
27/06/2002 |
|
Builder casco |
Santierul Naval Braila S.A. Braila Romania Yard number: 553 |
|
Builder completion |
Mützelfeldwerft Cuxhaven Germany Yard number: 226 |
|
Hull material |
Steel |
|
Hull type |
Double side |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 6M32 - 4 stroke 6 cylinder 320 x 480 mm combustion engine 2.880 kW / 3.916 hp at 600 rpm Built: 2000 Builder: Caterpillar Motoren GmbH & Co. KG, Kiel - Germany |
|
Number of screws |
1x Controllable pitch propeller |
|
Boilers |
1x CHO 22,90 m² - 10,0 bar 1x CHR 88,90 m² - 10,0 bar |
|
Electrical installation |
Power voltage: 440 V Lighting voltage: 220 V Frequency: 60 Hz |
|
Generators |
3x Diesel generatorsets each 450 kVA - 360 kW - 620 hp |
|
Emergency generators |
1x Diesel generatorset 125 kVA - 100 kW - 152 hp |
|
Bow thruster |
1x 294 kW |
|
Number of tanks |
2 |
|
Cargo capacity |
3.771 m³ |
|
Tank max. pressure |
6,5 bar |
|
Minimum temperature |
-48,0°C |
|
Number of pumps |
2x Cargo pumps each 300 m³/h |
|
Manager |
Unigas International Blaak 555 3011 GB Rotterdam The Netherlands |
|
Operator |
Navigator Gas Ship Management (Denmark) ApS Smakkedalen 4 2820 Gentofte Denmark |
|
Owner |
Adela Shipping & Finance Inc. 6th Floor,Grotiushuis Westblaak 41 Rotterdam 3012 KD The Netherlands |
|
Latest data adjustment |
03 April 2024 |
