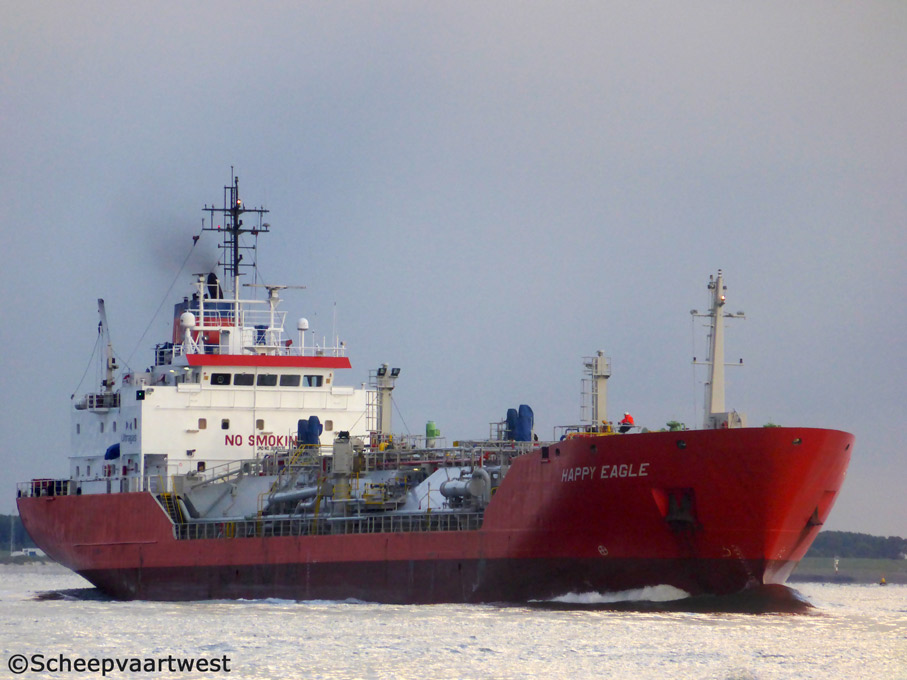

| Westerschelde 18 September 2015 |
 |
 |
 |
||

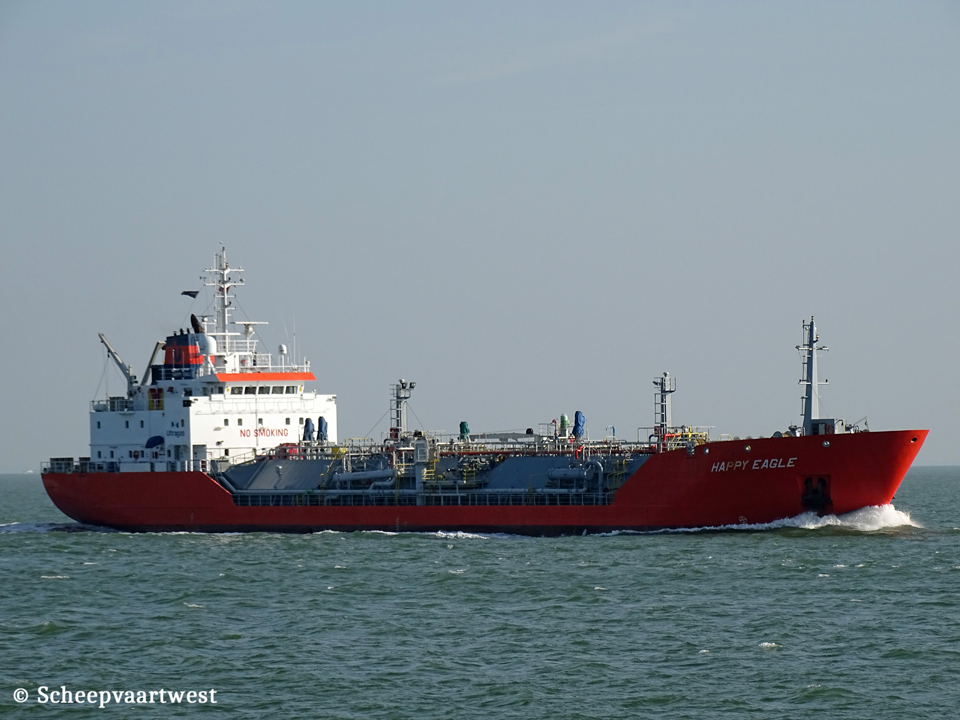

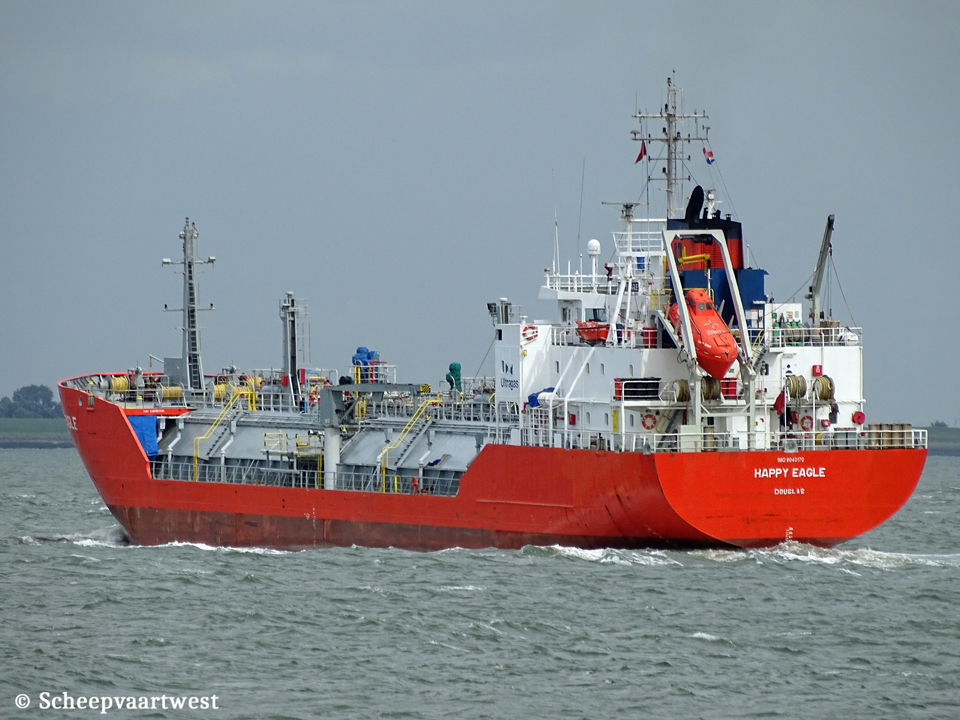

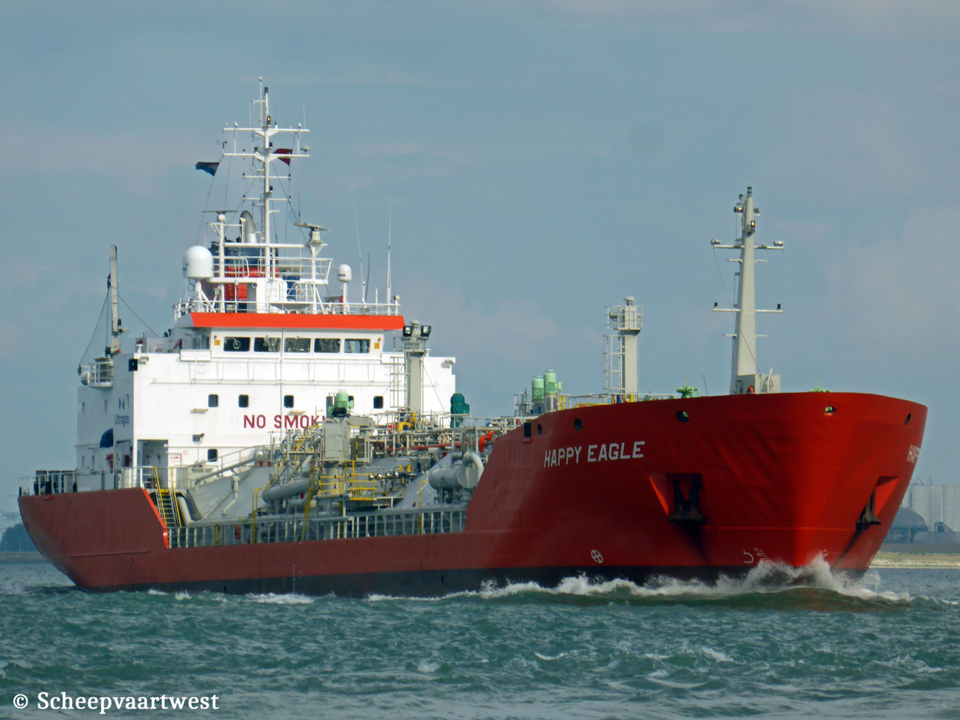

| Westerschelde 15/10/16 | Westerschelde 19/08/14 | Zeebrugge 19/07/11 | ||
|
Name |
HAPPY EAGLE |
|
Type |
Liquefied gas carrier - Semi refrigerated |
|
IMO-number |
9040170 |
|
Call sign |
ZNHT7 |
|
Flag |
Isle of Man - United Kingdom |
|
Port of registry |
Douglas |
|
GT |
3.733 t |
|
DWT |
4.512 t |
|
NT |
1.832 t |
|
Length |
98,60 m overall 90,70 m between perpendiculars |
|
Breadth |
15,00 m |
|
Draught |
Summer: 6,47 m |
|
Freeboard |
Summer: 2.180 mm |
|
Depth |
7,80 m moulded |
|
Speed |
15,0 knots |
|
Built |
1993 |
|
Keel laid |
16/01/1992 |
|
Date of completion |
03/02/1993 |
|
Builder |
Barkmeijer Stroobos Scheepswerf Stroobos The Netherlands |
|
Yard number |
266 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Watertight compartment |
5 |
|
Continuous decks |
1 |
|
Main engine |
1x MAK 6M551 - 4 stroke 6 cylinder 450 x 550 mm combustion engine 3.450 kW / 4.692 hp at 450 rpm Date of build: 1992 Builder: MAK Maschinenbau GmbH, Kiel - Germany |
|
Propelling system |
1x Controllable pitch propeller - aft at 182 rpm |
|
Boilers |
1x CHM Konus Kessel 16,00 m² - 10,0 bar 1x CHR Konus Kessel 52,00 m² - 10,0 bar |
|
Electrical installation |
Power voltage: 440 V Lighting voltage: 220 V Frequency: 60 Hz |
|
Generators |
3x Cummins KTA19G2 - main diesel engines each 360 kW at 1.800 rpm connected with Stamford generators MHC534D each 450 kVA / 450 Volt |
|
|
1x Cummins diesel engines 74 kW at 1.800 rpm connected with Stamford UCM22F13 generator 68 kVA / 450 Volt |
|
Bow thruster |
250 kW |
|
Number of tank |
2 |
|
Total capacity of tanks |
Tank 1:2.177 m³ Tank 2: 2.209 m³ Total: 4.386 m³ |
|
Cargo pumps |
4x Deepwell and 1 Booster - Total 600 m³/h |
|
Minimum temperature |
-48°C |
|
Max. pressure |
7,0 bar |
|
Lifting equipment |
1x Crane - SWL 2,0 t |
|
Anchor equipment |
2x Weight: 2.280 kg each Cable length: 467,00m Diameter: 42 mm |
|
Tank capacities |
Fuel: 571 m³ |
|
Crew |
14 |
|
Manager |
Bernhard Schulte Shipmanagement (UK) Ltd Newcastle Upon Tyne United Kingdom |
|
Operator |
Unigas International B.V. Grotiushuis, 6th floor Westblaak 41 3012 KD Rotterdam The Netherlands |
|
Registered owner |
Itauri Shipping & Finance Inc. Republic of Panama |
|
Renamed |
2018 - 2020 Happy Flag: Mongolia, Ulaanbaatar - Call sign: JVTU6 Owner: Moonlight Energy Co., Charlestown - St Kitts & Nevis 2020 - 2021 Happy Flag: Comoros, Moroni - Call sign: D6A2648 2021 Premier Flag: Comoros, Moroni - Call sign: D6A2648 Owner: Premier Energy Trading Ltd., Istanbul - Turkey |
|
Latest data adjustment |
03 November 2023 |
