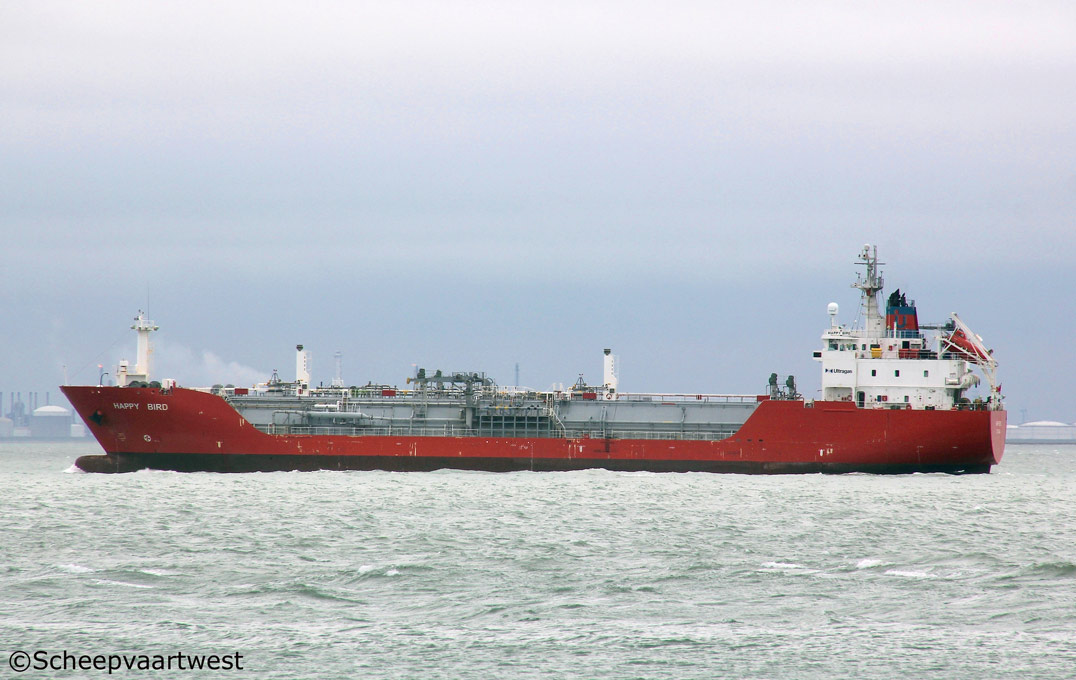

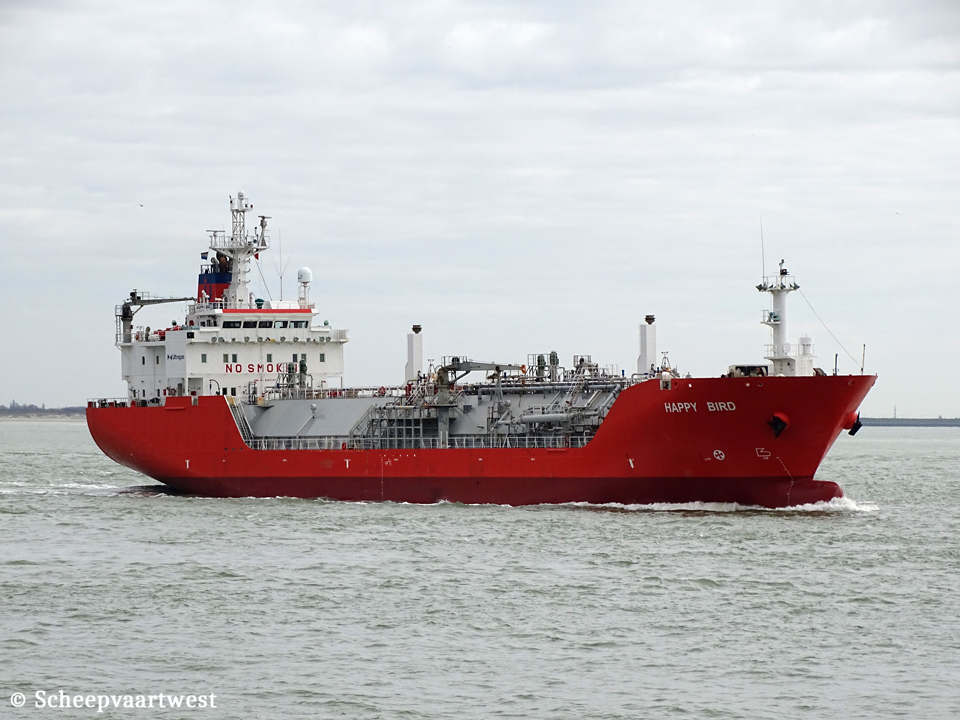

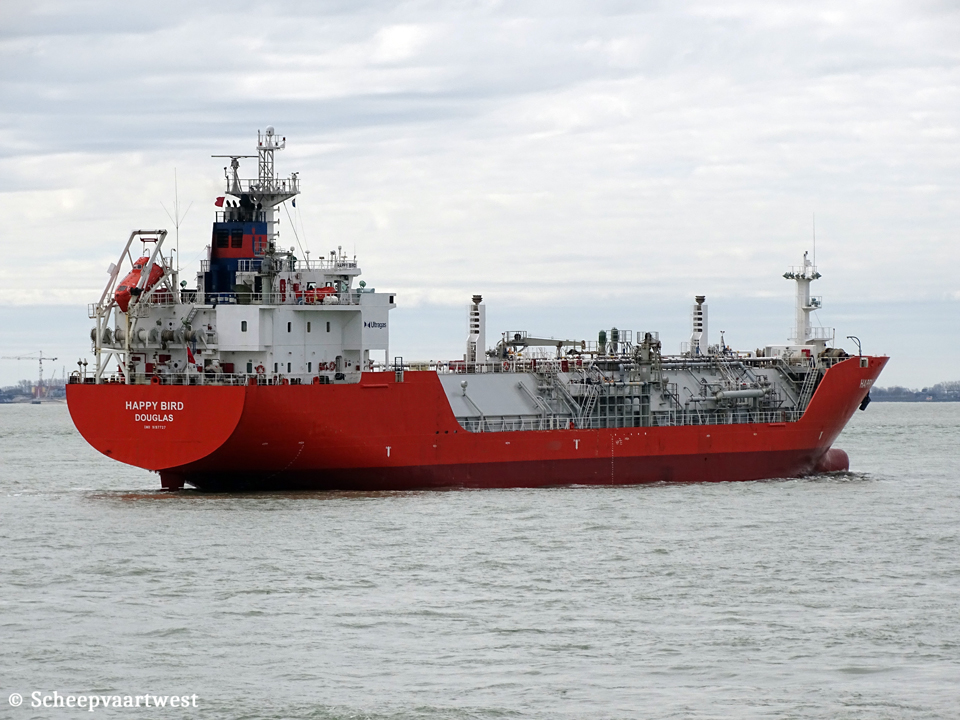

| Westerschelde 18 March 2020 |
 |
 |
 |
 |
|||

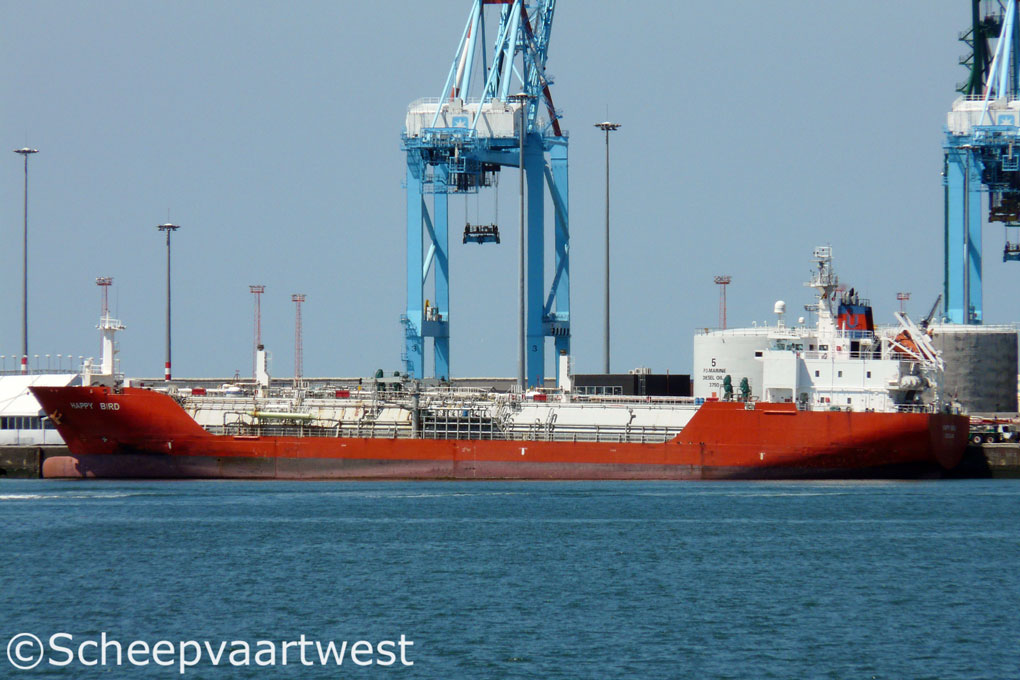

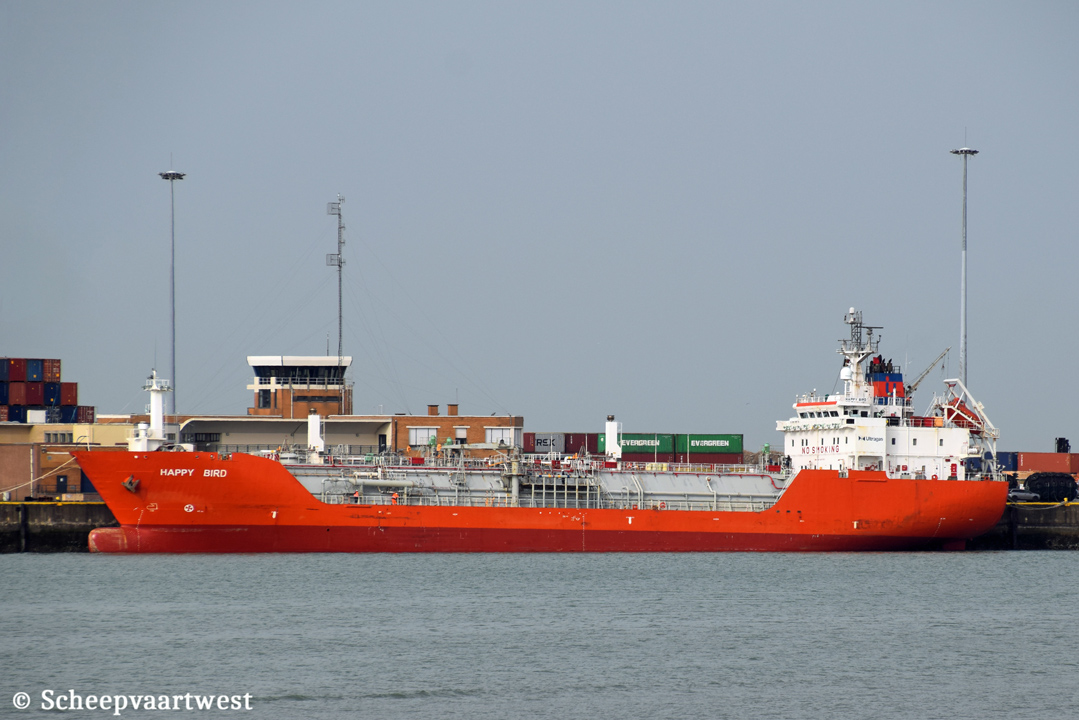

| Westerschelde 10/11/15 | Westerschelde 10/11/15 | Zeebrugge 03/07/11 | Zeebrugge 22/02/21 |
|
Name |
HAPPY BIRD |
|
Previous names |
1999 - 2002 Tarquin Crest |
|
Type |
Liquefied gas tanker - Semi refrigerated |
|
IMO-number |
9197727 |
|
Call sign |
ZIRQ6 |
|
Flag |
Isle Of Man - United Kingdom |
|
Port of registry |
Douglas |
|
GT |
6.051 t |
|
DWT |
Summer: 7.914 t |
|
NT |
2.398 t |
|
Length |
119,57 m overall 110,75 m between perpendiculars |
|
Breadth |
17,20 m |
|
Draught |
Summer: 7,75 m |
|
Freeboard |
1.175 mm |
|
Depth |
8,90 m |
|
Speed |
16,0 knots |
|
Built |
1999 |
|
Date of completion |
09/09/1999 |
|
Builder |
Hyundai Heavy Industries Co., Ltd. Ulsan South Korea |
|
Yard number |
1196 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Watertight compartments |
4 |
|
Continuous decks |
1 |
|
Main engine |
1x Hyundai/MAN-B&W 7S35MC - 2 stroke 7 cylinder 350 x 1.400 mm combustion engine 4.900 kW / 6.658 hp at 170,0 rpm Built: 19.03.1999 Builder: MAN-B&W Diesel A/S Alpha Diesel, Frederikshavn - Denmark |
|
Electrical propulsion gen. |
1x 400 kW - 450 Volt |
|
Propeller |
1x Screw propeller controllable pitch |
|
Boilers |
1x CHO 22,20 m² - 13,0 bar 1x CHR 82,00 m² - 13,0 bar |
|
Generators |
1x Diesel generatorset 120 kVA - 96 kW - 166 hp 3x Cummins KTA 19-64(M) diesel generatorsets each 590 kVA - 472 kW - 765 hp |
|
Bow thruster |
1x Brunvoll controllable pitch propeller 300 kW |
|
Number of tanks |
2 |
|
Tank capacity |
Tank 1: 3.920,9 m³ Tank 2: 4.716,1 m³ Total: 7.636,0 m³ |
|
Cargo pumps |
4x Svanehoy each 260 m³/h |
|
Pressure |
6,7 bar |
|
Minimum Temperature |
-48°C |
|
Cargo refrigeration |
2x Sulzer 2K-160-2Q each 960 m³/h |
|
Fuel capacity |
804 m³ |
|
Lifting equipment |
1x Crane - SWL 2,0 t 1x Crane - SWL 4,0 t |
|
Crew |
14 |
|
Commercial manager |
Unigas International BV Grotiushuis, 6th floor Westblaak 41 3012 KD Rotterdam The Netherlands |
|
Technical manager |
Ultraship ApS Smakkedalen 6 2820 Gentofte Denmark |
|
Owner |
Pentland Shipping Company S.A. C/o Ultraship Smakkedalen 6 2820 Gentofte Denmark |
|
Latest data adjustment |
09 March 2021 |
