Halcyon Star 06
Zeebrugge 18 April 2009

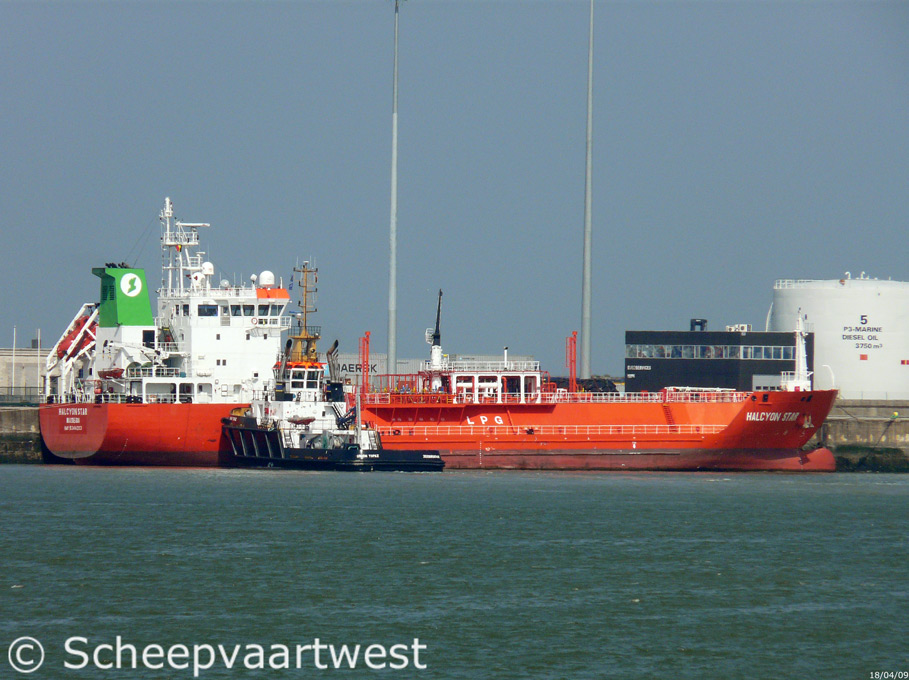

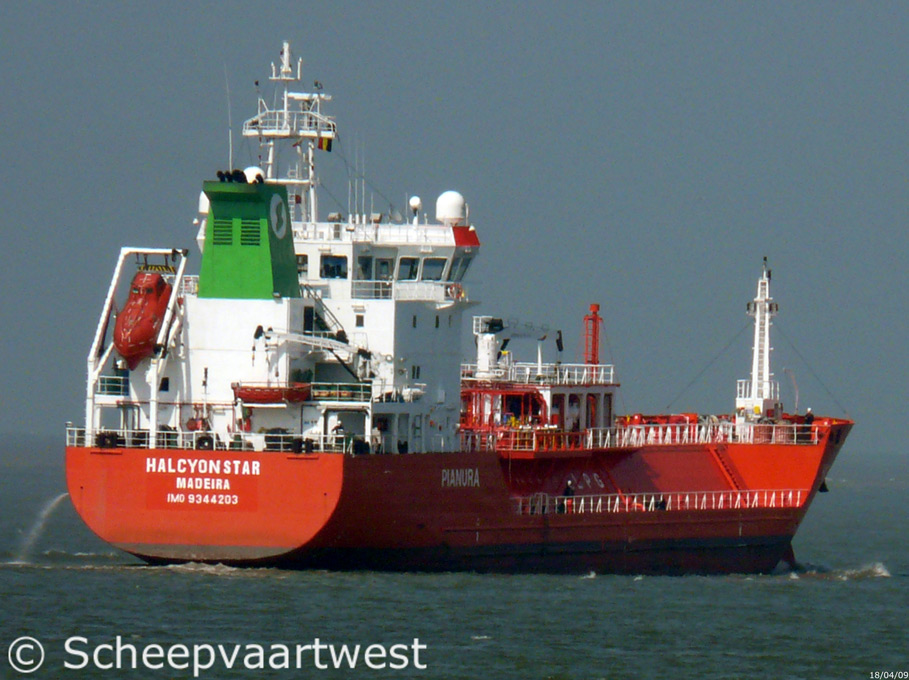

Halcyon Star 11   Halcyon Star 04
Zeebrugge 18/04/09 Zeebrugge 18/04/09



Name

HALCYON STAR

Type

Liquefied gas tanker
LPG Tanker

IMO-number

9344203

Call sign

CQOF

Flag

Portugal

Previous flag

13.05.2007 - Italy

Port of registry

Madeira

GT

3.430 t

DWT

Summer: 3.801 t

NT

1.029 t

Length

87,50 m overall
82,50 m between perpendiculars
82,60 m registered

Breadth

14,80 m moulded

Draught

Summer: 6,50 m

Freeboard

1.300 mm

Depth

7,80 m moulded

Speed

14,0 knots

Built

2007

Keel laid

15.09.2006

Launch date

02.04.2007

Date of completion

31.05.2007

Builder

Madenci Shipyard
Eregli
Turkey

Yard number

33

Hull material

High strength steel

Hull type

Single hull

Bulkheads

Non Tight: 16
Water Tight: 31
Gas Tight: 1
Oil Tight: 2

Main engine

1x MAN B&W Alpha 6L27/38 - 6 cylinder 270 x 380 mm diesel engine - 2.040 kW / 2.772 hp at 800 rpm
Builder: Garioni Naval Castelmella - Italy

Propeller

1

Steam piping system

1x Exhaust gas steam generator GMT EG650 - 12,0 bar
1x Steam generator GMT V80 - 12,0 bar
Manufacturer: Garioni Naval SRL.

Shaft generator

1x HC.M634H2 - 650,4 kW
Manufacturer: Newage International Ltd.

Generators

3x Main generators Leroy Somer LSA 52.2 VS40/8p each 360 kW

Cargo capacity

3.227,64 m³

Number of tanks

Ballast: 17
Fuel oil: 7
Lubricating oil: 4
Diesel oil: 4
Fresh water: 3
Chain: 2
Sludge: 2
Sea water: 1
Waste water: 1

Tank capacities

Ballast: 1.713,44 t / 1671.65 m³
Diesel oil: 81,08 t / 96,52 m³
Freshwater: 99,83 t
Fuel oil: 316,16 t / 339,64 m³
Lube oil: 25,40 t / 27,78 m³

Min. cargo temperature

-48°C

Max. cargo pressure

9,97 bar

Crew

12

Manager

Pianura Armatori
Venezia
Italy

Operator

Pianura Armatori

Owner

Pianura Armatori
Via G. Felisati, 61
30171 Mestre, Venezia
Italy

Registered owner

Pianura Armatori S.P.A.

Owner as completed

G.& H.Sg, Madeira

Renamed

15.03.11 Goviken
