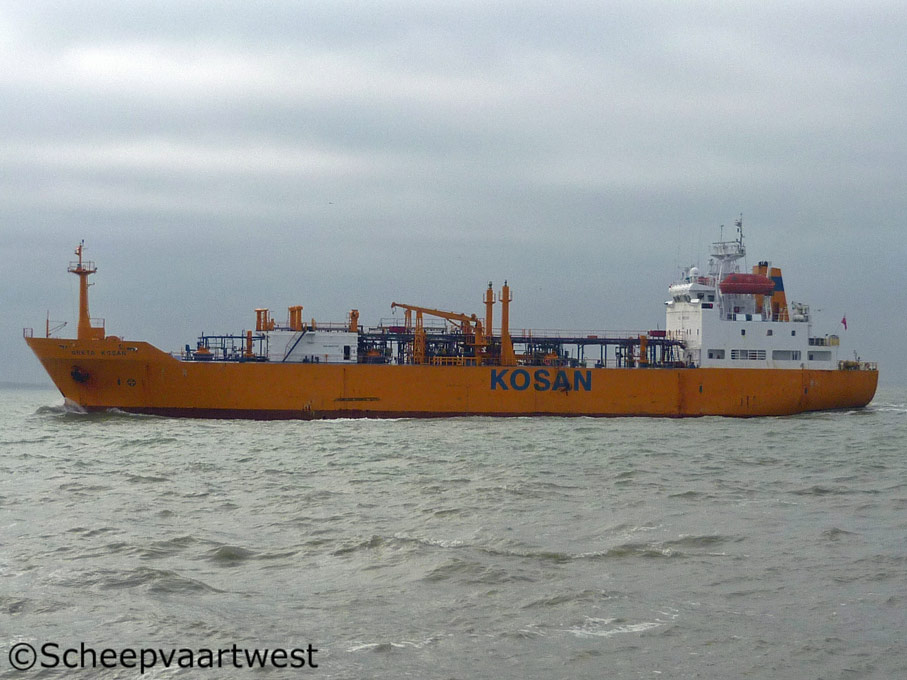

Greta Kosan 03
Westerschelde 20 December 2011

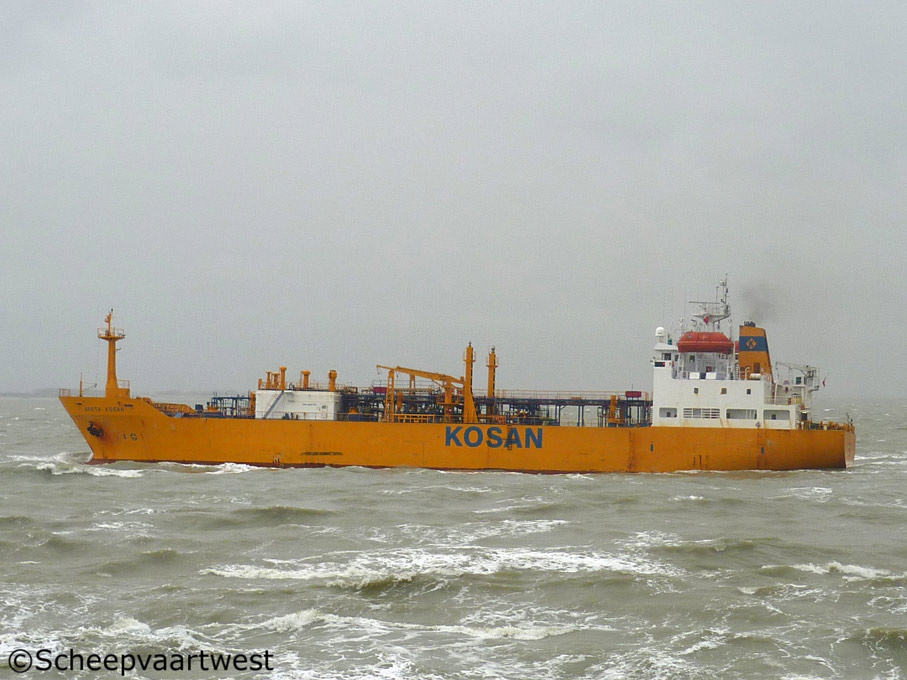

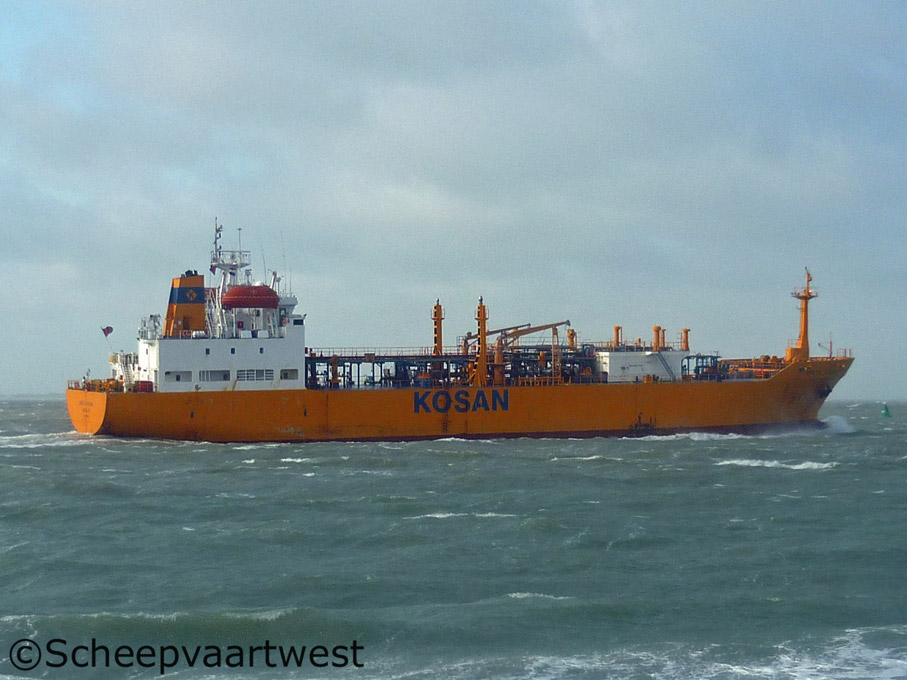

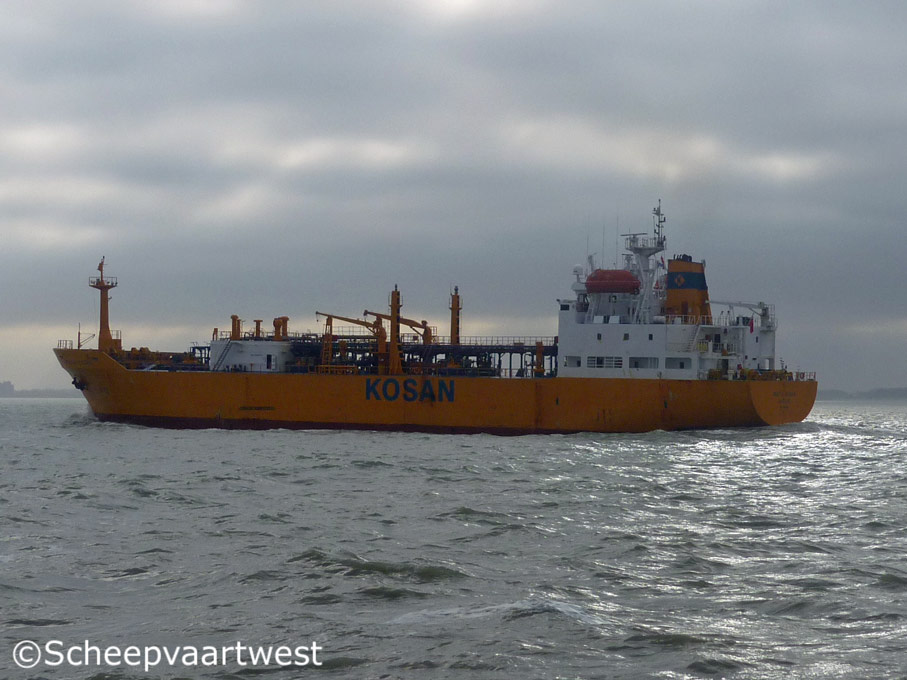

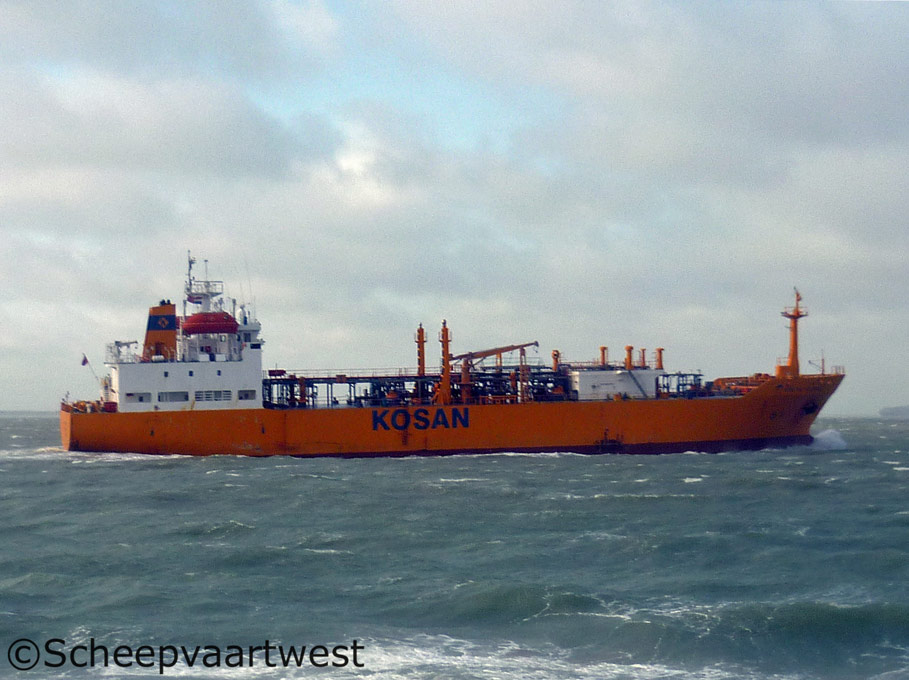

Greta Kosan 06   Greta Kosan 01   Greta Kosan 02   Greta Kosan 09
Westerschelde 22/12/11 Westerschelde 10/10/11 Westerschelde 10/10/11 Westerschelde 12/0112



Name

GRETA KOSAN

Type

Liquefied gas tanker

Main products

Ammoniac - Chemicals - Liquefied petroleum gases - Propylene oxide - Vinyl-Chloride monomer

IMO-number

8810700

Call sign

VQOZ7

Flag

Isle of Man - United Kingdom

Port of registry

Douglas

GT

4.086 t

DWT

Summer: 4.811 t

NT

1.225 t

Length

98,30 m overall

90,00 m between perpendiculars

Breadth

16,20 m

Draught

Summer: 6,71 m

Depth

10,30 m

Speed

13,5 knots

Built

1990

Date of completion

26.02.1990

Builder

Hyundai Heavy Industries
Ulsan
South Korea

Yard number

657

Hull material

Steel

Hull type

Double bottom

Watertight compartments

7

Continuous decks

1
Machinery aft

Main engine

1x MaK - 4 stroke 6 cylinder 550 x 450 mm diesel engine 3.310 kW / 4.500 hp at 450 rpm

Built: 1989

Electrical propulsion gen.

1x 300 kW

Propelling system

1x Screw propeller controllable pitch at 185 rpm

Boiler

1x CHM 40,00 m² - 8,0 bar

Electrical installation

Power voltage: 450 V

Lighting voltage: 220 V

Frequency: 60 Hz

Generators

3x Diesel generatorsets each 567 kVA - 453 kW

Number of tanks

5

Total capacity of tanks

4.415 m³

Tank max. pressure

7,5 bar

Transport type

Refrigerated

Minimum temperature

-48,0°C

Cargo handling

3x Pumps each 125 m³/h

Fuel capacity

609 m³

Manager

Lauritzen Fleetmanagement A/S
Copenhagen
Denmark

Operator

Lauritzen Kosan A/S
Copenhagen
Denmark

Owner

Viken Marine AS
Øvre Ervik
5876 Bergen
Norway
