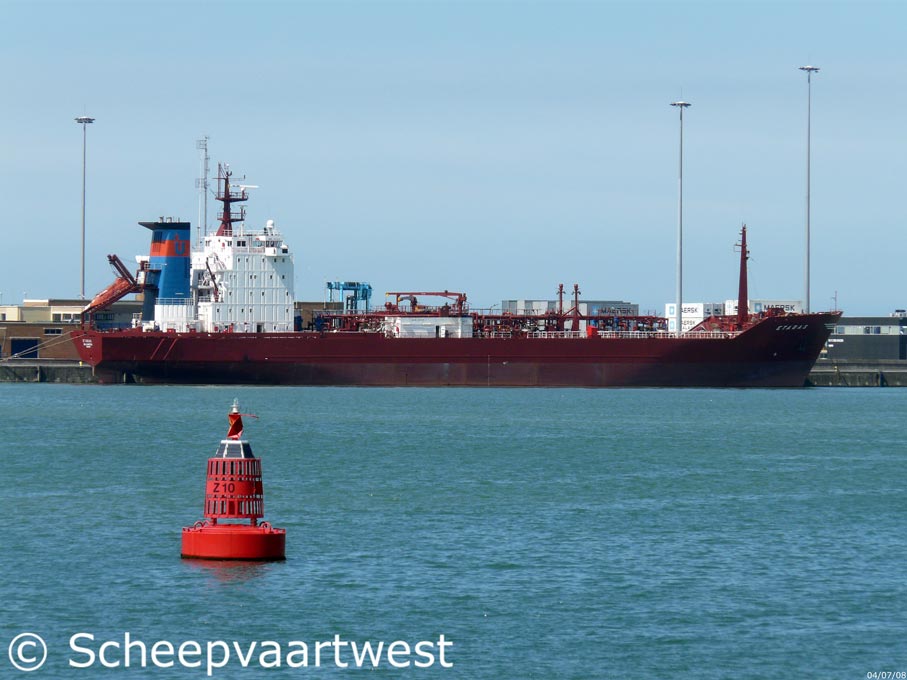

Etagas 01
Zeebrugge 04 July 2008



Name

ETAGAS

Type

Liquefied Gas Tanker (LPG)

IMO-number

8712570

Call sign

PJNE

Flag

Netherlands Antilles

Port of registry

Willemstad

GT

7.314 t

DWT

9.384 t

NT

2.194 t

Length

134,70 m overall

124,00 between perpendiculars

125,95 m registered

Breadth

18,60 m registered

Draught

Summer: 8,301 m

Forecastle

15,35 m

Freeboard

3.715 mm

Depth

12,00 m moulded

Speed

16,5 knots

Built

1988

Keel laid

18.01.1988

Launch date

11.06.1988

Date of completion

11.1988

Builder

Schichau Seebeckwerft AG i. K.
Riedemannstr. 1
27572 Bremerhaven
Federal Republic of Germany

Yard number

96

Hull material

Shipbuilding steel (standard)

Hull type

Double bottom

Watertight bulkheads

7

Continuous decks

2

Main engine

1x Man B&W 7 L 52/55 B - 4 stroke single acting 7 cylinder 520 x 550 mm diesel engine - 6.000 kW at 450 rpm

Year of manufacture: 1988

Manufacturer: MAN B&W Diesel GmbH
Stadtbachstr. 1
86153 Augsburg
Federal Republic of Germany

Number of screws

1x Controllable pitch propeller - aft at 130 rpm

Boilers

1x Thermal oil heater, oil fired - 10,0 bar

Heating surface: 46,4 m²

1x Thermal oil heater, exhaust gas heated - 10,0 bar

Heating surface: 103,6 m²

Year of manufacture: 1988

Manufacturer: HTI Hoch-Temperatur Industrieanlagen GmbH
Hagenbeckstr. 11
22527 Hamburg
Federal Republic of Germany

Electric installations

1x Plant 440/220 V - 2.550 kVA

1x Plant 440 V - 155 kVA

Generators

3x Main diesel generatorsets each 850 kVA

Emergency generator

1x Diesel generatorset 155 kVA

Compressed air receivers

2x Receivers each 1.000 litres - 30,0 bar

1x Receiver 500 litres - 8,0 bar

1x Receiver 250 litres - 8,0 bar

1x Receiver 63 litres - 6,0 bar

Number of cargo tanks

3

Cargo capacity

8.327 m³

Largest cargo tank

2.917 m³

Min. tank temperature

-104°C

Max. tank pressure

4,9 bar

Discharge rate

990 m³/h

Load rate

990 m³/h

Ballast water

2.343 m³

Anchor equipment

3x Anchors weight each 4.050 kg

Chain length: 522,50 m

Manager

Sloman Neptun Schiffahrts-Aktiengesellschaft
Langenstr. 44
28195 Bremen
Federal Republic of Germany

Operator

Unigas International
3001 AB Rotterdam
The Netherlands

Owner

Etagas Shipping Co. N.V.
c/o Sloman Neptun Schiffahrts-Aktiengesellschaft
Langenstr. 44
28195 Bremen
Federal Republic of Germany

Owner as completed

Neptun Frachtkontor G.m.b.H. & Co. K.G.
Bremen
Germany

Scrapped

10.2016 Alang - India
