Westerschelde 23 February 2017 |
 |
 |
 |
 |
|||
| Westerschelde 09/04/16 | Zeebrugge 16/03/09 | Zeebrugge 13/03/09 | Westerschelde 09/09/16 | |||
|
Name |

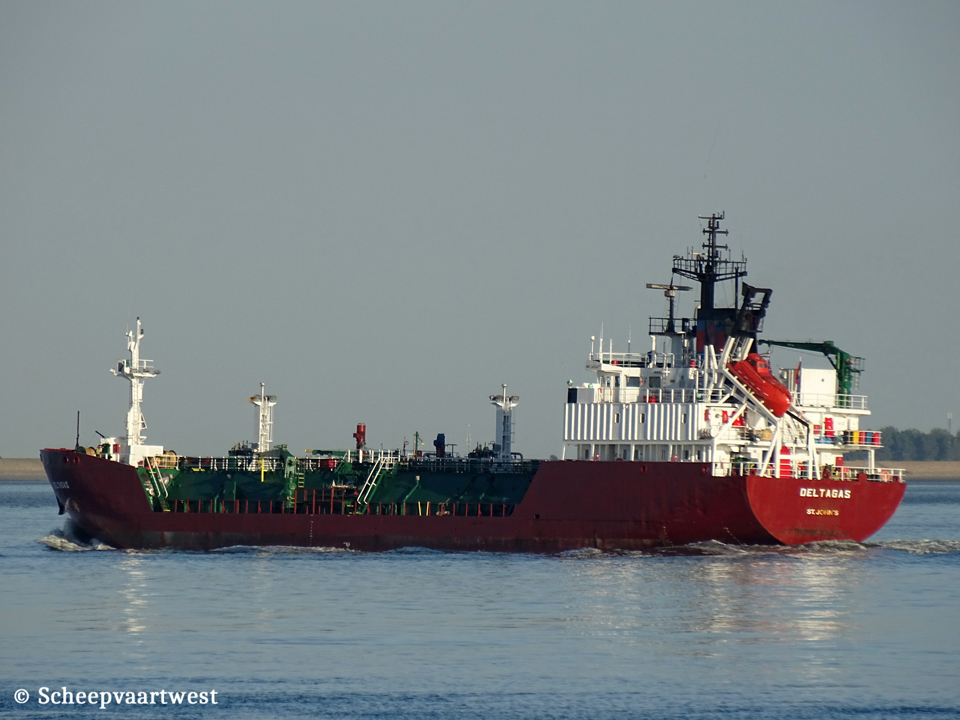

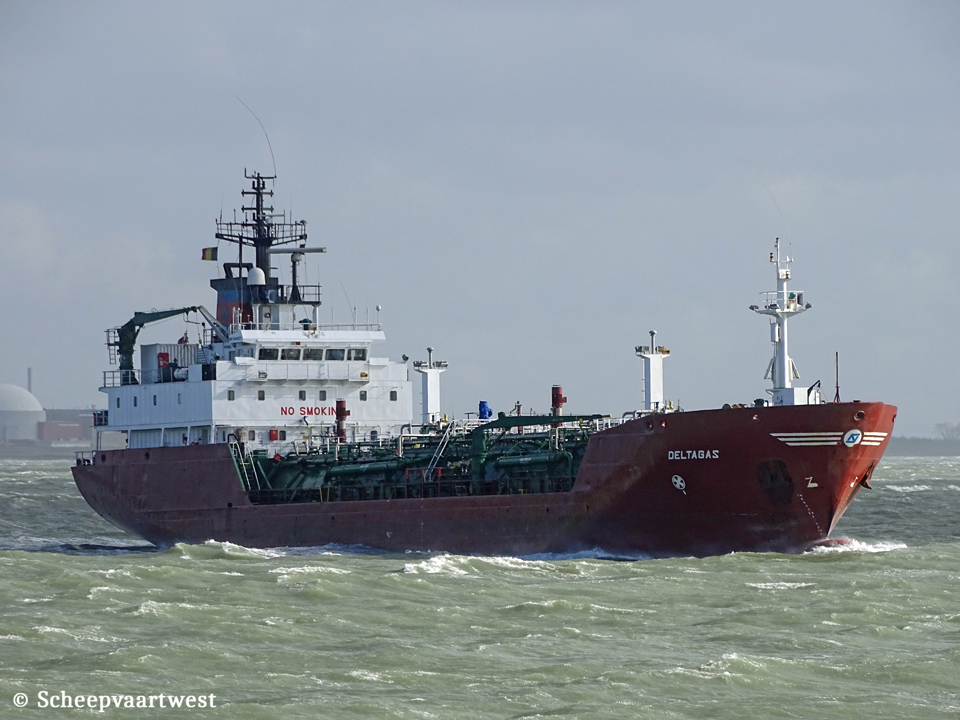

DELTAGAS |
|
Type |
Liquefied Gas Tanker - LNG |
|
IMO-number |
9008471 |
|
Call sign |
V2KA5 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John's |
|
Previous flags |
30/05/1992 Germany 02/07/2001 Liberia, Monrovia |
|
GT |
3.011 |
|
DWT |
Summer: 3.582 t |
|
NT |
956 |
|
Length |
88,35 m overall 80,70 m between perpendiculars 81,30 m registered |
|
Breadth |
14,23 m overall |
|
Draught |
Summer: 6,20 m |
|
Bow to bridge |
68,15 m |
|
Forecastle |
8,10 m |
|
Keel to masthead |
30,50 m |
|
Poop |
18,70 m |
|
Freeboard |
1.300 mm |
|
Depth |
7,50 m moulded |
|
Speed |
14,0 knots |
|
Loadline |
Deadweight (maximum assigned): 3.582 t Deadweight (normal ballast): 1.842 t Deadweight (segregated ballast): 1.842 t Deadweight (tropical): 3.582 t Deadweight (winter): 3.582 t Displacement (lightship): 2.010 t Displacement (normal ballast): 3.852 t Displacement (segregated ballast): 3.852 t Displacement (summer): 5.592 t Displacement (tropical): 5.592 t Displacement (winter): 5.592 t Draft (lightship): 2,64 m Draft (normal ballast): 4,13 m Draft (segregated ballast): 4,13 m Draft (summer): 5,47 m Draft (tropical): 5,47 m Draft (winter): 5,47 m Draught aft (normal ballast): 5,00 m Draught fore (normal ballast): 3,60 m Freeboard (lightship): 4,80 m Freeboard (normal ballast): 2,08 m Freeboard (segregated ballast): 2,08 m Freeboard (summer): 2,03 m Freeboard (tropical): 2,03 m Freeboard (winter): 2,03 m FWA (Summer draft): 114 mm TPC Immersion (summer draft): 9,50 t |
|
Built |
1992 |
|
Keel laid |
22/04/1991 |
|
Launch date |
01/1992 |
|
Date of completion |
04/1992 |
|
Builder |
Appledore Shipbuilders Ltd. Appledore Devon , EX39 1LX United Kingdom |
|
Yard number |
152 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double hull |
|
Watertight bulkheads |
4 |
|
Continuous decks |
1 |
|
Main engine |
1x Krupp MaK 8M453 - 4 stroke single acting 8 cylinder combustion engine 2.940 kW / 3.997 hp Transmission: Main propulsion acts through gear on the propellershaft Starter type: Compressed air direct Year of manufacture:1991 Builder: Krupp MaK Maschinenbau Kiel - Germany |
|
Propeller |
1x Controllable pitch propeller - aft |
|
Boilers |
1x Thermal oil heater, oil fired - 10,0 bar Heating surface: 11,0 m² 1x Thermal oil heater, exhaust gas heated - 10,0 bar Heating surface: 40,0 m² Year of manufacture: 1990 Manufacturer: Wanson S.A. |
|
Electric installations |
1x 440/220 V - 1.237,5 kVA 1x 440 V - 120 kVA |
|
Generators |
3x Main diesel generatorsets each 412,5 kVA |
|
Emergency generator |
1x Diesel generatorset 120 kVA |
|
Compressed air receivers |
2x Receivers each 500 litres - 30,0 bar 1x Receiver 1.000 litres - 10,0 bar |
|
Bow thruster |
1x Transverse thruster - 350 kW, forward |
|
Cargo tanks |
2 |
|
Cargo capacity |
3.434 m³ |
|
Largest cargo tank |
1.726 m³ |
|
Tank capacities |
Ballast: 1.290 m³ Fuel oil: 347 m³ |
|
Anchor equipment |
3x Anchors weight each 2.100 kg Chain length: 440,00 m |
|
Crew |
14 |
|
Manager |
Sloman Neptun Schiffahrts-Aktiengesellschaft Langenstr. 44 28195 Bremen Federal Republic of Germany |
|
Owners |
Partenreederei MT "DELTAGAS" Langenstr. 44 28195 Bremen Federal Republic of Germany |
|
Owner as completed |
Deltagas Sg Co Ltd. Monrovia Miberia |
|
Scrapped |
19/04/2017 at Aliaga - Turkey |
|
Latest data adjustment |
30 March 2024 |
