| Westerschelde 16 September 2019 |
|
Name |

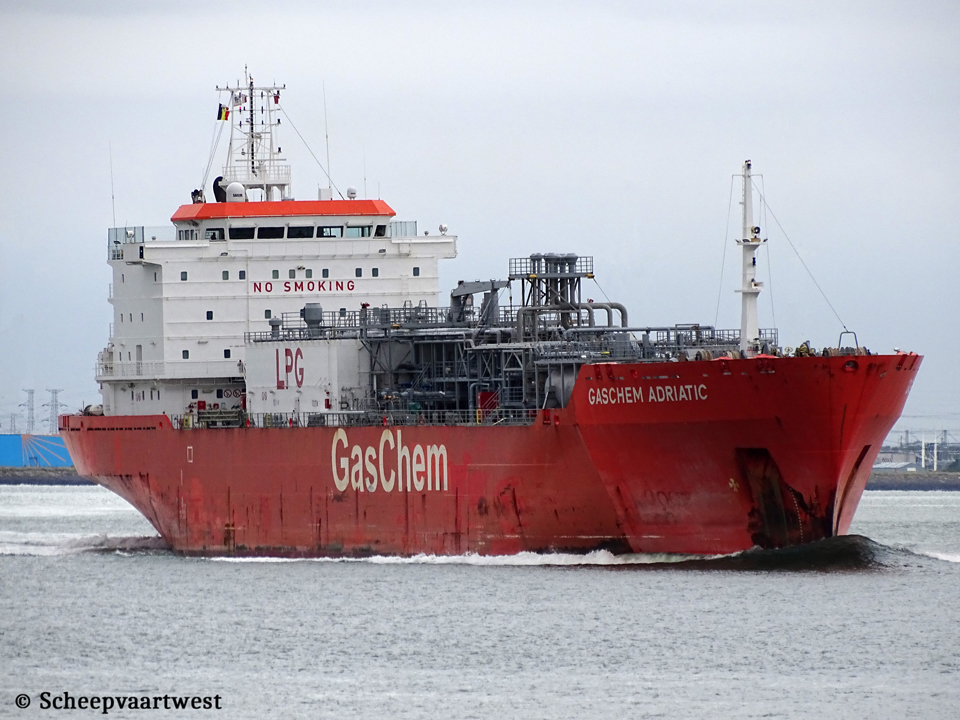

GASCHEM ADRIATIC |
|
Type |
Liquefied gas tanker - Ethylene / LPG Gascarrier |
|
IMO-number |
9402586 |
|
Call sign |
A8VA6 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
13.879 t |
|
DWT |
Max: 18.880 t |
|
NT |
4.399 t |
|
Length |
154,94 m overall 147,41 m between perpendiculars |
|
Breadth |
22,73 m moulded |
|
Draught |
Summer: 10,58 m |
|
Keel to mast end |
39,34 m |
|
Depth |
14,95 m moulded |
|
Speed |
Service: 17,0 knots |
|
Built |
2010 |
|
Keel laid |
22/11/2007 |
|
Launch date |
04/01/2010 |
|
Delivery date |
31/03/2010 |
|
Builder |
Meyer Neptun GmbH Papenburg & Warnemünde Germany |
|
Yard number |
685 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Single hull partly double bottom (e.g. interrupted in way of machinery space) |
|
Watertight bulkheads |
4 |
|
Continuous decks |
1 |
|
Main engine |
1x Wärtsilä 6RT-flex50 - 2 stroke 6 cylinder 500 x 2.050 mm combustion engine 9.720 kW / 13.215 hp at 124,0 rpm Builder: Wärtsilä Schweiz AG |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Thermal oil heater, oil fired - 10,0 bar Heating surface: 96,2 m² 1x Thermal oil heater, exhaust gas heated - 10,0 bar Heating surface: 135,0 m² Builder: GESAB Hoch-Temperatur Industrieanlagen GmbH |
|
Electric installations |
3x Plant 450 V - 1.219 kVA 1x Plant 450 V - 240 kVA |
|
Generators |
3x Wärtsilä 6L20 main diesel generatorsets each 1.219 kVA / 975 kW |
|
Emergency generator |
1x MAN D2866 LXE20 diesel generatorset 240 kVA |
|
Compressed air receivers |
2x Receivers each 1.800 litres - 30,0 bar 1x Receiver 500 litres - 30,0 bar 1x Receiver 2.000 litres - 10,0 bar |
|
Bow thruster |
1x 900 kW |
|
Number of cargo tanks |
3 |
|
Cargo tank capacity |
100% / 98% Tank 1: 5.515,36 / 5.405,05 m³ Tank 2: 5.611,44 / 5.499,21 m³ Tank 3: 6.004,05 / 5.883,97 m³ |
|
Number of decks tanks |
2 |
|
Deck tank capacity |
100% / 98% Tank 1: 127,65 / 125,10 m³ Tank 2: 62,29 / 61,04 m³ |
|
Total tank capacity |
100% / 98% 17.320,79 / 16.974,37 m³ |
|
Number of pumps |
6x Deepwell cargo pumps each 200 m³/h 1x Booster pimp 300 m³/h |
|
Tank capacities |
Ballast: 4.940 m³ |
|
Anchor equipment |
3x Anchors weight each 5.610 kg Chain length: 577,50 m |
|
Crew size |
20 |
|
Commercial manager |
Gaschem Services GmbH & Co., KG Am Sandtorkai 77 20457 Hamburg Germany |
|
ISM manager |
Harpaingas GmbH & Co., KG ABC-Strasse 15 20354 Hamburg Germany |
|
Registered owner |
Schifffahrtsgesellschaft "ADRIATIC" mbH & Co. KG Care of GasChem Services GmbH & Co KG Am Sandtorkai 41 20457 Hamburg Germany |
|
Latest data adjustment |
05 November 2022 |
