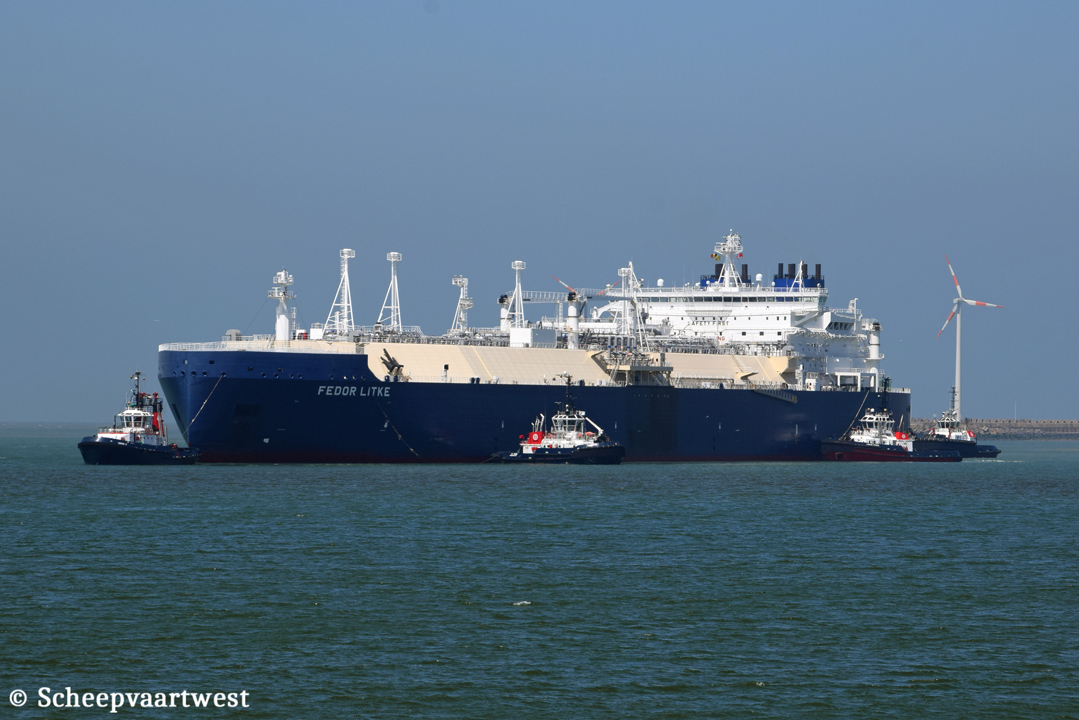

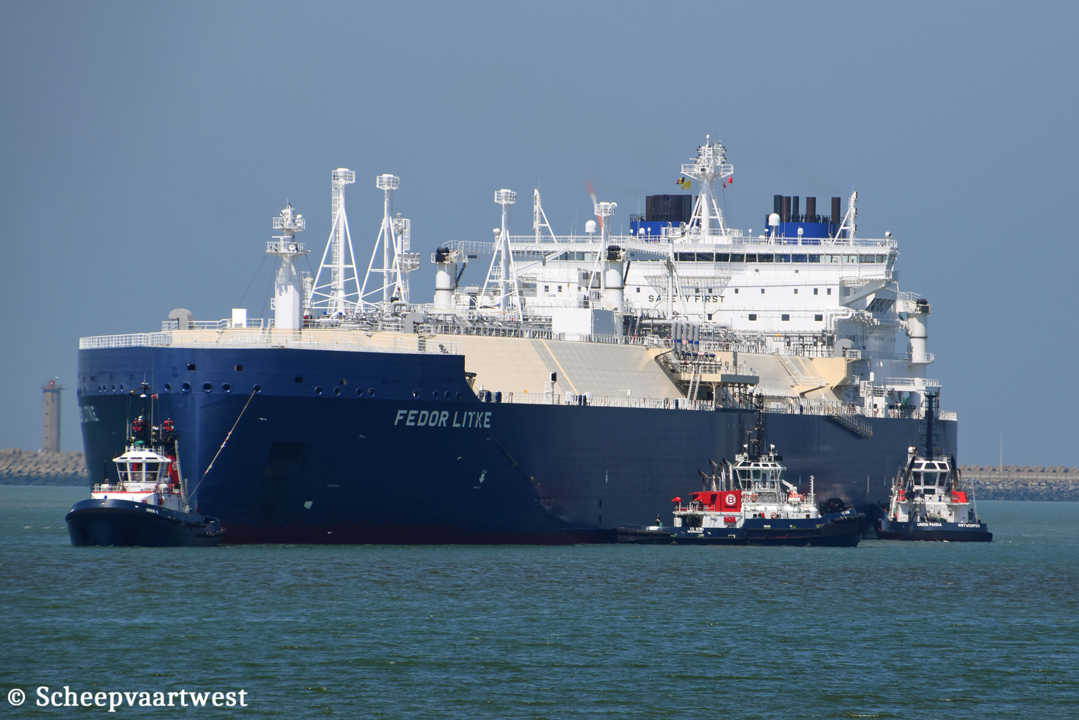

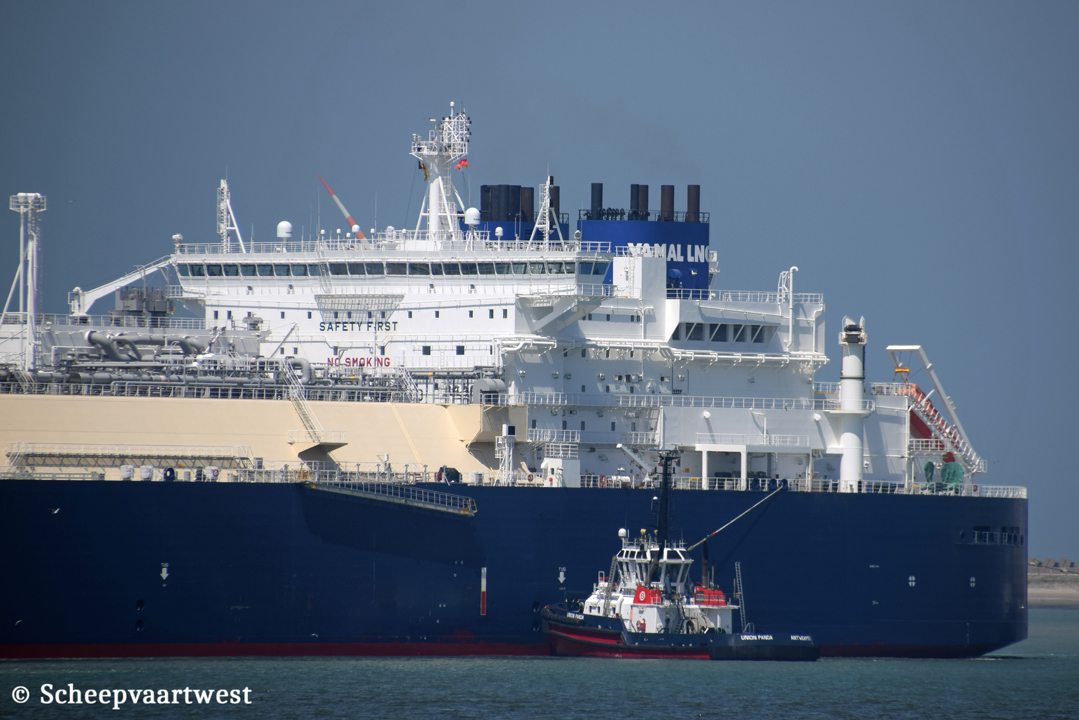

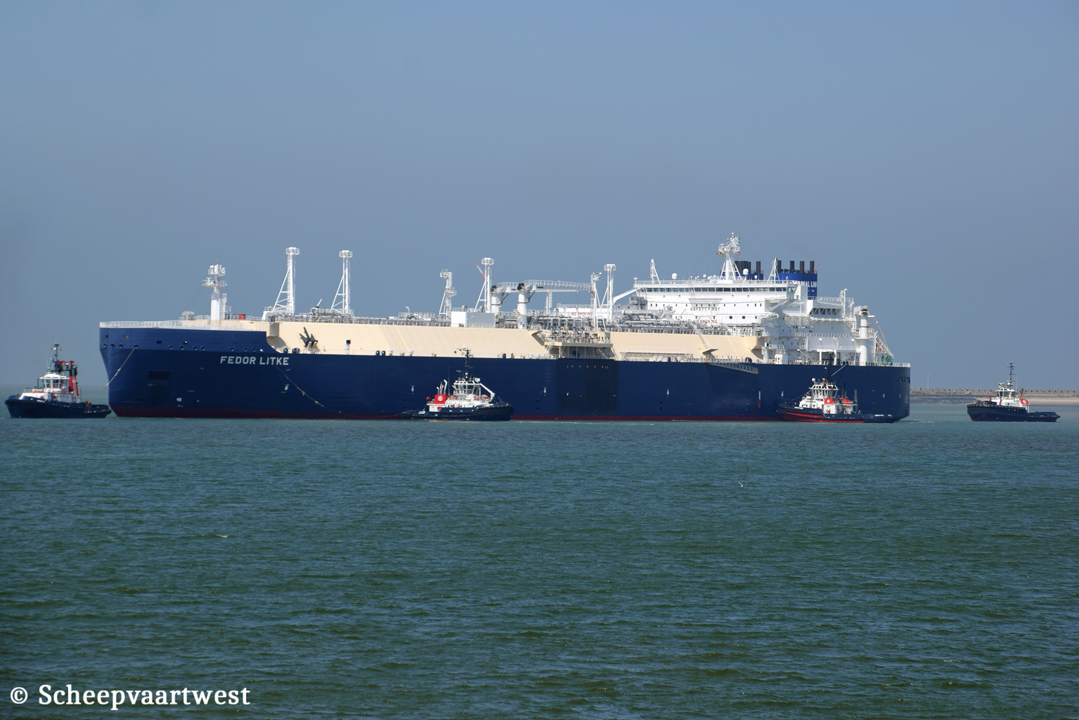

Zeebrugge 30 May 2021 |
 |
 |
 |
||
| Zeebrugge 30/05/21 | Zeebrugge 30/05/21 | Zeebrugge 30/05/21 |
|
Name |
FEDOR LITKE |
|
Type |
Liquefied natural gas tanker - LNG |
|
IMO-number |
9768370 |
|
Call sign |
5BSS4 |
|
Flag |
Cyprus |
|
Port of registry |
Limassol |
|
GT |
128.806 t |
|
DWT |
96.839 t |
|
NT |
38.641 t |
|
Displacement |
143.866 t |
|
Length |
299,00 m overall 283,10 m between perpendiculars |
|
Breadth |
50,05 m |
|
Draught |
Summer: 13,03 m |
|
Freeboard |
9.309 mm |
|
Depth |
26,50 m |
|
Speed |
Service: 19,5 knots |
|
Built |
2017 |
|
Date of completion |
09/11/2017 |
|
Builder |
Daewoo Shipbuilding And Marine Engineering Co Ltd. Geoje South Korea |
|
Yard number |
2422 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Bulkheads |
8 |
|
Continuous decks |
1 |
|
Main engine |
Diesel-Electric 4x Wärtsilä 12V50DF - 12 cylinder combustion engines 2x Wärtsilä 9L50DF - 9 cylinder combustion engines Total: 62.700 kW / 85.246 hp |
|
Propelling type |
Electrical Builder: ABB Oy Marine & Ports, Helsinki - Finland |
|
Propelling system |
3 x Electrical propulsion engine each 15.000 kW at 150 rpm / 4 blades |
|
Boilers |
4x CHR Aalborg 291,00 m² - 12.50 bar 2x CHR Aalborg 173.00 m² - 7,0 bar 2x CHF Aalborg 217,00 m² - 9.00 bar |
|
Generators |
2x Generatorsets each 10.563 kVA - 8.450 kW - 11.923 hp 4x Generatorsets each 14.063 kVA - 11.250 kW - 15.897 hp |
|
Emergency generator |
1x Diesel generatorset 1.375 kVA - 1.100 kW - 1.563 hp |
|
Number of cargo tanks |
4 |
|
Cargo tank capacity |
169.183 m³ |
|
Min temp |
-163°C |
|
Number of pumps |
8x Cargo pumps 2.050 m³ |
|
Tank capacities |
Fuel: 6.633,4 m³ Water ballast: 73.527 m³ |
|
Lifting equipment |
2x Derricks - SWL 3,0 t 4x Cranes- SWL 15,0 each 1x Crane - SWL 8,0 t 2x Cranes - SWL 2,0 t each |
|
Crew |
38 |
|
Manager |
Dynagas Athens Greece |
|
Owner |
DY Destiny Limited 13, Karaiskaki Street 3032 Limassol Cyprus |
|
Registered owner |
Hai Kuo Shipping 1602 Ltd. |
|
Latest data adjustment |
15 June 2021 |
