Westerschelde 21 February 2020 |
 |
| Westerschelde 21/02/20 |
|
Name |

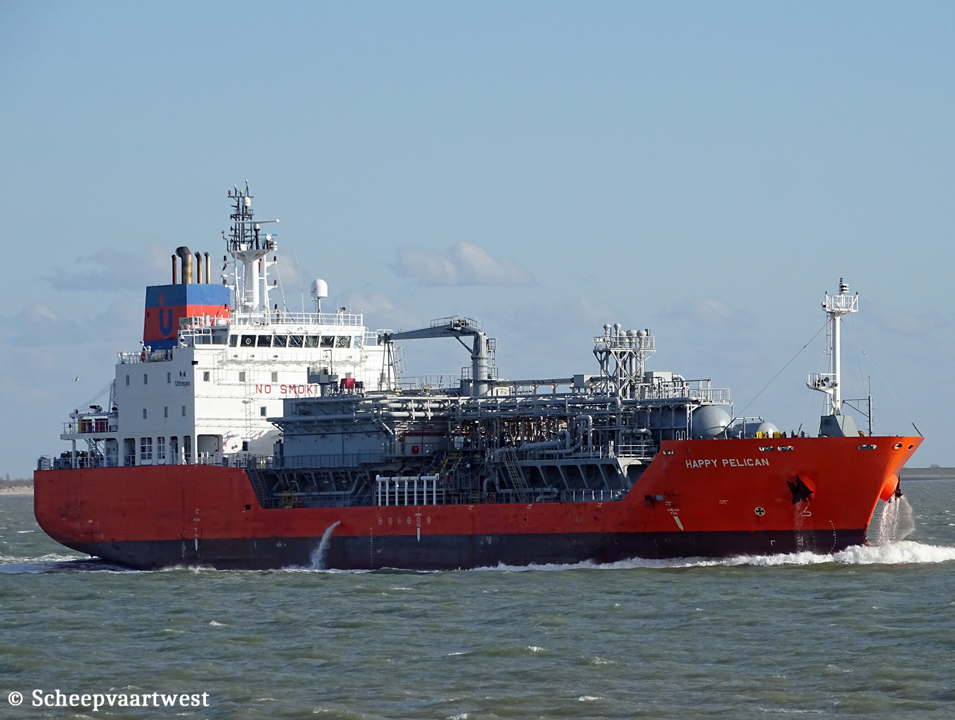

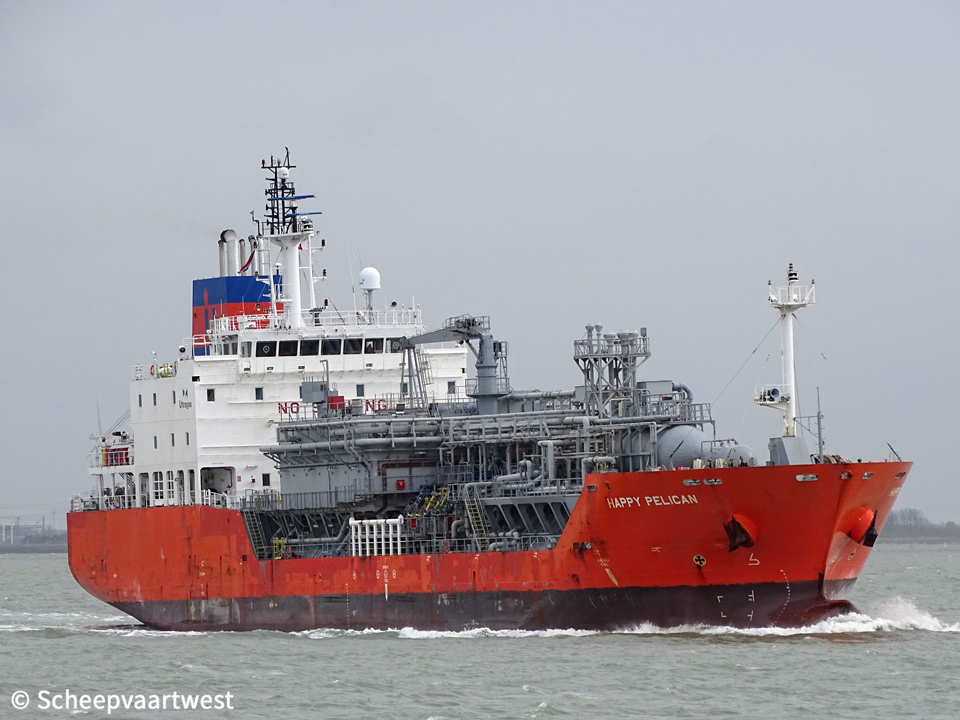

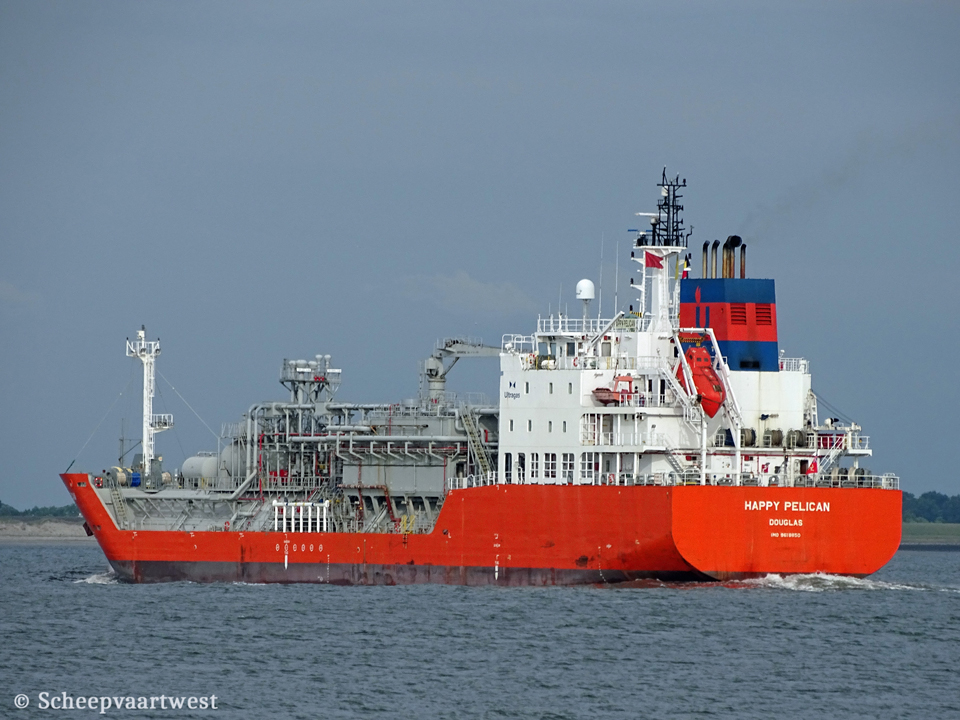

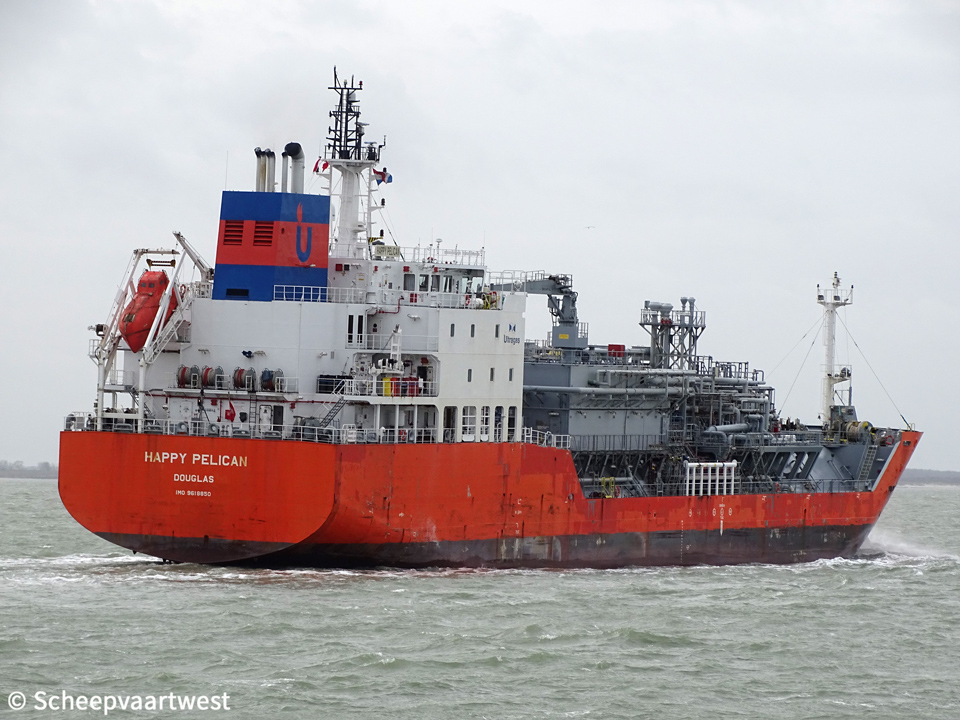

HAPPY PELICAN |
|
Type |
Liquefied gas tanker - LPG - Ethylene carrier |
|
IMO-number |
9618850 |
|
Call sign |
2FUW7 |
|
Flag |
Isle of Man - United Kingdom |
|
Port of registry |
Douglas |
|
GT |
8.009 t |
|
DWT |
8.209 t |
|
NT |
2.409 t |
|
Length |
113,00 m overall 106,00 m between perpendiculars |
|
Breadth |
19,20 m |
|
Draught |
Max: 7,46 m |
|
Speed |
Max: 15,6 knots Service: 14,9 knots |
|
Built |
2012 |
|
Launch date |
07/06/2012 |
|
Date of completion |
22/11/2012 |
|
Builder |
STX Offshore & Shipbuilding Co., Ltd. (Busan Shipyard) South Korea |
|
Yard number |
5059 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Continuous decks |
1 |
|
Main engine |
1x STX/MAN-B&W 6S35ME-B9 - 2 stroke single acting 6 cylinder 350 x 1.550 mm combustion engine 5.005 kW / 6.805 hp at 167,0 rpm |
|
Propellers |
1x Fixed pitch propeller - aft at 167,0 rpm |
|
Generators |
3x MAN-B&W 6L23/30H - 4 stroke 6 cylinder 225 x 300 mm combustion engine each 960 kW connected with generators each 900 kW |
|
Bow thruster |
1x Nakashima controllable pitch thruster 544 kW / 740 bhp, forward |
|
Number of cargo tanks |
3 |
|
Cargo tank capacity |
Tank 1: 2.792,26 m³ Tank 2: 1.994,27 m³ Tank 3: 1.993,51 m1 Total: 6.780,04 m³ |
|
Pumps |
3x Svanehoy cargo pumps each 325 m³/h |
|
Min temp |
-104°C |
|
Max pressure |
5,5 bar |
|
Lifting equipment |
1x Crane - SWL 4,0 t |
|
Crew size |
20 |
|
Previous managers |
Unigas International BV 6th Floor, Grotiushuis Westblaak 41 3012 KD Rotterdam The Netherlands |
|
Technical manager |
Ultraship ApS |
|
Operator |
Ultraship ApS |
|
Registered owner |
Zeeland Shipping Company SA |
|
Latest data adjustment |
10 June 2020 |
