Westerschelde 19 July 2016 |
|
Name |

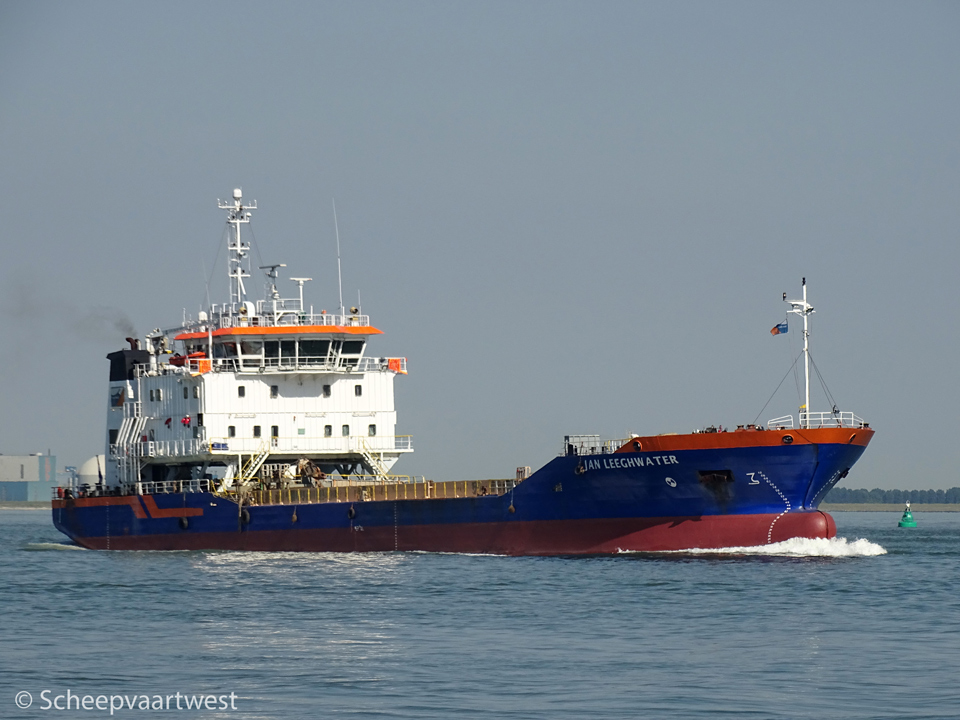

JAN LEEGHWATER |
|
Previous names |
Build as Leeghwater |
|
Type |
Split hopper barge |
|
IMO-number |
9516650 |
|
Call sign |
PBTD |
|
Flag |
The Netherlands |
|
Port of registry |
Rotterdam |
|
GT |
3.315 t |
|
DWT |
Summer: 4.650 t |
|
NT |
994 t |
|
Length |
96,10 m overall 88,50 m between perpendiculars |
|
Breadth |
18,00 m |
|
Draught |
Max: 5,10 m |
|
Freeboard |
1.763 mm |
|
Depth |
5,90 m |
|
Speed |
10,0 knots |
|
Built |
2010 |
|
Date of completion |
07/04/2010 |
|
Builder |
Dalian Liaonan Shipyard |
|
Yard number |
3010 |
|
Hull material |
Steel |
|
Watertight compartments |
31 |
|
Continuous decks |
1 |
|
Main engine |
2x CAT 3512B - 4 stroke 12 cylinder 170 x 190 mm combustion engines total 2.238 kW / 3.040 hp at 1.600 rpm Built: 2009 Manufacturer: Caterpillar Tractor Co. - USA |
|
Propellers |
2x Azimuth stern drive propellers |
|
Electric installations |
400/230 Volt |
|
Generators |
1x Main diesel generatorset 610 kVA - 488 kW - 842 hp |
|
Number of holds |
1 |
|
Hopper volume |
2.853 m³ mud |
|
Tank capacities |
Fuel: 482,7 m³ |
|
Lifting equipment |
1x Hydraulic deck crane - SWL 2,0 t @ 10,00 |
|
Manager |
Van Oord |
|
Owner |
Van Oord Overig Materieel II BV Jan Blankenweg 2 |
|
Latest data adjustment |
14 February 2019 |
