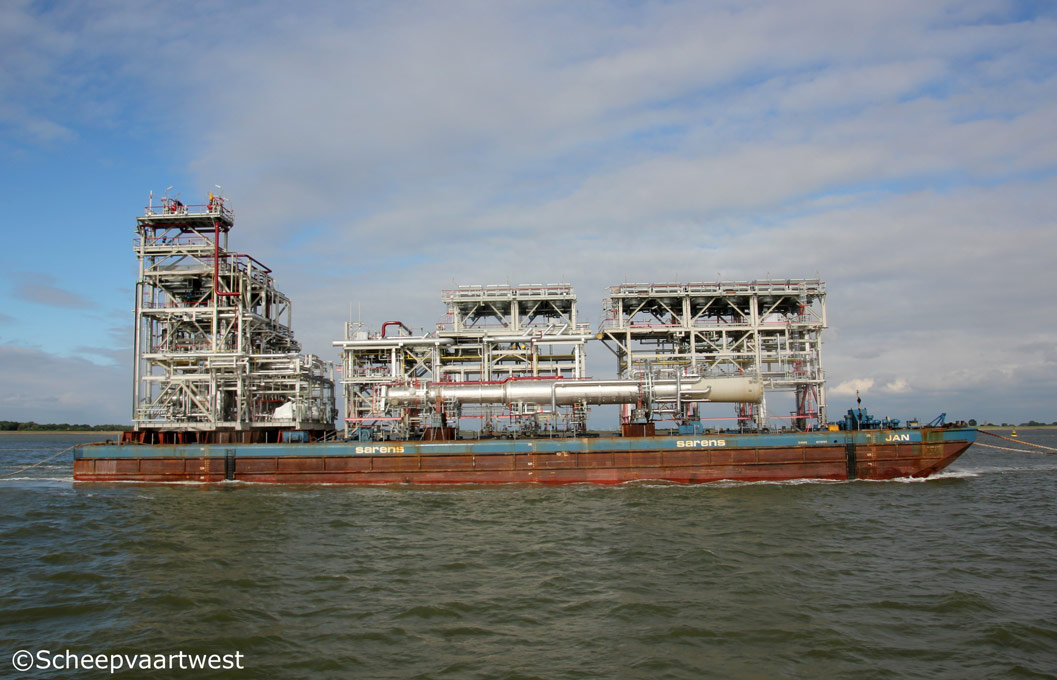

Westerschelde 07 August 2016 |
|
Name |
JAN BARGE |
|
Previous names |
2011 - 2011 Veka 3303 |
|
Type |
Barge - pontoon |
|
Flag |
Belgium |
|
Port of registry |
Gent |
|
GT |
6.745 t |
|
DWT |
16.031 t |
|
NT |
2.23 t |
|
Light ship |
2.913 t |
|
Length |
100,00 m |
|
Breadth |
33,05 m moulded |
|
Draught |
Summer: 6,09 m |
|
Freeboard |
1.568 mm |
|
Depth |
7,60 m moulded |
|
Built |
2011 |
|
Date of completion |
16.12.2011 |
|
Builder |
Nantong Tongshun Shipbuilding & Repairing Co.,Ltd. China |
|
Yard number |
NSC3303 |
|
Hull material |
Steel |
|
Propelling type |
Non-propelled |
|
Available deck space |
Length: 93,00 m Width: 33,00 m Area: 3.000 m² |
|
Principal Capacities |
Water ballast: 20.000 m³ Fuel: 12,05 m³ Oily water:10,00 m³ |
|
Tank layout |
3x Longitudinal bulkheads 5x Transverse bulkheads |
|
Deckload |
15,0 t/m² |
|
Pumps |
1x Ballast pump 1.200 m³/h |
|
Owner |
Sarens NV (Head office) Belgium |
|
Latest data adjustment |
20 October 2016 |
