Zeebrugge 24 December 2018 |
|
Name |

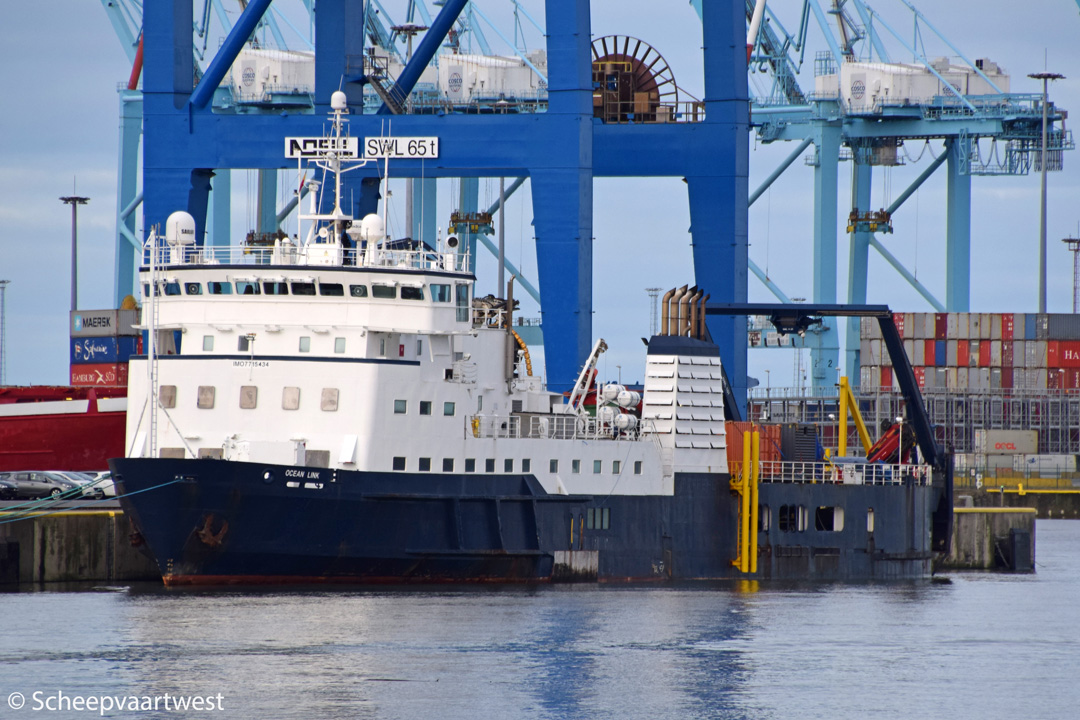

OCEAN LINK |
|
Previous names |
1978 - 03/2010 Claymore CLV Sia |
|
Type |
Handy-sized DP-2 cable laying vessel |
|
IMO-number |
7715434 |
|
Call sign |
3FSQ9 |
|
Flag |
Republic of panama |
|
Port of registry |
Panama City |
|
Previous flags |
Denmark, Klintebjerg - Call sign: OWFI2 |
|
GT |
2.525 t |
|
DWT |
1.000 t |
|
NT |
758 t |
|
Length |
77,20 m |
|
Breadth |
16,26 m |
|
Draught |
Summer: 2,80 m |
|
Air draft |
21,40 m |
|
Speed |
12,5 knots |
|
Built |
1978 |
|
Builder |
Robb Caledon |
|
Hull material |
Steel |
|
Main engine |
2x Combustion engine each 1.250 kW |
|
Generators |
2x Diesel generatorsets each 600 KW 2x Diesel generatorsets each 1.100 KW |
|
Thrusters |
4x Fixed pitch propellers each 200 KW, forward 1x Controllable pitch propeller 400 kW, forward 4x Fixed pitch propellers each 200 KW, aft |
|
Deck space |
500 m³ |
|
Deck store |
3 TEU |
|
Deck equipment |
Turntables: 3 turntables total 565 t A-frame: 15 t Winch SWL 11,5 t |
|
Tank capacities |
Fuel oil: 235 t Fresh water: 167 t |
|
Lifting equipment |
2x Deck cranes: Working radius min 3,50 m Working radius max 20,00 m Working height max 19,00 m Lifting capacity 70 t |
|
Crew |
18 |
|
Accommodation |
Cabins: 40 single, 5 double,a total of 45 cabins,50 persons incl. Crew TV & internet TV lounge, internet in all cabins and public areas For client reps 2 cabins equipped with desk Amenities Internet, own bath and toilet |
|
Manager |
NT Offshore Aps |
|
Registered owner |
M-Tech Offshore A/S |
|
Latest data adjustment |
20 January 2019 |
