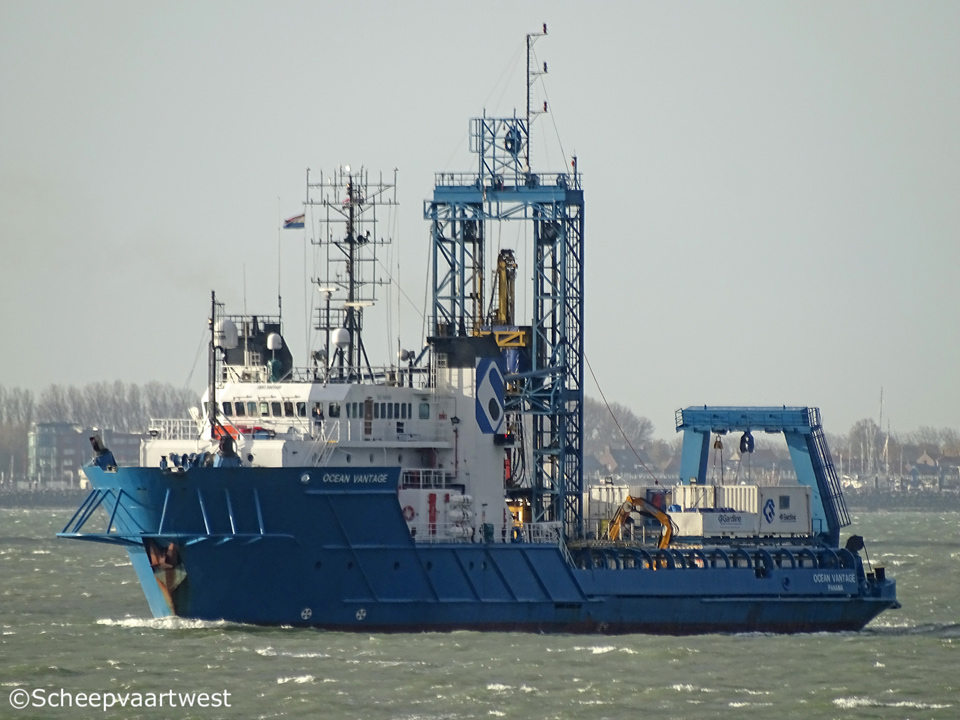

Ocean Vantage 02

Westerschelde 18 November 2017

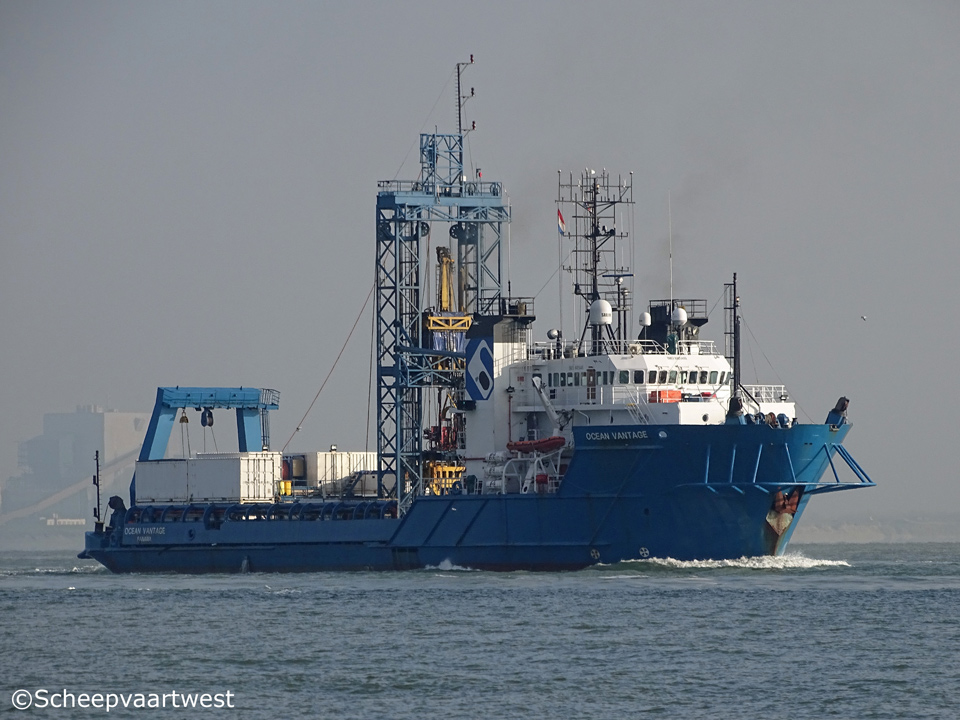

Ocean Vantage 01
Westerschelde 01/12/17


Name

OCEAN VANTAGE

Previous names

1985 - 08/2001 Shelf Supporter

08/2001 - 06/2012 Lady Christine

06/2012 - 06/2014 Geoasia

06/2014 - 2016 Geoaltus

Type

Offshore supply vessel - Geotechnical vessel

IMO-number

8405440

Call sign

HP6188

Flag

Republic of Panama

Port of registry

Panama City

Previous flags

Norway

Malaysia, Labuan - Call sign: 9WNB6

GT

2.182 t

DWT

Summer: 2.353 t

Length

68,00 m overall

60,00 m between perpendiculars

Breadth

16,80 m

Draft

6,00 m

Freeboard

1.458 mm

Depth

5,86 m

Speed

Max: 12,0 knots

Cruising: 8,0 knots

Built

1985

Year of conversion: 2016

Keel laid

22/06/1984

Launch date

01/06/1985

Date of completion

05/08/2985

Builder

Bae Systems Australia Jervoise Bay
Fremantle
Australia

Hull material

Steel

Watertight compartments

8

Continuous decks

1

Main engines

4x Niigata Diesel each 1.220 kW / 1.636 bhp

Electrical propulsion engine

2x Niigata-Liaan each 1.200 kW at 900 rpm

Total power

4.880 kW / 6.544 bhp

Propelling type

Electrical

Builder: Niigata Pielstick

Propelling system

2x Azimuth thruster controllable pitch - at 243 rpm

Bow thruster

2x Tunnel 910 bhp each

Drilling System

Derrick: 20m

Draw works: Hagglunds

Top drive: Dando MK 1000

Heave compensation: 3m stroke (typical Hs of 1.5-2m)

Mud pump: AXG Duplex Power Pump

Mud tanks: 2x 4.000 litres, 1x 6.000 litres

Drill string: 5” API with 4” ID

Seabed frame: 19,5 tonnes

Automated pipe handling

Measurement of drill parameters: Jean Lutz

Digital Recording

Deck area

A-frame: 15 tonnes capacity

Crane: TMC-BS 300M4

4 point mooring system: 4t Delta Flippers

Moonpool

3,60 x 3,60 m

Tank capacities

Fuel oil: 697 m³

Fresh water: 636 m³

Accommodation

Berths: 33

Navigation equipment

Primary system: C&C C-Nav

Secondary system: Furuno GP150

Tertiary system: Furuno GP150

Gyrocompass:
1x SG Brown

2x Anschutz STD 22

Communication

Emergency GMDSS radio: 3 x ICOM IC-GM1600

Navtex receiver: JRC NCR333

Sat-C: Sailor 6110 x2

MF/HF DSC: Sailor 6301

VHF ICOM: Sailor 6222 x2

Telephone system: DVB V-SAT

Satellite communications: Ku Band VSAT Fleet 500 Iridium

Owner

Gardline Shipping Ltd.
Endeavour House, Admiralty Road
Great Yarmouth

Norfolk NR30 3NG
United Kingdom

Latest data adjustment

23 April 2018
