Westerschelde 12 July 2017 |
|
Name |

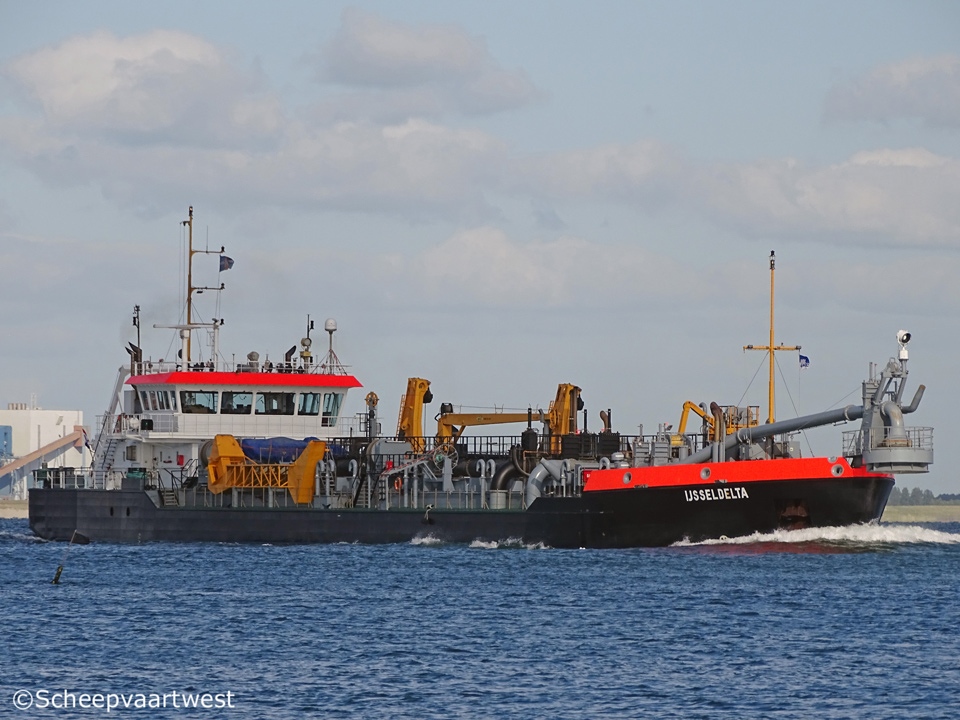

IJSSELDELTA |
|
Type |
Trailing suction hopper dredger |
|
IMO-number |
7737690 |
|
Call sign |
PIUN |
|
Flag |
The Netherlands |
|
Port of registry |
Zwolle |
|
GT |
3.080 t |
|
DWT |
4.469 t |
|
NT |
930 t |
|
Length |
99,43 m overall 87,20 m between perpendiculars |
|
Breadth |
15,07 m |
|
Draught |
5,23 m |
|
Freeboard |
2.365 mm |
|
Depth |
7,88 m |
|
Speed |
12,0 knots empty 10,0 knots loaded |
|
Built |
1978 Rebuild: 2015 |
|
Date of completion |
15/06/1978 |
|
Builder |
De Kaap BV The Netherlands |
|
Yard number |
0184 |
|
Hull material |
Steel |
|
Continuous decks |
1 |
|
Main engine |
2x Mitsubishi - 2 stroke 6 cylinder combustion engines total 2.014 kW / 2.736 hp at 1.060 rpm |
|
Propellers |
2x Screw propeller solid - aft at 309 rpm |
|
Electric installations |
Power voltage: 380 V Lighting voltage: 220 V Frequency: 50 Hz |
|
Shaft generator |
1x 400 kVA - 320 kW |
|
Generators |
1x Main diesel generatorset 62 kVA - 50 kW - 132 hp 1x Main diesel generatorset 228 kVA - 182 kW - 455 hp |
|
Emergency generator |
1x Diesel generatorset 22 kVA - 18 kW |
|
Number of holds |
1 |
|
Hopper capacity |
3.518 m³ |
|
Suction pipe |
1x 800 mm |
|
Dredging depth |
34,00 m |
|
Tank capacities |
Fuel: 33,0 m³ |
|
Accommodation |
13 persons |
|
Manager |
Van Der Kamp International Dredging BV Beukenallee 1 |
|
Owner |
Van Der Kamp International Dredging BV Beukenallee 1 |
|
Latest data adjustment |
16 May 2018 |
