Malaga, Spain 17 November 2018 |
|
Name |

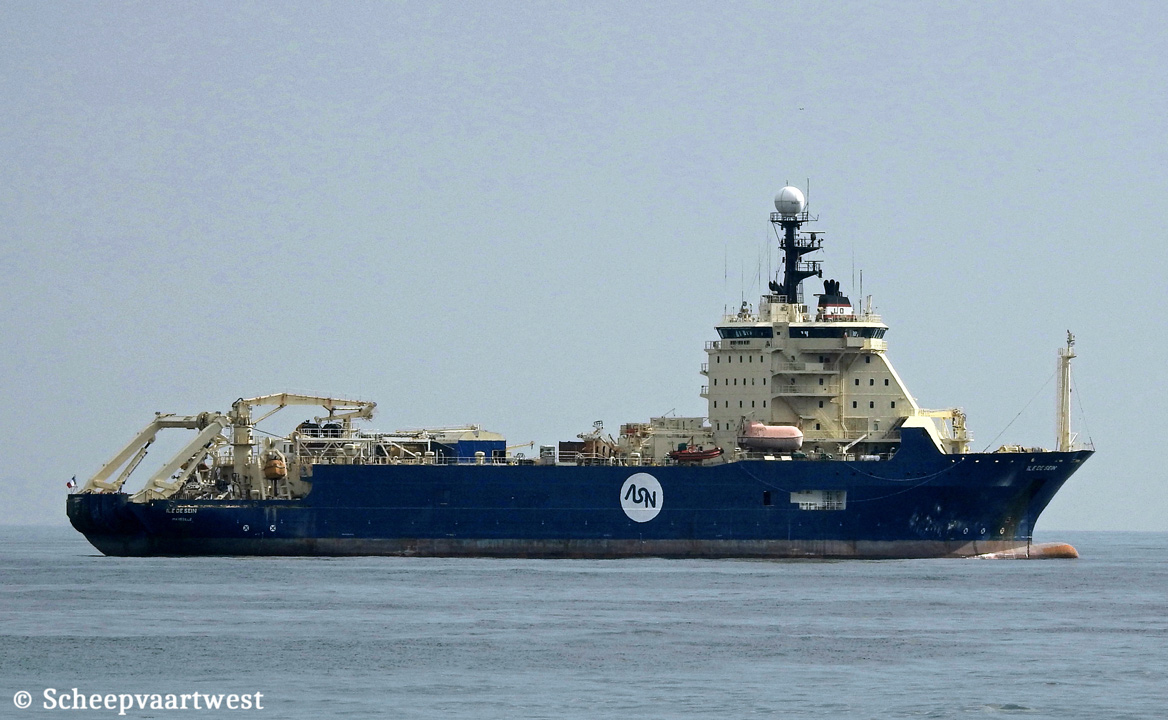

ILE DE SEIN |
|
Type |
Cable layer |
|
IMO-number |
9247039 |
|
Call sign |
FOUD |
|
Flag |
France |
|
Port of registry |
Marseille |
|
Previous flags |
2001-2007 French Southern territories |
|
GT |
13.978 t |
|
DWT |
Summer: 9.820 t |
|
NT |
4.193 t |
|
Length |
140,36 m overall 124,25 m between perpendiculars |
|
Breadth |
23,40 m |
|
Draught |
Summer: 8,00 m |
|
Freeboard |
4.014 mm |
|
Depth |
12,00 m |
|
Speed |
Max: 15,4 knots |
|
Built |
2002 |
|
Date of completion |
31/01/2002 |
|
Builder |
Hyundai Mipo Dockyard Co., Ltd. Ulsan South Korea |
|
Yard number |
0001 |
|
Hull material |
Steel |
|
Continuous decks |
1 |
|
Main engine |
Diesel-electric: 4x MaK 9M32 / Alstom - 4 stroke 9 cylinder 320 x 480 mm combustion engines with a combined output of 8.000 kW / 10.870 bhp at 600 rpm Builder: Alstom Moteurs, Nancy - France |
|
Propellers |
2x Screw propeller solid - aft at 150 rpm |
|
Generators |
1x Main diesel generatorsets 1.600 kVA - 1.280 kW - 1.848 hp |
|
Emergency generator |
1x Diesel generatorset 219 kVA - 175 kW - 255 hp |
|
ISM manager |
Louis-Dreyfus Armateurs SASU 21, Quai Gallieni Suresnes, 92158 France |
|
Operator |
Alcatel Submarine Networks Marine SASU Nozay France |
|
Registered owner |
Alda Marine SAS 28, Quai Gallieni Suresnes, 92158 France |
|
Previous owners |
2001 - 2007 Copropriete du Navire Ile de Sein |
|
Latest data adjustment |
25 January 2021 |
