Zeebrugge 15 May 2018 |
|
Name |

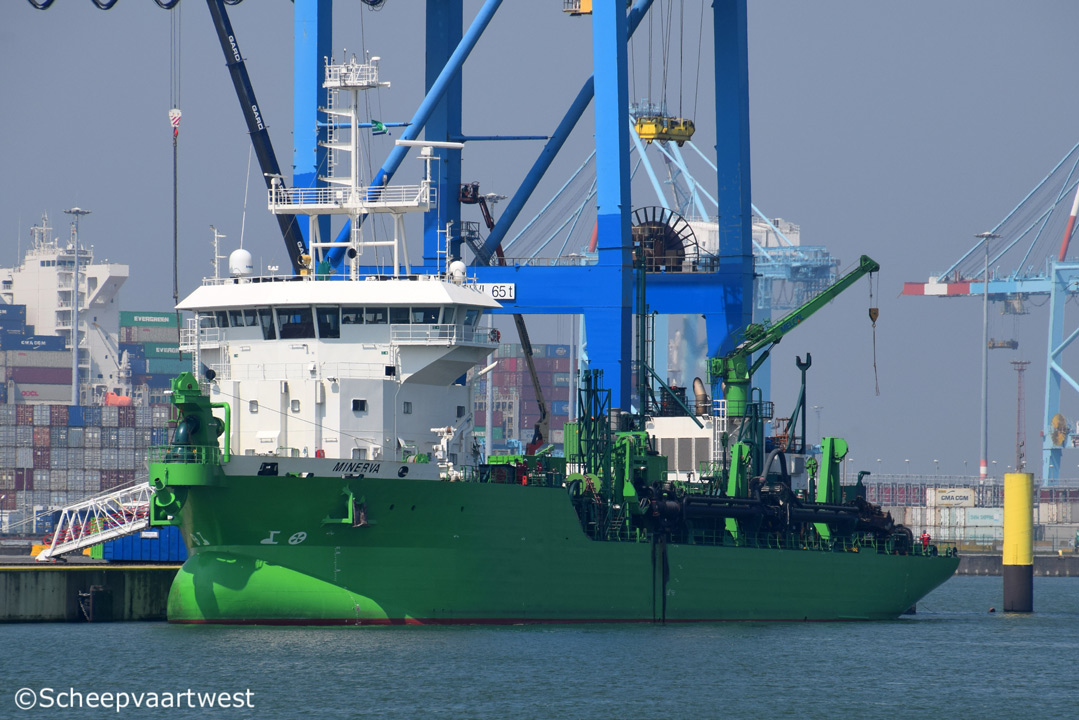

MINERVA |
|
Type |
Trailing suction hopper dredger |
|
IMO-number |
9778155 |
|
Call sign |
ORSC |
|
Flag |
Belgium |
|
Port of registry |
Zeebrugge |
|
GT |
3.787 t |
|
DWT |
2.778 t |
|
NT |
1.185 t |
|
Length |
86,30 m overall 79,90 m between perpendiculars |
|
Breadth |
18,00 m overall |
|
Draught |
5,80 m loaded |
|
Freeboard |
2.910 mm |
|
Depth |
7,20 m moulded |
|
Speed |
12,0 knots |
|
Built |
2017 Transformation year: 2018 |
|
Launch date |
03/12/2016 |
|
Date of completion |
17/08/2017 |
|
Builder |
IHC Holland BV Kinderdijk |
|
Yard number |
CO 1283 |
|
Hull material |
Steel |
|
Continuous decks |
1 |
|
Main engine |
2x ABC type 16VDZD - 4 stroke 16 cylinder 256 x 310 mm combustion engines each 2.400 kW at 900 rpm Total: 4.800 kW / 6.522 hp Dual fuel engine fuel oil & LNG Builder: Anglo Belgian Corporation NV.; Gent - Belgium |
|
Propellers |
2x Controllable pitch propellers |
|
Total power |
5.544 kW |
|
Shaft generator |
1x 1.500 kVA - 1.200 kW |
|
Generators |
1x Main diesel generatorset 515 kVA - 412 kW - 679 hp |
|
Emergency generator |
1x Diesel generatorset 188 kVA - 150 kW - 360 hp |
|
Number of holds |
1 |
|
Hopper capacity |
3.515,89 m³up to maximum overflow |
|
Suction pipes |
1x 800 mm suction pipe 1x 750 mm discharge pipe |
|
Dredging depth |
30,00 m |
|
Tank capacities |
Fuel: 527,12 m³ |
|
Crew size |
20 |
|
Manager |
DEME - Dredging Environmental and Marine Engineering N.V. |
|
Owner |
Dredging International N.V. |
|
Group |
DEME 2070 Zwijndrecht Belgium |
|
Latest data adjustment |
16 June 2018 |
