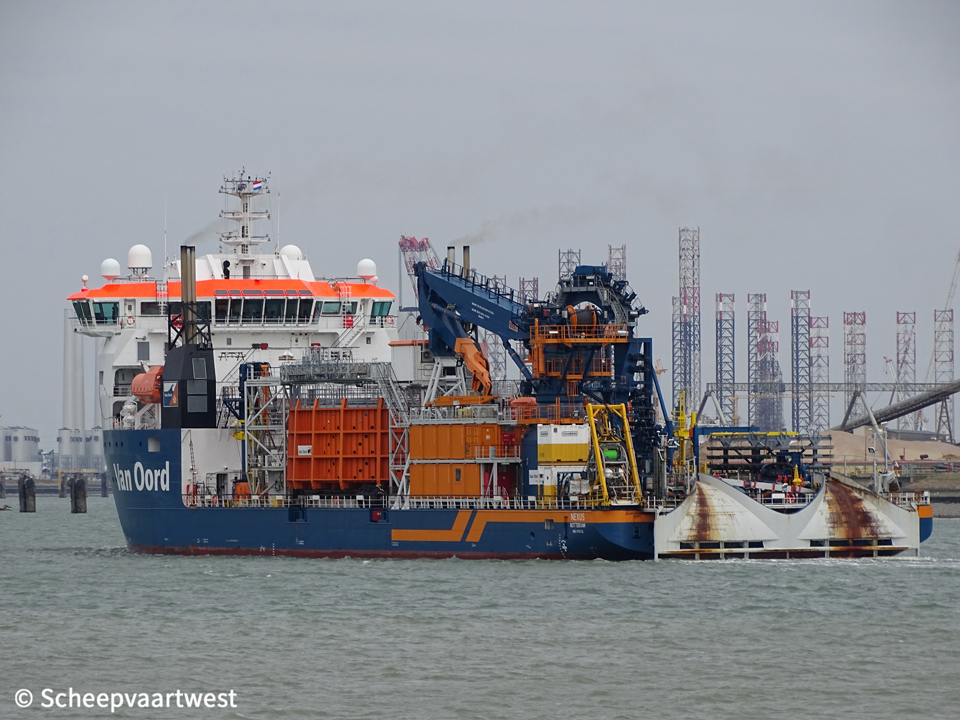

Westerschelde 02 April 2020 |
 |
 |
 |
 |
 |
 |
|||||

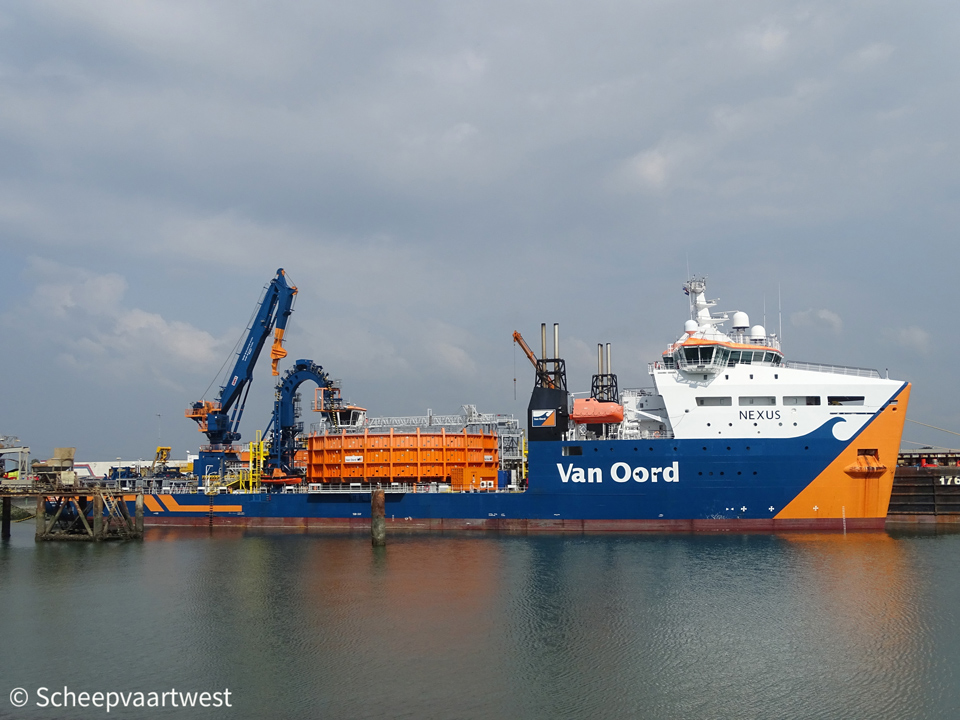

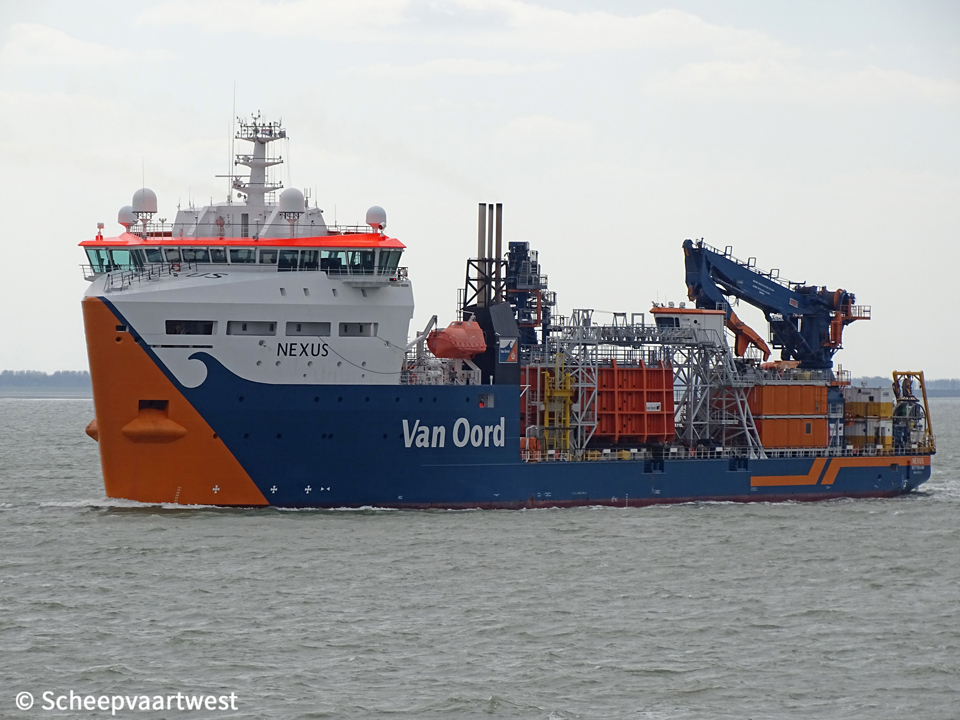

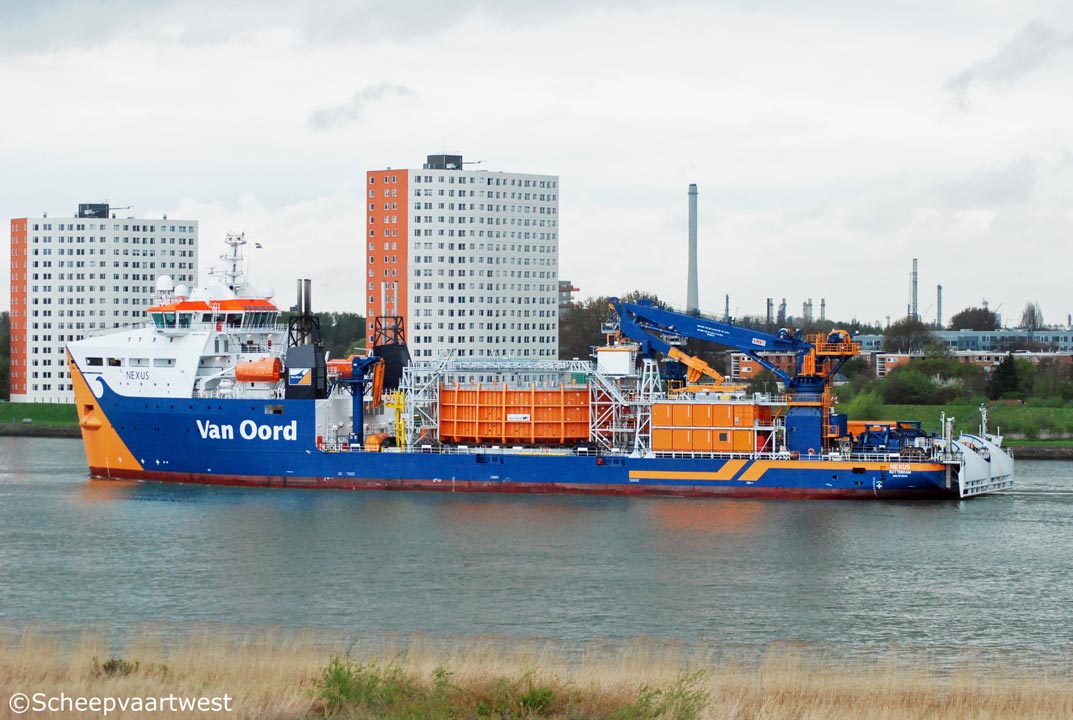

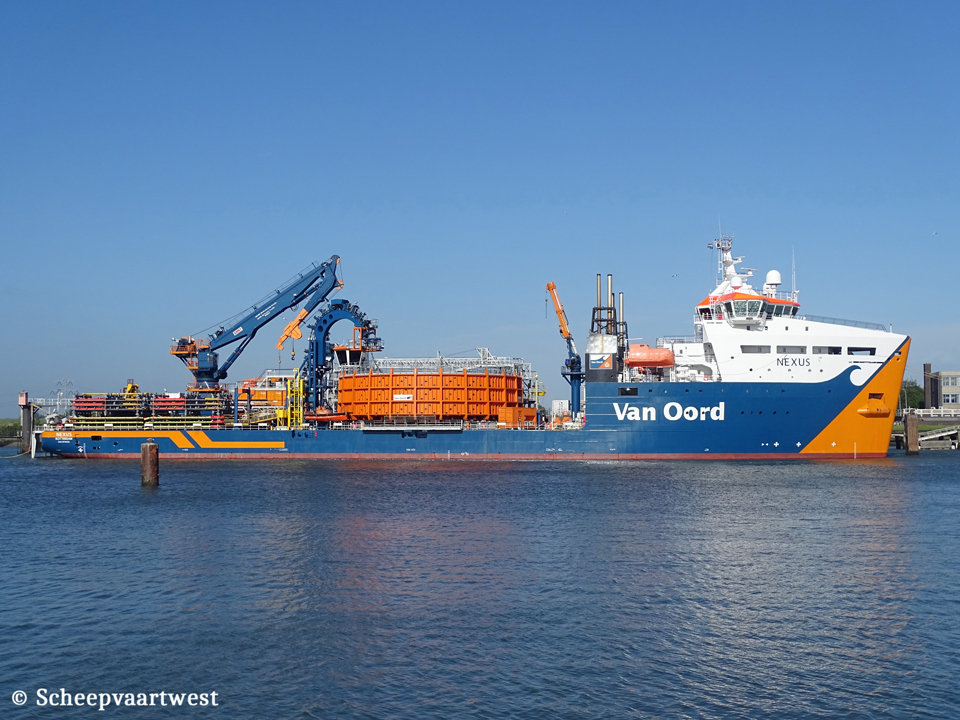

| Westerschelde 02/04/20 | Spijkenisse 28/01/17 | Spijkenisse 15/04/17 | Spijkenisse 28/01/17 | Vlissingen 21/08/18 | Vlissingen 23/05/20 | |||||
|
Name |
NEXUS |
|
Type |
Cable layer |
|
IMO-number |
9715505 |
|
Call sign |
PCHR |
|
Flag |
The Netherlands |
|
Port of registry |
Rotterdam |
|
GT |
9.675 t |
|
DWT |
8.398 t |
|
NT |
2.902 t |
|
Length |
122,68 m overall 112,44 m between perpendiculars |
|
Breadth |
27,49 m extreme |
|
Draught |
5,83 m |
|
Depth |
9,00 m |
|
Speed |
12,4 knots |
|
Built |
2014 |
|
Keel laid |
12/12/2013 |
|
Launch date |
30/06/2014 |
|
Date of completion |
22/12/2014 |
|
Builder casco |
Santierul Naval Damen Galati SA Romania |
|
Yard number |
553014 |
|
Hull material |
Steel |
|
Main generator engines |
Diesel-electric 2x Mak 6M25 diesel generatorsets each 2.200 kW 2x Mak 8M25 diesel generatorset each 2.666 kW Builder: Caterpillar Motoren GmbH & Co. KG |
|
Aux. generator engine |
1x 1.432 kW |
|
Propulsion |
4.200 kW |
|
Total power installed |
10.948 kW |
|
Bow thruster |
2x 1.000 kW (tunnel) 1x 1.000 kW (retractable) |
|
Cable carousel |
5.000 t |
|
Tank capacities |
Fuel oil: 1.678 m³ Fresh water: 187 m³ Ballast: 12.872,2 m³ |
|
Anchor equipment |
Length: 577,50 m Diameter: 58 mm |
|
Main crane |
Main hoist 100 t / 15,00 m Auxiliary hoist 10 t / 34,00 m |
|
Auxiliary crane |
14 t / 9,00 m (3,7 t / 24,00 m) |
|
Accommodation |
90 persons |
|
Manager |
Van Oord Ship Management B.V. Graanweg 28 4782 PP Moerdijk The Netherlands |
|
Contact |
Van Oord Schaardijk 211 3009 AN Rotterdam The Netherlands |
|
Registered owner |
Van Oord Overig Materieel I B.V. Care of Van Oord NV Schaardijk 211 3063 NH Rotterdam The Netherlands |
|
Latest data adjustment |
11 January 2022 |
