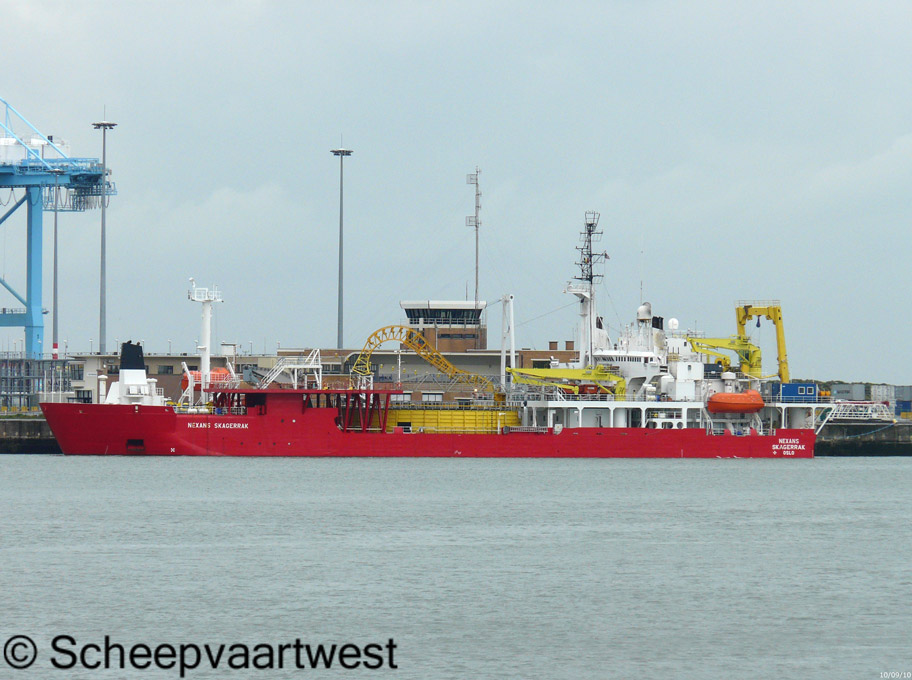

Nexans Skagerrak 03
Zeebrugge 10 September 2010


Name

NEXANS SKAGERRAK

Previous names

1976 - 2000 Skagerrak

2000 - 2003 Havila Skagerrak

2003 - 2006 Bourbon Skagerrak

Type

Cable and pipe layers

IMO-number

7619458

Call sign

LCEK

Flag

Norway

Port of registry

Oslo

GT

10.147 t registered

DWT

7.150 t

NT

3.045 t registered

Length

99,75 m overall

93,35 m between perpendiculars

Breadth

35,41 m overall

32,15 m registered

Draught

Summer: 5,1418 m

Depth

8,00 m

Speed

10,0 knots

Built

1976

Keel laid

01.07.1974

Launch date

01.12.1975

Date of completion

01.04.1976

Builder

Ogrey Mekaniske Verksted
Sogne
Norway

Yard number

1/76

Hull material

Steel

Hull type

Single hull

Bulkheads

Trans. bulkheads: 5

Long. bulkheads: 2

Main engine

3x Bergen diesel engine 1.906 kW / 2.590 bhp

Manufacture: Rolls-Royce Marine AS
N- 6067 Ulsteinvik
Norway

Main generators

4x Deutz BF 16 M 716 diesel generatorsets

Hatchways

Turn table Hatches with dimension diameter 30,05 m

Ballast capacity

5,060 m³

Cable capacity

7.000 t

Lifting equipment

1x Crane - SWL 10,0 t

2x Cranes - SWL 3,0 t

1x Crane - SWL 40,0 t

2x Cranes - SWL 20,0 t

Crew

36

Manager

Wilhelmsen Ship Management (Norway) AS
Strandveien 20
1324 Lysaker
Norway

Previous managers

1976 - 2000 Eltel Services AS
343, Alnabru
0614 Ooslo
Norway

2000 - 2007 Bourbon Offshore Norway AS
Mjolstadneset
6092 Fosnavåg
Norway

Owner

Nexans Skagerrak AS
Innspurten 9
0663 Oslo
Norway

Previous owners

1976 - 2000 Statnett Transport AS
Jacob Brochs gt.6
3012 Drammen
Norway

2000 - 2006 Bourbon Cable AS
Mjølstadneset
6099 Fosnavåg
Norway

2006 - 2009 Nexans Norway AS
Innspurten 9
0663 Oslo
Norway
