Westerschelde 17 June 2012 |
 |
 |
|
| Westerscheldec17/06/12 | Rotterdam 12/08/20 | |
|
Name |

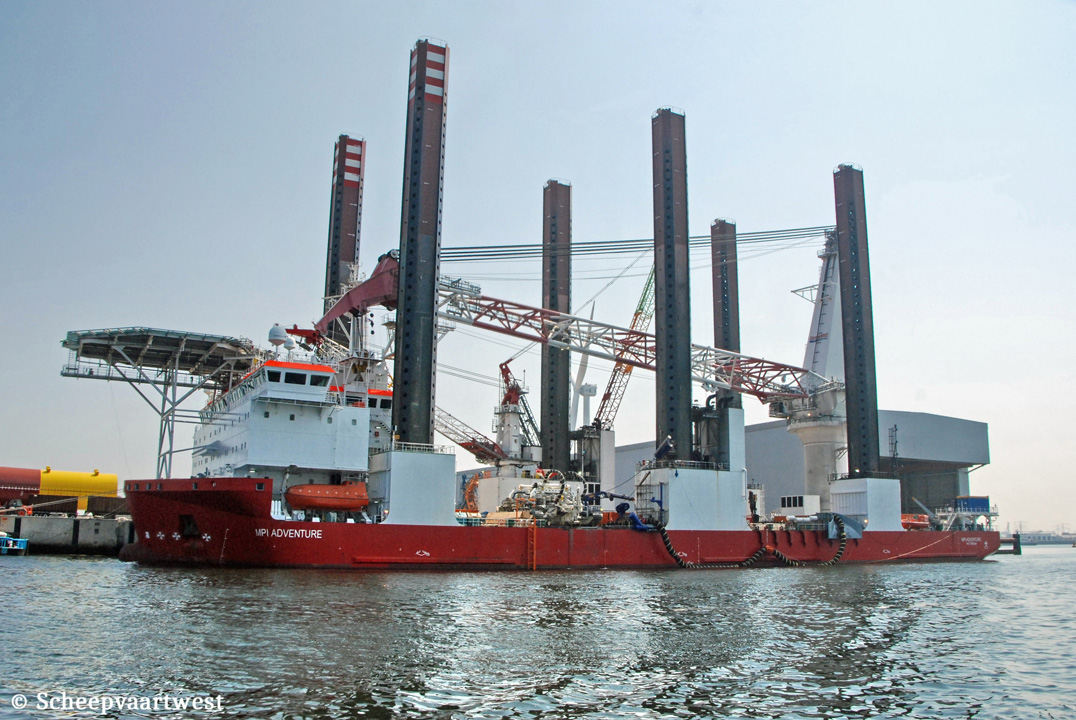

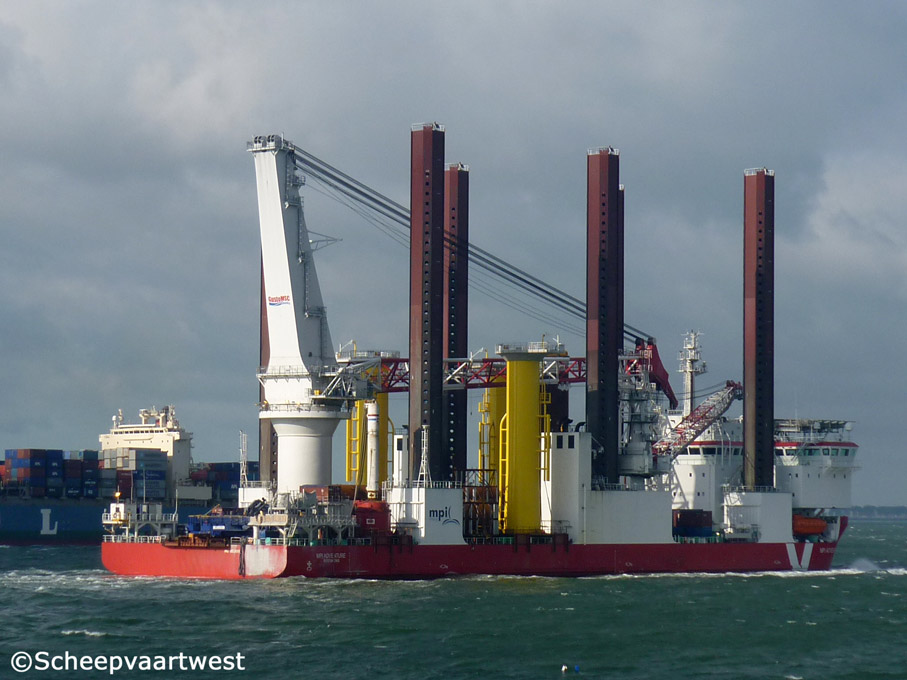

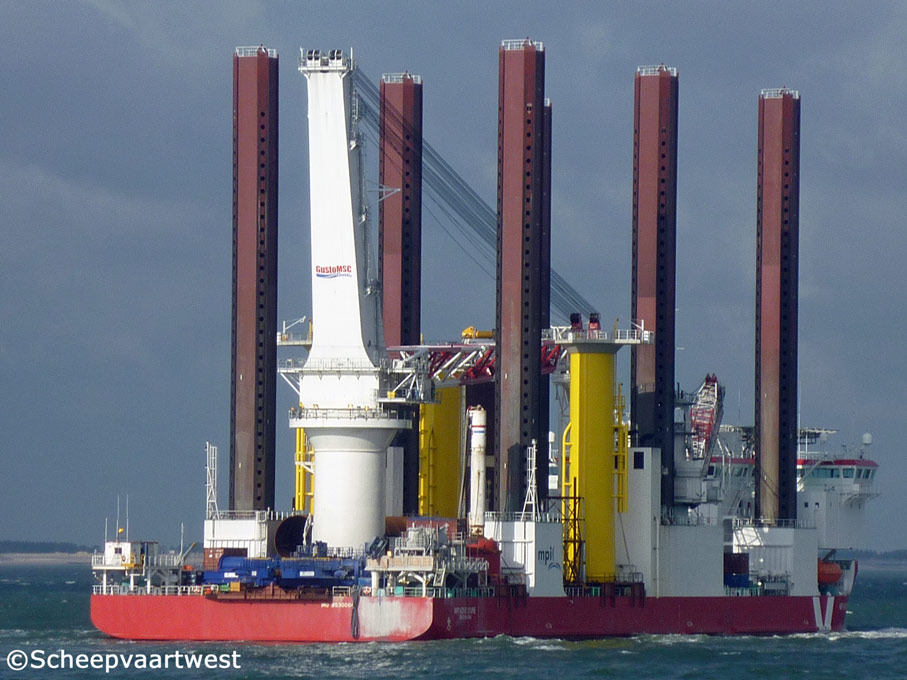

MPI ADVENTURE |
|
Type |
Construction maintenance vessels - Platform vessel - Self-elevating unit - Wind turbine installation and operation - Crane operation |
|
IMO-number |
9530084 |
|
Call sign |
PCKV |
|
Flag |
The Netherlands |
|
Port of registry |
Breskens |
|
Previous flags |
2011 - 2011 Cyprus |
|
GT |
19.533 t |
|
DWT |
Summer: 20.739 t |
|
NT |
5.960 t |
|
Light ship |
13.830 t 17.686 t with legs |
|
Length |
138,55 m overall 132,54 m between perpendiculars |
|
Breadth |
40,83 m extreme |
|
Draught |
5,45 m 4,09 m minimum operational depth |
|
Air draft |
67,04 m with 73,56 m legs (extreme height) @ 5,80 m draft |
|
Freeboard |
4.266 mm |
|
Depth |
10,00 m moulded |
|
Speed |
12,5 knots |
|
Built |
2011 |
|
Keel laid |
15/11/2009 |
|
Launch date |
21/03/2011 |
|
Date of completion |
24/10/2011 |
|
Builder |
Cosco Nantong Shipyard Co., Ltd. Nantong China |
|
Yard number |
N270 |
|
Hull material |
Steel |
|
Propulsion |
9.750 kW / 13.256 hp |
|
Generators |
6x Bergen C25:33L-8P - 4 stroke single acting 9 cylinder 250 x 330 diesel engines each 2.320 kW / 3.154 hp at 1.000 rpm Total: 13.920 kW / 18.924 hp Builder: Bergen Engines AS |
|
Emergency generator |
1x Caterpillar 3508B diesel generatorset Builder: Caterpillar Inc. |
|
Bow thrusters |
3x Tunnel thruster 1.500 kW / 2.038 bhp, forward |
|
Cargo area |
Max.: 3.600 m² |
|
Deck loading |
Max.: 10,0 t/m² |
|
Jackup system |
Legs: 6 Length: 72,84 from keel - 73,56 extreme height Lifting speed: 1,00 m/min |
|
Tank capacities |
Ballast: 11.940 m³ |
|
Anchor equipment |
Length: 357,50 m Diameter: 76 mm |
|
Lifting equipment |
1x Palfinger crane - SWL 747 kg at 20,00 m |
|
Cargo gear |
Main Hoist: Gusto MSC GCC-100-HH - 1.000 t @ 25,00m radius Aux Hoist: 160 t @ 70,00 m fixed to fixed Auxiliary crane: Liebherr MTC 2600-50 - 50 t @ 26,00 m radius |
|
Accommodation |
112 berths Double cabins: 50 Single cabins: 12 Client Offices, Conference Room, Recreation/Reading Rooms, Coffee Shop, Galley, Mess, Gymnasium, Sauna, Laundry/Drying Room, M/F Changing Rooms |
|
Other facilities |
Five Offices, Hospital, Conference Room, Coffee Shop ,Male and Female Locker Rooms/Wc's, Galley & Stores, Laundry, Mess Room, Gymnasium, Sauna, Utilities for 200 max POB |
|
Manager |
Van Oord Ship Management B.V. Schaardijk 21 13063 Rotterdam The Netherlands |
|
Previous manager |
MPI Offshore Ltd. Breskens The Netherlands |
|
Previous operator |
Vroon B.V. Haven Westzijde 21 4511 AR Breskens The Netherlands |
|
Owner |
Van Oord Installatie Materieel I B.V. The Netherlands |
|
Previous owners |
2011 - 2011 MPI Offshore Ltd. 2011 - 2018 Adventure Shipping B.V. |
|
Latest data adjustment |
09 February 2021 |
