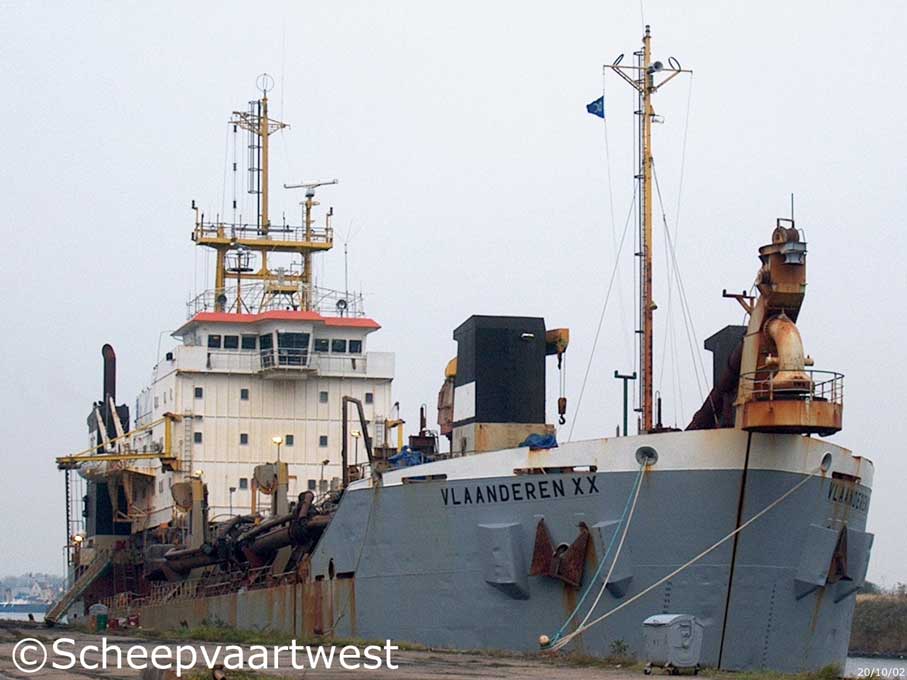

| Zeebrugge 20 October 2002 |
 |

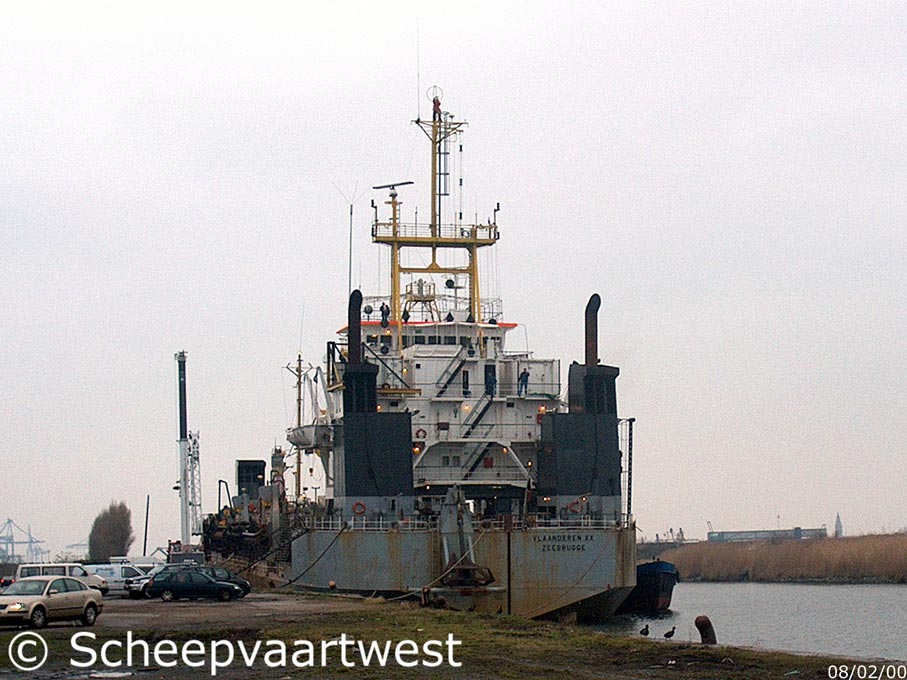

| Zeebrugge 02/02/00 |
|
Name |
VLAANDEREN XX |
|
Previous names |
1982 - 1992 DOS II |
|
Type |
Trailing suction spilt hopper dredger |
|
IMO-number |
8106977 |
|
Call sign |
J8B3816 |
|
Previous call sign |
ORTO |
|
Flag |
Saint Vincent & Grenadines |
|
Previous flag |
Belgium |
|
Port of registry |
Kingstown |
|
Previous port of registry |
Zeebrugge |
|
GT |
5.934 t |
|
DWT |
7.160 t |
|
NT |
1.780 t |
|
Length |
106,45 m overall |
|
Breadth |
21,50 m overall |
|
Draught |
5,85 m |
|
Freeboard |
1.766 mm |
|
Depth |
7,56 m moulded |
|
Speed |
14,4 knots |
|
Built |
1982 |
|
Launch date |
25.01.1982 |
|
Date of completion |
06.1982 |
|
Builder |
IHC Holland |
|
Yard number |
1149 |
|
Hull material |
Steel |
|
Watertight compartments |
20 |
|
Continuous decks |
1 |
|
Main engine |
2x Deutz - 4 stroke 12 cylinder 370 x 400 mm internal combustion engine - 9.716 kW / 13.200 hp at 600 rpm |
|
Electrical propulsion gen. |
2x 3.096 kW |
|
Number of screws |
2 |
|
Boilers |
2x CHM 21,00 m² - 10,0 bar |
|
Electrical installation |
Power voltage: 660 V |
|
Generators |
3x Diesel generatorsets each 293 kVA - 234 kW - 318 hp |
|
Hopper capacity |
5.072 m³ |
|
Loading capacity |
7.144 t |
|
Suction pipes diameter |
2x 800 mm |
|
Discharge pipe diameter |
700 mm |
|
Dredging depth |
Normal: 30,00 m |
|
Total installed power |
10.451 kW |
|
Power on pumps dredging |
1.030 kW |
|
Power discharge |
1.935 + 1.935 kW |
|
SB dredging |
2.630 kW |
|
BB dredging |
2.630 kW |
|
Propulsion |
Sailing 9.000 kW |
|
Fuel capacity |
660 m³ |
|
Lifting equipment |
1x Crane - SWL 8,5 t |
|
Operator |
Dredging International nv |
|
Owner |
Middle East Dredging Company |
|
Previous Owner |
N.V. Baggerwerken Decloedt & Zoon |
|
Group |
DEME - Dredging, Environmental & Marine Engineering |
|
Remarks |
Crossing-out Belgium registration 18/02/2008 |
