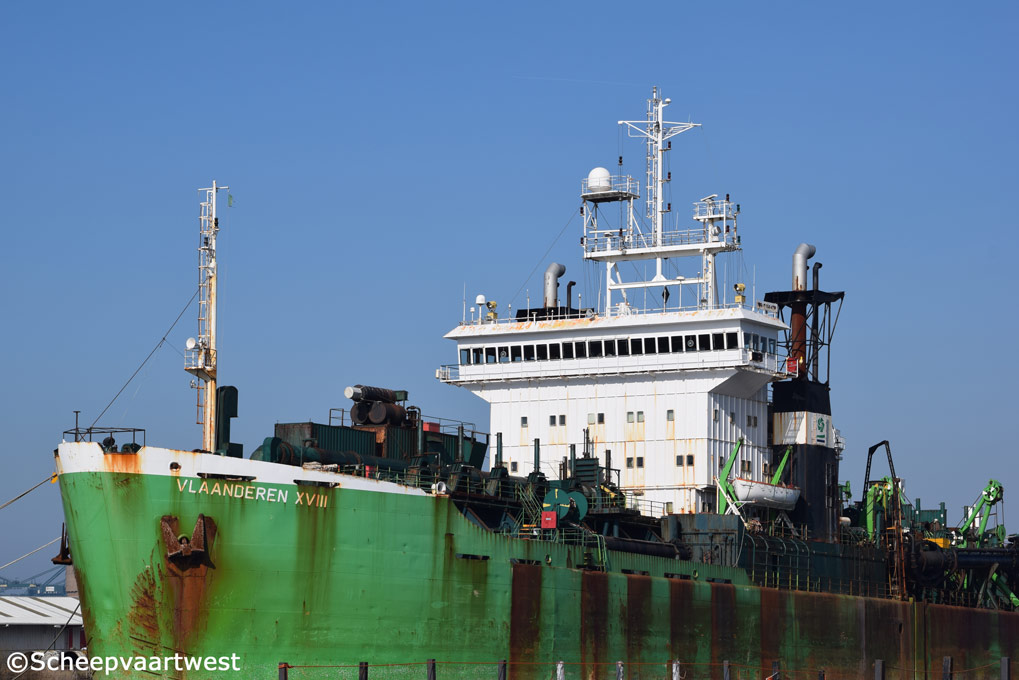

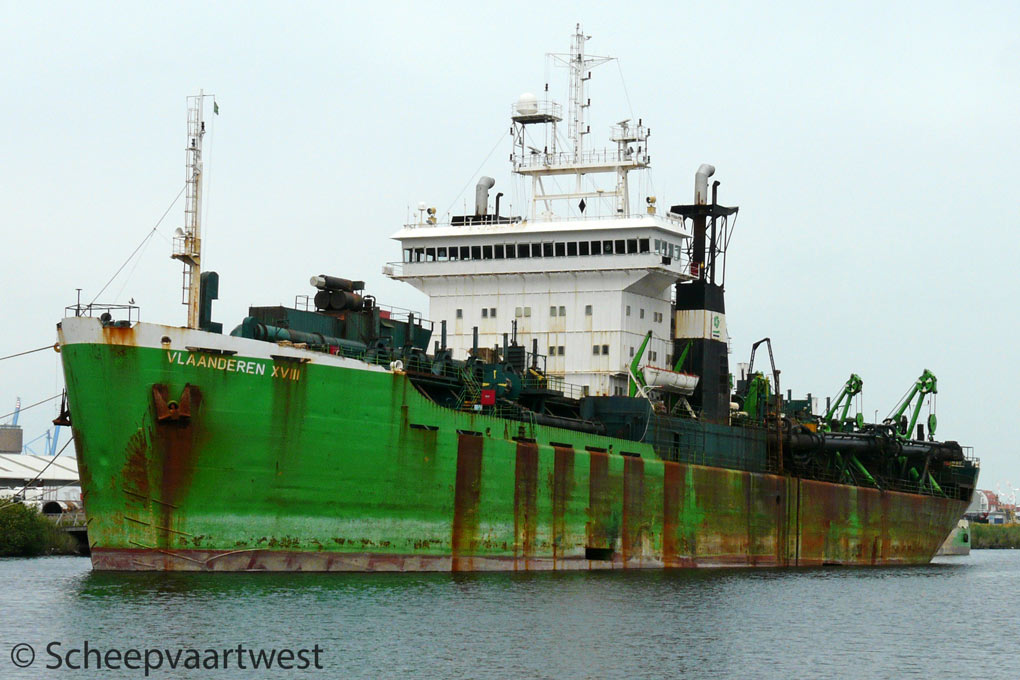

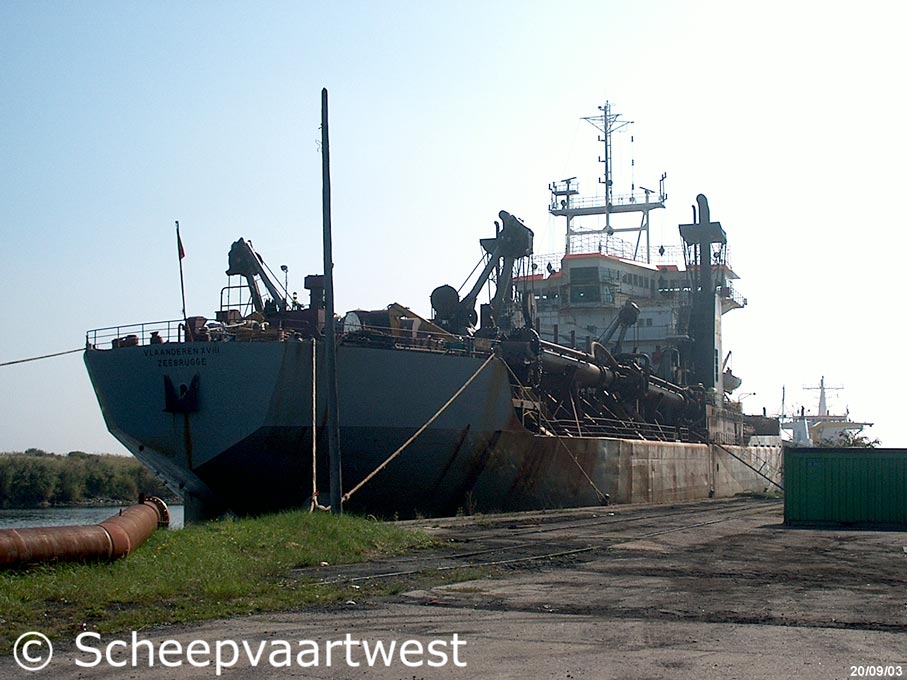

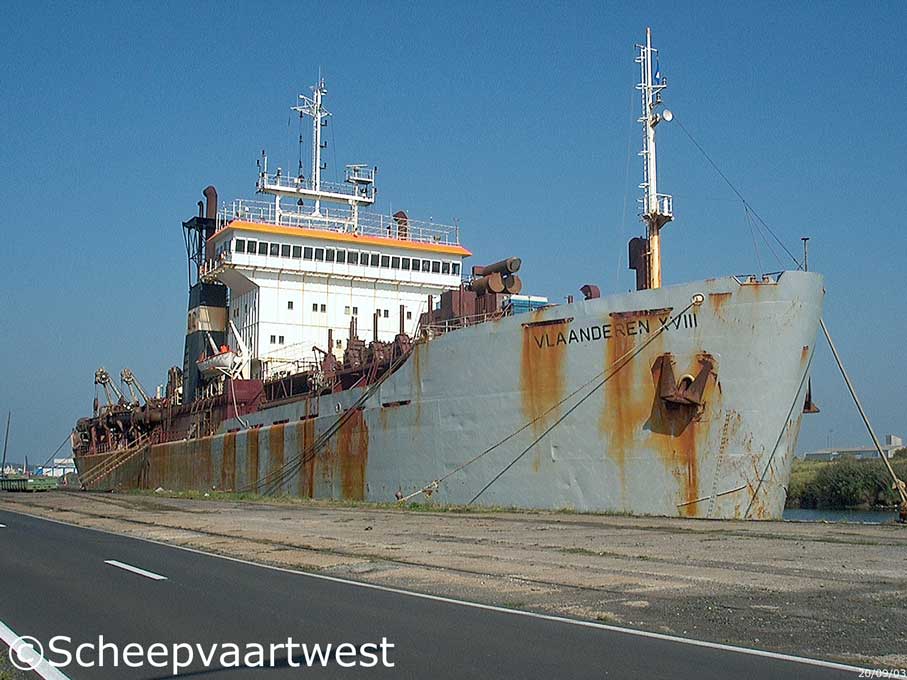

Vlaanderen XVIII - IMO 7026479

Name

VLAANDEREN XVIII

Type

Trailing suction hopper dredger

IMO-number

7026479

Call sign

ORYN

Flag

Belgium

Port of registry

Zeebrugge

GT

9.640 t

DWT

16.385 t

NT

3.463 t

Length

124,06 m over all
115,51 m between perpendiculars

Breadth

23,04 m over all

Draught

Max.: 9,82 m

Depth

11,00 m moulded

Freeboard

Summer: 2.739,0 mm

Speed

14,0 knots
Max. loaded: 13,5 knots

Built

1970

Launch date

06.1970

Date of completion

01.09.1970

Builder

IHC Smit N.V.
Kinderdijk
The Netherlands

Yard number

754

Hull material

Steel

Watertight compartments

15

Main engine

2x Deutz RSBV 12M640 diesel - 4 stroke 12 cylinder 37.00 x 40.00 cm internal combustion engine - 10.449 kW / 14.206 bhp at 650 rpm
Built: 1984
Builder: Kloeckner-Humboldt-Deutz AG, Köln - West Germany

Electrical propulsion gen.

2x 706 kW

Propeller

2x Screw propeller controllable pitch - at 220 rpm

Boilers

1x CHM 10,0 bar
2x CHR 10,0 bar

Electrical installation

Power voltage: 380 V
Lighting voltage: 220 V

Generators

3x Diesel generatorsets each 323 kVA - 258 kW - 389 hp

Cargo holds

1

Hopper capacity

11.300 m³

Loading capacity

16.236 t

Number of spoil hoppers

2

Number of sand pumps

2 (2.598 hp)

Suction side arms

2

Dredging depth

38,00 m

Suction pipes

2x 1.100 mm diameter

Power total installed

14.386 kW with D.R.A.C.U.L.A

Total installed power

13.286 kW

Power on pumps

Dredging: 1.911 kW
Discharge: 1.911 kW

Propulsion

Sailing: 9.568 kW
Trailing: 5.216 kW

Tank capacity

Fuel: 525 m³

Owner

Baggerwerken Decloedt & Zoon N.V.
Slijkensesteenweg 2
B-8400 Oostende
Belgium

Group

DEME - Dredging, Environmental & Marine Engineering
Haven 1025
Scheldedijk 30
B-2070 Zwijndrecht
Belgium

Last update

08 July 2013
