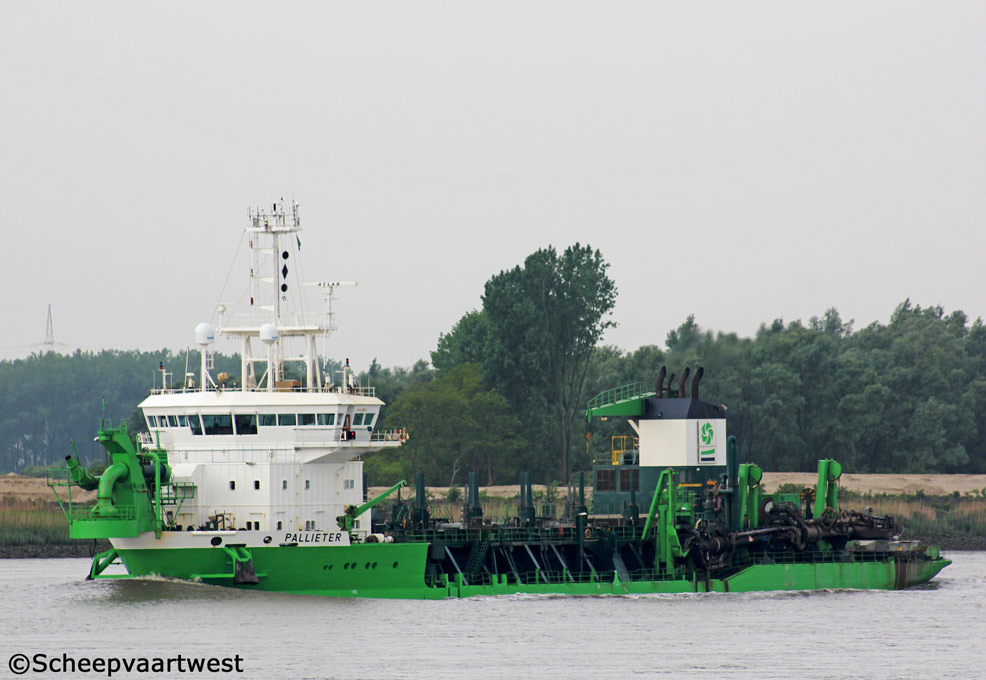

| Westerschelde 04 August 2017 |
 |
 |
 |
 |
 |
||||

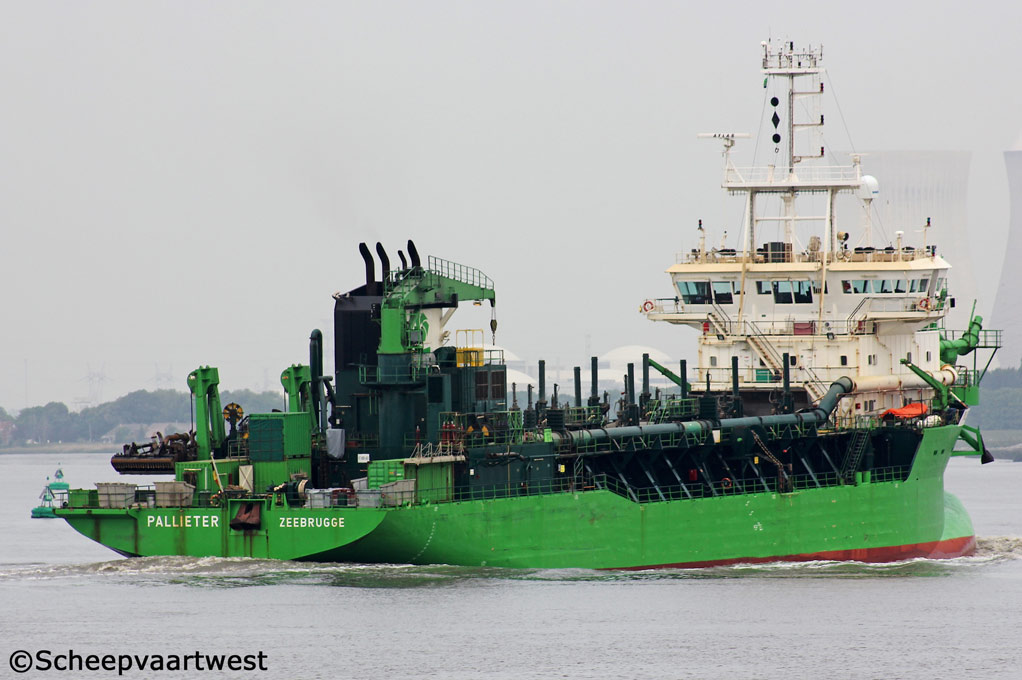

| Antwerpen 22/05/15 |

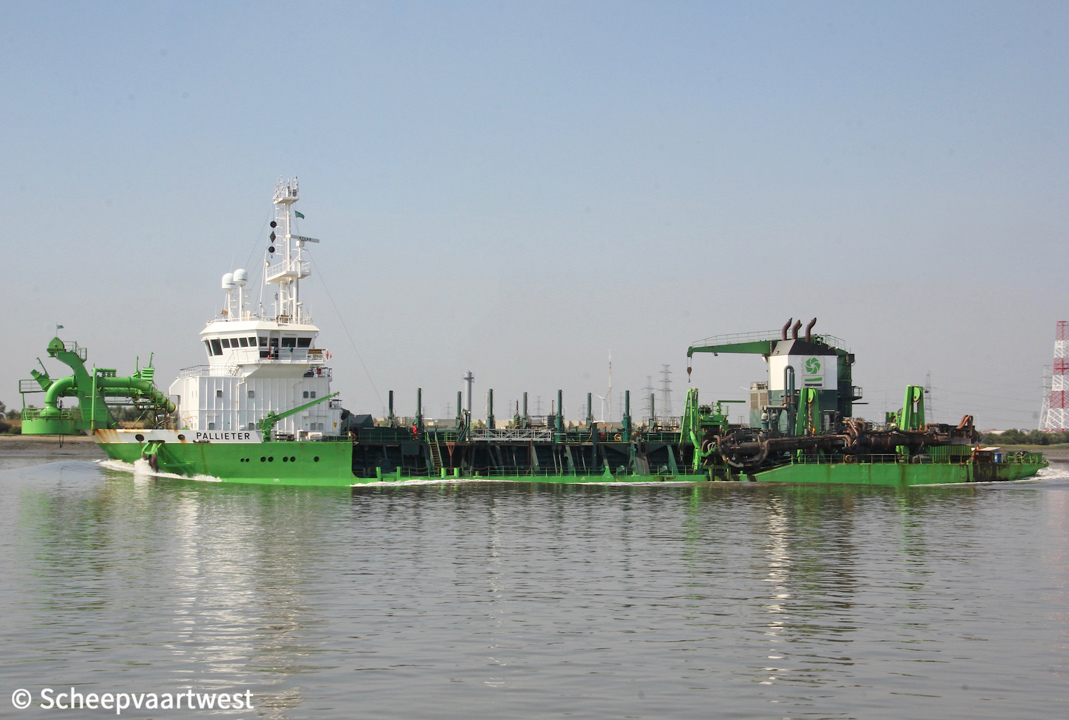

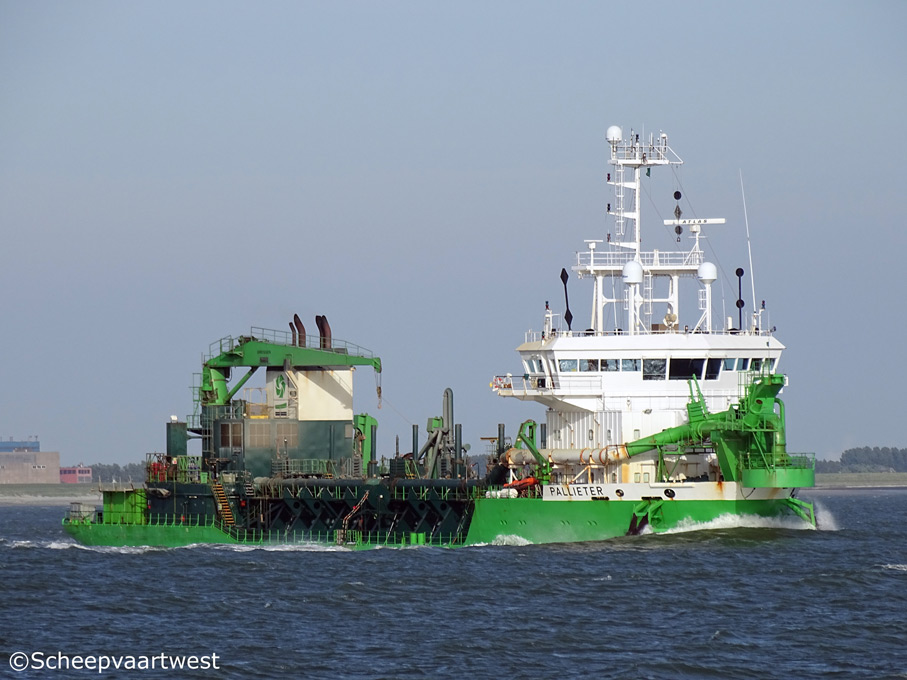

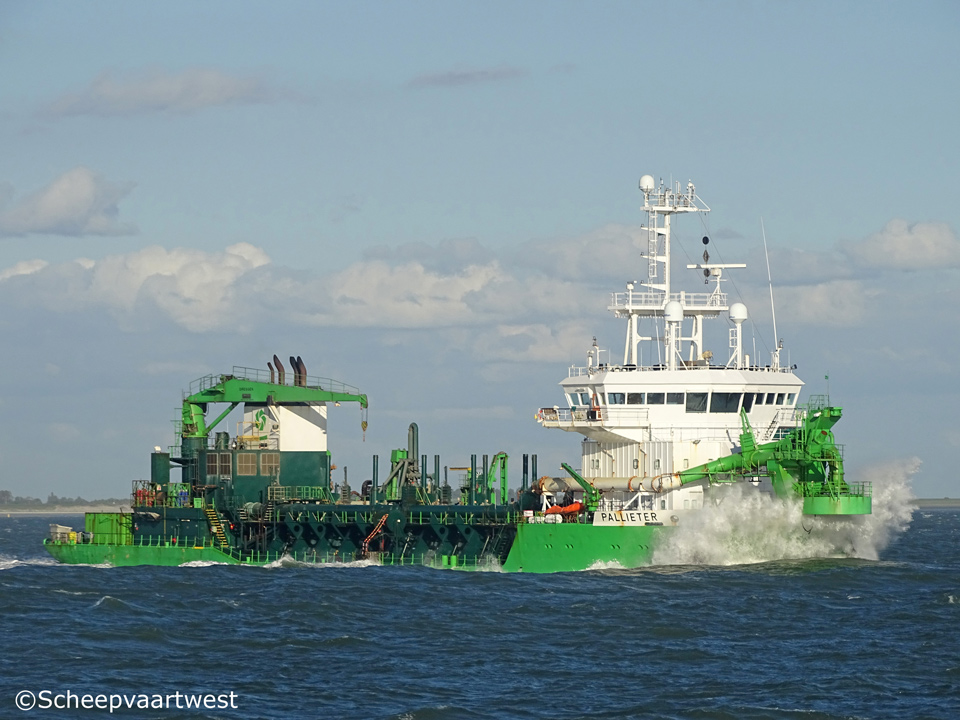

Antwerpen 22/05/15 | Westerschelde 15/07/16 | Zwijndrecht (B) 17/07/19 | Zwijndrecht (B) 17/07/19 | ||||
 |
 |
 |
||

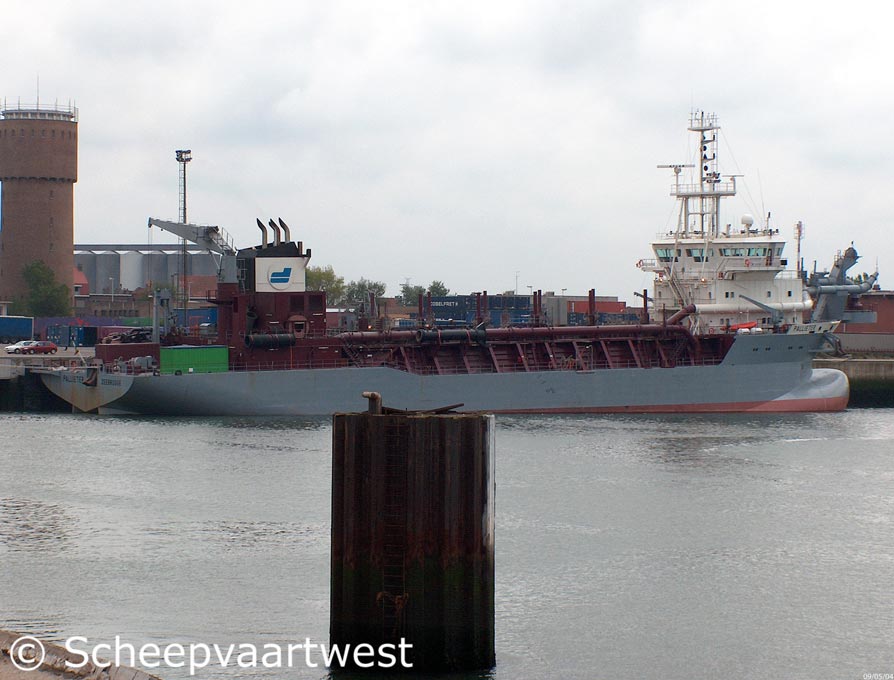

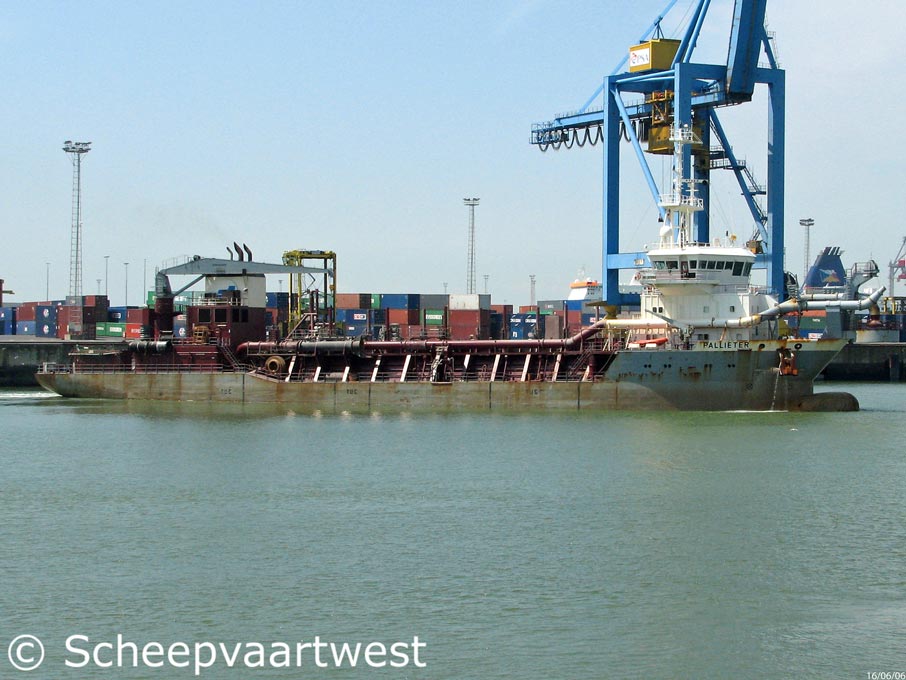

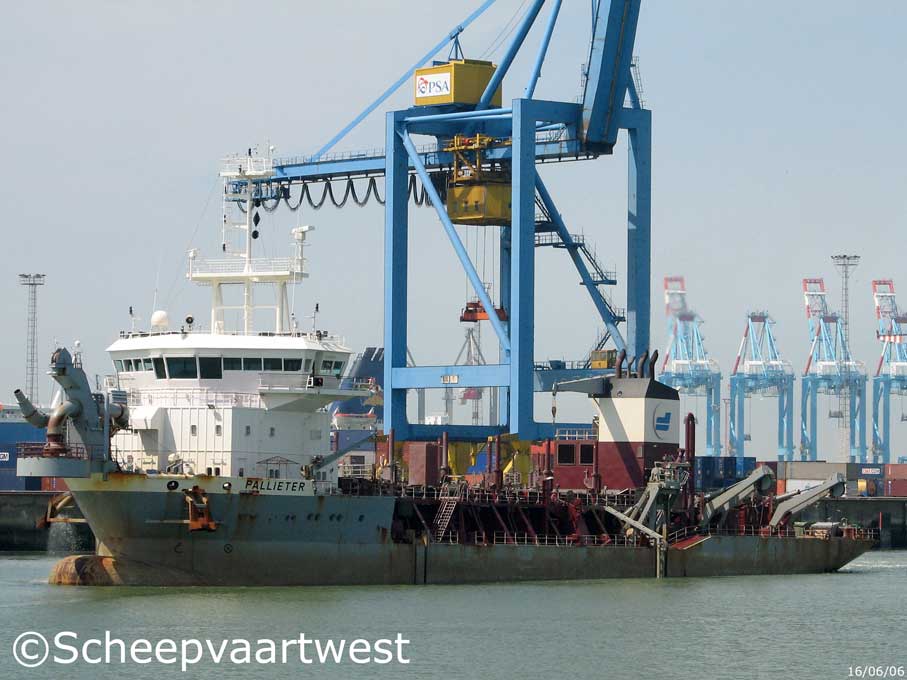

| Zeebrugge 16/06/06 | Zeebrugge 16/06/06 | Zeebrugge 09/05/04 | ||
|
Name |
PALLIETER |
|
Type |
Trailing Suction Hopper Dredger |
|
IMO-number |
9279123 |
|
Call sign |
ORKV |
|
Flag |
Belgium |
|
Port of registry |
Zeebrugge |
|
GT |
5.005 t |
|
DWT |
8.180 t |
|
NT |
1.501 t |
|
Length |
97,50 m overall 84,95 m between perpendiculars |
|
Breadth |
21,63 m |
|
Draught |
5,70 m Max. loaded: 7,10 m |
|
Freeboard |
1.910 mm |
|
Depth |
7,60 m moulded |
|
Speed |
Max. loaded: 12,8 knots |
|
Built |
2004 |
|
Date of completion |
15/01/2004 |
|
Builder casco |
Van der Giessen-de Noord Krimpen a/d IJssel The Netherlands Yard number: 991 |
|
Builder completion |
IHC Holland Dredgers Kinderdijk The Netherlands Yard number: co1237 |
|
Hull material |
Special steel |
|
Hull type |
Single hull |
|
Watertight compartments |
8 |
|
Continuous decks |
2 |
|
Main engine |
2x Wärtsilä - 4 stroke 6 cylinder 260 x 320 mm internal combustion engine 4.050 kW / 5.502 hp at 1.000 rpm Built: 2003 Builder: Wärtsilä Italia S.p.A., San Dorligo Della Valle - Italy |
|
Electrical propulsion gen. |
1x 1.000 kW 450 Volt |
|
Propelling system |
2x Screw propeller controllable pitch at 175 rpm |
|
Boiler |
1x CHO 1.000,00 m² - 10,0 bar 2x CHR 500,00 m² - 10,0 bar |
|
Electrical installation |
Power voltage: 450 V Lighting voltage: 220 V Frequency: 60 Hz |
|
Generators |
1x Diesel generatorset 760 kVA - 608 kW - 815 hp |
|
Emergency generators |
1x Diesel generatorset 131 kVA - 105 kW |
|
Total installed power |
6.776 kW |
|
Diameter suction tube |
Standard:700 mm diameter Long: 1.000 mm diameter |
|
Discharge pipe |
1.000 mm diameter |
|
Dredging depth |
22 / 33 / 55 / 60 m |
|
Dredge pump |
1.700 kW submerged dredge pump |
|
Hopper capacity |
5.000 m³ |
|
Loading capacity |
8.100 t |
|
Accommodation |
14 persons |
|
Operator |
Baggerwerken Decloedt & Zoon N.V. Slijkensesteenweg 2 8400 Oostende Belgium |
|
Owner |
Dredging International Luxembourg S.A. Route des Trois Cantons 11 8399 Windhof Grand Duchy of Luxembourg |
|
Group |
DEME N.V. Dredging Environmental & Marine Engineering Scheldedijk 30 Haven 1025 2070 Zwijndrecht Belgium |
|
Remarks |
In standard configuration the 'Pallieter' is equipped with a 1.000 mm diameter pipe at portside. For deep dredging (60 m) this suction pipe can be replaced by a longer 700 mm diameter pipe |
|
Latest data adjustment |
09/04/2020 |
