Vlissingen, The Netherlands 25 February 2020 |
|
Name |

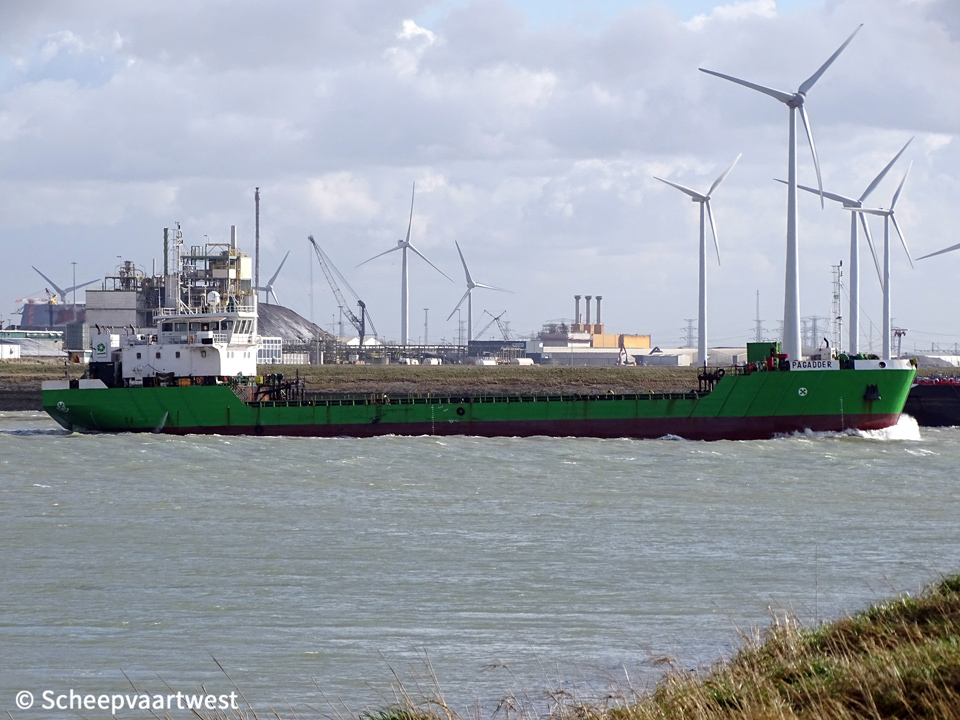

PAGADDER |
|
Type |
Split hopper barge - Self-propelled |
|
IMO-number |
9510620 |
|
Call sign |
ORPJ |
|
Flag |
Belgium |
|
Port of registry |
Antwerpen |
|
Previous flags |
2009 - 2017 Saint Vincent & Grenadines, Kingstown - Call sign: J8B3995 |
|
GT |
2.427 t |
|
DWT |
Summer: 4.580 t |
|
NT |
728 t |
|
Length |
91,15 m overall 85,30 m between perpendiculars |
|
Breadth |
16,80 m |
|
Draught |
Summer: 5,00 m |
|
Freeboard |
1.825 mm |
|
Depth |
5,40 m |
|
Speed |
9,6 knots |
|
Built |
2009 |
|
Date of completion |
24/11/2009 |
|
Builder |
PT ASL Shipyard Batam Indonesia |
|
Yard number |
893 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Watertight compartments |
34 |
|
Continuous decks |
1 |
|
Main engine |
2x Cummins KTA-38-M - 4 stroke 12 cylinder 159 x 159 mm combustion engines total 1.492 kW / 2.028 hp at 1.800 rpm |
|
Propelling system |
1x Azimuth thruster solid - at 360 rpm 1x Z PELLER solid - at 360 rpm |
|
Generators |
2x Diesel generatorsets each 123 kVA - 98 kW - 133 hp |
|
Total installed power |
2.135 kW |
|
Number of holds |
1 |
|
Hopper capacity |
2.735 m³ |
|
Tank capacities |
Fuel: 145,9 m² |
|
Manager |
DEME - Dredging Environmental and Marine Engineering N.V. Haven 1025 Scheldedijk 30 2070 Zwijndrecht Belgium |
|
Registered owner |
Baggerwerken Decloedt En Zoon N.V Slijkensesteenweg 2 8400 Oostende Belgium |
|
Latest data adjustment |
05 October 2020 |
