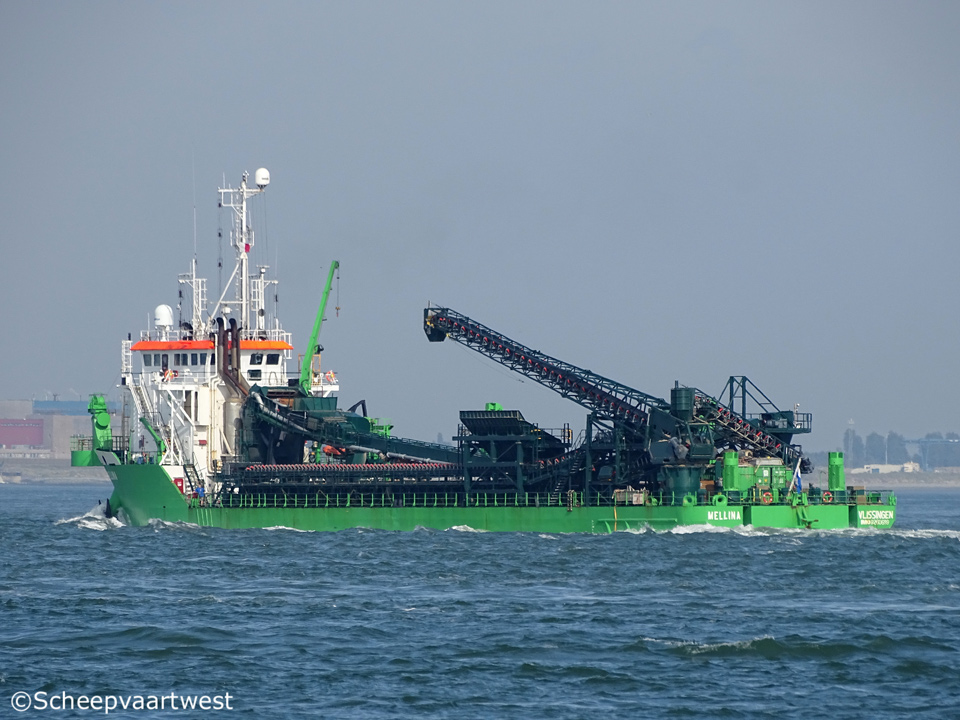

Westerschelde 21 April 2020 |
 |
 |
 |
 |
 |
 |
|||||

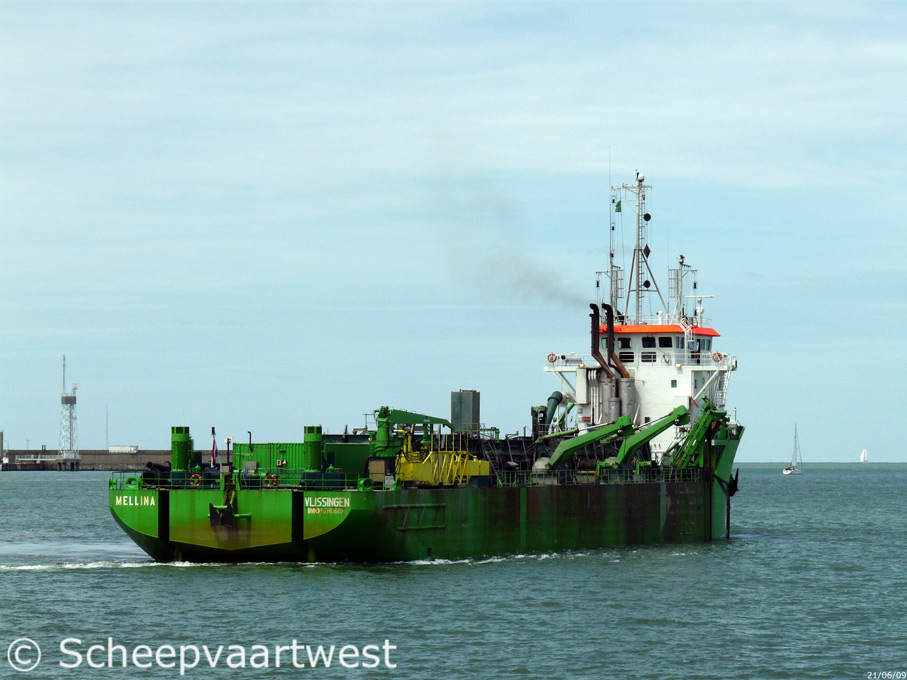

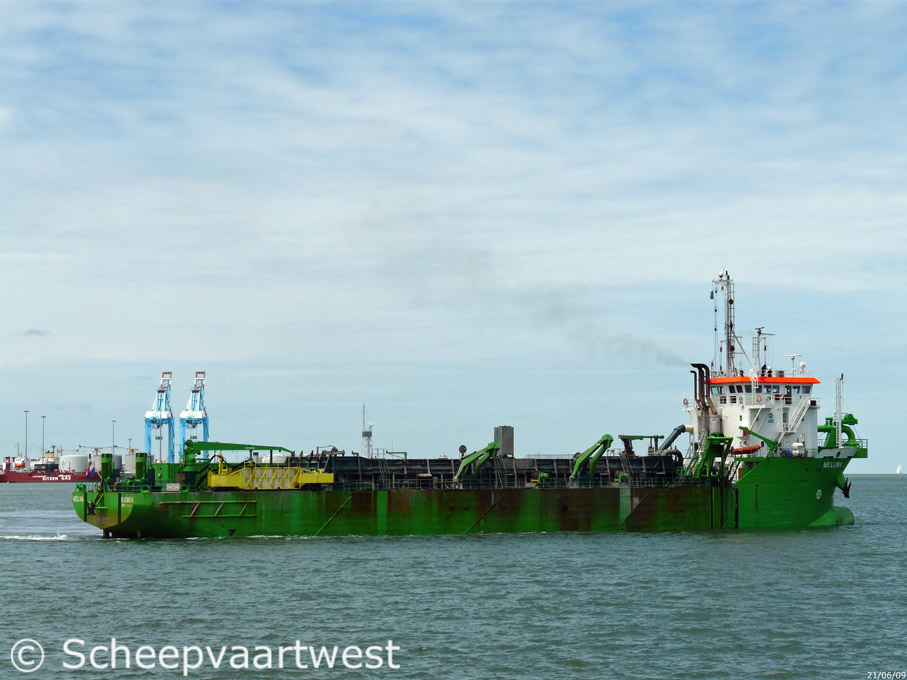

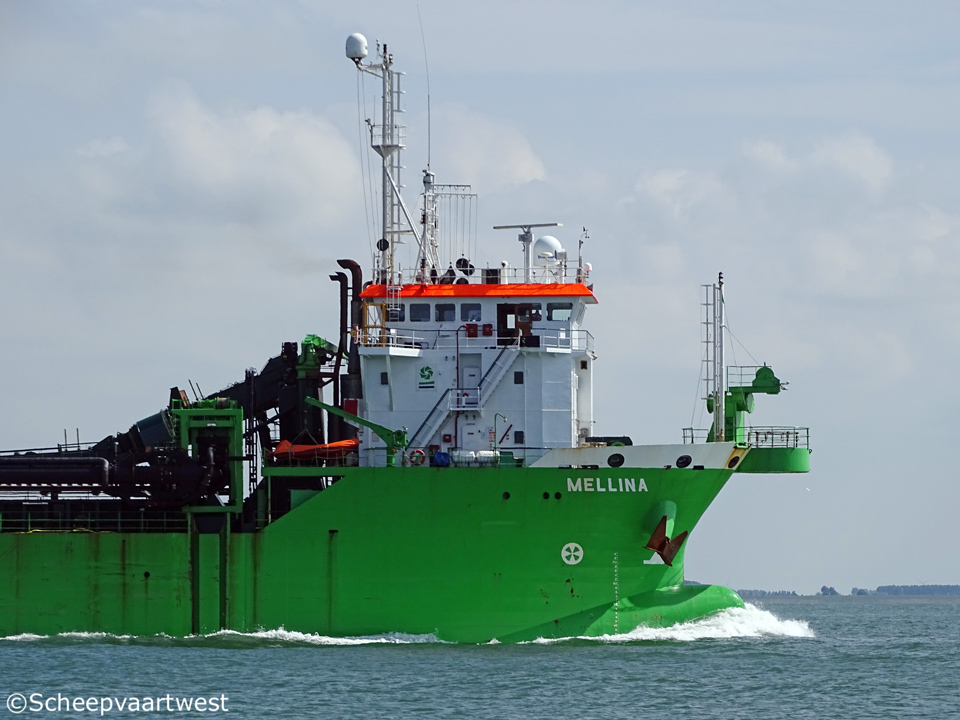

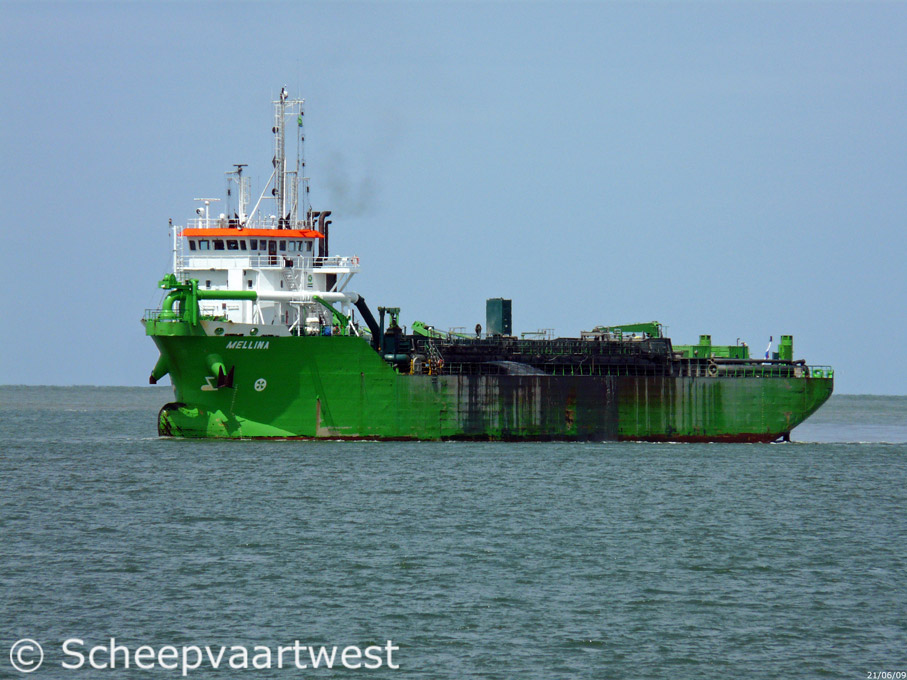

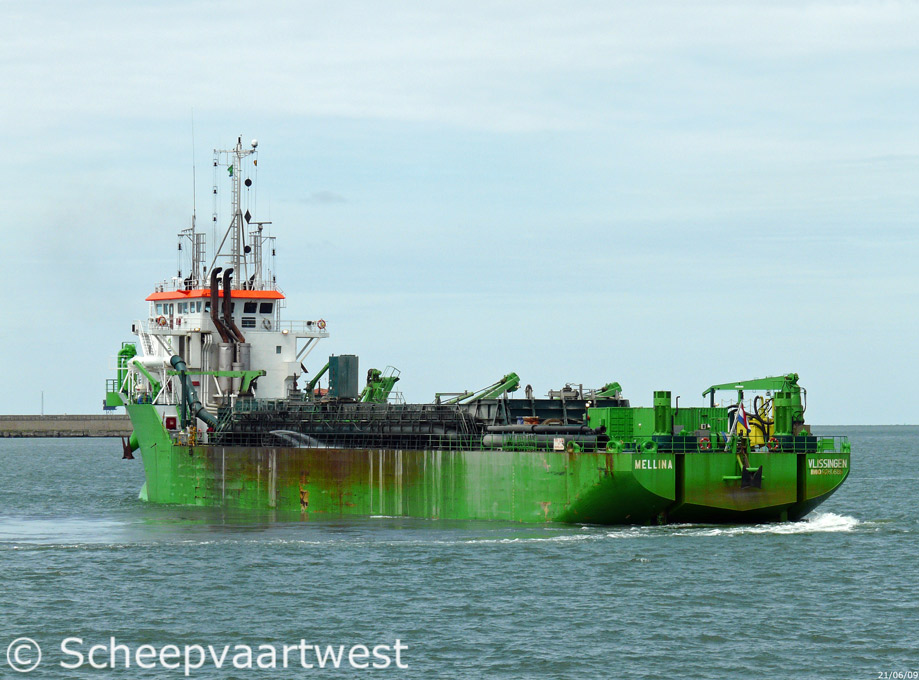

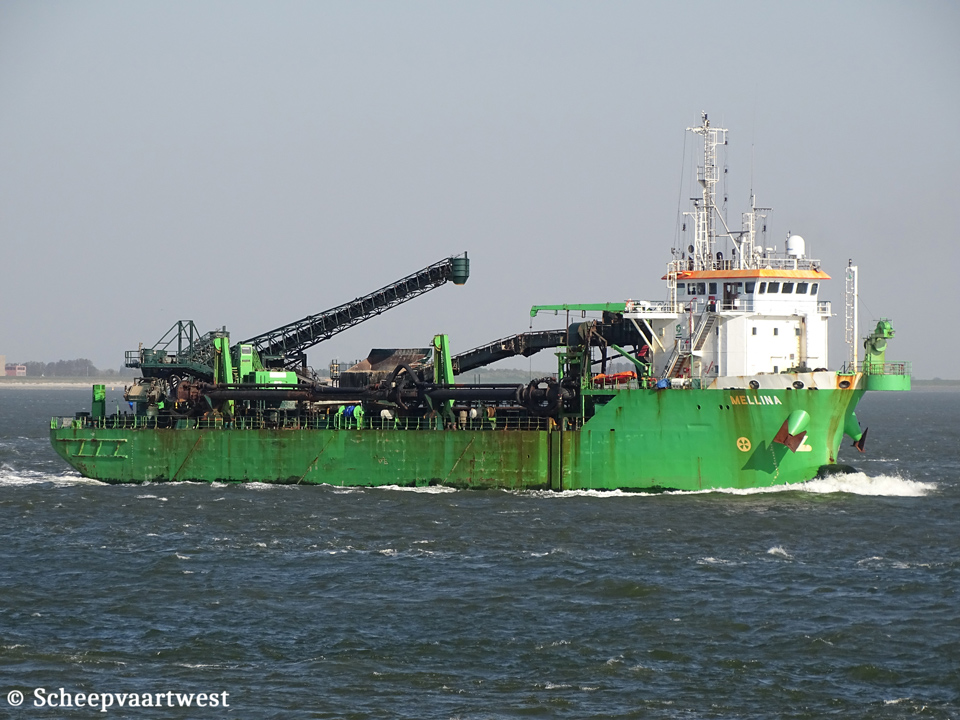

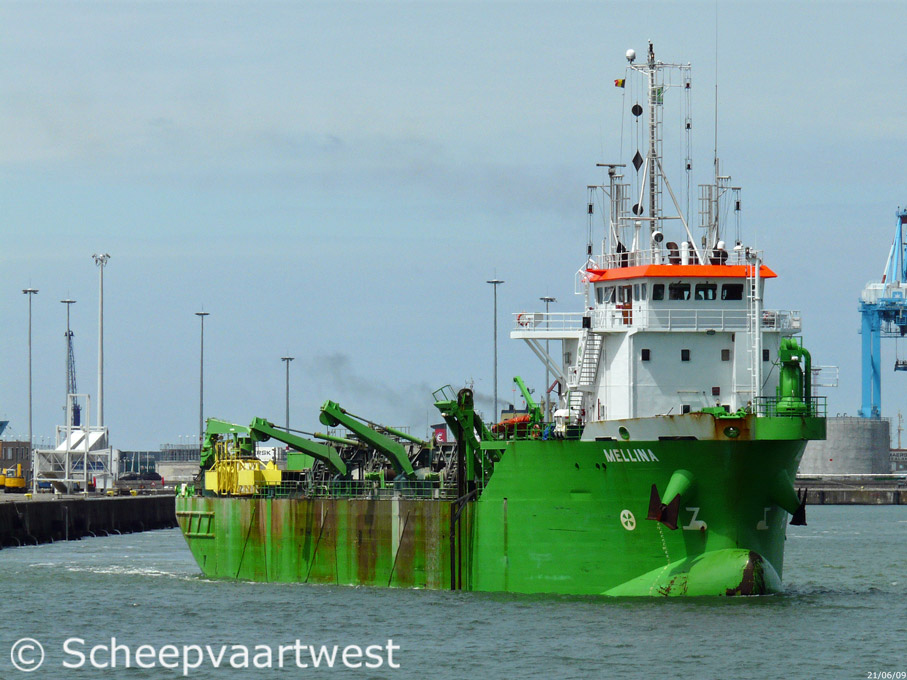

| Westerschelde 08/07/17 | Westerschelde 07/07/17 | Westerschelde 08/07/17 | Zeebrugge 21/06/09 | Zeebrugge 21/06/09 | Zeebrugge 21/06/09 | |||||
 |
 |
|||||||||
| Zeebrugge 21/06/09 | Zeebrugge 21/06/09 | |||||||||
|
Name |
MELLINA |
|
Type |
Trailing suction hopper dredger |
|
IMO-number |
9260689 |
|
Call sign |
ORTN |
|
Flag |
Belgium |
|
Port of registry |
Antwerpen |
|
Previous flags |
The Netherlands, Vlissingen - Call sign: PBIM |
|
GT |
3.434 t |
|
DWT |
Summer: 5.150 t |
|
Length |
94,5 m overall 84,95 m between perpendiculars |
|
Breadth |
16,95 m overall |
|
Draught |
Max.: 6,40 m |
|
Freeboard |
Summer: 2.411 mm |
|
Depth |
8,40 m moulded |
|
Speed |
Max. loaded: 11,50 knots |
|
Built |
2002 |
|
Date of completion |
09/12/2002 |
|
Builder |
IHC Holland Dredgers Kinderdijk The Netherlands |
|
Yard number |
9564 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Watertight compartments |
6 |
|
Continuous decks |
1 |
|
Main engine |
2.600 kW / 3.532 hp Built: 2002 Builder: ABB Group Control OY, Vaasa - Finland |
|
Electrical propulsion engine |
2x 1.300 KW at 1.461 rpm |
|
Propelling system |
2x Screw propeller solid |
|
Electrical propulsion gen. |
2x 1.600 kW 450 Volt |
|
Electrical installation |
Power voltage: 500 V Lighting voltage: 230 V |
|
Power |
Total installed: 4.800 kW On pumps dredging: 2.000 kW Shore delivery: 3.800 kW Propulsion sailing: 2.600 kW Trailing: 1.800 kW |
|
Bow thruster |
500 kW |
|
Dredging depth |
Maximum: 35,00 m Minimum: 25,00 m |
|
Suction pipe |
1 Diameter 800 mm |
|
Discharge pipe |
Diameter 750 mm |
|
Hopper capacity |
3.309 m³ |
|
Loading capacity |
5.702 t |
|
Crew |
15 |
|
ISM manager |
Tideway Breda The Netherlands |
|
Group |
DEME - Dredging, Environmental & Marine Engineering Scheldedijk 30 B-2070 Zwijndrecht Belgium |
|
Owner |
Dredging International NV Haven 1025 Scheldedijk 30 B-2070 Zwijndrecht Belgium |
|
Remarks |
This hopper can be equipped with the D.R.A.C.U.L.A. System |
|
Latest data adjustment |
26 March 2021 |
