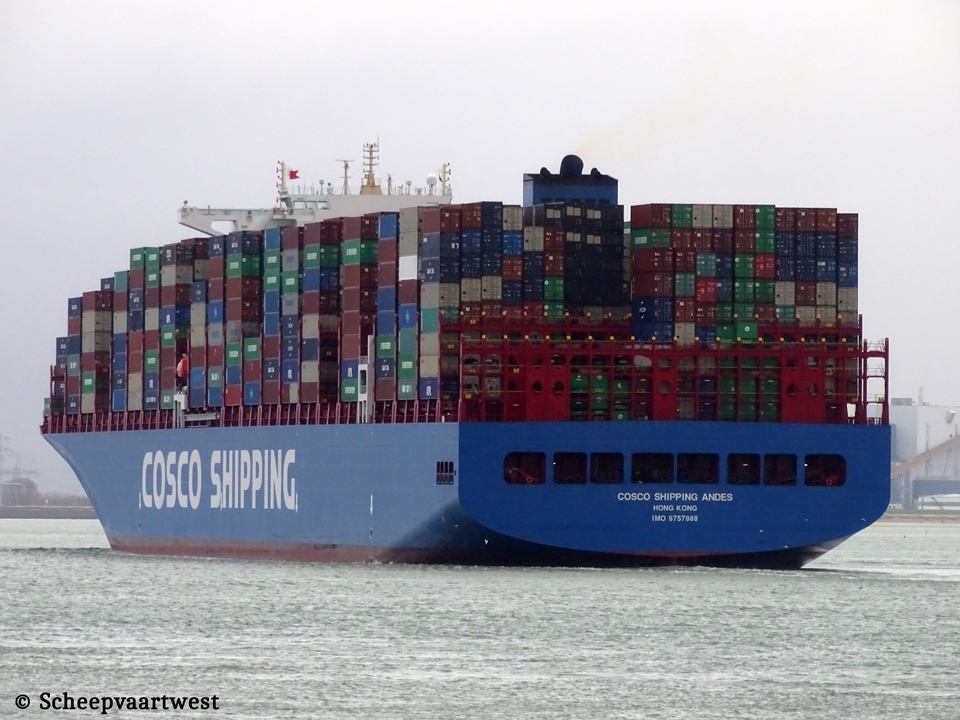

COSCO Shipping Andes IMO 9757888 03

Westerschelde 11 January 2019

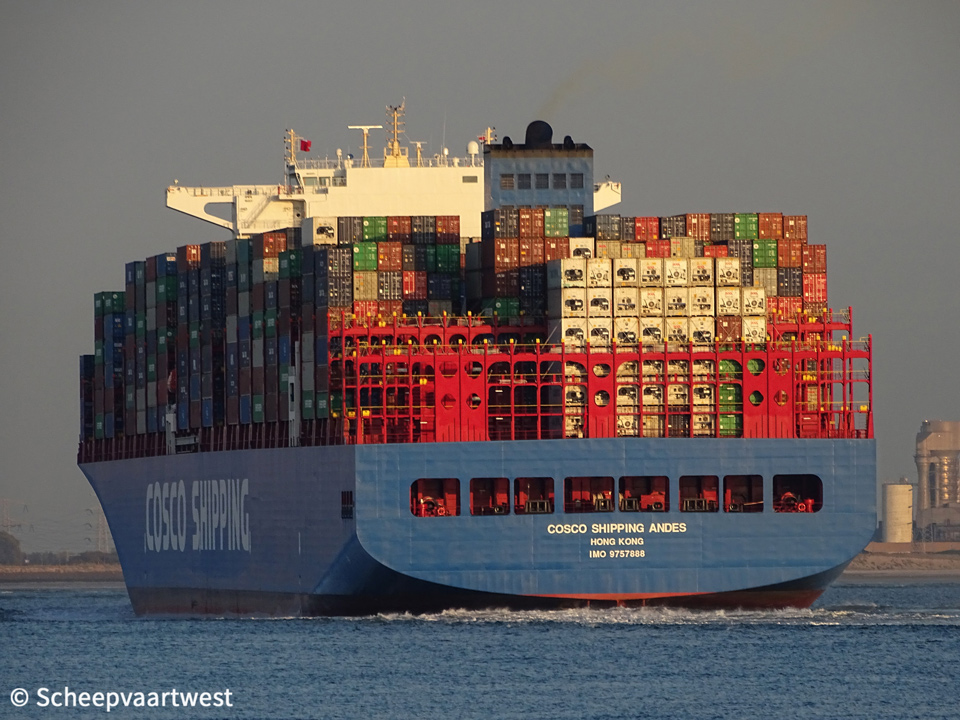

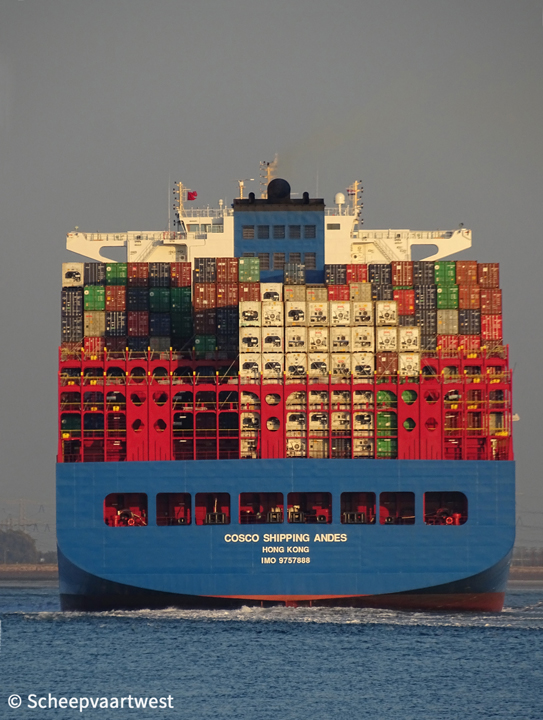

COSCO Shipping Andes 01   COSCO Shipping Andes 02
Westerschelde 19/10/18   WS 19/10/18


Name

COSCO SHIPPING ANDES

Type

Cellular containership

IMO-number

9757888

Call sign

VRSA2

Flag

Hong Kong - China

Port of registry

Hong Kong

GT

154.300 t

DWT

153.987 t

NT

84.334 t

Number of 20ft containers

14.568

Container capacity 14t

10.416

Reefer capacity

1.000

Length

366,00 m overall

350,50 m between perpendiculars

Breadth

52,29 m extreme

51,23 m moulded

Draught

Max: 15,50 m

Freeboard

7.524 mm

Depth

30,20 m moulded

Speed

Max: 24,0 knots

Service: 22,5 knots

Built

2018

Keel laid

28/12/2015

Launch date

10/04/2018

Date of completion

12/09/2018

Builder

Shanghai Jiangnan-Changxing Shipbuilding Co., Ltd.

China

Yard number

H3024

Hull material

Steel

Bulkheads

11

Number of decks

2

Upper deck, 2nd deck

Main engine

1x MAN-B&W 10S90ME-C9&10 - 2 stroke single acting 10 cylinder 900 x 3.260 mm combustion engine 49.000 kW / 66.620 hp at 84,0 rpm

Build: 23/11/2017

Builder: CSSC-MES Diesel Co., Ltd - China

Propellers

1x Fixed pitch mono-block propeller - aft at 84,0 rpm

Boilers

2x Auxiliary boiler, exhaust gas heated EGE Aalborg XS-7V(ME)

1x Auxiliary boiler, oil/gas fired Aalborg OS

Builder: Alfa Laval K.K. Marine & Offshore Systems

Generators

4x Wärtsilä 7L32E/E2 - 4 stroke 7 cylinder 320 x 400 mm combustion engines each 3.360 kW connected with generators each 3.229,5 kW / 6.600 Volt

Emergency generator

1x Scania DI13 diesel generatorset

Bow thruster

2x Tunnel thruster each 1.800 kW / 2.447 bhp, forward

Number of hatches

18x 12,60 x 46,08 m

1x 12,60 x 40,74 m

1x 12,60 x 35,70 m

1x 12,60 x 14,43 m

Tank capacities

Ballast: 43.824,13 m³

Anchor equipment

Length: 770,00 m

Diameter: 127 mm

Lifting equipment

1x Provision crane - SWL 12,5 t

1x engine room overhead crane - SWL 12,5 t

2x Provision crane - SWL 4,0 t

Cargo gear

Gearless

Crew size

28

Commercial manager

COSCO Shipping Lines Co., Ltd.

COSCO Plaza, 378 Dongdaming Lu, Hongkou Qu

Shanghai, 200080

China

ISM manager

Shanghai Ocean Shipping Co., Ltd.

COSCO Plaza, 378, Dongdaming Lu, Hongkou Qu

Shanghai, 200080

China

Registered owner

COSCO Zhengzhou Shipping Limited

Care of COSCO Shipping Lines Co Ltd.

COSCO Plaza, 378, Dongdaming Lu, Hongkou Qu

Shanghai, 200080

China

Latest data adjustment

22 January 2023
