| Westerschelde 24 April 2018 |
|
Name |

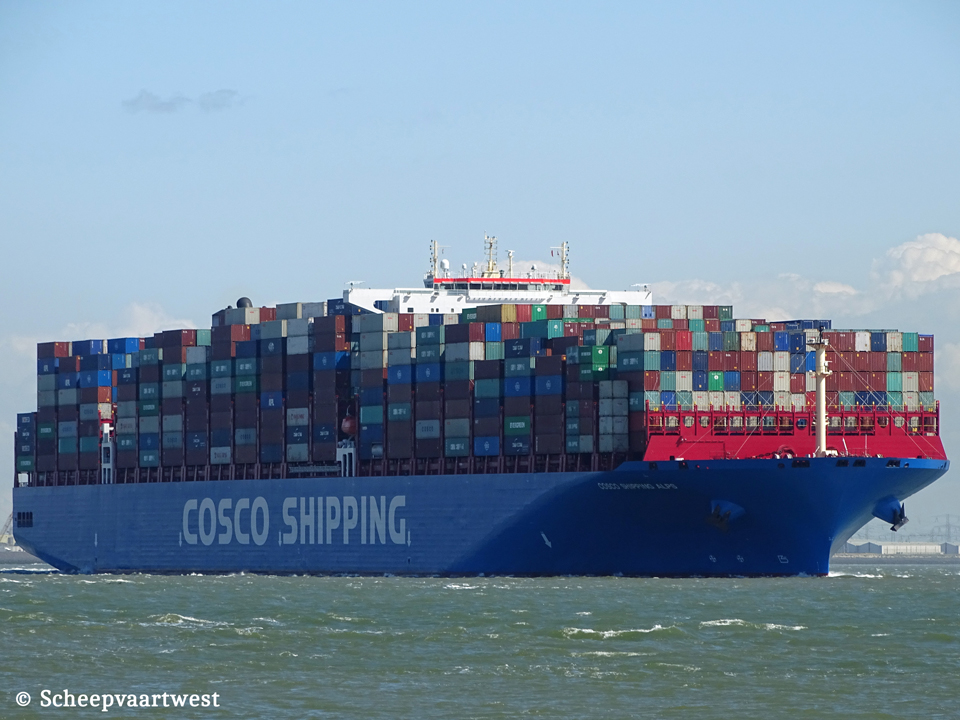

COSCO SHIPPING ALPS |
|
Type |
Cellular containership |
|
IMO-number |
9757864 |
|
Call sign |
VRRJ2 |
|
Flag |
Hong Kong - China |
|
Port of registry |
Hong Kong |
|
GT |
154.300 t |
|
DWT |
153.679 t |
|
NT |
84.334 t |
|
Number of 20ft containers |
On deck: 8.108 In holds: 6.458 Total: 14.566 |
|
Length |
366,00 m overall 350,50 m between perpendiculars |
|
Breadth |
51,29 m extreme |
|
Draught |
Summer: 15,50 m |
|
Deckhouse |
6,20 m |
|
Freeboard |
7.524 mm |
|
Depth |
30,20 m moulded |
|
Speed |
Max: 22,5 knots |
|
Built |
2018 |
|
Keel laid |
01/12/2015 |
|
Launch date |
28/07/2017 |
|
Date of completion |
03/01/2018 |
|
Builder |
Shanghai Jiangnan-Changxing Shipbuilding Co., Ltd. China |
|
Yard number |
H3022 |
|
Hull material |
Steel |
|
Bulkheads |
11 |
|
Number of decks |
2 Upper deck, 2nd deck |
|
Main engine |
1x MAN-B&W 10S90ME-C10.5 - 2 stroke 10 cylinder 900 x 3.260 mm combustion engine 49.000 kW at 84,0 rpm Builder: CSSC-MES Diesel Co., Ltd. |
|
Propellers |
1x Fixed pitch mono-block propeller |
|
Boilers |
2x Auxiliary boiler, exhaust gas heated EGE Aalborg XS-7V(ME) - 07 MPa 1x Auxiliary boiler, oil/gas fired Aalborg OS - 0,7 MPa Boiler Builder: Alfa Laval Qingdao Ltd. |
|
Generators |
4x Wärtsilä 7L32E/E2 main diesel generatorsets each 3.230 kW / 6.600 Volt |
|
Emergency generator |
1x Scania DI13 diesel generatorset |
|
Bow thruster |
Kawasaki KT-157B3 |
|
Number of holds |
21 |
|
Number of hatches |
18x 12,60 x 46,08 m 1x 12,60 x 40,74 m 1x 12,60 x 35,70 m 1x 12,60 x 14,43 m |
|
Tank capacities |
Ballast: 43.824,13 m³ |
|
Anchor equipment |
Length: 770,00 m Diameter: 127 mm |
|
Cargo gear |
Gearless |
|
Manager |
Shanghai Ocean Shipping Co.,Ltd. Shanghai China |
|
Operator |
COSCO Shipping Lines Co., Ltd. |
|
Registered owner |
COSCO Shenyang Shipping Ltd. Hong Kong China |
|
Latest data adjustment |
09 April 2023 |
