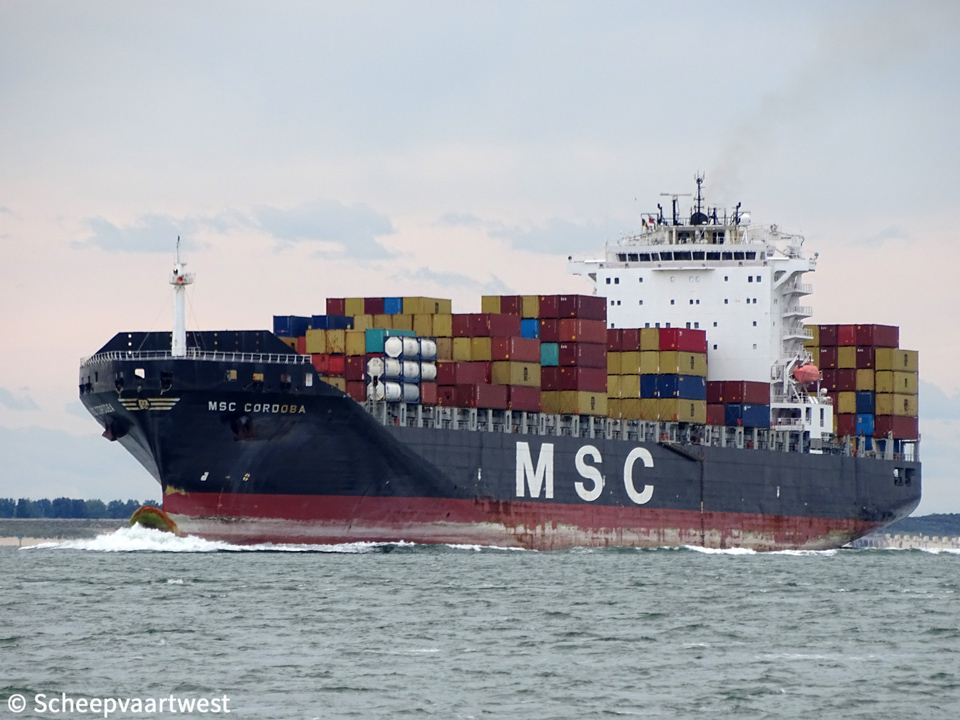

MSC Cordoba 16
Westerschelde 08 September 2018

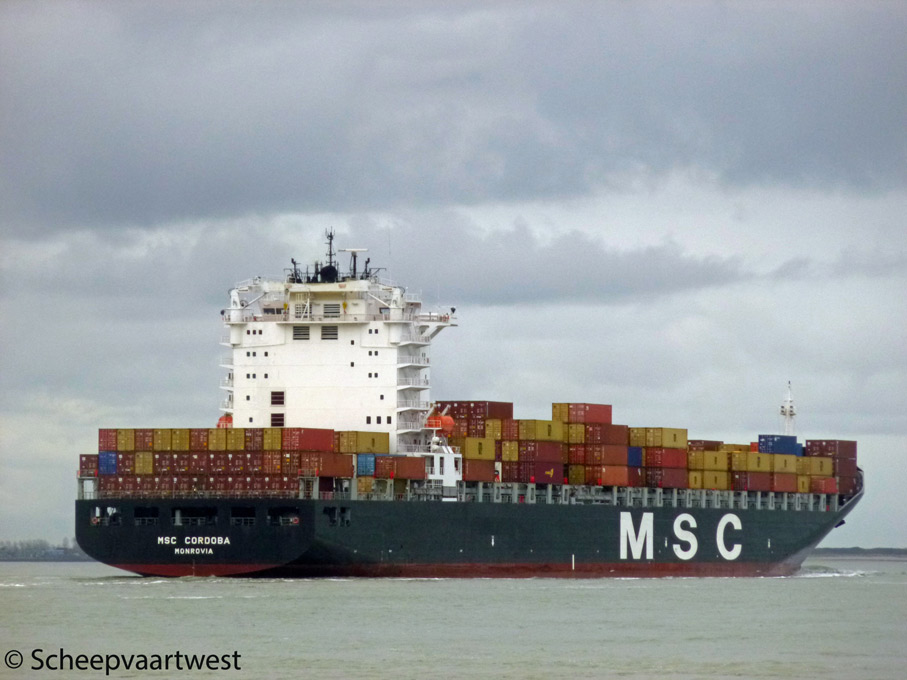

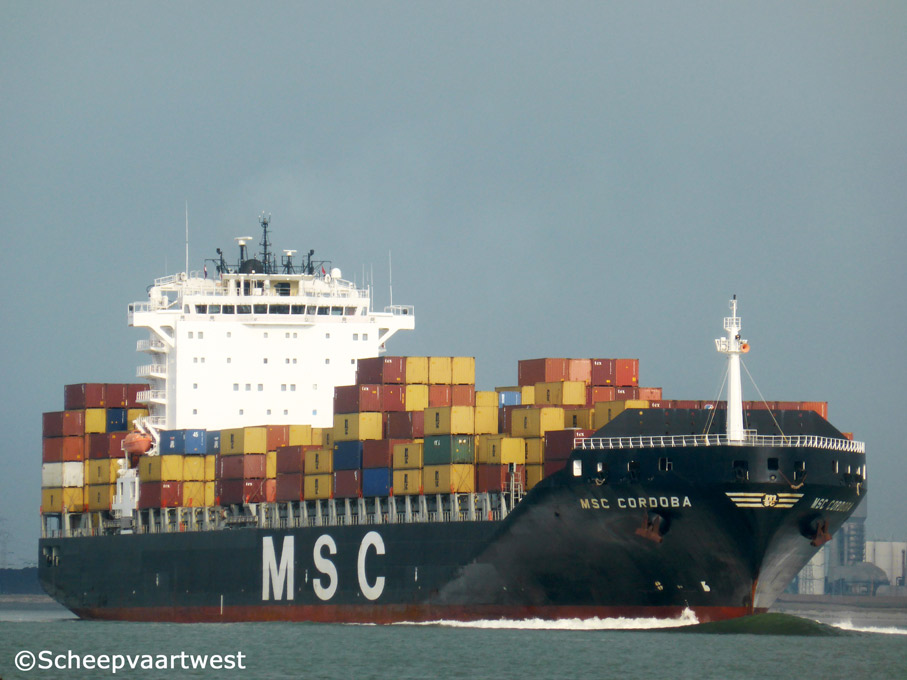

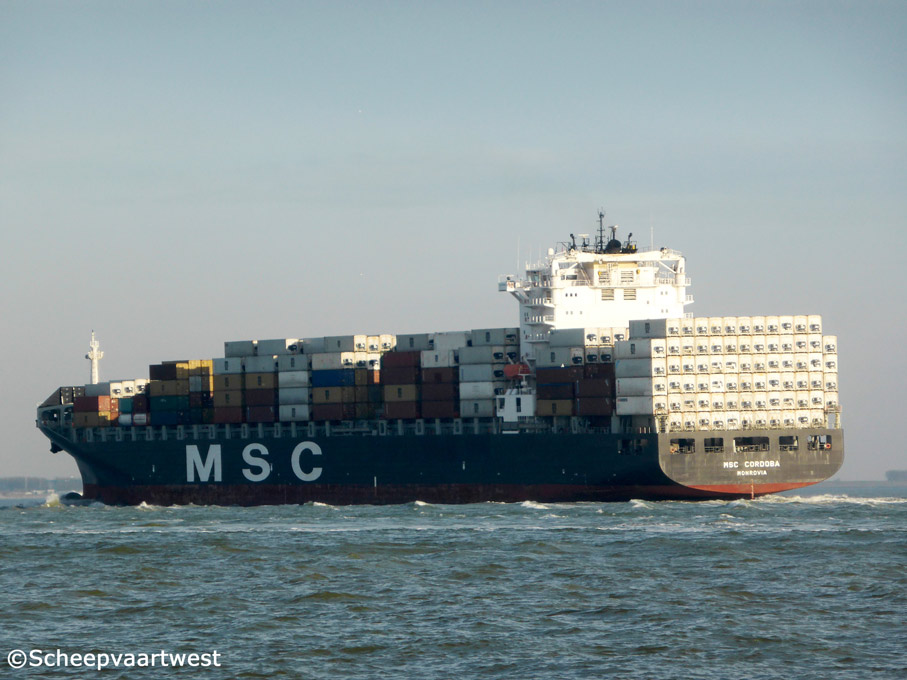

MSC Cordoba 08   MSC Cordoba 03   MSC Cordoba 09   MSC Cordoba 10
Westerschelde 24/11/13 North Sea 05/08/09 Westerschelde 20/07/14 Westerschelde 07/03/15

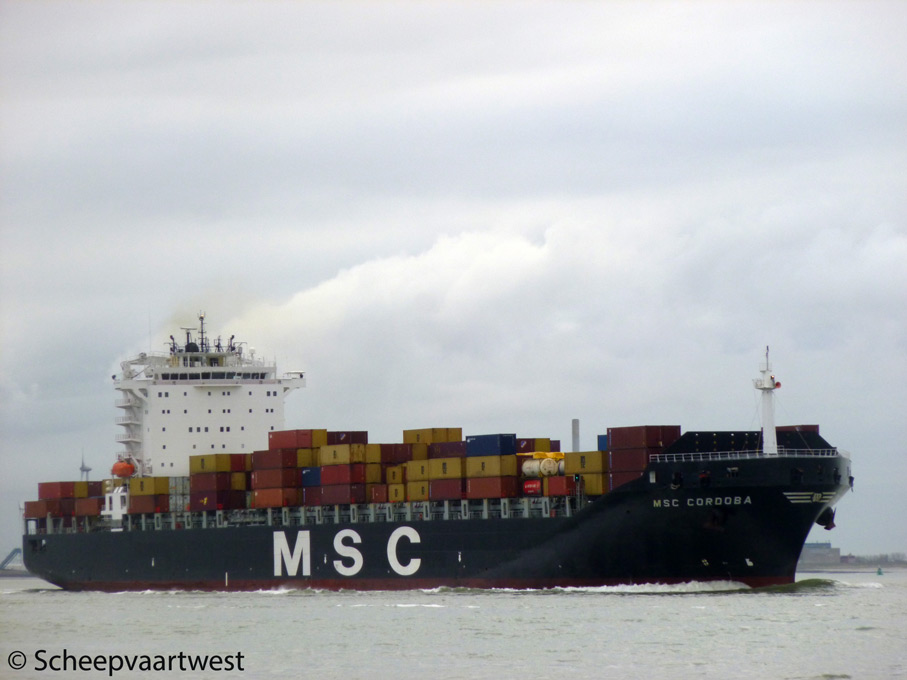

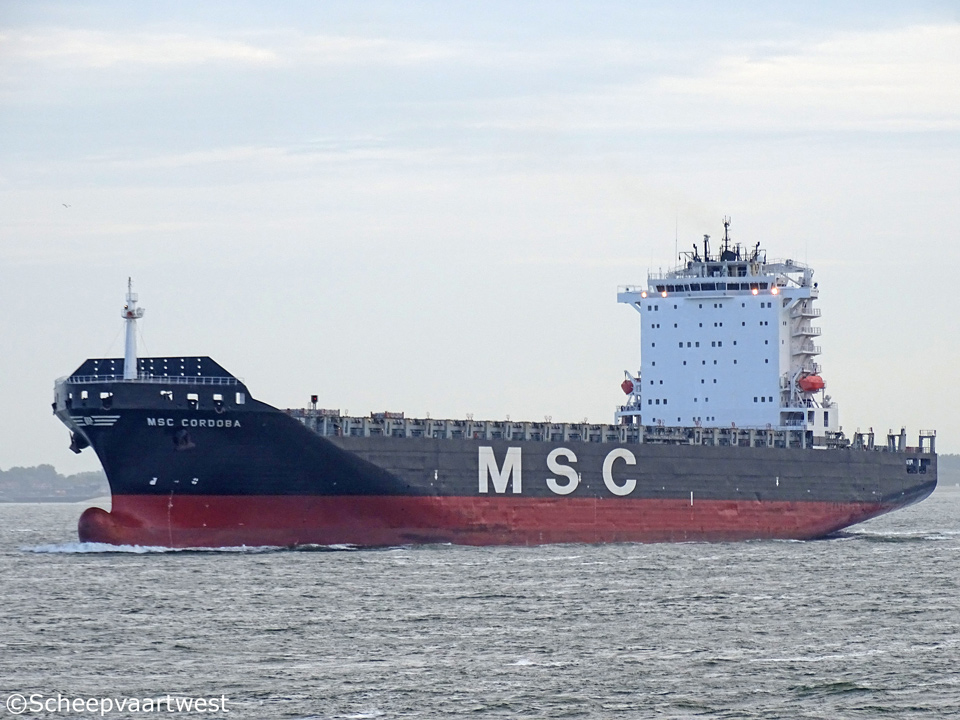

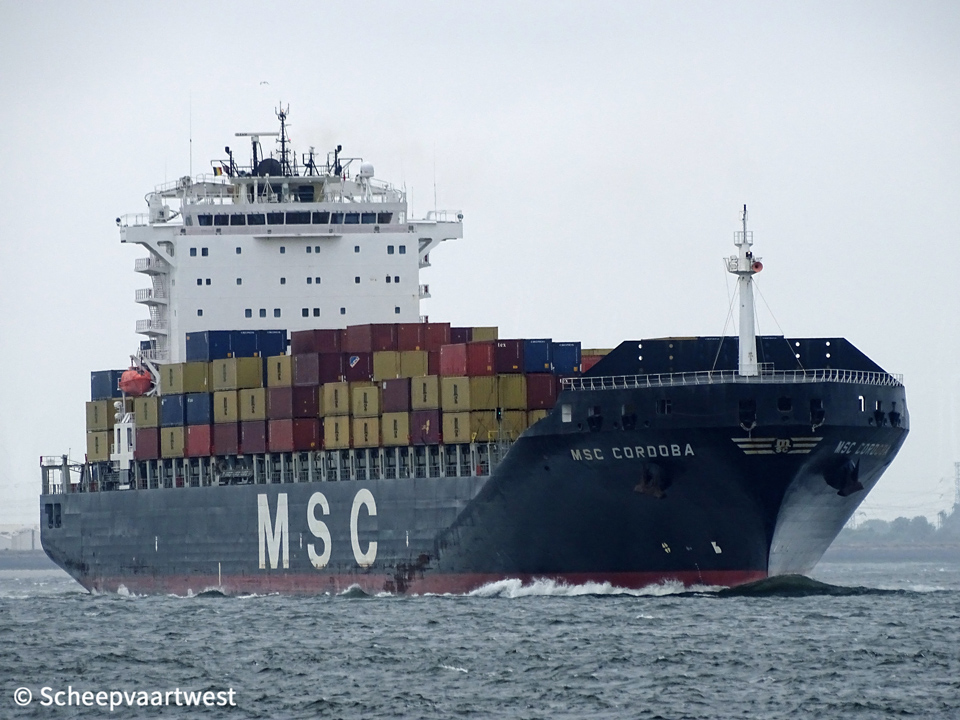

MSC Cordoba 13   MSC Cordoba 14   MSC Cordoba 07
Westerschelde 20/05/16   Westerschelde 10/07/18   Westerschelde 24/11/13



Name

MSC CORDOBA

Type

Cellular containership

IMO-number

9349801

Call sign

A8OF8

Flag

Liberia

Previous flag

04/10/2007 Germany

Port of registry

Monrovia

GT

50.963 t

DWT

63.352 t

NT

30.224 t

Number of 20ft containers

4.860

Container capacity 14t

3.370

Reefer capacity

560

Length

274,98 m overall

262,00 m between perpendiculars

262,82 m registered

Breadth

32,20 m over all

Draught

13,50 m

Freeboard

8.500 mm

Depth

21,50 m

Speed

24,0 knots

Built

2008

Keel laid

22/01/2007

Launch date

22/07/2007

Date of completion

12/02/2008

Builder

Daewoo Mangalia Heavy Industries S.A.

Strada Portului 1

905500 Mangalia, Jud. Constanta

Romania

Yard number

4063

Hull material

Shipbuilding steel (standard)

Hull type

Single hull

Double bottom, continuous from peak to peak bulkhead

Watertight bulkheads

9

Continuous decks

1

Main engine

1x MAN-B&W 7K98MC-C - 2 stroke single acting 7 cylinder 980 x 2.400 mm combustion engine - 39.970 kW at 104,0 rpm

Year of Manufacture: 2006

Manufacturer: HSD Engine Co., Ltd.

69 Sinchon-dong

Changwon , Kyungnam 641-370

Republic of Korea

Propeller

1x Solid propeller (keyless) - aft at 140,4 rpm

Boilers

1x Steam boiler, oil fired - 10,0 bar

Heating surface: 36,0 m²

1x Exhaust gas heated - 10,0 bar

Heating surface: 637 m²

Year of manufacture: 2006

Manufacturer: Aalborg Industries Ltd.

86 Guangzhou Road North Jiaozhou

266300 Qingdao , Shandong

People's Republic of China

Electric installations

1x Plant 450 V - 2.437,5 kVA

1x Plant 450 V - 2.437,5 kVA

1x Plant 450 V - 2.437,5 kVA

1x Plant 450 V - 2.437,5 kVA

1x Plant 450 V - 688 kVA

1x Plant 24 V - 200 Ah

1x Plant 24 V - 300 Ah

Generators

4x Main diesel generatorsets each 2.437,5 kVA / 1.950 kW

Emergency generator

1x Diesel generatorset 688 kVA / 550,4 kW

Batteries

1x Battery for automation - 300 Ah

1x Battery for UPS radio - 200 Ah

Compressed air receivers

2x Receivers each 15.000 litres - 30,0 bar

1x Receiver 300 litres - 30,0 bar

1x Receiver 200 litres - 30,0 bar

1x Receiver 300 litres - 7,0 bar

Bow thruster

1x Transverse thruster - 1.500 kW, forward

Anchor equipment

3x Anchors weight each 12.900 kg

Chain length: 715,00 m

Diameter: 87 mm

Cargo gear

Gearless

Crew size

30

Manager

CPO Containerschiffreederei (GmbH & Co.) KG

Bleichenbrücke 10

20354 Hamburg

Germany

Previous manager

NSB Niederelbe Schiffahrts GmbH & Co. KG

Harburger Str. 47-51

21614 Buxtehude

Federal Republic of Germany

Operator

MSC - Mediterranean Shipping Company

Owner

Conti Cordoba Shipping Ltd.

80, Broad Street

Monrovia

Republic of Liberia

Owner as completed

Conti 153 Container Schiffahrts GmbH & Co KG

Monrovia

Liberia

Renamed

2020 Conti Cordoba

Liberia, Monrovia - Call sign: A8OF8

Reg. owner:Conti Cordoba (Liberia) Shipping Ltd.

Manager: CPO Containerschiffreederei (GmbH & Co.) KG

Last data update

30 October 2020
