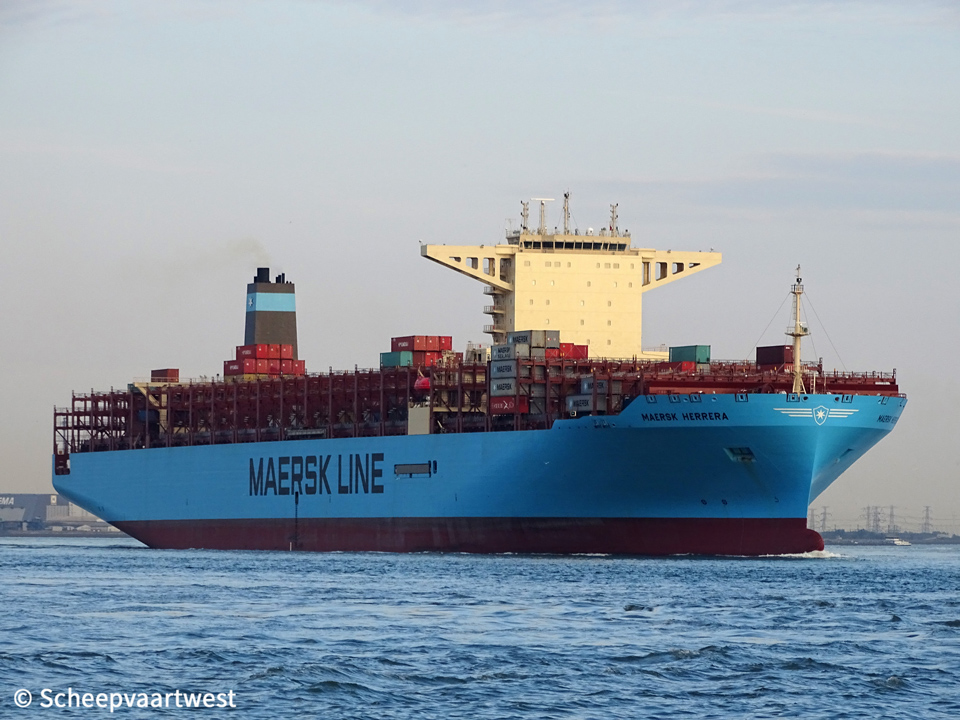

Maersk Herrera 01

Westerschelde 15 October 2018

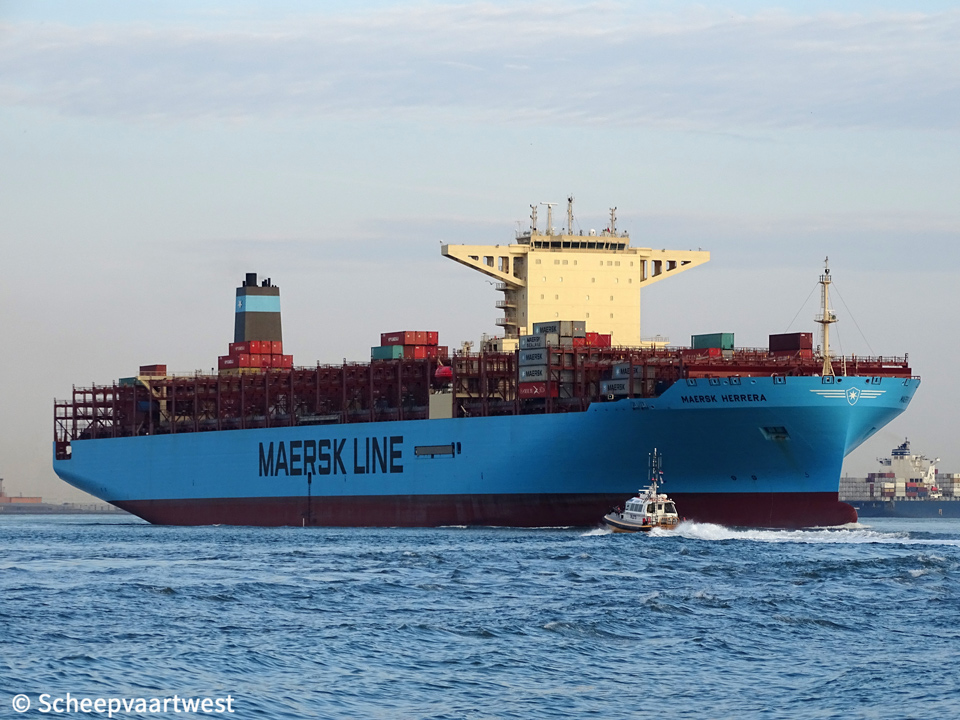

Maersk Herrera 02
Westerschelde 15/10/18













Name

MAERSK HERRERA

Type

Cellular containership - Carriage of dangerous goods - Refrigerated cargo

IMO-number

9784324

Call sign

9V7989

Flag

Republic of Singapore

Port of registry

Singapore City

GT

153.744 t

Suez: 157.986,21 t

DWT

Summer: 178.257,3 t

NT

79.806 t

Suez: 143.423,04 t

Displacement

224.100 t

Number of 20ft containers

15.226

Reefer capacity

1.000

Length

353,02 m overall

340,50 m between perpendiculars

Breadth

53,50 m moulded

Draught

Max: 17,0 knots

Freeboard

5.677 mm

Depth

29,90 m moulded

Speed

Max: 23,1 knots

Built

2018

Keel laid

16/12/2015

Launch date

11/05/2018

Date of completion

31/07/2018

Builder

Hyundai Heavy Industries Co., Ltd.

1000 Bangeojinsunhwan-Doro, Dong-Gu

Ulsan

South Korea

Yard number

2878

Hull material

Steel

Main engine

1x Hyundai/MAN-B&W 8G95ME-C9.5 - 2 stroke 8 cylinder 950 x 3.460 mm combustion engine 54.960 kW at 80,0 rpm

Manufacturer: HHI Engine & Machinery Div.

Propellers

1x Fixed pitch propeller

Manufacturer: HHI Engine & Machinery Div.

Boilers

1x Auxiliary boiler, oil fired Aalborg Mission OS Tci - 8,82 bar

1x M/E Exhaust gas boiler Aalborg XS-2V - 9,0 bar

2x G/E Exhaust gas boiler Aalborg XS-TC7A - 12,0 bar

Manufacturer: Alfa Laval Qingdao Ltd.

Shaft generator

1x Siemens 3.200 kW

Generators

4x 6H32/40 - 6 cylinder 320 x 400 mm combustion engines each 3.000 kW at 720 rpm coupled with 4 generators HSJ7 801-10P each 2.850 kW

Manufacturer: HHI Engine & Machinery Div. / HHI Electro Electric System

Tank capacities

Lub oil: 589 m³

Ballast: 50.119,3 m³

Fresh water: 707 m³

Fuel oil: 11.959,6 m³

Lifting equipment

1x Engine room crane aft - SWL 12,5 t

1x Engine room forward aft - SWL 12,5 t

Manufacturer: Oriental Precision Machinery Co., Ltd.

1x Monorail crane - SWL 12,5 t

1x Provision crane port - SWL 2,0 t

1x Provision crane Starboard - SWL 5,0 t

Manufacturer: Oriental Prec & Eng'g Co.

Crew

34

Manager

Maersk Line AS

Copenhagen

Denmark

Operator

Maersk Line

Registered owner

Moller Singapore AP Pte Ltd.

200 Cantonment Road #10-00 Southpoint

Singapore, 089763

Republic of Singapore

Latest data adjustment

17 February 2020
