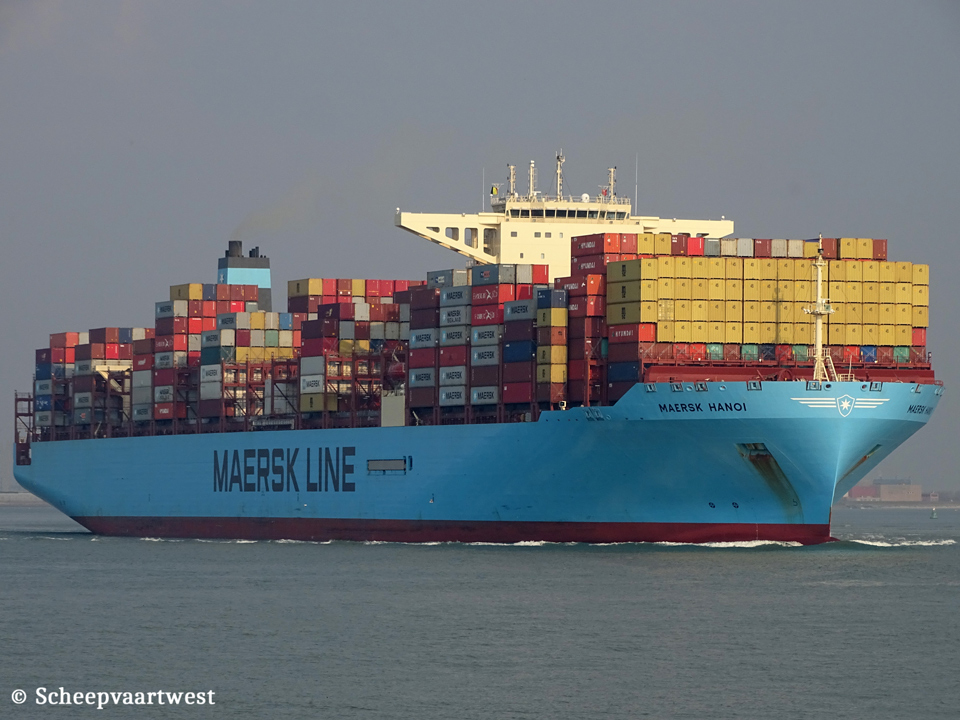

Maersk Hanoi IMO 9784295 01

Westerschelde 07 April 2019



Name

MAERSK HANOI

Type

Cellular containership - Carriage of dangerous goods - Refrigerated cargo

IMO-number

9784295

Call sign

9V5601

Flag

Republic of Singapore

Port of registry

Singapore City

GRT

153.744 t

Suez: 157.986,21 t

DWT

161.905,3 t

NRT

79.806 t

Panama: 143.423,04 t

Displacement

207.748 t

Number of 20ft containers

15.282

Reefer capacity

1.000

Length

353,02 m overall

340,50 m between perpendiculars

Breadth

53,50 m moulded

Draught

Summer: 17,00 m

Freeboard

6.677 mm

Depth

29,90 m moulded

Speed

Max: 23,0 knots

Built

2018

Keel laid

15/12/2015

Launch date

01/09/2017

Date of completion

06/01/2018

Builder

Hyundai Heavy Industries Co., Ltd.

Bangeojinsunhwan-Doro, Dong-Gu

Ulsan

South Korea

Yard number

2875

Hull material

Steel

Main engine

1x MAN-BW/Hyundai 8G95ME-C9.5 - 2 stroke 8 cylinder 950 x 3.460 mm combustion engine Mcr 54.960 / 74.724 hp at 80,0 rpm

Manufacturer: HHI Engine & Machinery Div

Propellers

1x Fixed pitch propeller

Manufacturer: HHI Engine & Machinery Div

Boilers

1x Exhaust gas boiler Aalborg XS-2V - 9,0 MPa

2x Exhaust gas boiler Aalborg XS-TC7A each 12,0 MPa

1x Auxiliary boiler, oil fired Mission OS Tci - 8,80 MPa

Shaft generator

1x Siemens generator 3.200 kW

Generators

4x Main diesel generatorsets each 2.850 kW

Manufacturer: HHI Electro Electric System

Tank capacities

Ballast: 50.119,30 m³

Fuel oil: 11.959,60 m³

Lub oil: 589,60 m³

Lifting equipment

2x Engine room crane - SWL 12,5 t

1x Monorail crane - SWL 12,5 t

1x Provision crane starboard starboard- SWL 5,0 t

1x Provision crane starboard port side - SWL 2,5 t

Manufacturer: Oriental Precision Machinery Co., Ltd.

Crew

34

ISM & commercial manager

Maersk Line AS

Esplanaden 50

1263 Copenhagen, K

Denmark

Registered owner

Moller Singapore AP Pte Ltd.

13-01, Paya Lebar Quarter, 1, Paya Lebar Link

Singapore 408533

Republic of Singapore

Latest data adjustment

25 September 2021
