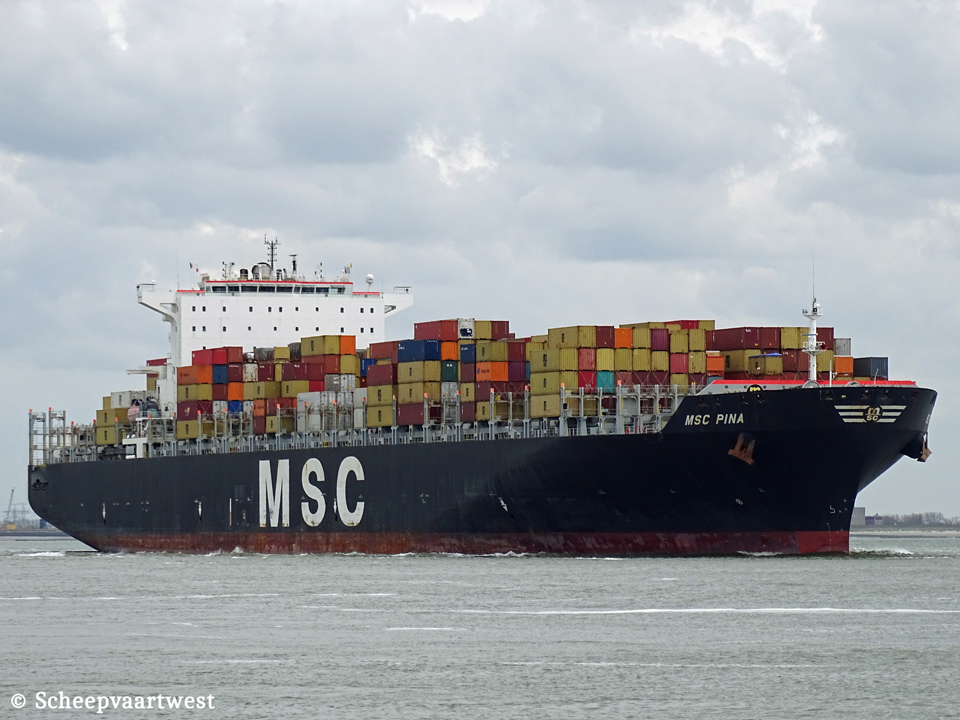

MSC Pina IMO 9339272 03

Westerschelde 30 April 2016

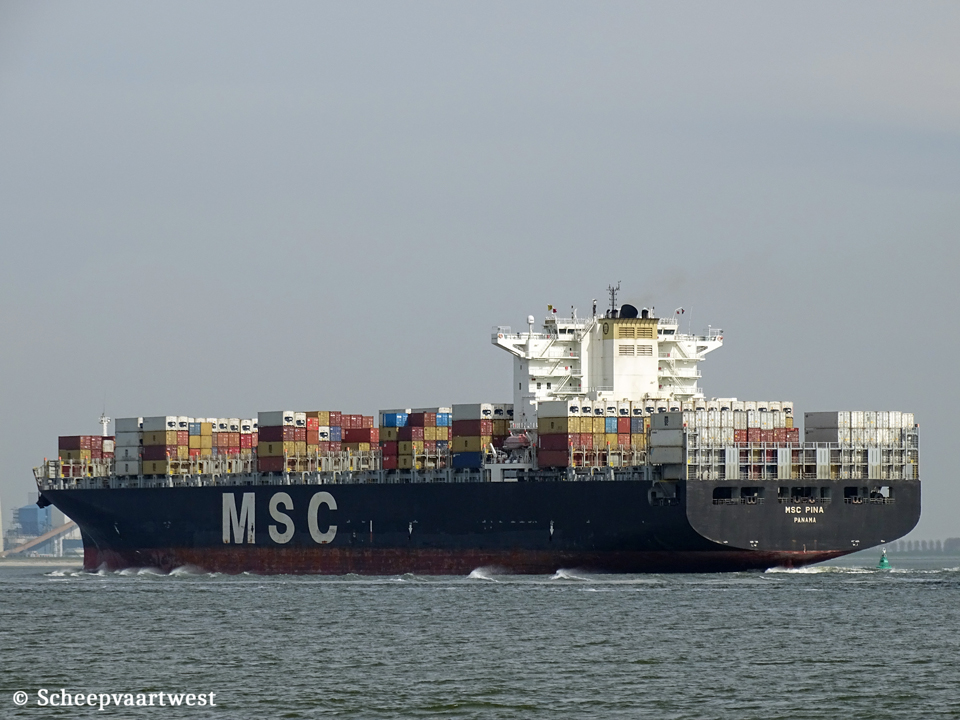

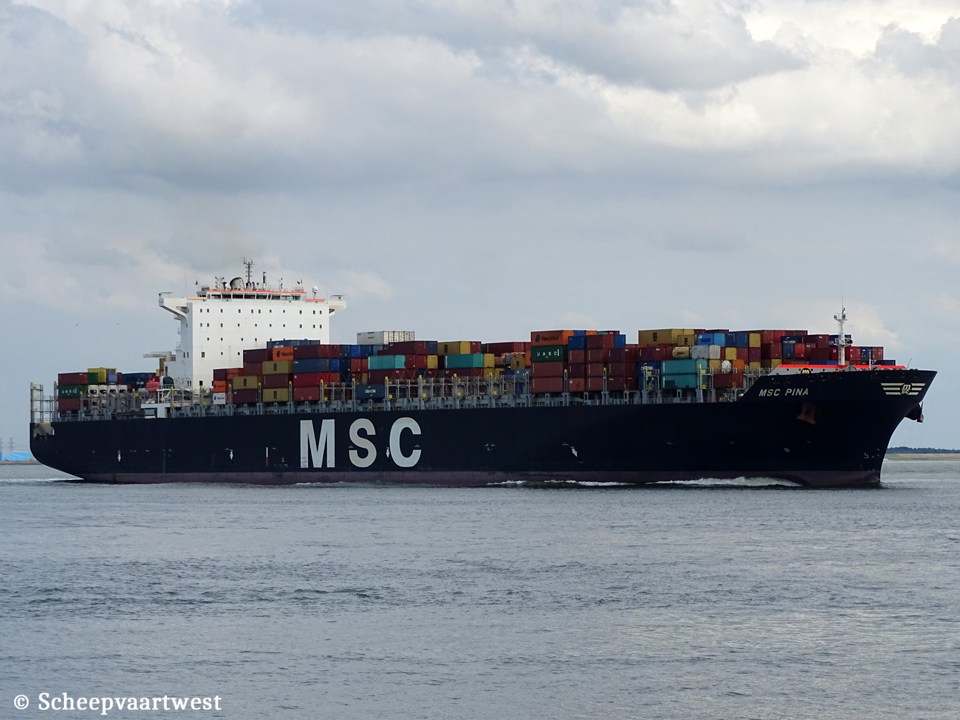

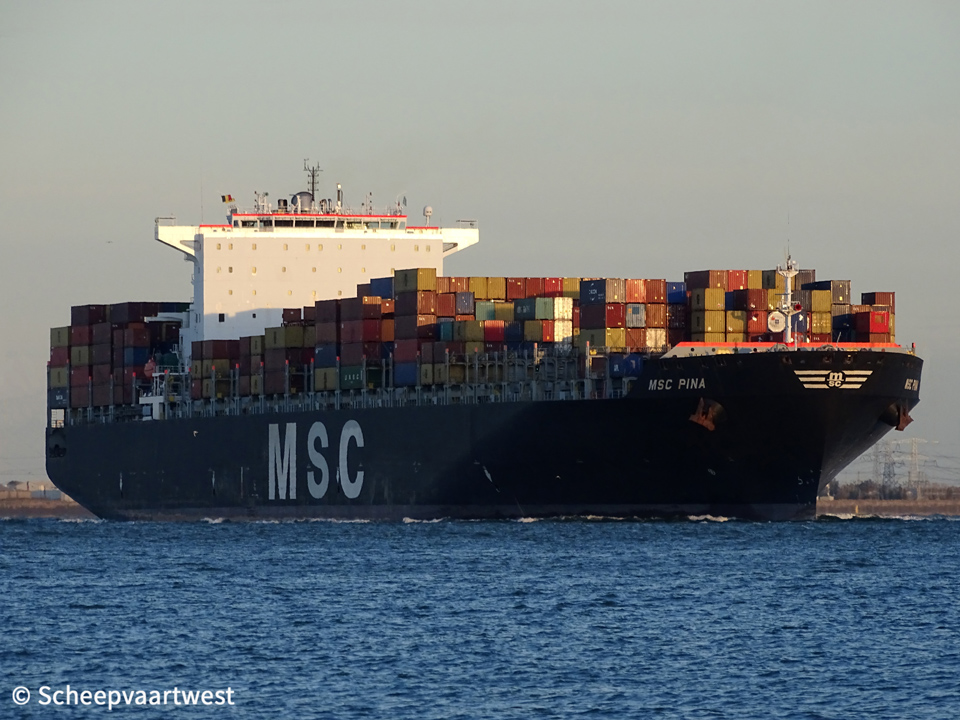

MSC Pina 01   MSC Pina IMO 9339272 02   MSC Pina IMO 9339272 04
Westerschelde 28/10/18   Westerschelde 03/08/19   Westerschelde 21/04/16


Name

MSC PINA

Type

Cellular containership

IMO-number

9339272

Call sign

3ELK8

Flag

Republic of Panama

Port of registry

Panama City

GT

107.849 t

DWT

Summer: 117.236,2 t

NT

61.479 t

Number of 20ft containers

9.178

Reefer capacity

700

Length

336,69 m overall

321,00 m between perpendiculars

Breadth

45,65 m extreme

Draught

Max: 15,50 m

Freeboard

4.738 mm

Keel to mast end

63,41 m

Depth

27,20 m

Speed

Max: 26,2 knots

Built

2007

Keel laid

21/03/2007

Launch date

02/06/2007

Delivery date

23/07/2007

Builder

Samsung Heavy Industries Co., Ltd. Geoje Shipyard

South Korea

Yard number

1612

Hull material

Steel

Main engine

1x MAN-B&W/Doosan 12K98MC-C - 2 stroke 12 cylinder 980 x 2.400 mm combustion engine 68.520 kW / 93.158 hp at 104,0 rpm

Propellers

1x Fixed pitch propeller

Boilers

1x Auxiliary boiler, oil/gas fired MISSION OS

1x Auxiliary boiler, exhaust gas heated AQ-2

Generators

4x MAN 6L32/40 main diesel generatorsets each 2.750 kW

Emergency generator

1x VTA28-DMGE diesel generatorset

Bow thruster

1x 3.000 kW

Tank capacities

Ballast: 25.307,7 m³

Anchor equipment

Length: 759,00 m

Diameter: 111 mm

Cargo gear

Gearless

Commercial manager

MSC Mediterranean Shipping Co.

chemin Rieu

12-14

1208 Geneva

Switzerland

ISM manager

MSC - Mediterranean Shipping Company S.r.l.

Via Francesco Ciampa 29

80063 Piano di Sorrento NA

Italy

Registered owner

Compania Naviera Pina S.A.

Care of MSC Mediterranean Shipping Co SA

chemin Rieu, 12-14

1208 Geneva

Switzerland

Latest data adjustment

25 November 2022
