Westerschelde 15 March 2017 |
 |
|
| Westerschelde 16/01/17 | |
|
Name |

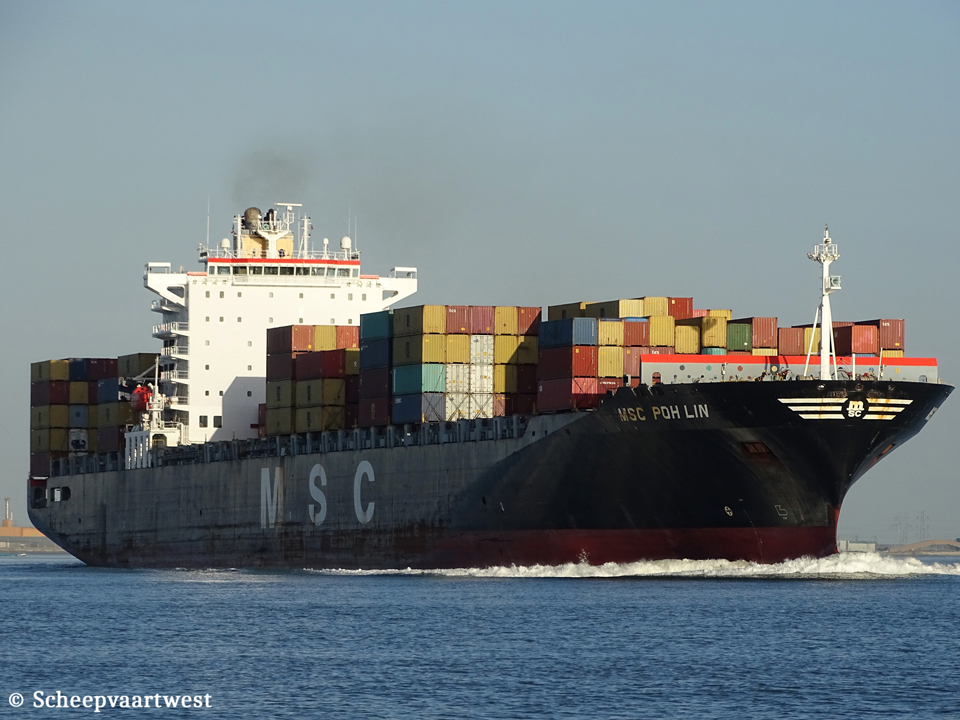

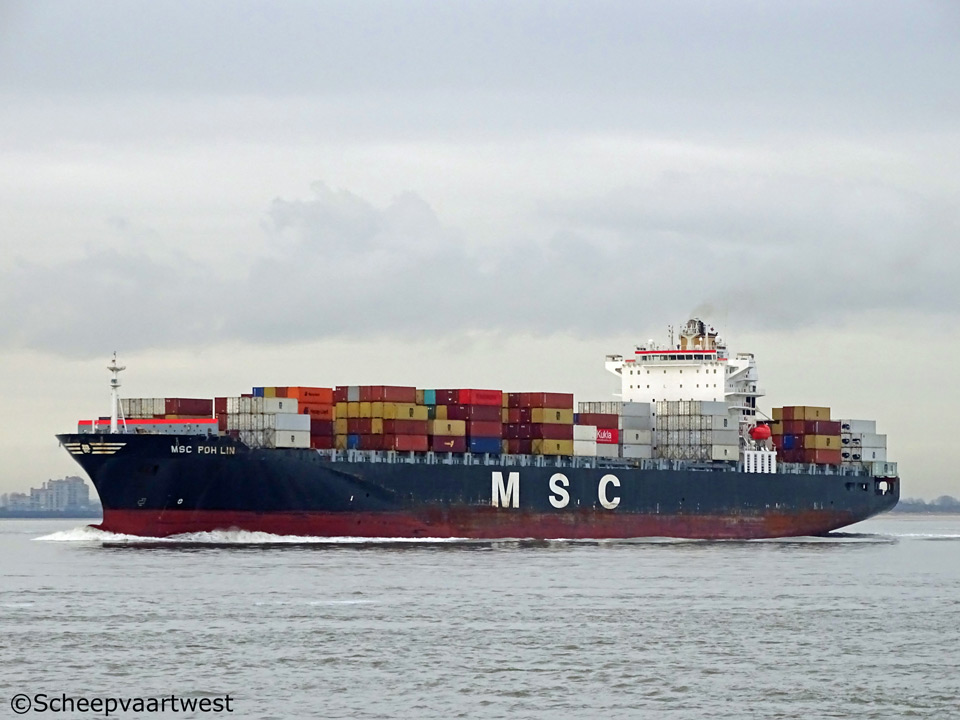

MSC POH LIN |
|
Type |
Cellular Containership - Panamax |
|
IMO-number |
9279977 |
|
Call sign |
H8FC |
|
Flag |
Republic of panama |
|
Port of registry |
Panama City |
|
GT |
54.774 |
|
DWT |
Summer: 66.786 t |
|
NT |
33.409 |
|
Number of 20ft containers |
5.059 |
|
Container capacity 14t |
3.320 |
|
Reefer capacity |
350 |
|
Length |
294,17 m overall 283,20 m between perpendiculars |
|
Breadth |
32,25 m extreme |
|
Draught |
13,55 m |
|
Forecastle |
14,74 m |
|
Quarterdeck |
10,50 m |
|
Freeboard |
3.880 mm |
|
Depth |
17,43 m |
|
Speed |
Max.: 24,0 knots |
|
Built |
2004 |
|
Keel laid |
29/12/2003 |
|
Launch date |
21/03/2004 |
|
Date of completion |
29/05/2004 |
|
Builder |
Samho Heavy Industries Co., Ltd. (SAMHO Shipyard) 1700, Yongdang-ri, Samho-myun Youngam-gun Cheollanam-do South Korea |
|
Yard number |
S195 |
|
Hull material |
Steel |
|
Hull type |
Double bottom continuous from peak to peak bulkhead |
|
Watertight bulkheads |
8 |
|
Continuous decks |
2 |
|
Main engine |
1x MAN B&W 9K90MC-C - 2 stroke single acting 9 cylinder 900 x 2.300 mm combustion engine Mcr 41.107 kW / 55.889 hp at 104 rpm Manufacturer: Hyundai Heavy Industries Co., Ltd. Engine & Machinery Division , Ulsan 682-792 - Republic of Korea |
|
Propellers |
1x Solid propeller (keyless) - aft at 104,0 rpm |
|
Boilers |
1x Steam boiler, oil fired - 9,8 bar Heating surface: 55,0 m² 1x Steam boiler, exhaust gas heated - 9,8 bar Heating surface: 830,0 m² Year of manufacture: 2003 Manufacturer: KangRim Industries Co., Ltd. (3rd Factory) ,Changwon - Republic of Korea |
|
Electric installations |
4x Plants each 450/230 V - 2.212,5 kVA 1x Plant 450 V - 625 kVA 1x Plant 24 V - 200 Ah 2x Plants each 24 V - 600 Ah |
|
Generators |
4x MAN B&W 9 L28/32H main diesel generatorsets each 2.212,5 kVA 450/230V 60Hz AC |
|
Emergency generator |
1x Cummins VTA 28-D(M) diesel generatorset 625 kVA |
|
Compressed air receivers |
2x Receivers each 20.000 litres - 30,0 bar 2x Receivers each 250 litres - 30,0 bar 1x Receiver 200 litres - 7,5 bar |
|
Bow thruster |
1x Transverse thruster ULSTEIN - 1.900 kW / 2.583 hp, forward |
|
Tank capacities |
Ballast: 17.906,6 m³ |
|
Anchor equipment |
3x Anchors weight each 12.900 kg Length: 715,00 m Diameter: 87 mm |
|
Cargo gear |
Gearless |
|
Crew size |
32 |
|
Manager |
Mediterranean Shipping Company S.r.l. chemin Rieu, 12-14 1208 Geneva Switzerland |
|
Operator |
MSC - Mediterranean Shipping Company |
|
Registered owner |
Compania Naviera Pohlin S.A. 4 Edifico Universal Calle 50 No. 102 Panama City Republic of Panama |
|
Latest data adjustment |
28 December 2024 |
