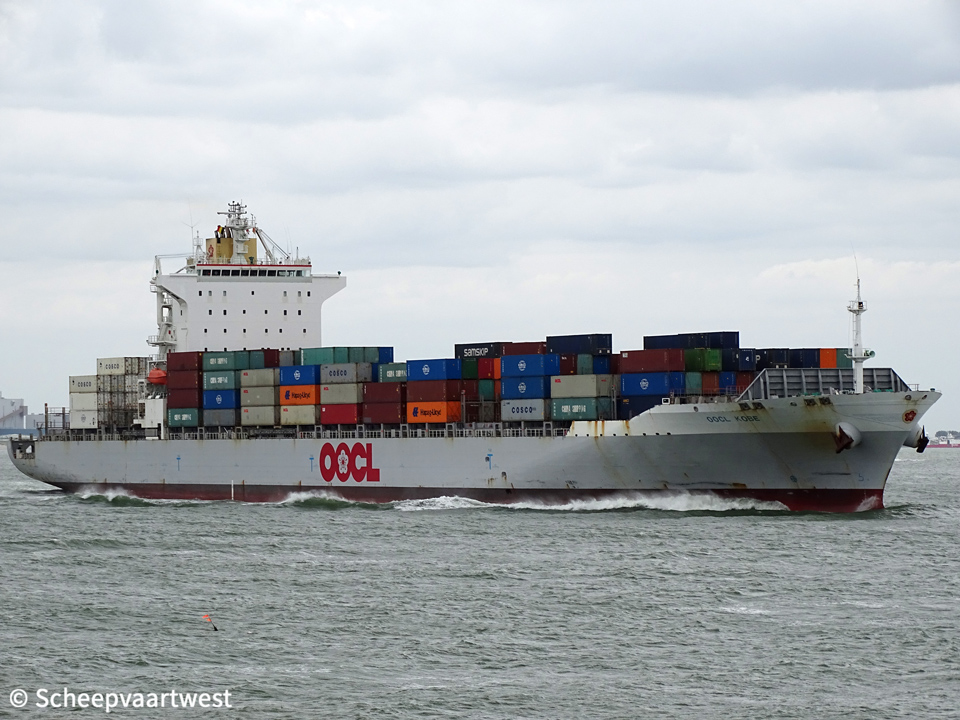

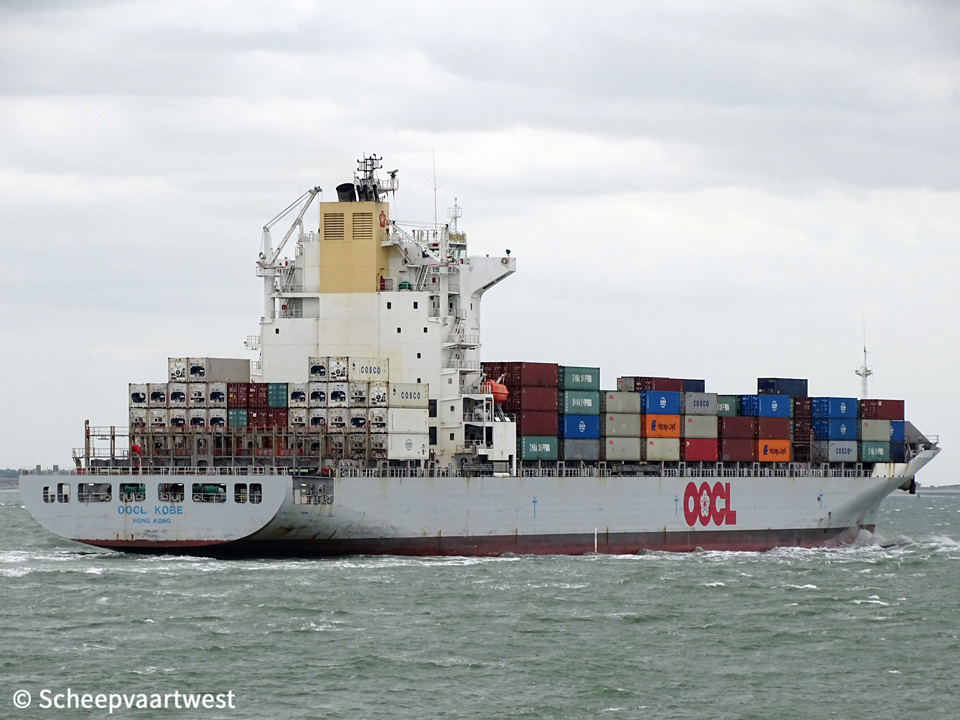

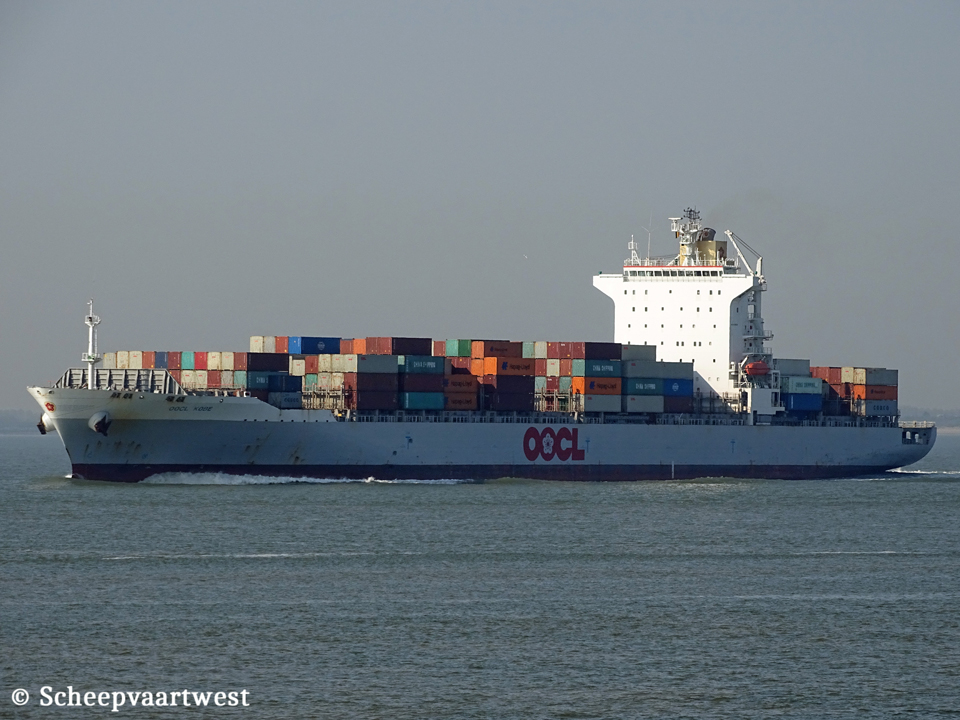

Westerschelde 06 September 2019 |
 |
 |
 |
 |
|||
| Westerschelde 06/09/19 | Westerschelde 18/04/19 | Westerschelde 23/01/20 | Westerschelde 13/04/18 | |||
|
Name |
OOCL KOBE |
|
Type |
Cellular containership - Carriage of dangerous goods |
|
IMO-number |
VRCY7 |
|
Call sign |
9329526 |
|
Flag |
Hong Kong - China |
|
Port of registry |
Hong Kong |
|
GT |
40.168 t |
|
DWT |
50.553,6 t |
|
NT |
24.450 t Panama: 36.084 t |
|
Displacement |
Summer: 67.248,8 t |
|
Light weight |
16.695,2 t |
|
Number of 20ft containers |
4.578 |
|
Reefer capacity |
400 |
|
Length |
260,04 m overall 244,80 m between perpendiculars |
|
Breadth |
32,25 m moulded |
|
Draught |
Summer: 12,62 m |
|
Keel to mast end |
57,91 m |
|
Freeboard |
3.001 mm |
|
Depth |
19,30 m moulded |
|
Speed |
Max: 24,5 knots |
|
Built |
2007 |
|
Keel laid |
21/03/2007 |
|
Launch date |
28/04/2007 |
|
Delivery date |
29/06/2007 |
|
Builder |
Samsung Heavy Industries Co., Ltd. 80 Jangpyeong 3-Ro, Geoje-Si Gyeongsangnam-Do, 53261 South Korea |
|
Yard number |
1596 |
|
Hull material |
Steel |
|
Main engine |
1x Doosan/MAN-B&W 8K90MC-C - 2 stroke 8 cylinder 900 x 2.300 mm combustion engine 36.560 kW at 104,0 rpm Manufacturer: Doosan Engine Co.,Ltd. |
|
Propellers |
1x Fixed pitch propeller Manufacturer: Mecklenburger Metallguss GmbH |
|
Boilers |
1x Auxiliary composite boiler Manufacturer: Kang Rim Ind. Co Ltd. |
|
Generators |
4x Daihatsu 6DK-28 - 6 cylinder280 x 390 mm combustion engines each 1.810 kW coupled with NTAKL-VEP generators each 1.700 kW Manufacture: Daihatsu Diesel Mfg. Co Ltd. & Nishishiba Electric Co. |
|
Bow thruster |
1x 1.600 kW |
|
Tank capacities |
Lub oi: 346,1 m³ Fuel oil: 4.623,8 m³ Diesel oil: 259,7 m³ Fresh water: 682,0 m³ Ballast: 11.537,4 m³ |
|
Anchor equipment |
1x Engine room crane - SWL 10,0 t 1x Provision crane port - SWL 10,0 t 1x Provision crane starboard - SWL 4,0 t |
|
Cargo gear |
Gearless |
|
ISM & commercial manager |
OOCL - Orient Overseas Container Line Ltd. 31st Floor, Harbour Centre, 25, Harbour Road, Wan Chai Hong Kong China |
|
Registered owner |
Newcontainer No.121 (Marshall Islands) Shipping Inc. Care of Orient Overseas Container Line Ltd (OOCL) 31st Floor, Harbour Centre, 25, Harbour Road, Wan Chai Hong Kong China |
|
Latest data adjustment |
15 March 2022 |
