Name |

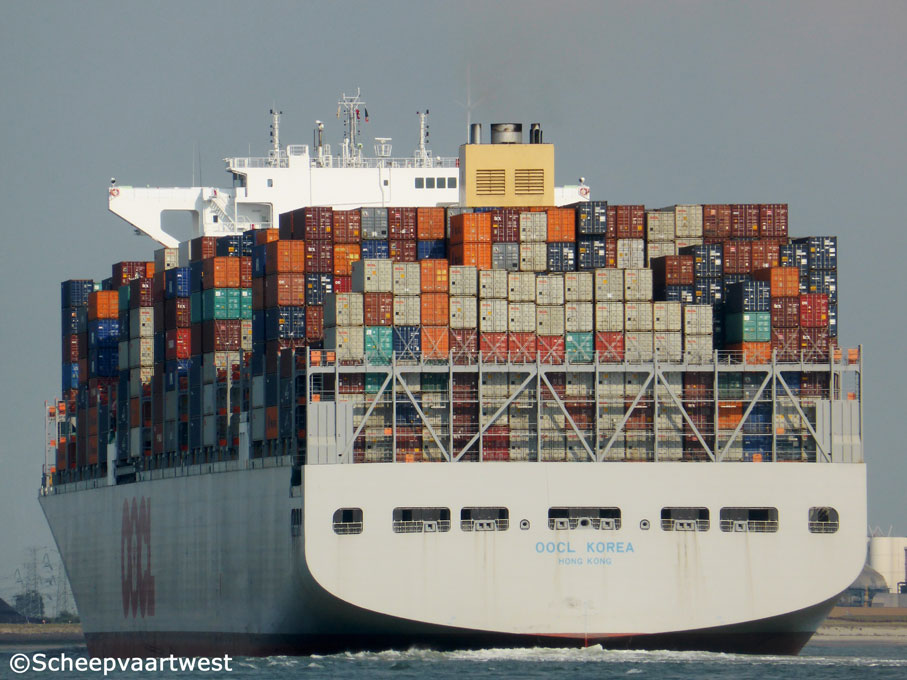

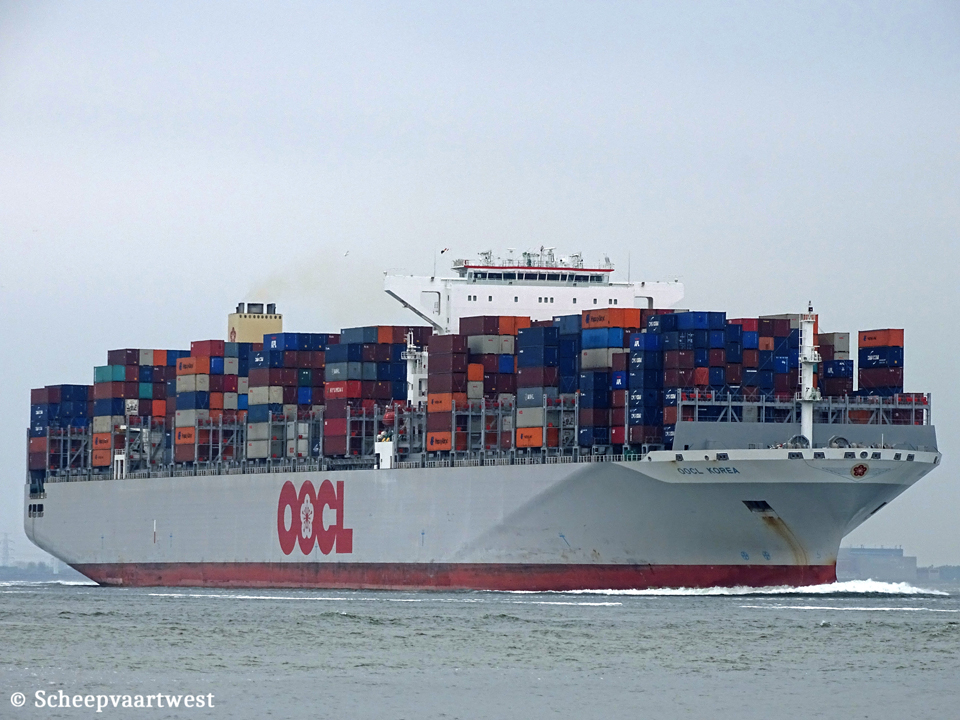

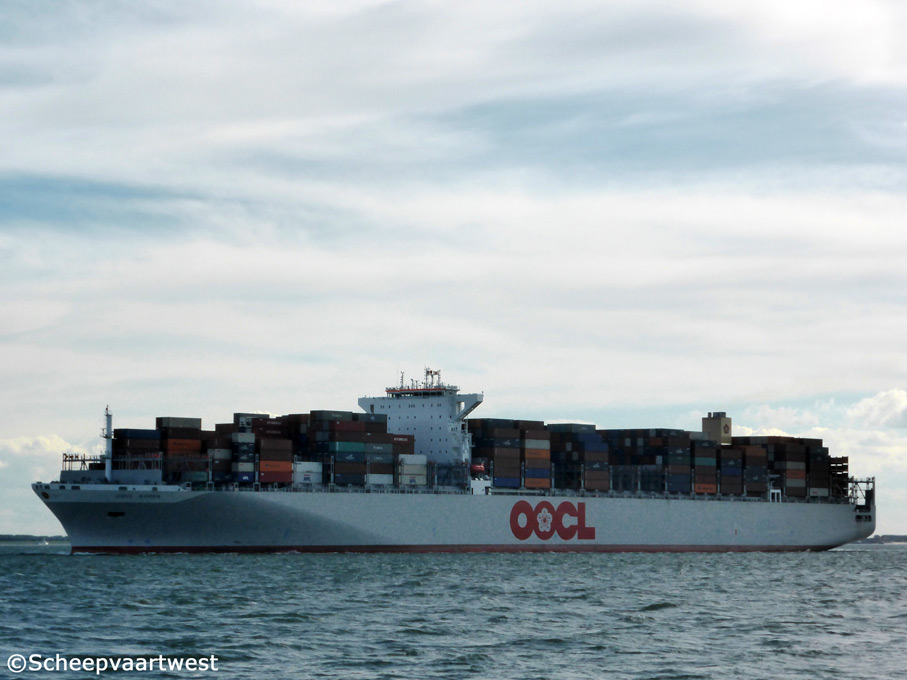

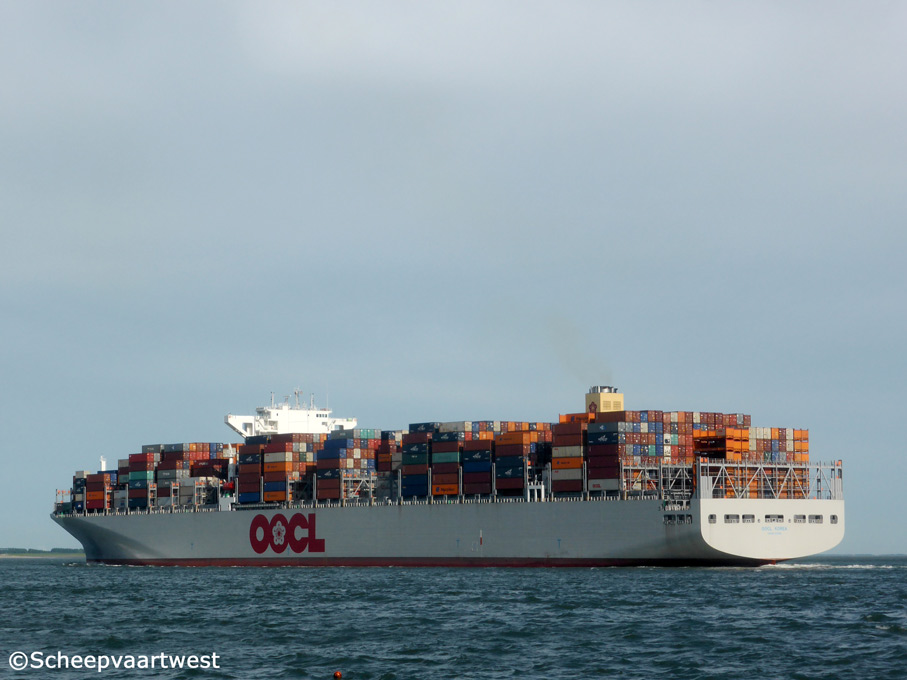

OOCL KOREA |
|
Type |
Cellular containership |
|
IMO-number |
9627992 |
|
Call sign |
VRMX8 |
|
Flag |
Hong Kong - People's Republic of China |
|
Port of registry |
Hong Kong |
|
GT |
141.003 t registered |
|
DWT |
Summer: 144.342 t |
|
NT |
69.987 t registered |
|
Number of 20ft containers |
13.208 |
|
Reefer capacity |
1.150 |
|
Length |
366,47 m overall 350,00 m between perpendiculars |
|
Breadth |
48,20 m moulded |
|
Draught |
Summer: 15,53 m |
|
Displacement |
Summer: 186.922,2 t |
|
Light weight |
42.791,2 t |
|
Highest point |
65,2 m from base line |
|
Freeboard |
7.424 mm |
|
Depth |
29,80 m moulded |
|
Speed |
23,0 knots |
|
Built |
2014 |
|
Keel laid |
14/10/2013 |
|
Launch date |
11/01/2014 |
|
Delivery date |
17/04/2014 |
|
Builder |
Samsung Shipbuilding & Heavy Industries Co., Ltd. 80 Jangpyeong 3-Ro, Geoje-Si,Gyeongsangnam-Do, 53261 South Korea |
|
Yard number |
2010 |
|
Hull material |
High strength steel Ordinary strength steel |
|
Hull type |
Single hull |
|
Watertight bulkheads |
11 |
|
Main engine |
1x MAN-B&W 12S90ME-C9.2 - 12 cylinder 900 x 3.260 mm combustion engine 54.200 kW / 73.690 hp at 77,2 rpm Manufacturer: HHI Engine & Machinery Div. |
|
Propellers |
1x Fixed pitch propeller Manufacturer: Nakashima Propeller Co., Ltd. |
|
Boilers |
Exhaust gas boiler Fired boiler Manufacturer: Kangrim Heavy Industries Co., Ltd. |
|
Shaft generator |
1x NTABS-RCM - 3.300 kW Manufacturer: Nishishiba Electric Co., Ltd. |
|
Generators |
4x NTAKL-RCP main diesel generatorsets each 3.650 kW Manufacturer: Nishishiba Electric Co., Ltd. |
|
Bow thruster |
3.600 kW |
|
Number of tanks |
Ballast: 23 Lubricating Oil: 16 Fuel Oil: 12 Waste Water: 7 Diesel Oil: 6 Sludge: 5 Chain: 2 Fresh Water: 2 Potable Water: 2 |
|
Tank capacities |
Diesel Oil: 614,8 m³ Freshwater: 870,5 m³ Fuel Oil: 10.763 m³ Lube Oil: 599,6 m³ Tank Ballast: 44.300,2 m³ |
|
Lifting equipment |
2x Bunker davit port - SWL 0,9 t Manufacturer: Jung-A Marine Co., Ltd. 1x Deck crane, monorail crane - SWL 13,0 t 2x Engine room crane - SWL 12,5 t 2x Provision crane - SWL 4,0 t Manufacturer: Oriental Prec & Eng'G Co. |
|
Cargo gear |
Gearless |
|
ISM & commercial manager |
OOCL - Orient Overseas Container Line 31st Floor, Harbour Centre, 25, Harbour Road, Wan Chai, Hong Kong China |
|
Registered owner |
Yamasa Shipholding 2005 S.A. 905 Silvercord, Tower 2 30 Canton Road, Tsimshatsui Kowloon Hong Kong |
|
Latest data adjustment |
22 August 2022 |
