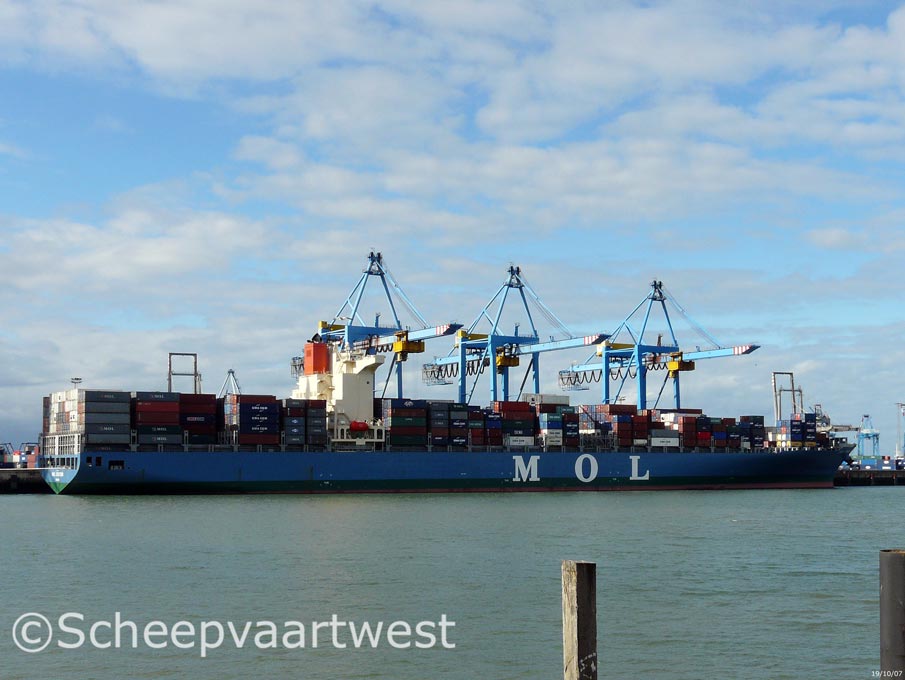

| Zeebrugge 10 October 2007 |
 |

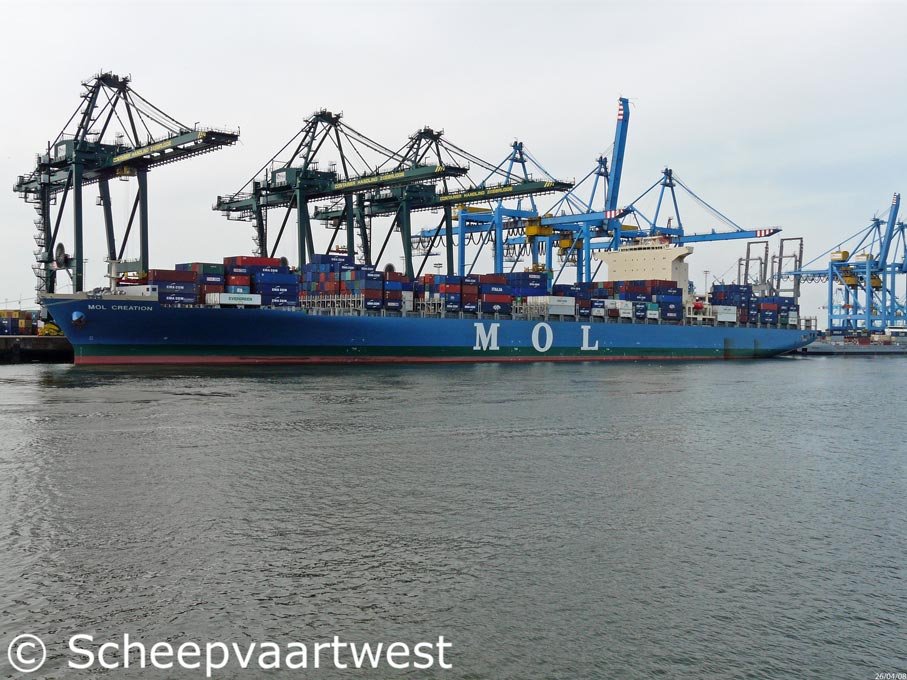

| Zeebrugge 26/04/08 |
|
Name |
MOL CREATION |
|
Type |
Cellular Containership |
|
IMO-number |
9321237 |
|
Call sign |
C6WD9 |
|
Flag |
Bahamas |
|
Port of registry |
Nassau |
|
GT |
86.692 t |
|
DWT |
90.678 t |
|
NT |
48.825 t |
|
Number of 20ft containers |
8.110 |
|
Reefer capacity |
630 |
|
Length |
316,00 m overall |
|
Breadth |
45,60 m |
|
Moulded L x B x D |
302,00 x 45,60 x 25,00 m |
|
Registered L x B x D |
303,18 x 45,60 x 20,34 m |
|
Draught |
Summer: 14,535 m |
|
Freeboard |
Summer: 5.859 mm |
|
Depth |
25,00 m moulded |
|
Speed |
25,25 knots |
|
Built |
2007 |
|
Keel laid |
31.08.2006 |
|
Launch date |
20.01.2007 |
|
Date of completion |
29.06.2007 |
|
Builder |
Mitsubishi Heavy Industries, Ltd. Nagasaki Shipyard & Machinery Works Japan |
|
Yard number |
2225 |
|
Hull type |
Single hull |
|
Main engine |
1x Sulzer 11RT-Flex96C-B - 4 stroke single acting 11 cylinder 960 x 2.50 mm diesel engine - output 62.920 kW at 102,0 rpm Manufacturer: Mitsubishi Heavy Industries, Ltd. Kobe Shipyard & Machinery Works |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary vertical boiler - 11,0 bar Evaporation: 28,75 t/h Manufacturer: Mitsubishi Heavy Industries, Ltd. Nagasaki Shipyard & Machinery Works 1x Auxiliary exhaust gas boiler - 4,5 bar Evaporation: 2,97 t/h Manufacturer: Aalborg Industries A/S |
|
Generators |
6x Main diesel generatorsets each 2.437 kVA total 14.625 kVA |
|
Tank capacities |
Fuel oil: 9.204 m³ Fresh water: 534 m³ Water ballast: 27.560 m³ |
|
Lifting equipment |
2x Cranes - SWL 4,0 t each 3x Cranes - SWL 11,0 t each |
|
Cargo gear |
None |
|
Manager |
MOL Ship Management Co. Ltd. |
|
Operator |
MOL - Mitsui Osk Line |
|
Charter |
CMA CGM - French Asia Line |
|
Owner |
Mitsui Osk |
|
Registered owner |
SNC Arthur |
