Westerschelde 16 August 2019 |
 |
 |
 |
 |
 |
 |
|||||
| Westerschelde 16/08/19 | Westerschelde 03/11/18 | Antwerpen 01/07/19 | Paal (NL) 12/05/19 | Westerschelde 11/09/18 | Westerschelde 06/06/20 |
|
Name |

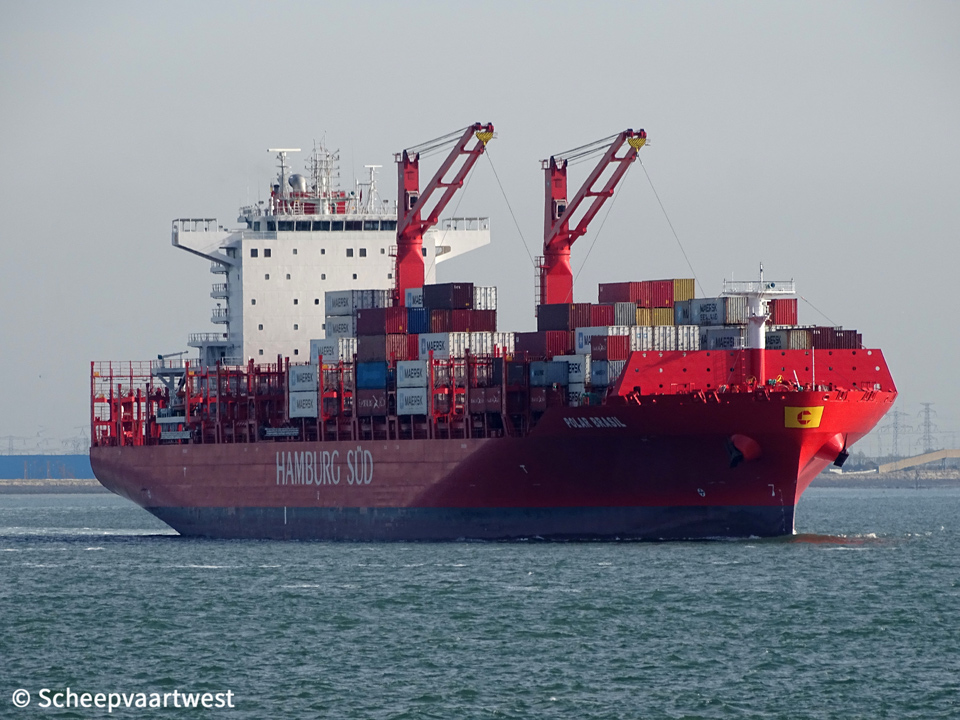

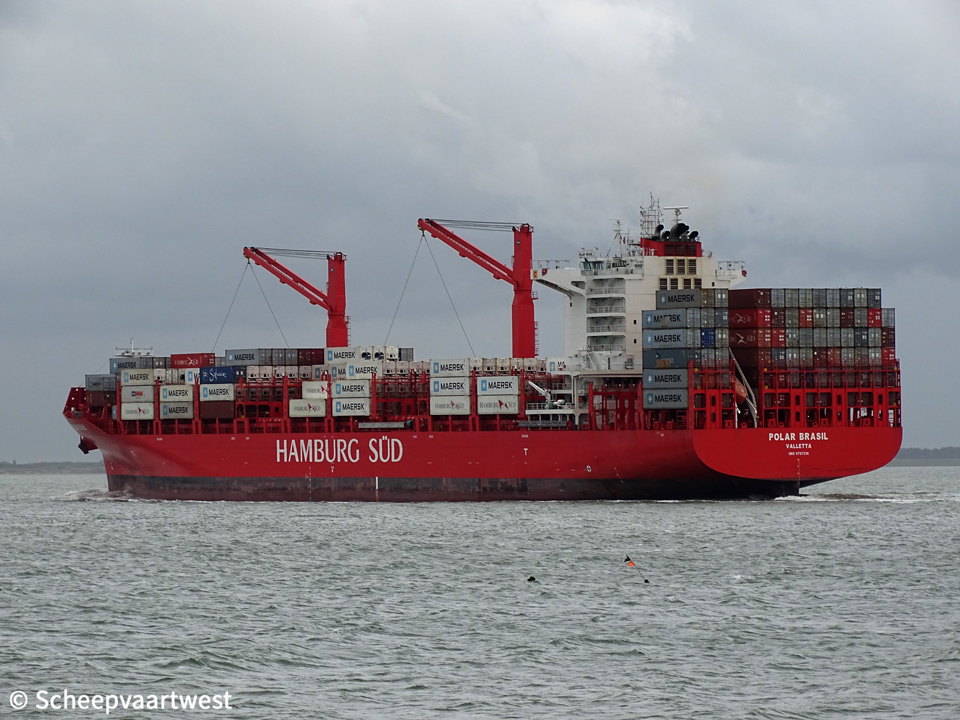

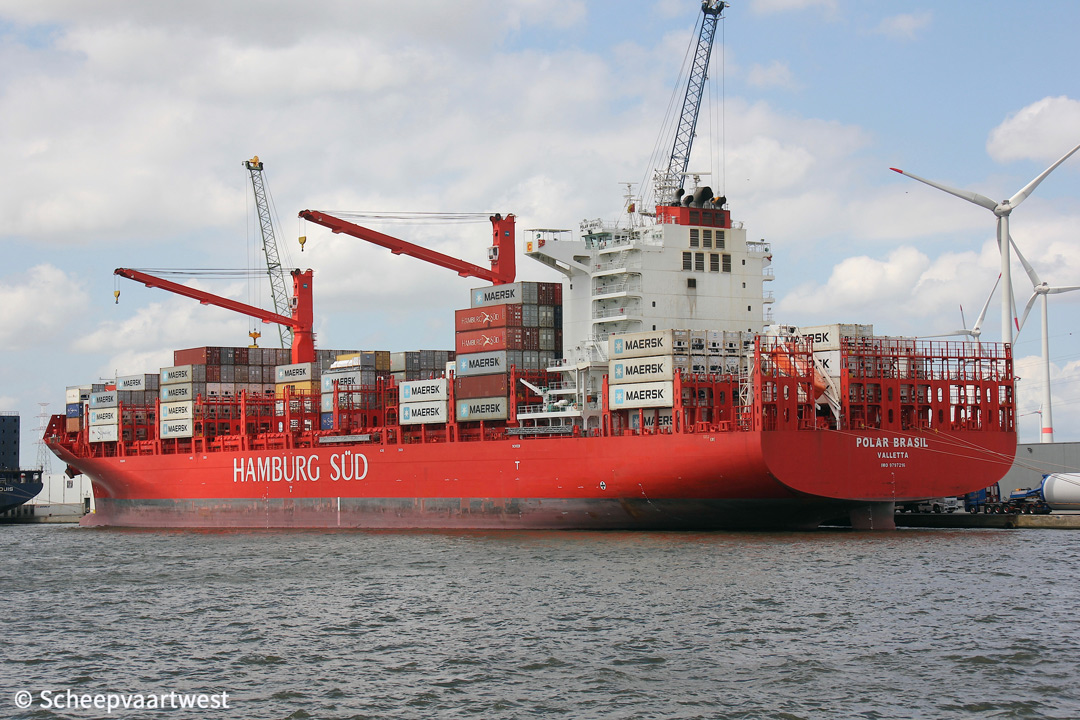

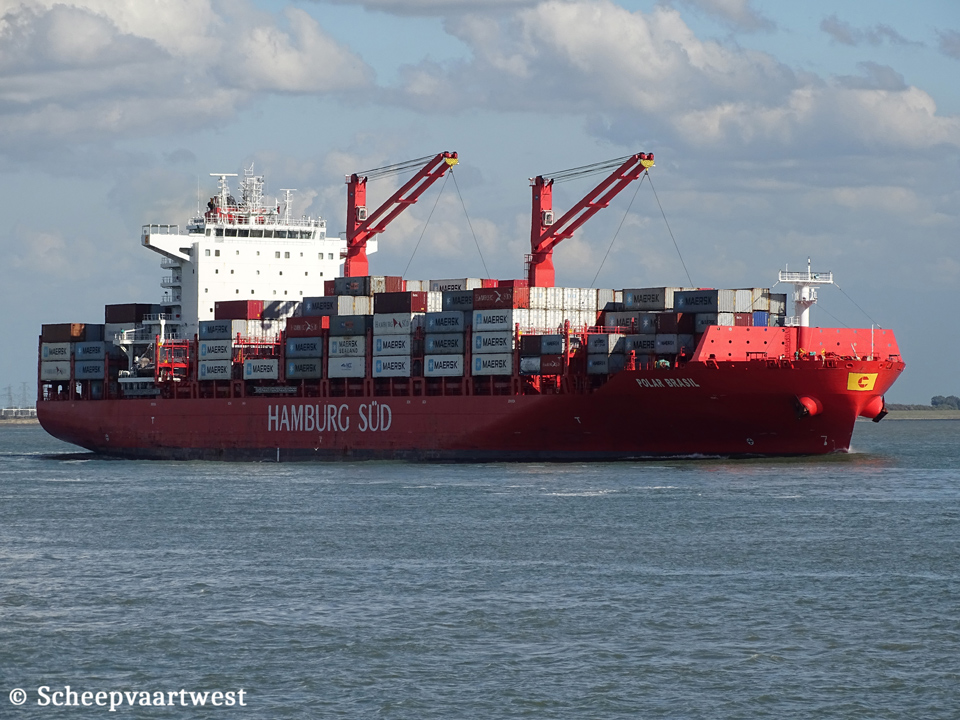

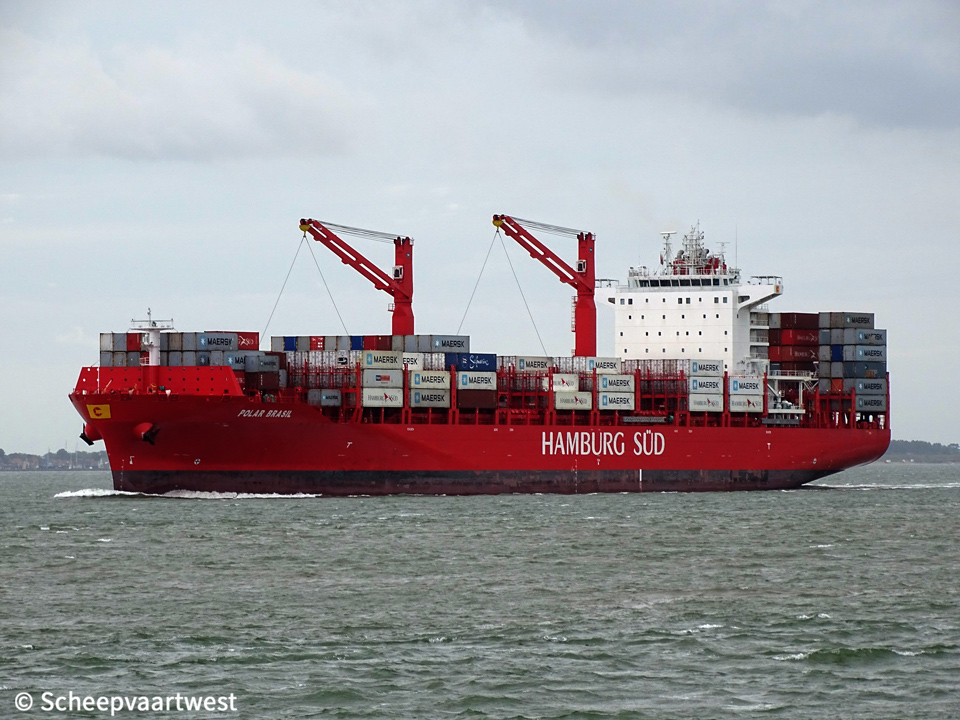

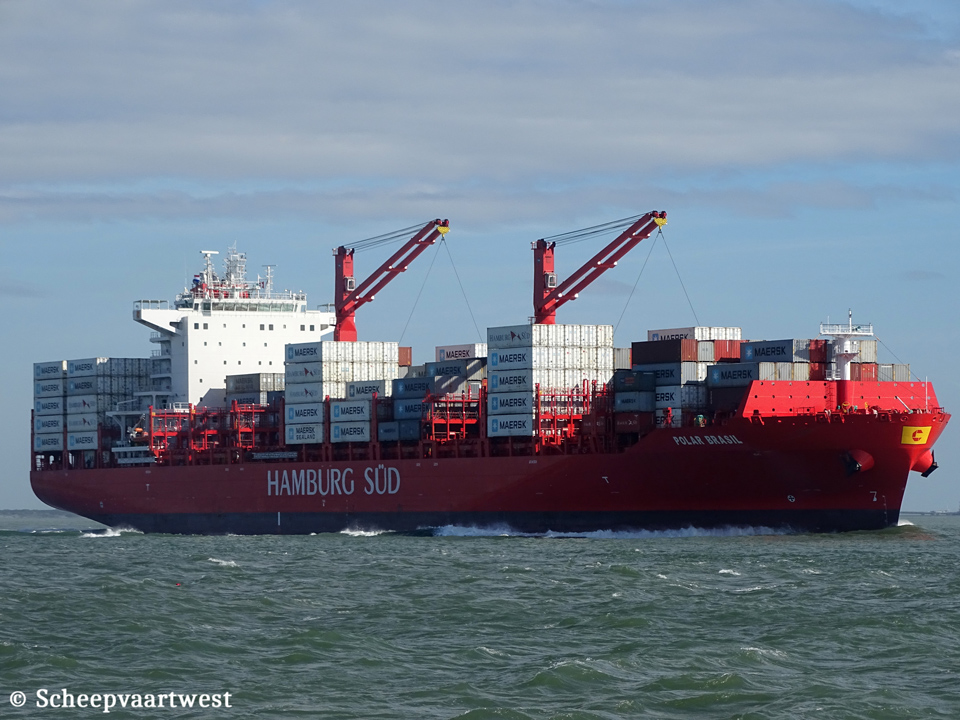

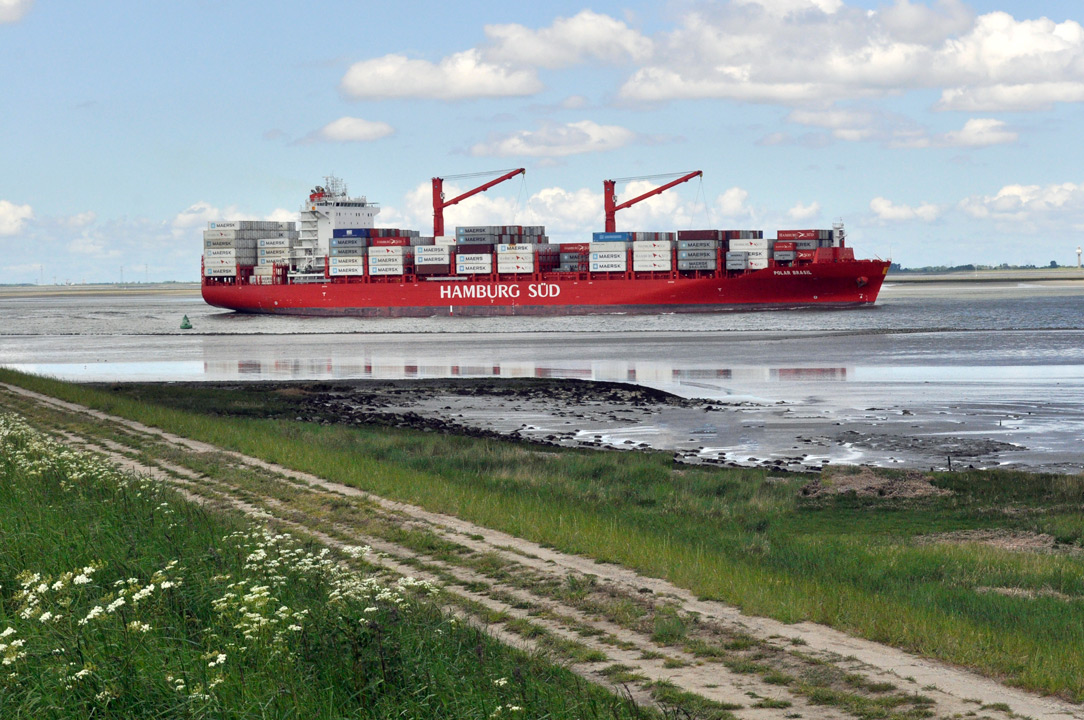

POLAR BRASIL |
|
Type |
Cellular containership - Carriage of dangerous goods |
|
IMO-number |
9797216 |
|
Call sign |
9HA4703 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
GT |
43.628 t registered Suez: 45.663,24 t |
|
DWT |
52.023 |
|
NT |
17.495 t registered Panama: 36.023 t Suez: 40.184,6 t |
|
Number of 20ft containers |
3.884 |
|
Container capacity 14t |
2.971 |
|
Reefer capacity |
1.000 |
|
Length |
230,00 m overall 220,80 m between perpendiculars |
|
Breadth |
37,30 m moulded |
|
Draught |
Max: 12,50 m |
|
Freeboard |
7.139 mm |
|
Depth |
19,60 m moulded |
|
Speed |
Service: 22,0 knots |
|
Keel laid |
18/12/2015 |
|
Launch date |
04/12/2017 |
|
Delivery date |
27/04/2018 |
|
Builder |
Jiangsu New Yangzi Shipbuilding Co., Ltd. |
|
Yard number |
YZJ2015-1207 |
|
Hull material |
Forged steel High strength steel |
|
Hull type |
Double hull |
|
Watertight bulkheads |
8 |
|
Continuous decks |
1 |
|
Main engine |
1x HHI/MAN-B&W 6S70ME-C8.5 - 2 stroke 6 cylinder 700 x 2.800 mm combustion engine 19.620 kW / 26.675 hp at 91,0 rpm Manufacturer: HHI Engine & Machinery Div - South Korea |
|
Propellers |
1x Fixed pitch propeller - aft at 91,0 rpm |
|
Boilers |
1x Composite boiler - 9,0 bar 1x Exhaust gas boiler - 9,0 bar Manufacturer: Saacke Qingdao Marine Boiler Co., Ltd. |
|
Generators |
3x Main diesel generatorsets each 4.520 kW 1x Main diesel generatorset 3.080 kW Manufacturer: Hyundai Electric & Energy System Co., Ltd. |
|
Bow thruster |
1x Tunnel thruster 1.500 kW / 2.039 bhp, forward 1x Tunnel thruster 1.500 kW / 2.039 bhp, aft |
|
Number of holds |
5 |
|
Hold capacity |
77.177,05 m³ |
|
Number of tanks |
Ballast: 26 Fuel oil: 14 Lubricating oil: 8 Waste water: 5 Sludge: 5 Diesel oil: 4 Fresh water: 4 Chain: 2 Sewage: 1 |
|
Tank capacities 100% |
Diesel oil: 434,68 m³ Freshwater: 469,12 m³ Fuel oil: 4.830,64 m³ Lube oil: 297,46 m³ Tank ballast: 20.288,23 m³ |
|
Lifting equipment |
1x Engine room overhead crane - SWL 6,3 t Manufacturer: Jiangyin Jianghai Mechnical Manufacture Co.,Ltd 1x Hose davit/Suez boat davit - SWL 4,0 t Manufacturer: Taizhou Kaixin Shipping Machine Co., Ltd. 1x Monorail Provision Crane - SWL 6,5 t Manufacturer: Oriental Prec & Eng'g Co. |
|
Cargo gear |
2x Deck cranes - SWL 44,0 t each on starboard Manufacturer: TTS Bohai Machinery Dalian Co Ltd. |
|
Crew size |
24 |
|
Commerical manager |
Costamare Shipping Co., SA. Costamare Building, 60, Zefyrou Street & A Syngrou Avenue 175 64 Athens Greece |
|
ISM Manager |
Shanghai Costamare Ship Management Co., Ltd. 38 Floor, Sino Life Tower no. 707 Zhang Yang Road Shanghai, 200122 China |
|
Operator |
Hamburg Südamerikanische Dampfschifffahrts-Gesellschaft A/S & Co KG Willy-Brandt-Straße 59–65 20457 Hamburg Germany |
|
Registered owner |
Jiatai International Ship Lease Co., Limited Hong Kong |
|
Latest data adjustment |
08 December 2021 |
