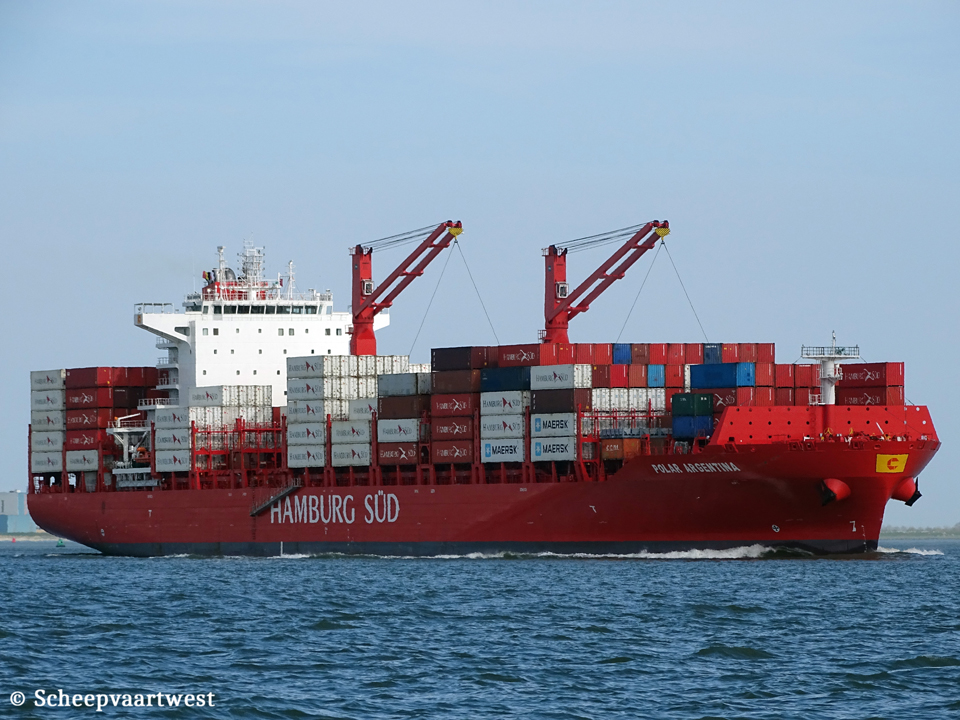

Polar Argentina IMO 9797204 04

Westerschelde 17 April 2018

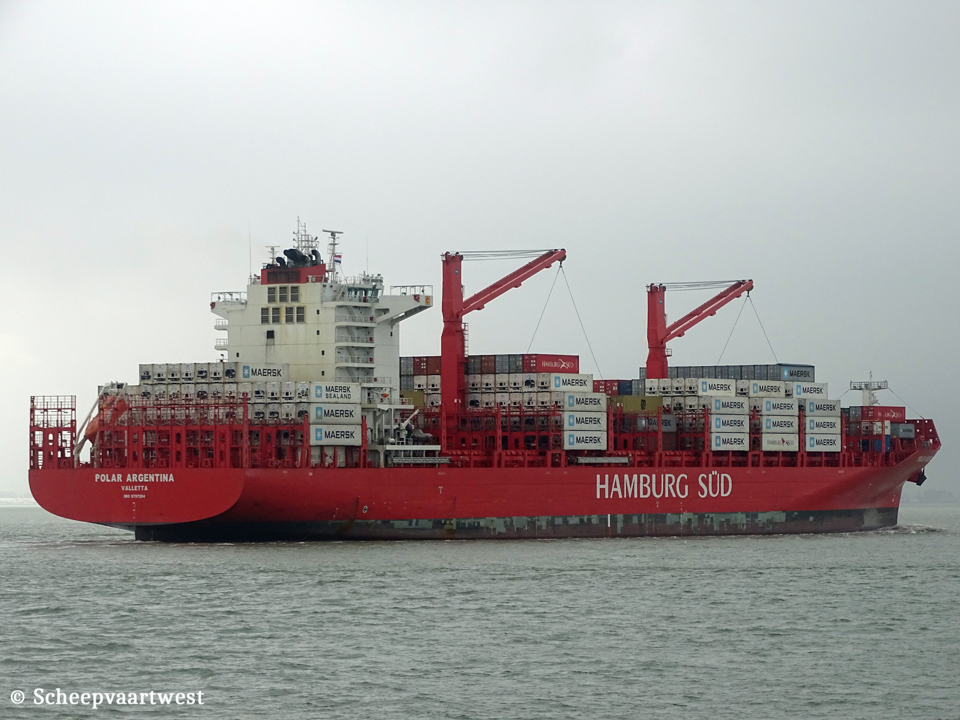

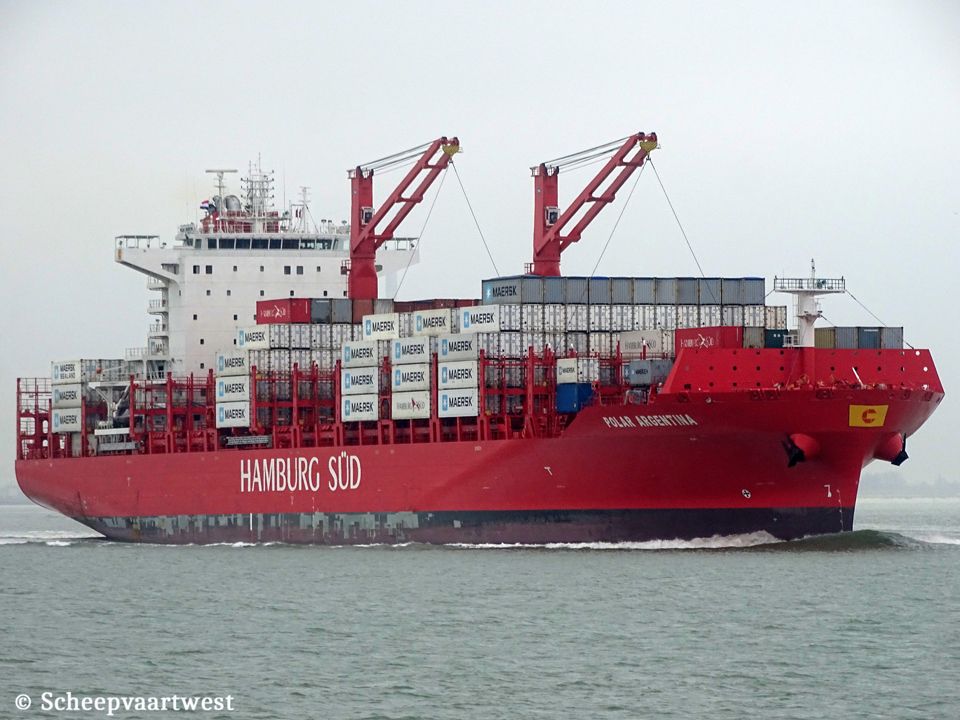

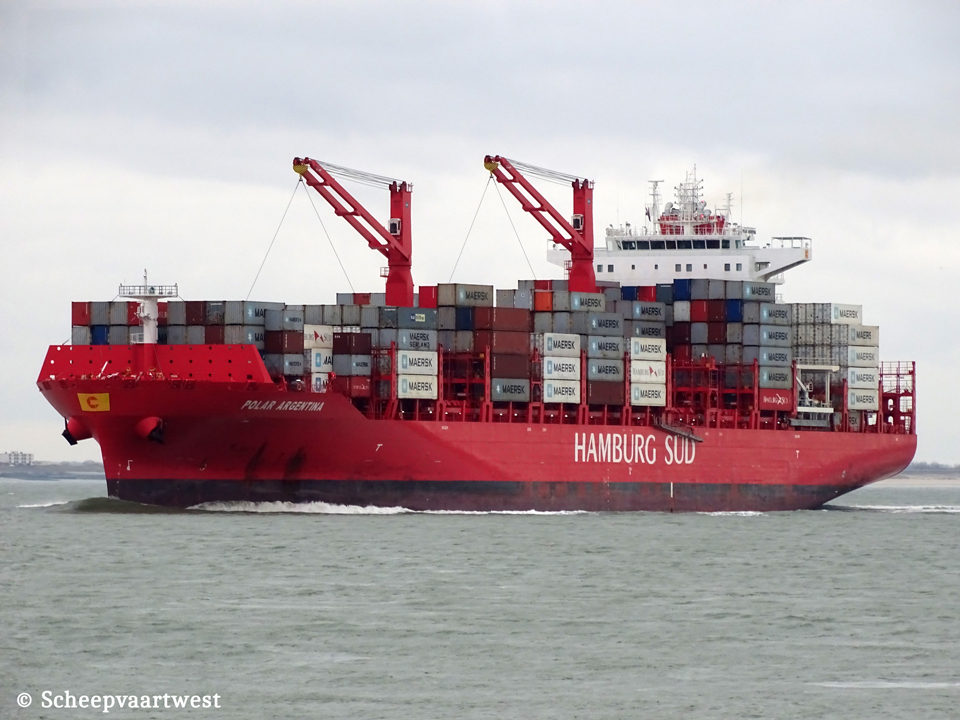

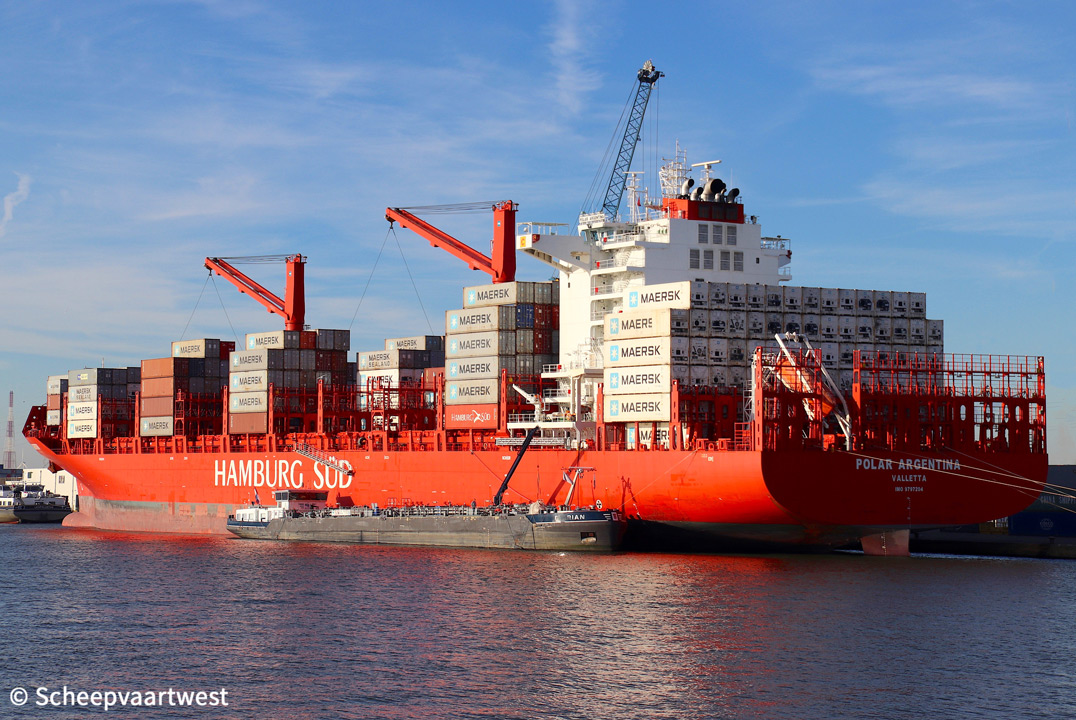

Polar Argentina IMO 9797204 02   Polar Argentina IMO 9797204 03   Polar Argentina 01   Polar Argentina IMO 9797204 05   Polar Argentina IMO 9797204 06
Westerschelde 20/03/19   Westerschelde 20/03/19 Antwerpen 06/01/20   Westerschelde 05/01/20   Westerschelde 05/01/20


Name

POLAR ARGENTINA

Type

Cellular containership - Carriage of dangerous goods

IMO-number

9797204

Call sign

9HA4704

Flag

Malta

Port of registry

Valletta

GT

43.628 t registered

Suez: 45.663,24 t

DWT

52.156,2 t

NT

17.495 t registered

Suez: 40.184,6 t

Panama: 36.023 t

Displacement

69.815,1 t

Number of 20ft containers

3.884

Reefer capacity

1.000

Length

230,00 m overall

220,80 m between perpendiculars

Breadth

37,30 m moulded

Draught

Max: 12,46 m

Freeboard

7.139 mm

Depth

19,60 m

Speed

22,0 knots

Built

2018

Keel laid

14/12/2015

Launch date

28/09/2017

Date of completion

23/01/2018

Builder

Jiangsu New Yangzijiang Shipbuilding Co. Ltd.

Jingjiang Park Of Jiangyin Economic Development Zone Of Jiangsu Province

214532 China

Yard number

YZJ2015-1206

Hull material

Steel

Main engine

1x MAN-B&W 6S70ME-C8.5 - 2 stroke 6 cylinder 700 x 2.800 mm combustion engine 19.620 kW at 91,0 rpm

Manufacturer: HHI Engine & Machinery Div.

Propellers

1x Fixed pitch propeller

Diameter: 7.900 mm

Manufacturer: Mecklenburger Metallguss GmbH

Boilers

1x Composite Boiler - 9,0 bar

1x Unfired exhaust gas boiler - 9,0 bar

Manufacturer: Saacke Qingdao Marine Boiler Co., Ltd.

Generators

3x Hyundai HSJ7 913-10P main diesel generatorsets 4.520 kW

1x Hyundai HSJ7 805-10P main diesel generatorset 3.080 kW

Manufacturer: Hyundai Electric & Energy System Co., Ltd.

Thrusters

1x 1.500 kW, forward

1x 1.500 kW, stern

Cargo hold capacity

77.177,05 m³

Tank capacities

Fuel oil: 4.830,64 m³

Fresh water: 469,12 m³

Ballast: 20.288,23 m³

Lube oil: 297,46 m³

Diesel oil: 434,68 m³

Lifting equipment

1x Engine room overhead crane - SWL 6,3 t

Manufacturer: Jiangyin Jianghai Mechanical Manufacture Co., Ltd.

1x Hose davit/Suez boat davit - SWL 4,0 t

Manufacturer: Taizhou Kaixin Shipping Machine Co., Ltd.

1x Monorail provision crane - SWL 6,5 t

Manufacturer: Oriental Prec & Eng'g Co.

Cargo gear

2x Deck cranes - SWL 30,5 t each

Manufacturer: TTS Bohai Machinery Dalian Co., Ltd.

Crew size

30

Commerical manager

Costamare Building, 60, Zefyrou Street & A Syngrou Avenue

175 64 Athens

Greece

ISM manager

Shanghai Costamare Ship Management Co., Ltd.

1902 Sino Life Tower

707 Zhangyanglu

Shanghai, 200122

China

Operator

Hamburg Süd

Registered owner

Jiali International Ship Lease Co. Ltd.

Care of Costamare Shipping Co SA , Costamare Building,

60, Zefyrou Street & A Syngrou Avenue

175 64 Athens

Greece

Latest data adjustment

11 June 2022
