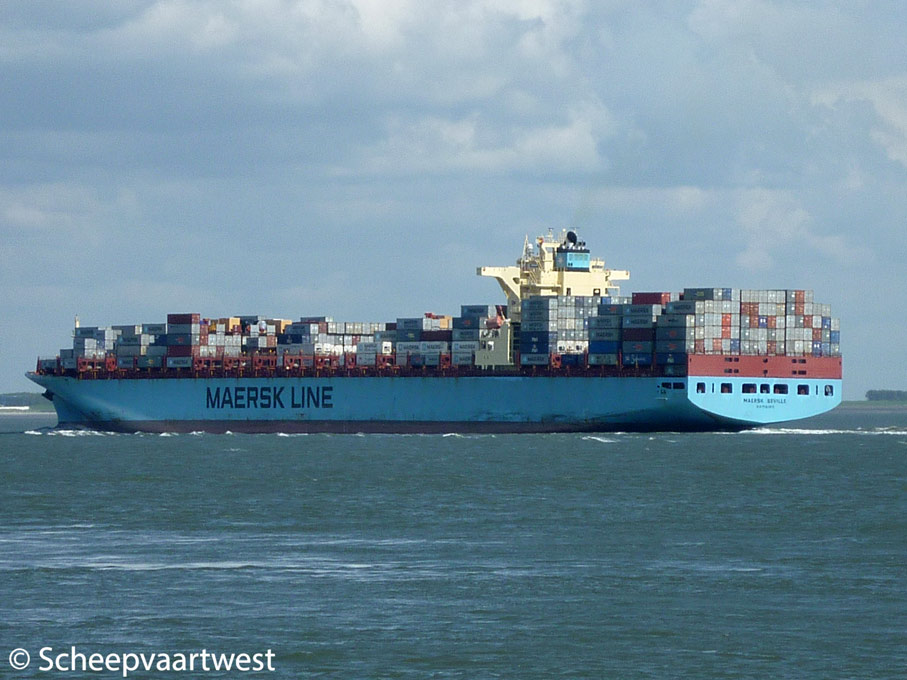

Maersk Seville 01
Westerschelde 16 May 2013



Name

MAERSK SEVILLE

Previous names

Mahler Star

Type

Cellular containership

IMO-number

9299927

Official number

92474

Call sign

D5DK9

Flag

Liberia

Port of registry

Monrovia

GT

93.511 t

DWT

97.552 t

NT

50.686 t

Number of 20ft containers

8.452

Container capacity 14t

6.105

Reefer capacity

701

Length

335,00 m overall

321,75 m registered

Breadth

42,80 m registered

Draught

14,00 m

Freeboard

5.474 mm

Depth

20,78 m

Speed

24,5 knots

Built

2660

Keel laid

12.07.2005

Launch date

09.12.2005

Date of completion

30.03.2006

Builder

IHI Marine United Inc.

Ishikajima-Harima Heavy Industries Co. Ltd
22-23, Kaigan 3-chome, Minato-ku
Tokyo, 108-0022 Tokyo-to
Japan

Yard number

S3200

Hull material

Shipbuilding steel (standard)

Hull type

Double bottom

Watertight bulkheads

12

Continuous decks

2

Main engine

1x Sulzer 12RT-Flex96C - 2 stroke 12 cylinder 960 x 2.500 mm diesel engine - 61.880 kW at 94,0 rpm

Year of manufacture: 2005

Manufacturer: Diesel United Ltd.
7th Fl., Shinmotomachi Building 1-1-1, Motomachi-dori, Chuo-ku
Kobe , Hyogo 650
Japan

Propellers

1x Solid propeller (keyless) - aft at 94,0 rpm

Boilers

1x Steam boiler, oil fired - 7,7 bar

Heating surface: 66,0 m²

Steam boiler, exhaust gas heated - 11,8 bar

Heating surface: 997,0 m²

Year of manufacture: 2005

Manufacturer: KangRim Industries Co., Ltd. (3rd Factory)
40, Wongnam-dong
Changwon
Republic of Korea

Electric installations

4x Plants each 6.600/450 V - 4.585,7 kVA

1x Plant 450 V - 393 kVA

1x Plant 24 V - 100 Ah

1x Plant 24 V - 200 Ah

1x Plant 24 V - 300 Ah

Generators

4x MAN-B&W 7L32/40 main diesel generatorsets each 4.585,7 kVA

Emergency generator

1x Diesel generatorset 393 kVA

Batteries

1x Battery for automation 300 Ah

1x Battery for emergency lighting 200 Ah

Compressed air receivers

2x Receivers each 25.000 litres - 25,0 bar

1x Receiver 500 litres - 25,0 bar

1x Receiver 100 litres - 9,0 bar

Bow thruster

1x Transverse thruster - 3.000 kW, forward

Anchor equipment

3x Anchors weight each 18.800 kg

Chain length: 742,50 m

Cargo gear

Gearless

Crew size

33

Manager

E.R. Schiffahrt GmbH & Cie. KG
Hohe Bleichen 12
20354 Hamburg
Federal Republic of Germany

Operator

Maersk Line

Owner

Blue Star Ship Managment GmbH
Hohe Bleichen 12
D - 20354 Hamburg
Germany

Registered owner

"MAHLER STAR" Schifffahrtsgesellschaft mbH & Co. KG
Montanhof Kattrepel 2
20095 Hamburg
Federal Republic of Germany

Last update

03.02.2013
