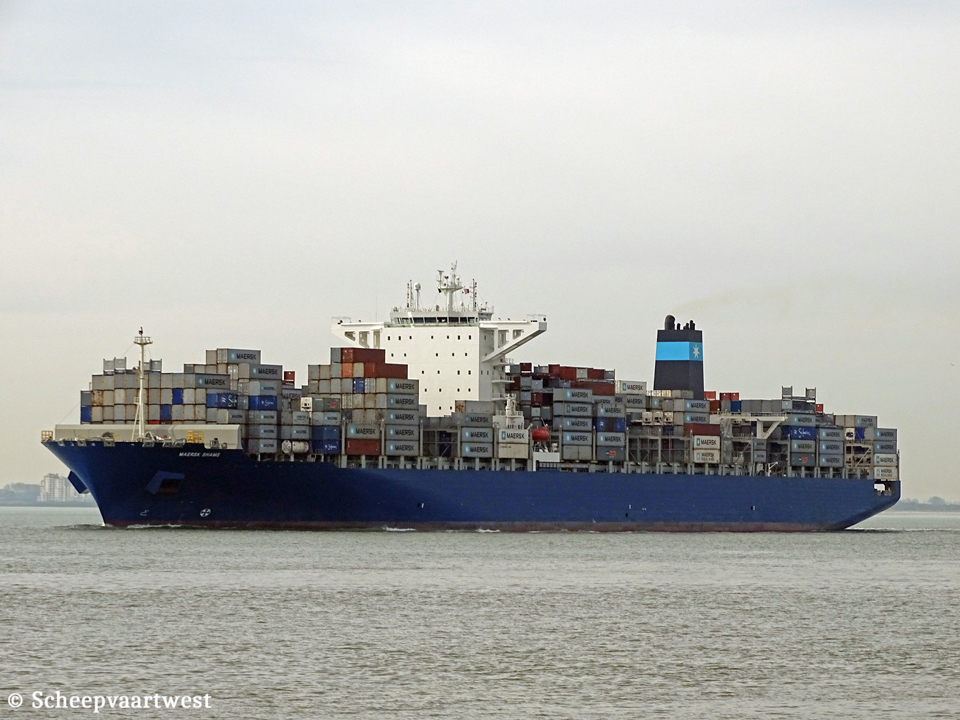

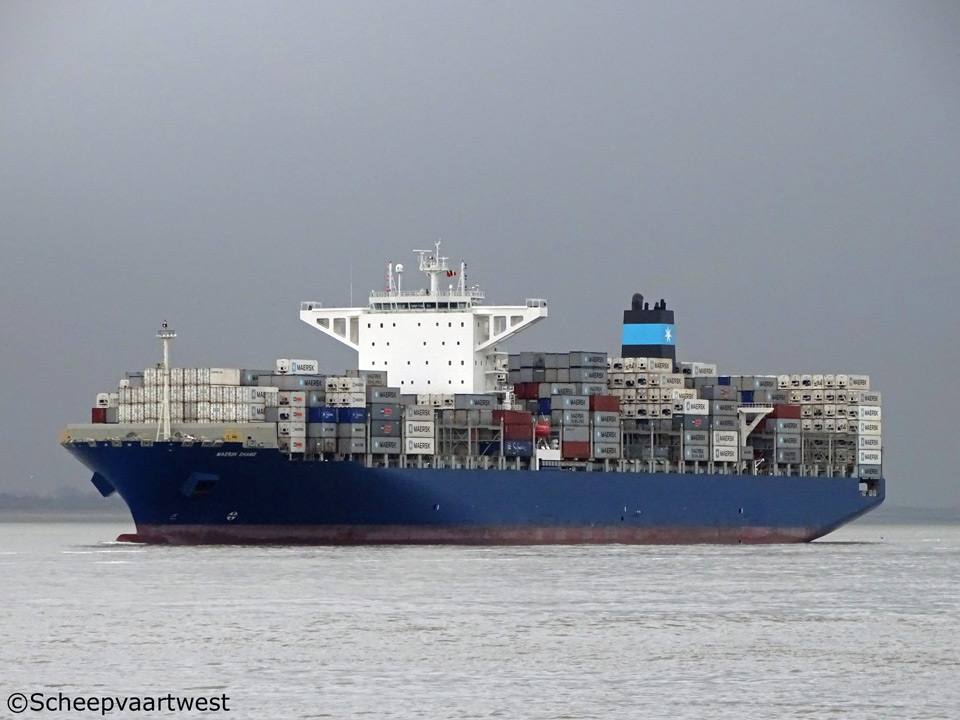

Maersk Shams 01

Westerschelde 15 January 2017



Maersk Shams 02
19/06/16



Name

MAERSK SHAMS

Previous names

01.12.2015 - 06.12.2015 Matisse

Type

Cellular containership - Post-Panamax

IMO-number

9726669

Call sign

9V5255

Flag

Republic of Singapore

Port of registry

Singapore City

Previous flags

01.12.2015 - 03.11.2016 Marshall Islands, Majuro - Call sign: V7PB8

GT

94.730 t registered

DWT

117.175,5 t

NT

52.150 t registered

Panama: 94.349 t

Number of 20ft containers

9.971

Container capacity 14t

7.280

Reefer capacity

1.400

Length

299,92 m overall

287,00 m between perpendiculars

Breadth

48,20 m moulded

Draught

15,02 m

Freeboard

5.256 mm

Depth

24,80 m moulded

Speed

24,0 knots

Keel laid

01.06.2015

Launch date

02.10.2015

Date of completion

01.12.2015

Builder

Hyundai Heavy Ind. Co., Ltd.

Ulsan
South Korea

Yard number

2688

Hull material

High strength steel

Watertight bulkheads

9

Main engine

1x MAN B&W/Hyundai 9S90ME-C9.2 - 2 stroke single acting 9 cylinder 900 x 3.260 mm combustion engine MCR 52.290 kW / 71.063 hp at 84,0 rpm

Manufacturer: HHI Engine & Machinery Div.

Propellers

1x Fixed pitch propeller - aft at 84,0 rpm

Manufacturer: HHI Engine & Machinery Div.

Boilers

1x Exhaust gas economizer - 9,0 bar

1x Fired boiler - 8,83 bar

Manufacturer: Kangrim Heavy Industries Co., Ltd.

Generators

2x Main diesel generatorsets each 4.400 kW

2x Main diesel generatorsets each 3.840 kW

Manufacturer: HHI Electro Electric System

Number of holds

7

Number of tanks

Ballast: 19

Fuel oil: 10

Lubricating oil: 7

Diesel oil: 6

Waste water: 5

Fresh water: 3

Chain: 2

Sludge: 1

Tank capacities 100%

Diesel oil: 844,4 m³ / 762,10 t

Freshwater: 606,6 m³

Fuel oil: 7.500,3 m³ / 7.356,02 t

Lube oil: 386 m³ / 347,4 t

Tank ballast: 2.8461,1 m³

Lifting equipment

2x Engine room crane aft & forward - SWL 12,5 t each

1x Monorail crane - SWL 12,5 t

2x Provision crane port & starboard - SWL 4,0t each

Manufacture: Oriental Prec & Eng'g Co.

Manager

Neom Maritime (Singapore) PTte Ltd.
10 Eunos Road 8, #12-05
Singapore Post Centre
408600, Singapore

Republic of Singapore

Operator

Maersk Line

Registered owner

Yuki Shipping Pte. Ltd.

Latest data adjustment

18 May 2017
