Westerschelde 23 July 2016 |
|
Name |

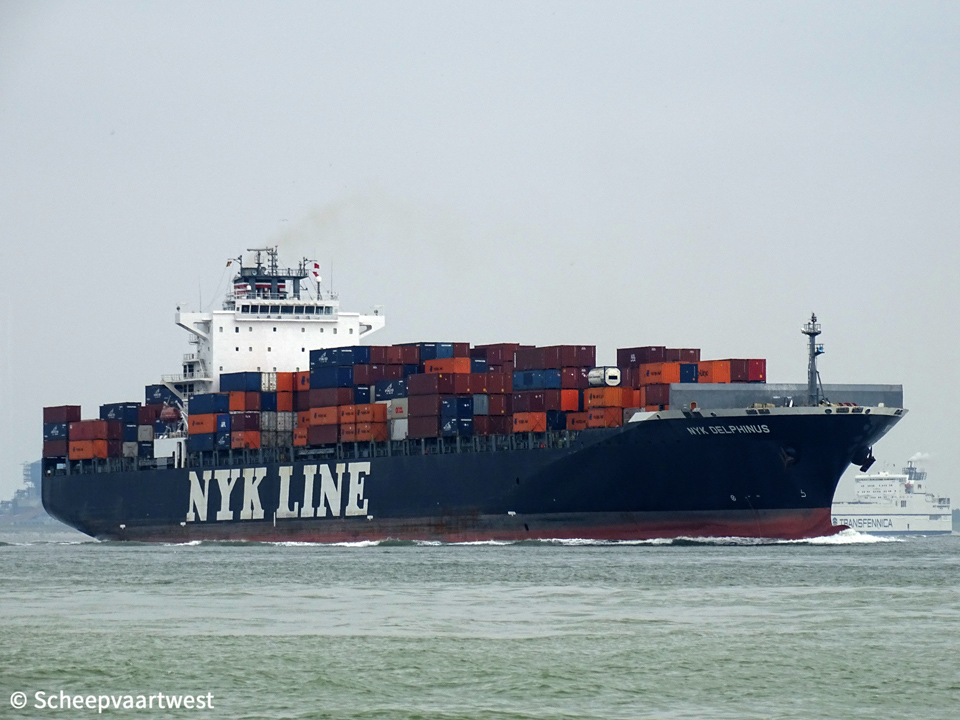

NYK DELPHINUS |
|
Type |
Cellular containership |
|
IMO-number |
9337652 |
|
Call sign |
D5OS3 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
Previous flags |
Republic of Panama, Panama City- Call sign: 3ENU7 |
|
GT |
55.487 t registered |
|
DWT |
Summer: 65.950 t |
|
NT |
23.203 t registered |
|
Number of 20ft containers |
4.882 |
|
Number of 40ft containers |
2.413 |
|
Container capacity 14t |
3.280 |
|
Reefer capacity |
330 |
|
Length |
294,12 m overall |
|
Breadth |
32,00 m moulded |
|
Draught |
Summer: 13,52 m |
|
Moulded L x B x D |
283,20 x 32,20 x 21,80 m |
|
Registered L x B x D |
285,79 x 32,20 x 21,80 m |
|
Freeboard |
3.867 mm |
|
Depth |
21,80 m moulded |
|
Speed |
Service: 23,5 knots Max: 25,0 knots |
|
Built |
2007 |
|
Keel laid |
24/07/2007 |
|
Launch date |
12/10/2007 |
|
Date of completion |
02/12/2007 |
|
Builder |
Hyundai Heavy Industries Co., Ltd. |
|
Yard number |
1787 |
|
Hull material |
Steel |
|
Main engine |
1x MAN-B&W/HHI 9K98MC-C - 2 stroke single acting 9 cylinder 980 x 2.400 mm combustion engine 51.290 kW at 104,0 rpm Manufacturer: Hyundai Heavy Industries Co., Ltd. |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 880 mm |
|
Propellers |
1x Fixed propeller |
|
Boilers |
1x Auxiliary vertical boiler - 7,8 bar Evaporation: 9,24 t/h Manufacturer: Kang Rim Ind., Co.,Ltd. |
|
Generators |
5x Generatorsets total 8.688 kVA |
|
Bow thruster |
2.000 kW |
|
Tank capacities |
Fuel oil: 9.999 m³ Fresh water: 456 m³ |
|
Manager |
Eastern Pacific Shipping Pte. Ltd. |
|
Operator |
NYK-Line |
|
Registered owner |
Tilran Shipping Inc. |
|
Latest data adjustment |
30 September 2019 |
