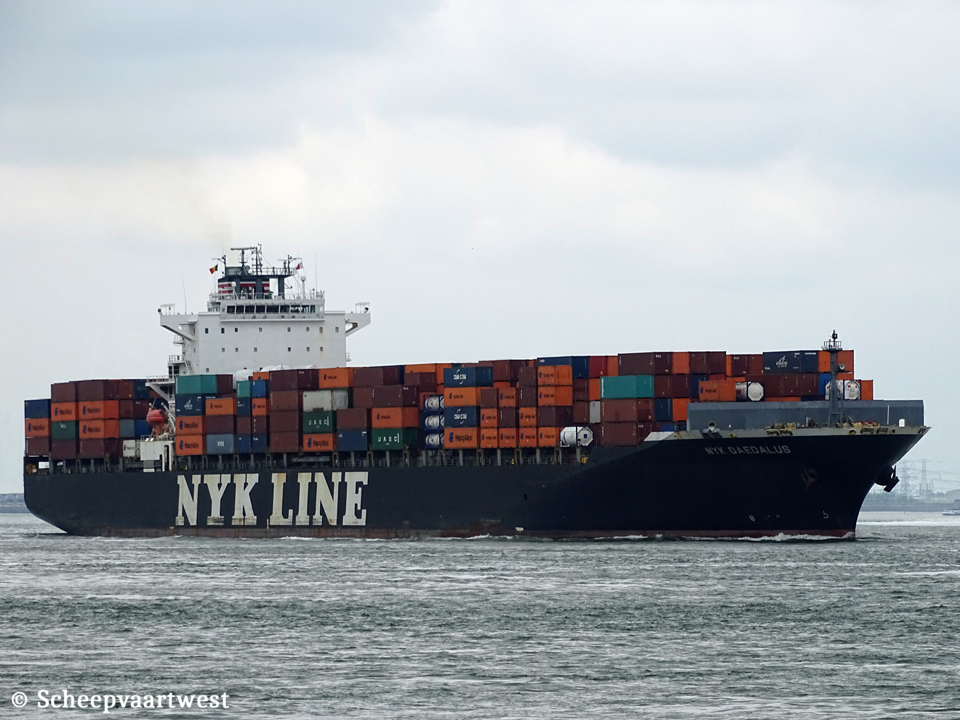

NYK Daedalus IMO 9337614 03

Westerschelde 05 July 2017

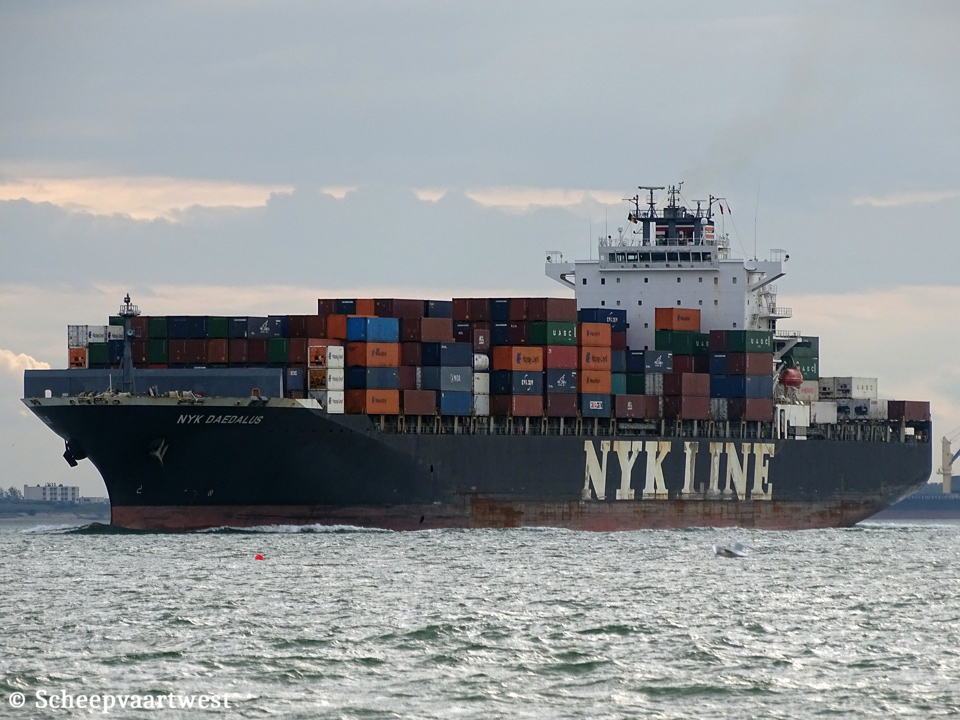

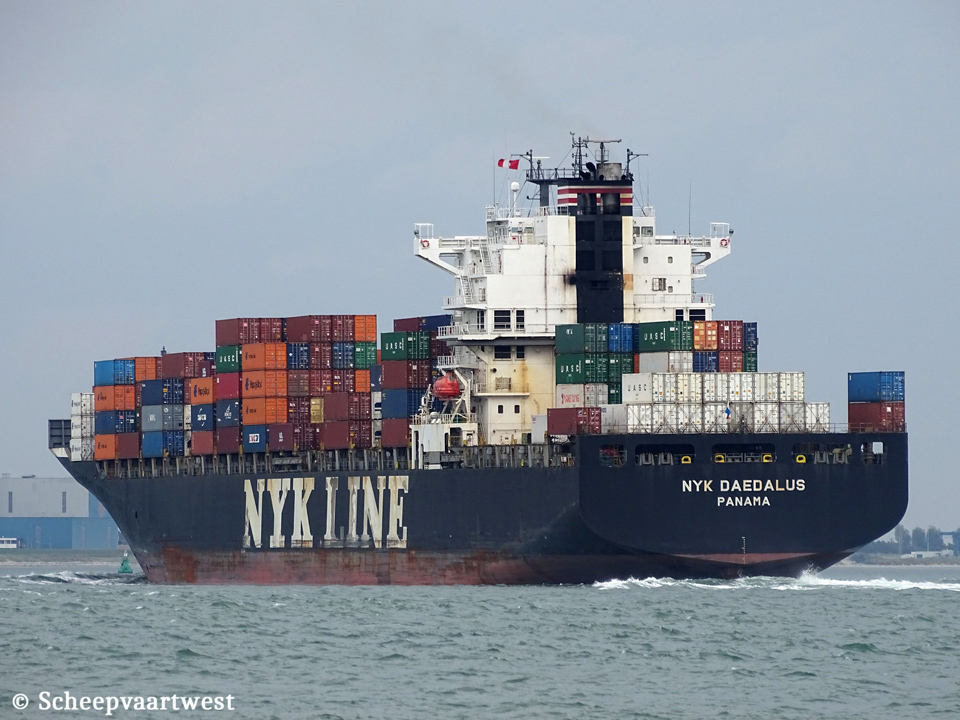

NYK Daedalus IMO 9337614 01   NYK Daedalus IMO 9337614 02
Westerschelde 20/09/17   Westerschelde 20/09/17









Name

NYK DAEDALUS

Type

Cellular containership

IMO-number

9337614

Call sign

ZGKY8

Flag

Cayman Islands

Port of registry

George Town

Previous flags

2007 - 2020 Republic of Panama, Panama City - Call sign: 3EMS

GT

55.487 t registered

DWT

Summer: 65.867 t

NT

23.203 t registered

Number of 20ft containers

4.888

Number of 40ft containers

2.413

Container capacity 14t

3.280

Reefer capacity

330

Length

294,12 m overall

Breadth

32,20 m moulded

Draught

Summer: 13,52 m

Moulded L x B x D

283,20 x 32,20 x 21,80 m

Registered L x B x D

285,79 x 32,20 x 21,80 m

Freeboard

Summer: 3.867 mm

Depth

21,80 m moulded

Speed

Max: 23,5 knots

Built

2007

Keel laid

08/05/2007

Launch date

20/07/2007

Date of completion

12/08/2007

Builder

Hyundai Heavy Industries Co., Ltd.

Ulsan

South Korea

Yard number

1783

Hull material

Steel

Main engine

1x HHI/MAN-B&W 9K98MC-C - 2 stroke single acting 9 cylinder 980 x 2.400 mm combustion engine 51.390 kW at 104,0 rpm

Manufacturer: Hyundai Heavy Industries Co., Ltd.

Propeller shaft

1x Oil lubrication with monitoring device

Diameter: 880 mm

Propellers

1x Fixed pitch propeller

Boilers

1x Auxiliary vertical boiler - 7,8 bar

Evaporation: 9,24 t/h

Manufacturer: Kang Rim Ind., Co.,Ltd.

Generators

5x Generatorsets total 8.688 kVA

Bow thruster

1x 2.000 kW

Tank capacities

Fuel oil: 6.999 m³

Fresh water: 456 m³

Crew

23

Manager

NYK Shipmanagement Pte Ltd.

Yusen Building, 3-2, Marunouchi 2-chome, Chiyoda-ku,

Tokyo, 100-0005

Japan

Registered owner

Malva Shipholding SA

Care of Nippon Yusen KK (NYK Line) (Nippon Yusen Kaisha), Yusen Building, 3-2, Marunouchi 2-chome, Chiyoda-ku

Tokyo, 100-0005

Japan

Latest data adjustment

14 September 2022
