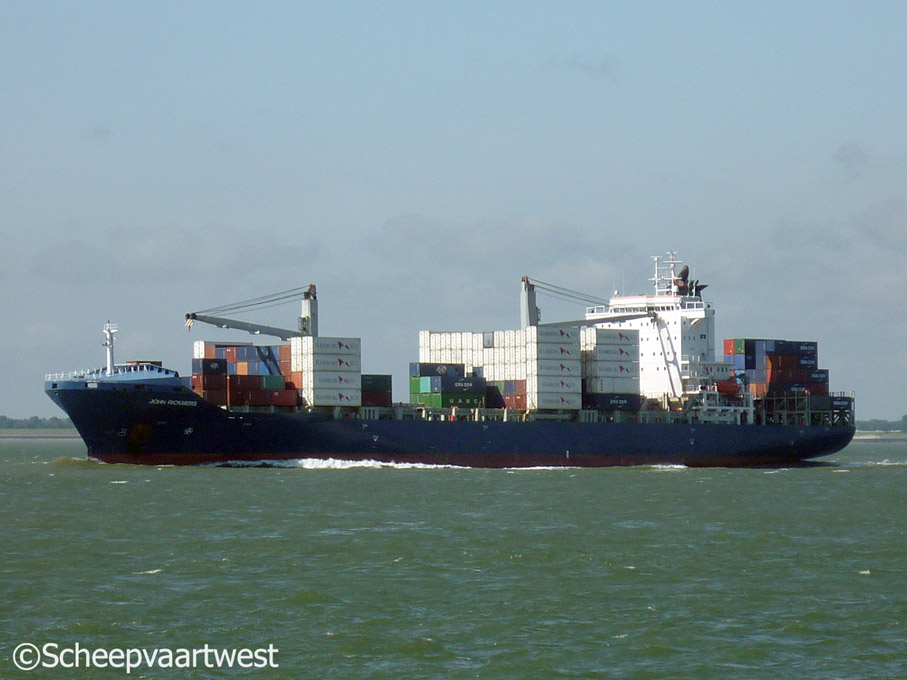

| Westerschelde 07 July 2012 |
 |
 |
|

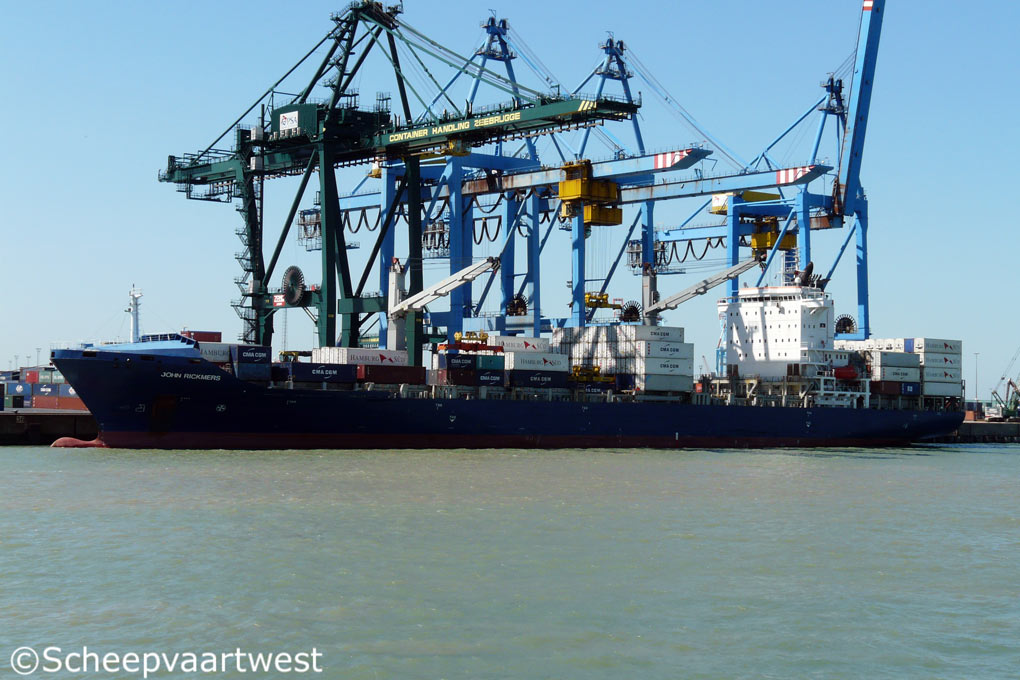

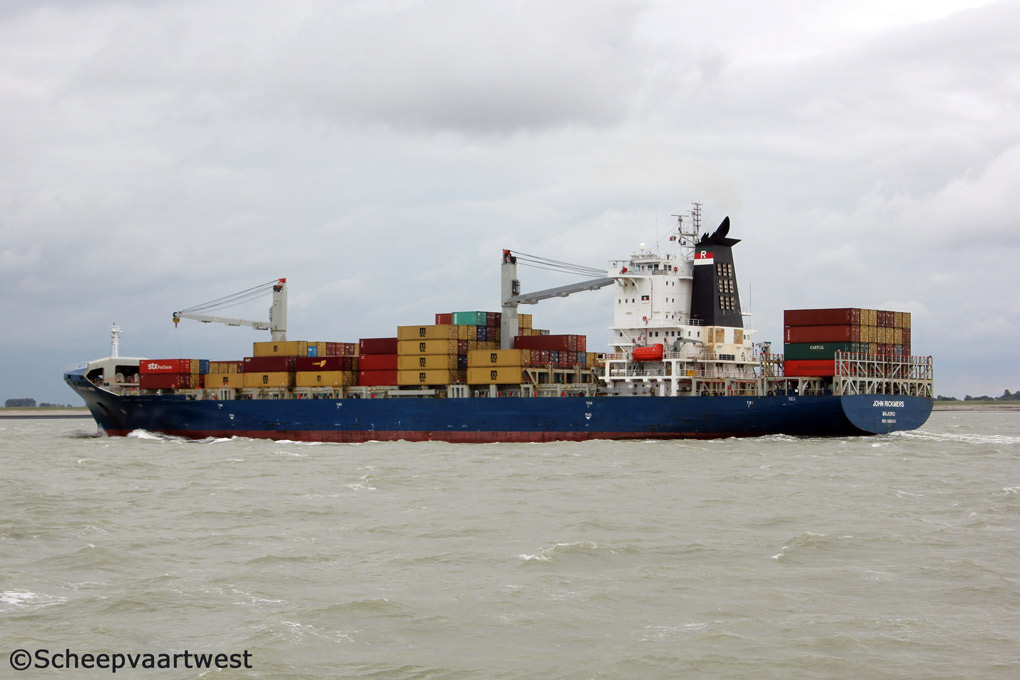

| Zeebrugge 25/05/12 | Westerschelde 17/08/14 |
|
Name |
JOHN RICKMERS |
|
Previous names |
2005-15.01.2006 John Rickmers 2006-07.12.2011 CMA CGM Everest |
|
Type |
Cellular containership |
|
IMO-number |
9300154 |
|
Official number |
90194 |
|
Call sign |
V7JC2 |
|
Flag |
Marshall Islands |
|
Port of registry |
Majuro |
|
GT |
21.971 t |
|
DWT |
24.084 t |
|
NT |
8.588 t |
|
Number of 20ft containers |
1.858 |
|
Container capacity 14t |
1.300 |
|
Reefer capacity |
300 |
|
Length |
196,83 m overall 186,76 m registered |
|
Breadth |
27,80 m registered |
|
Draught |
11,00 m |
|
Forecastle |
13,459 m |
|
Freeboard |
5.624 mm |
|
Depth |
16,60 m moulded |
|
Speed |
Max.: 22,2 knots |
|
Built |
2005 |
|
Keel laid |
18.11.2004 |
|
Launch date |
09.06.2005 |
|
Date of completion |
02.01.2006 |
|
Builder |
Jiangsu Yangzijiang Shipbuilding Co., Ltd. |
|
Yard number |
YZJ2003-663C |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
6 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W 6K80 MC-C - 2 stroke 6 cylinder 800 x 2.300 mm diesel engine - 21.660 kW at 104,0 rpm Year of manufacture: 2005 Manufacturer: Hudong Heavy Machinery Co., Ltd. |
|
Propellers |
1x Solid propeller (keyless) - aft at 104,0 rpm |
|
Boilers |
1x Steam boiler, oil fired / exhaust gas heated - 10,0 bar Heating surface: 60,0 m² Heating surface: 786,0 m² Year of manufacture: 2005 Manufacturer: KangRim Industries Co., Ltd. (3rd Factory) 2x Steam boiler, steam drum - 8,62 bar Heating surface: 0,8 m² Year of manufacture: 2005 Manufacturer: KangRim Industries Co., Ltd. (1st Factory) |
|
Electric installations |
1x Plant 450/230 V - 1.125 kVA 3x Plant 450/230 V - 1.500 kVA 1x Plant 450 V - 220 kVA 1x Plant 24 V - 80 Ah 1x Plant 24 V - 100 Ah 1x Plant 24 V - 200 Ah |
|
Generators |
3x Main diesel generatorsets each 1.500 KVA 1x Main diesel generatorset 1.125 kVA |
|
Emergency generator |
1x 220 kVA |
|
Batteries |
1x Emergency generator 200 Ah 2x Batteries for diesel control each 100 Ah 2x Batteries for start emergency engine each 80 Ah |
|
Compressed air receivers |
2x Receivers each 8.500 litres - 30,0 bar 1x Receiver 180 litres - 30,0 bar 1x Receiver 50 litres - 10,0 bar |
|
Bow thruster |
1x Transverse thruster 1.200 kW, forward |
|
Anchor equipment |
3x Anchors weight each 8.300 kg Chain length: 632,50 m |
|
Cargo gear |
2x Cranes - each SWL 45 t |
|
Crew size |
30 |
|
Crew |
21 |
|
Manager |
Rickmers Reederei GmbH & Cie. KG |
|
Owner |
Einundvierzigste Reederei Alsterufer 26 GmbH & Cie. KG |
