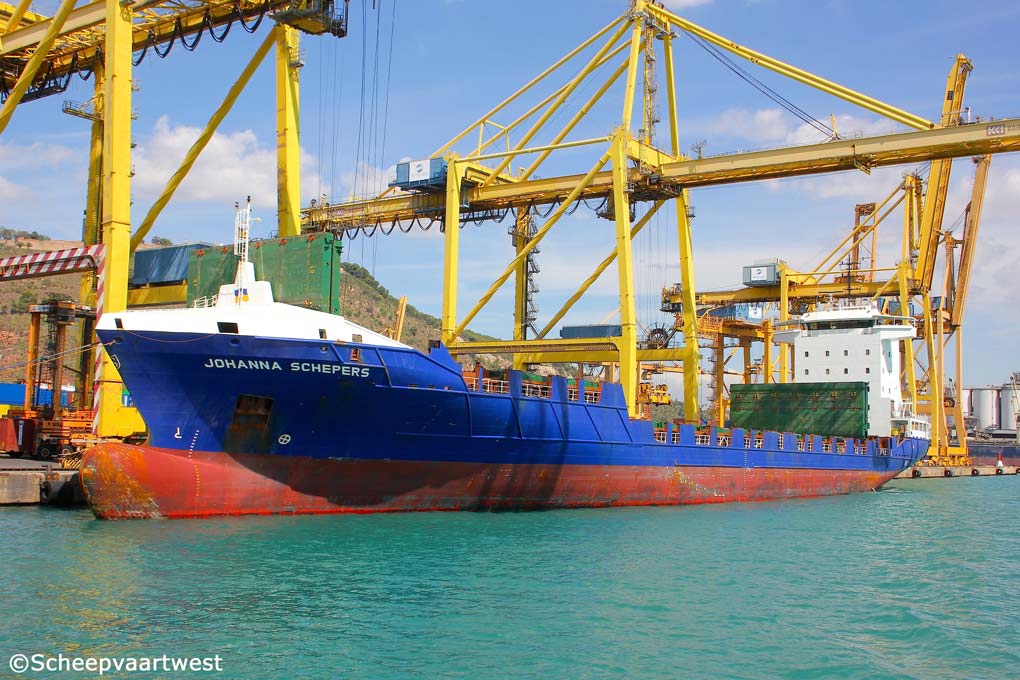

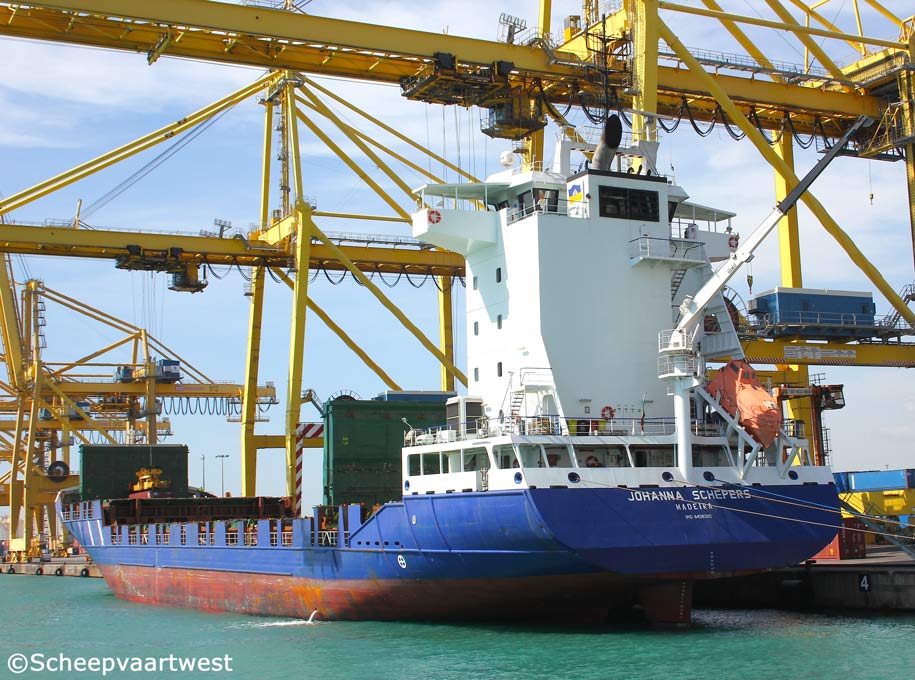

Barcelona, Spain 01 September 2015 |
 |
| Barcelona, Spain 01/09/15 |
|
Name |
JOHANNA SCHEPERS |
|
Previous names |
2011 Launch as: Merel |
|
Type |
Containership - Feeder |
|
IMO-number |
9436305 |
|
Call sign |
CQCE |
|
Flag |
Portugal |
|
Port of registry |
Madeira |
|
Previous flag |
2011 - 2011 China 2011 - 2019 Antigua & Barbuda, Saint John's - Call sign: V2QI4 |
|
GT |
7.852 t |
|
DWT |
Summer: 9.386,8 t |
|
NT |
3.363 t |
|
Number of 20ft containers |
In hold: 206 On deck: 579 Total: 785 |
|
Container capacity 14t |
517 |
|
Reefer capacity |
120 |
|
Length |
140,64 m overall 129,98 m between perpendiculars |
|
Breadth |
22,02 m extreme 21,78 m moulded |
|
Draught |
Max.: 7,34 m |
|
Freeboard |
1.880 mm |
|
Depth |
9,50 m |
|
Speed |
Max:18,5 knots |
|
Built |
2011 |
|
Keel laid |
12/12/2008 |
|
Launch date |
25/11/2010 |
|
Date of completion |
14/12/2011 |
|
Builder casco |
Jiangsu Bolunbao Shipbuilding Co., Ltd. Yichang City Yard number: 568309 |
|
Builder completion |
Damen Shipyard Gorinchem BV The Netherlands Yard number: 1151 |
|
Hull material |
Steel |
|
Hull type |
Single hull double bottom |
|
Watertight compartments |
5 |
|
Number of decks |
1 |
|
Main engine |
1x MAK 9M43C - 4 stroke 9 cylinder 430 x 610 mm combustion engine 8.400 kW / 11.413 hp at 500 rpm Build: 12/11/2008 Builder: Caterpillar Motoren GmbH & Co., KG, Kiel - Germany |
|
Propellers |
1x Screw propeller controllable pitch - aft at 140,0 rpm |
|
Boilers |
1x Aalborg CHR 126,00 m³ - 10,0 bar 1x Aalborg CHO 28,00 m³ - 13,0 bar |
|
Shaft generator |
1x 1.600 kW / 2.000 kVA |
|
Generators |
2x Scania DI-16 44M main diesel generatorsets each 540 kVA - 432 kW - 632 hp |
|
Emergency generator |
1x Diesel generatorset 124 kVA - 99 kW |
|
Bow thruster |
1x 4 bladed transverse thruster - 700 kW, forward 1x 4 bladed transverse thruster - 500 kW, aft |
|
Number of holds |
3 Hold 1: 28,44 x 18,60/13,20 m Hold 2: 28,44 x 18,60 m Hold 3: 28,44 x 18,60 m |
|
Hatch type |
Weatherdeck hatches: hydraulic multi folding type |
|
Tank capacities |
HFO: 880 m³ |
|
Lifting equipment |
1x Deck crane for free-fall boat and provisions 1x Deck crane for rescue boat and life raft |
|
Anchor equipment |
3x Anchors weight each 4.890 kg Length: 550,00 m Diameter: 54 mm |
|
Cargo gear |
Gearless |
|
Crew |
15 |
|
Manager |
HS Bereederungs GmbH & Co. KG 49733 Haren Ems |
|
Previous managers |
2011 - 2012 HighSeas Shipping Five B.V. 2012 - 2013 Emstrans Scheepvaart Management B.V., 9561AG Ter Apel - The Netherlands |
|
Owner |
HS Schiffahrt GmbH & Co., KG 49733 Haren Ems |
|
Registered owner |
C.V. Scheepvaartonderneming Johanna Schepers |
|
Renamed |
10/2009 Expert Portugal, Madeira - Call sign: CQCE Owner: Expert Shipping BV |
|
Latest data adjustment |
11 November 2019 |
