Westerschelde 16 April 2017 |
 |
|
| Westerschelde 18/12/17 | |
|
Name |

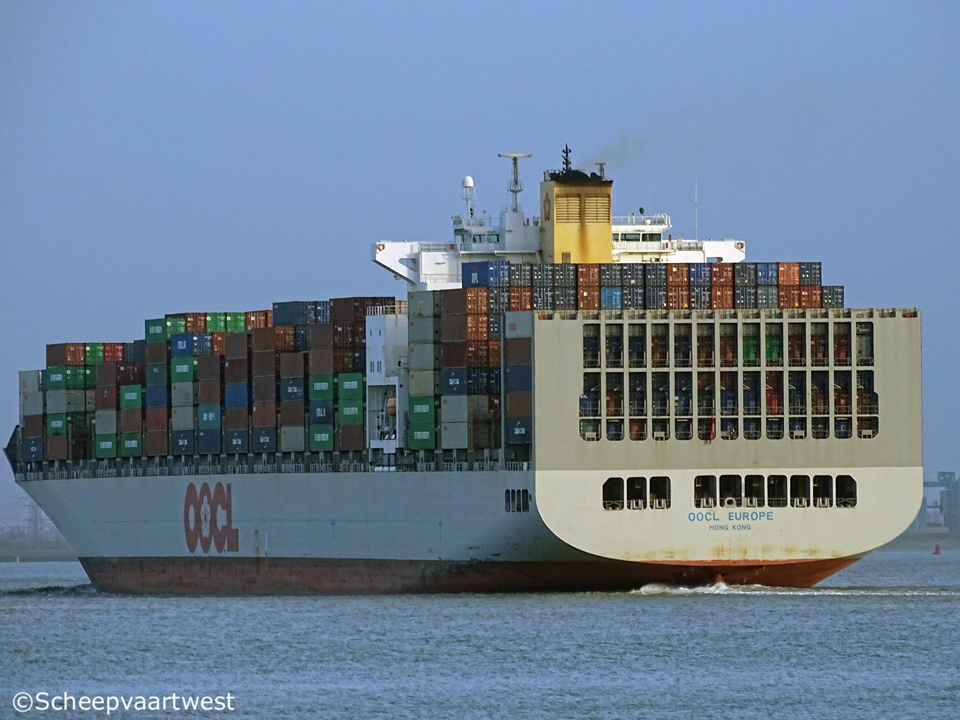

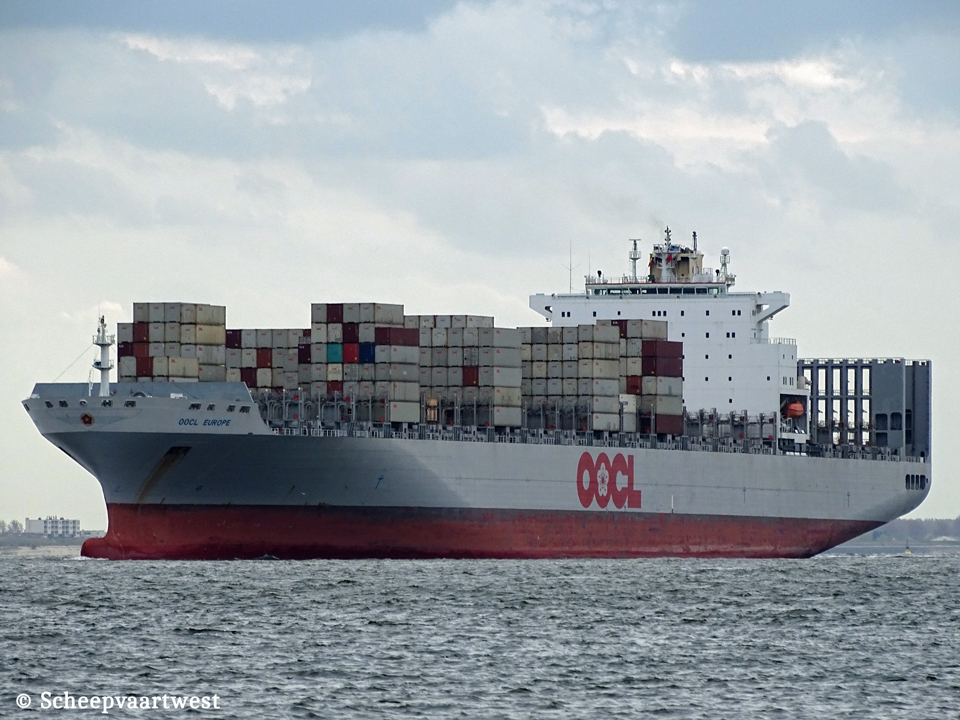

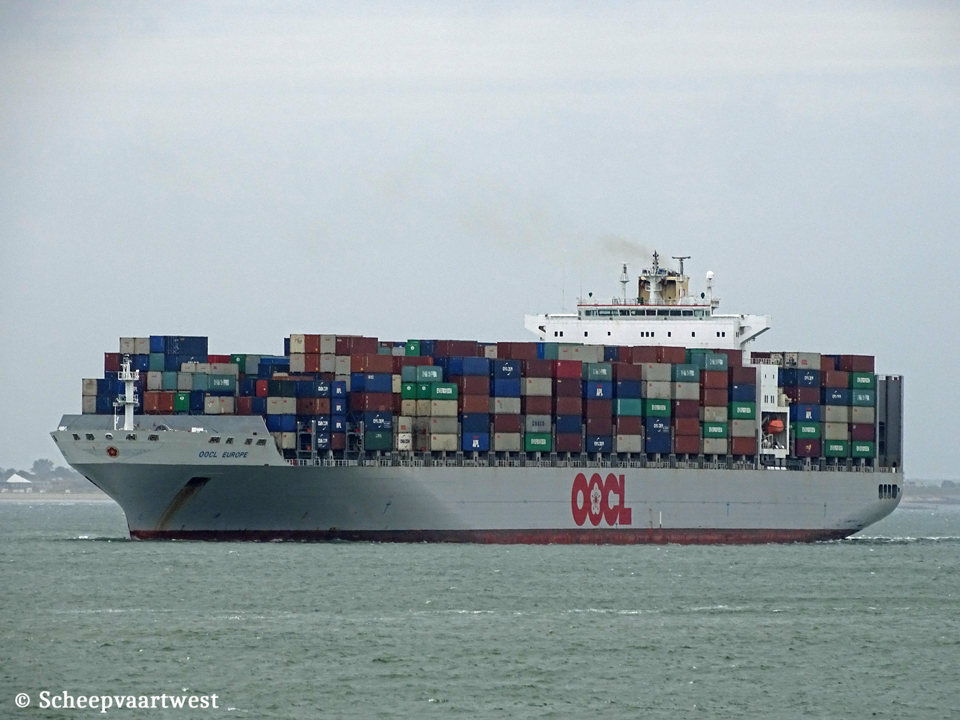

OOCL EUROPE |
|
Type |
Cellular containership - equipped for carriage of containers - Panamax |
|
IMO-number |
9300805 |
|
Call sign |
VRBX7 |
|
Flag |
Hong Kong - China |
|
Port of registry |
Hong Kong |
|
GT |
89.010 t registered |
|
DWT |
Summer: 105.485,9 t |
|
NT |
59.077 t registered |
|
Number of 20ft containers |
In hold: 3.715 On deck: 4.348 Total: 8.063 |
|
Container capacity 14t |
6.274 |
|
Reefer capacity |
710 |
|
Length |
322,97 m overall 308,00 m between perpendiculars |
|
Breadth |
42,80 m |
|
Draught |
14,50 m |
|
Keel to mast end |
61,50 m |
|
Freeboard |
4.376 mm |
|
Depth |
24,60 m moulded |
|
Speed |
Max: 25,0 knots |
|
Built |
2006 |
|
Keel laid |
08/03/2006 |
|
Launch date |
20/05/2006 |
|
Delivery date |
26/07/2006 |
|
Builder |
Samsung Heavy Industries Co., Ltd. Geoje Yard South Korea |
|
Yard number |
1538 |
|
Hull material |
High strength steel Ordinary strength steel |
|
Continuous decks |
1 |
|
Bulkheads |
Water tight: 17 Non tight: 3 |
|
Main engine |
1x Doosan/MAN-B&W 12K98MC-C - 2 styroke single acting 12 cylinder 980 x 2.400 mm combustion engine Mcr 68.490 kW / 93.119 hp at 104,0 rpm Manufacturer: Doosan Engine Co., Ltd. - South Korea |
|
Propellers |
1x Fixed pitch propeller - aft at 104,0 rpm |
|
Boilers |
1x Exhaust gas boiler - 14,0 bar 1x Oil fired boiler - 10,0 bar Manufacturer: Osaka Boiler Mfg. Co., Ltd. |
|
Shaft generator |
1x 3.000 kW |
|
Generators |
4x Daihatsu 8DK32C main diesel generatorsets each 3.000 kW |
|
Bow thruster |
1x Tunnel thruster 2.500 kW / 3.199 bhp, forward |
|
Number of holds |
9 |
|
Number of tanks |
Ballast: 24 Fuel oil: 13 Lubricating oil: 12 Fresh water: 3 Waste water: 3 Diesel oil: 2 Sea water: 1 Chain: 1 Sludge: 1 |
|
Tank capacities 100% |
Diesel oil: 508,9 m³ Freshwater: 720,5 m³ Fuel oil: 10.548,3 m³ Tank ballast: 26.412,2 m³ |
|
Cargo gear |
Gearless |
|
Crew size |
24 |
|
ISM & commercial manager |
Orient Overseas Container Line Ltd. 33rd Floor, Harbour Centre, 25, Harbour Road, Wan Chai, Hong Kong China |
|
Registered owner |
Newcontainer No. 81 (Marshall Islands) Shipping, Inc. Care of Orient Overseas Container Line Ltd (OOCL) 31st Floor, Harbour Centre, 25, Harbour Road, Wan Chai Hong Kong China |
|
Latest data adjustment |
17 May 2023 |
