Westerschelde 07 April 2014 |
 |
 |
|

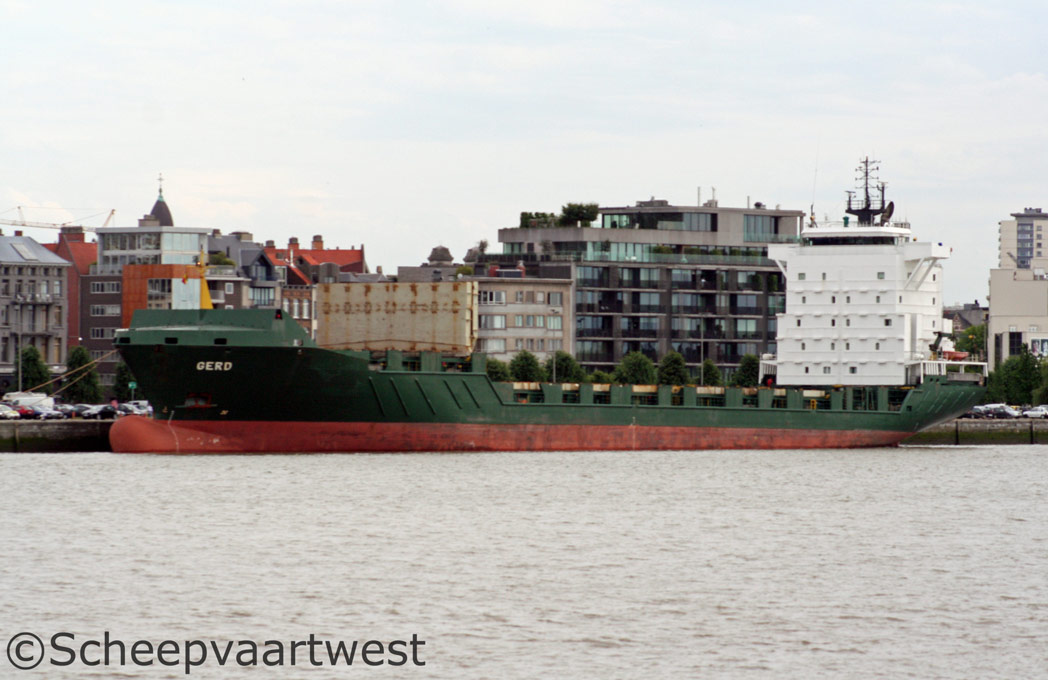

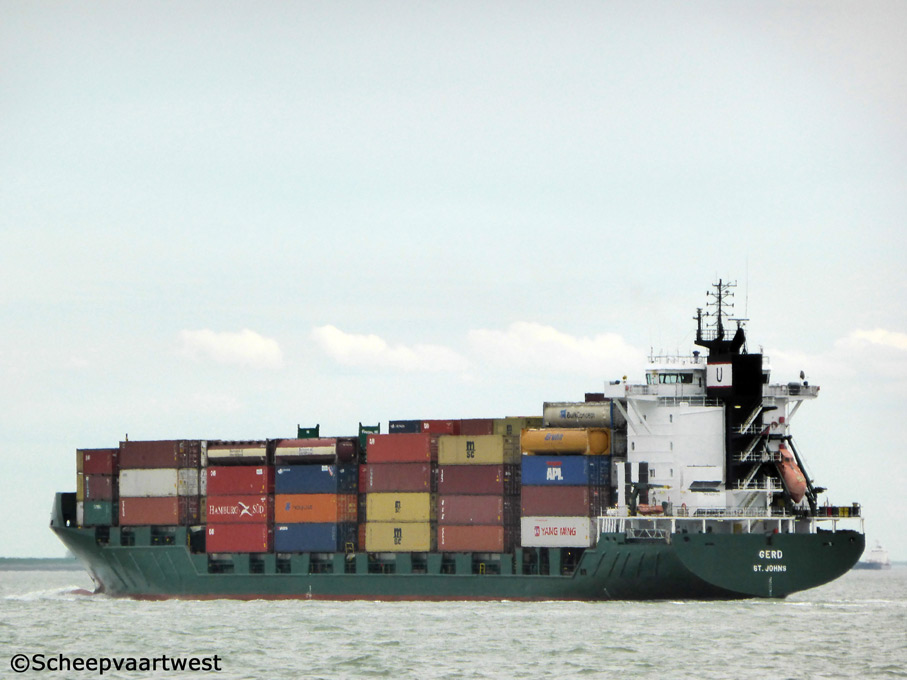

| Westerschelde 07/04/14 | Antwerpen 30/05/11 |
|
Name |
GERD |
|
Previous names |
2004 BG Ireland 2007 Javi |
|
Type |
Containership |
|
IMO-number |
9255749 |
|
Call sign |
V2BH3 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John's |
|
GT |
7.660 t |
|
DWT |
9.500 t |
|
NT |
3.838 t |
|
Number of 20ft containers |
750 |
|
Container capacity 14t |
515 |
|
Reefer capacity |
100 |
|
Length |
134,62 m m overall 125,67 m registered |
|
Breadth |
21,50 m registered |
|
Draught |
7,10 m |
|
Forecastle |
36,28 m |
|
Poop |
9,264 m |
|
Freeboard |
2.220 mm |
|
Depth |
9,30 m moulded |
|
Speed |
18,3 knots |
|
Built |
2003 |
|
Keel laid |
28.05.2002 |
|
Launch date |
27.02.2003 |
|
Date of completion |
07.10.2003 |
|
Builder casco |
Daewoo Mangalia Heavy Industries Yard number: 4033 |
|
Builder completion |
Depot Eemshaven B.V. Yard number: 541 |
|
Hull material |
Shipbuilding steel (higher tensile) |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
4 |
|
Continuous decks |
2 |
|
Main engine |
1x MaK 8 M 43 - 4 stroke 8 cylinder 430 x 610 mm diesel engine - 7.200 kW at 500 rpm Year of manufacture: 2002 Manufacturer: Caterpillar Motoren GmbH & Co. KG |
|
Propeller |
1x Controllable pitch propeller - aft at 140 rpm |
|
Boilers |
1x Thermal oil heater, oil fired - 13,0 bar Heating surface: 28,0 m² 1x Thermal oil heater, exhaust gas heated - 13,0 bar Heating surface: 98,38 m² Year of manufacture: 2003 Manufacturer: Alfa Laval Aalborg A/S |
|
Electric installations |
1x Plant 440/220 V - 438 kVA 1x Plant 440/220 V - 438 kVA 1x Plant 440 V - 1.438 kVA 1x Plant 440 V - 438 kVA 1x Plant 24 V - 180 Ah 1x Plant 24 V Ah |
|
Shaft generator |
1x 1.438 kVA / 1.150,4 kW |
|
Generators |
2x Main diesel generatorsets each 438 kVA / 350,4 kW |
|
Emergency generator |
1x Diesel generatorset 438 kVA |
|
Compressed air receivers |
2x Receivers each 500 litres - 30,0 bar |
|
Bow thruster |
1x Variable pitch propeller LIPS - 750 kW, forward |
|
Cargo capacity |
Grain & bales: 12.247 m³ |
|
Tank capacities |
Fuel oil: 743 m³ Water ballast: 4.908 m³ |
|
Anchor equipment |
3x Anchors weight each 4.890 kg Chain length: 550,00 m |
|
Cargo gear |
None |
|
Crew size |
16 |
|
Manager |
Unitas GmbH |
|
Owner |
Unitas Schiffahrtsges. mbH & Co. MS "GERD" KG |
