Westerschelde 07 June 2015 |
 |
 |
|
| Westerschelde 07/06/15 | WS 07/06/15 |
|
Name |

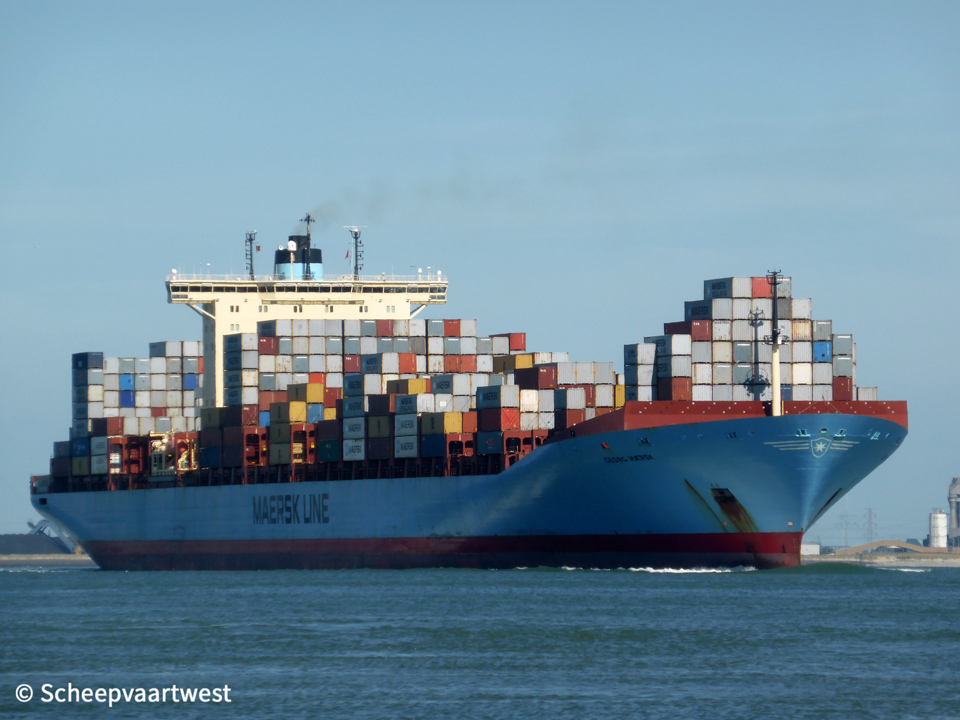

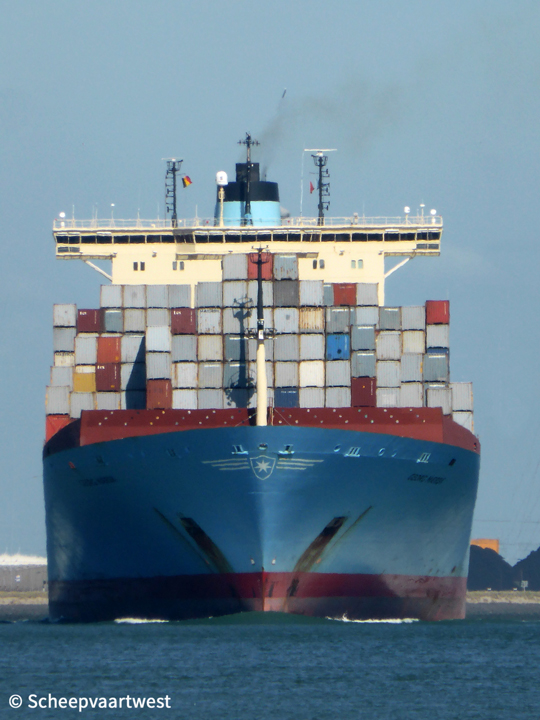

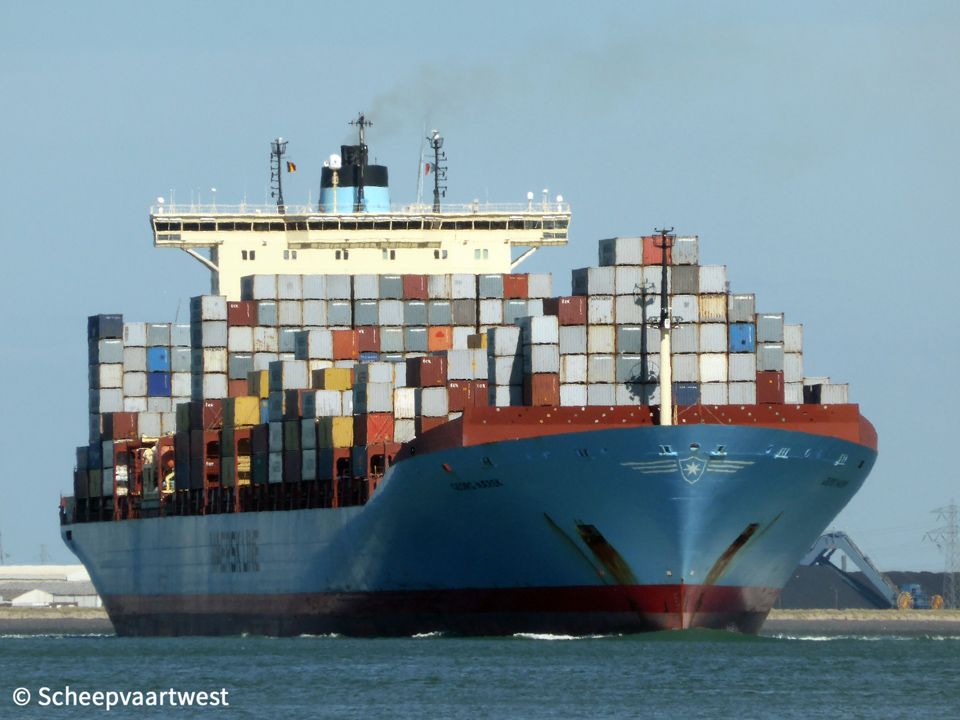

GEORG MAERSK |
|
Type |
Cellular containership |
|
IMO-Number |
9320257 |
|
Call Sign |
OYGN2 |
|
Flag |
Denmark |
|
Port Of Registry |
Hellerup |
|
Gt |
97.933 t Suez: 99.887,54 t |
|
Dwt |
Summer: 115.700 t |
|
Nt |
51.978 t Suez: 87,907,05 t |
|
Number Of 20ft Containers |
10.150 |
|
Container Capacity 14t |
7.668 |
|
Reefer Capacity |
900 |
|
Length |
367,28 m overall 351,10 m between perpendiculars |
|
Breadth |
42,80 m |
|
Draught |
Max: 15,00 m |
|
Freeboard |
4.565 mm |
|
Depth |
24,10 m |
|
Speed |
Max: 25,0 Knots |
|
Built |
2006 |
|
Keel Laid |
17/12/2004 |
|
Launch Date |
23/02/2006 |
|
Delivery Date |
12/04/2006 |
|
Builder |
Odense Steel Shipyard Ltd. Odense Denmark |
|
Yard Number |
L202 |
|
Hull Material |
High strength steel Ordinary strength steel |
|
Bulkheads |
Water tight: 14 Non tight: 8 Oil tight: 4 |
|
Main Engine |
1x Doosan/Wärtsilä12RT-FLEX96C - 12 cylinder 960 x 2.500 mm combustion engine 68.640 KW/ 93.000 hp at 102,0 rpm Manufacturer: Doosan Engine Co. Ltd. |
|
Propellers |
1x Six blade solid bronze propeller Manufacturer: Dalian Marine Propeller Plant |
|
Boilers |
1x Vertical water tube oil fired auxiliary boiler AQ-10/12W - 12,0 bar 1x HP Exhaust gas boiler AV-6N - 12,0 bar 1x LP Exhaust gas boiler AV-6N - 12,0 bar Manufacturer: Aalborg Industries |
|
Shaft Generator |
2.000 KW |
|
Generators |
3x Wärtsilä 8L32 main diesel generatorsets each 3.600 KW 1x Combo power / Steam turbine generator Sem Drasov 6.000 KW Manufacturer: Sem Drasov |
|
Cargo Hold Capacity |
197.778,1 m³ |
|
Number Of Tanks |
Ballast: 38 Fuel oil: 12 Lubricating oil: 9 Sea water: 8 Fresh water: 7 Waste water: 5 Sludge: 5 Diesel oil: 5 Chain: 2 Hydraulic oil: 1 |
|
Tank Capacities |
Diesel oil: 402,1 m³ Freshwater: 619,3 m³ Fuel oil: 12.627,3 m³ Hydraulic : 4,3 m³ Lube oil: 561,1 m³ Tank ballast: 41.827,7 m³ |
|
Lifting Equipment |
1x Monorail stores crane - SWL 11,5 t 2x Stores/Bunker/ Suez-Mob boat pedestal crane - SWL 5,0 t Manufacture: Acta A/S 2x Overhead engineroom crane - SWL 12,5 t Manufacture: Danish Crane Building A/S |
|
Cargo Gear |
Gearless |
|
Manager |
A.P. Möller Maersk Technical Organisation Account Payable Esplanaden 50 1098 København K Denmark |
|
Operator |
Maersk Line A/S |
|
Owner |
Maersk A/S Esplanaden 50 1263 København K Denmark |
|
Latest Data Adjustment |
15 May 2020 |
