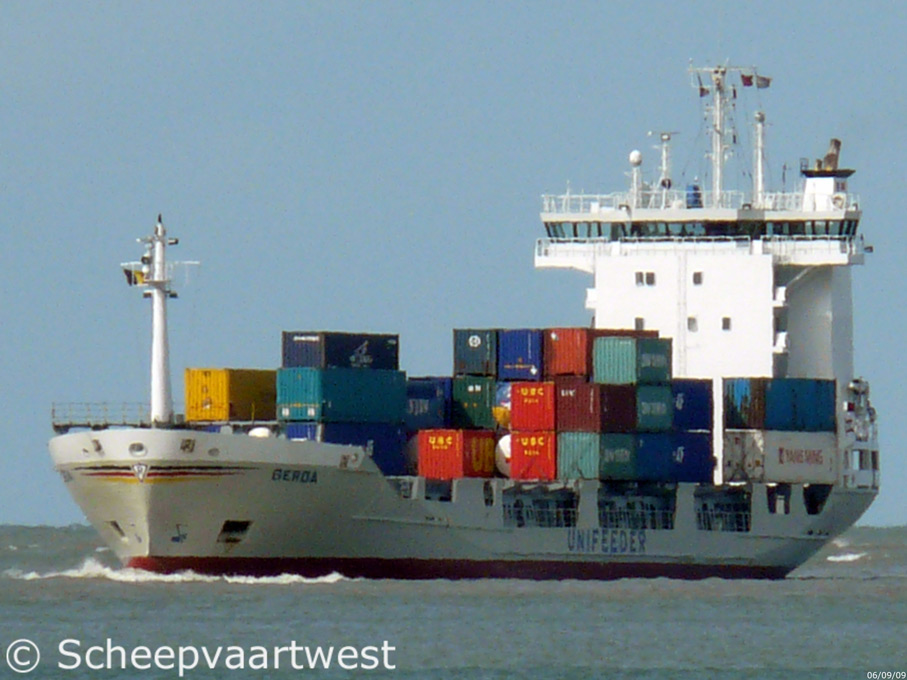

| Zeebrugge 06 September 2009 |
|
Name |
GERDA |
|
Previous names |
04/1995 - 05/2002 Gerda 05/2002 - 05/2005 P&O Nedlloyd Russia |
|
Type |
Cellular containership |
|
IMO-number |
9113745 |
|
Call sign |
DPGK |
|
Flag |
Germany |
|
Port of registry |
Hamburg |
|
GT |
3.999 t |
|
DWT |
5.212 t |
|
NT |
2.176 t |
|
Number of 20ft containers |
508 |
|
Reefer capacity |
50 |
|
Length |
101,12 m overall 96,13 m registered |
|
Breadth |
18,20 m registered |
|
Draught |
Summer: 6,547 m |
|
Forecastle |
9,33 m |
|
Poop |
9,00 m |
|
Depth |
8,25 m moulded |
|
Speed |
15,5 knots |
|
Line |
Unifeeder |
|
Built |
1995 |
|
Keel laid |
02/02/1994 |
|
Launch date |
16/03/1995 |
|
Date of completion |
04/1995 |
|
Builder |
J.J. Sietas KG Schiffswerft GmbH & Co. |
|
Yard number |
1106 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Partly double bottom (e.g. interrupted in way of machinery space) |
|
Watertight bulkheads |
5 |
|
Continuous decks |
1 |
|
Main engine |
1x MWM TBD 645 L 9 - 4 stroke single acting 9 cylinder 330 x 450 mm combustion engine 3.825 kW / 5.200 bhp at 160 rpm Year of manufacture: 1995 Manufacturer: Deutz MWM Motoren-Werke Mannheim AG, Mannheim - Federal Republic of Germany |
|
Propellers |
1x Controllable pitch propeller - aft |
|
Electric installations |
1x 400 /220 V - 640 kVA 1x 400 V - 850 kVA 1x 400 V - 40 kVA |
|
Shaft generator |
1x 850 kVA |
|
Generators |
2x Main diesel generatorsets each 320 kVA |
|
Emergency generator |
1xDiesel generatorset 40 kVA |
|
Compressed air receivers |
2x Receivers each 500 litres - 30,0 bar |
|
Bow thruster |
1x Transverse thruster JASTRAM - 400 kW, forward |
|
Cargo capacity |
Grain: 7.247 m³ Bales: 7.013 m³ |
|
Tank capacity |
Fuel oil: 402 m³ Water ballast: 2.105 m³ |
|
Anchor equipment |
3x Anchors weight each 3.300 kg Chain length: 495,00 m |
|
Cargo gear |
Gearless |
|
Crew |
11 |
|
Manager |
Wilfried Rambow |
|
Previous manager |
04/1995 - 05/2002 Wilfried Rambow, Hamburg - Germany 05/2002 - 05/2005 P&O Nedlloyd B.V., Rotterdam - The Netherlands |
|
Operator |
Unifeeder |
|
Owner |
MS "GERDA" Wilfried Rambow KG |
|
Previous names & owners |
04/1995 - 05/2002 Gerda - Wilfried Rambow, Hamburg - Germany 05/2002 - 05/2005 P&O Nedlloyd Russia - Wilfried Rambow, Hamburg - Germany |
|
Renamed |
01/05/2018 A2B Ambition at Rotterdam The Netherlands, Moerdijk - Call sign: PDKX |
|
Latest data adjustment |
16 August 2018 |
