Enforcer
Zeebrugge 30 September 2006

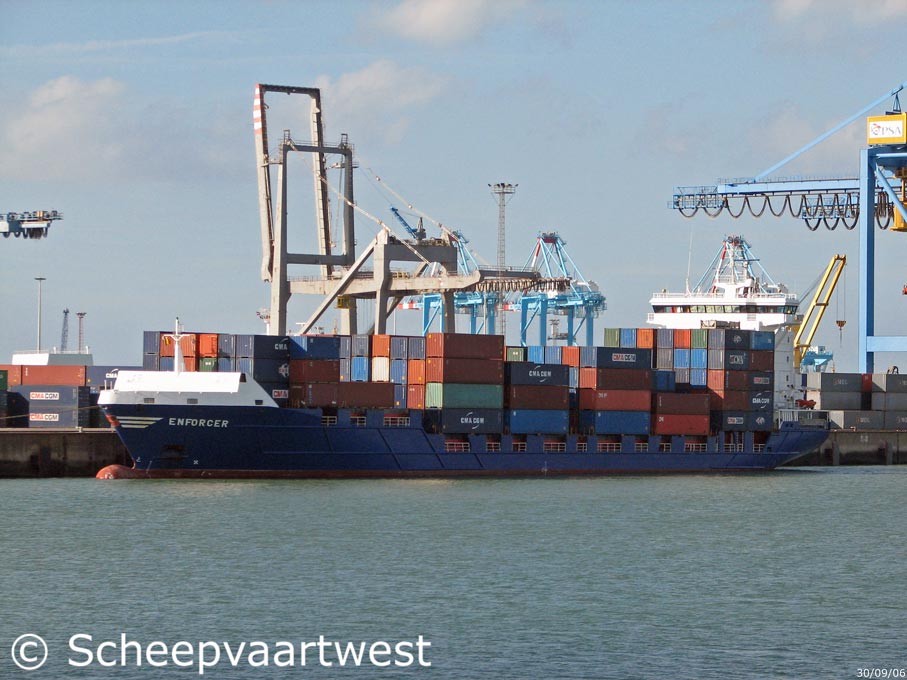

Enforcer 04
Zeebrugge 30/09/06



Name

ENFORCER

Type

Cellular container feeder

IMO-number

9255737

Call sign

PBHI

Flag

The Netherlands

Port of registry

Harlingen

GT

7.642 t

DWT

Summer: 9.450 t

NT

2.838 t

Number of 320ft containers

750

Container capacity 14t

506

Reefer points

On deck: 120
In hold: 70

Total: 190

Length

134,65 m overall
125,67 m between perpendiculars

Breadth

21,50 m overall

Draught

Summer: 7,10 m

Freeboard

Summer: 2.220 mm

Depth

9,30 m

Speed

15,0 knots

Built

2003

Date of completion

01.2004

Builder casco

Daewoo Mangalia Heavy Industries
Mangalia
Romania

Builder completed

Volharding Shipyard B.V.
Hoogezand
The Netherlands

Yard number

540

Hull material

Steel

Hull type

Single hull

Main engine

1x MaK Diesel 8M43 – 4 stroke 8 cylinder internal combustion diesel engine - 7.200 kW / 9.783 hp at 500 rpm

Built: 2003

Builder: Caterpillar Motoren GmbH & Co. KG, Kiel - Germany

Number of screws

1x Screw propeller controllable pitch

Boilers

1x CHO AKB 23,50 m² - 13,0 bar
1x CHR Aalborg 83, 00 m² - 10,0 bar

Electrical installation

Power voltage: 450 V

Lighting voltage: 230 V

Frequency: 60 Hz

Shaft generator

1.050 kW

Generators

3x Main diesel generatorsets each 438 kVA - 350 kW - 504 HP

Emergency generator

1x Diesel generatorset 350 kW

Bow thruster

750 kW

Hatchways

3

18,50 x 25,50 m

Tank capacities

Water ballast: 4.908 m³
Diesel oil: 112 m³
Fuel oil: 743 m³

Fresh water: 81 m³

Cargo gear

Gearless

Manager

JR Ship Management B.V.
Harlingen
The Netherlands

Operator

CMA CGM

Owner

MS Enforcer Scheepvaartbedrijf C.V.
The Netherlands

Renamed

X Press Matterhorn
