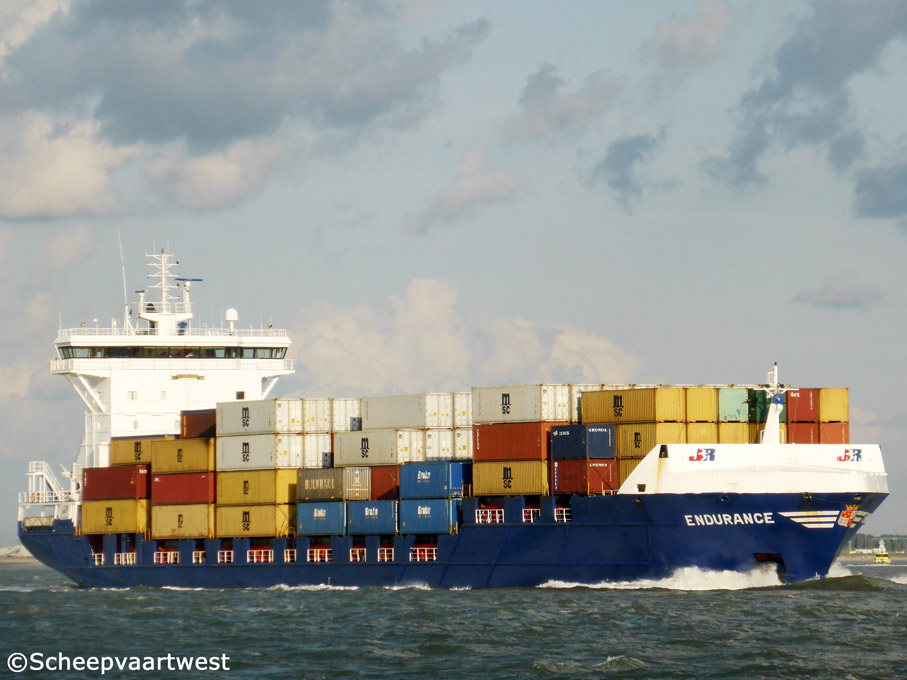

Endurance 01

Westerschelde 23 August 2014

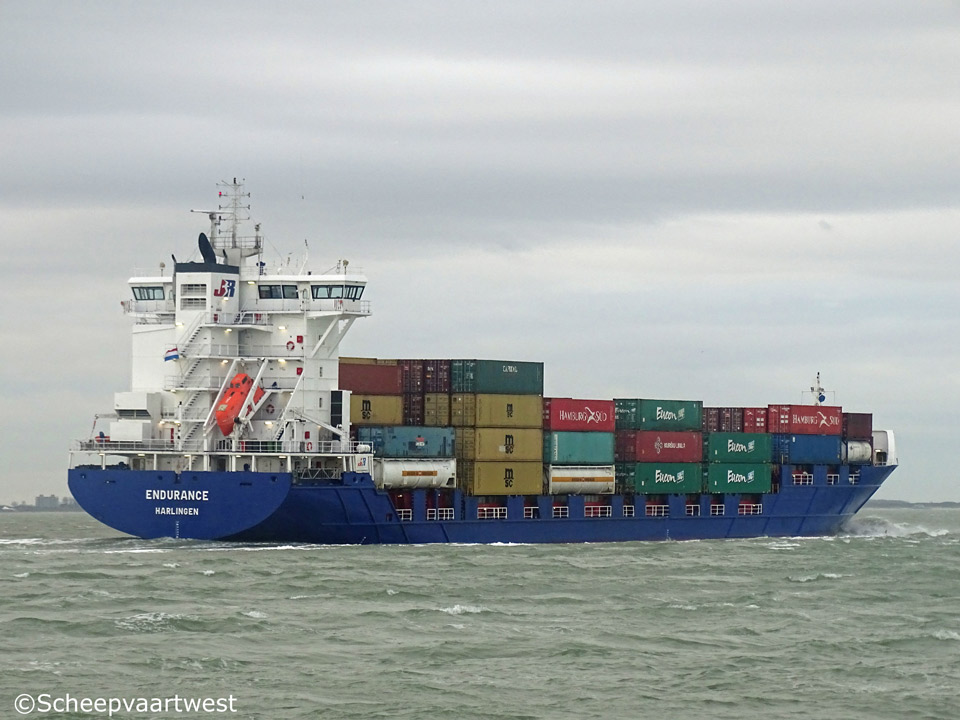

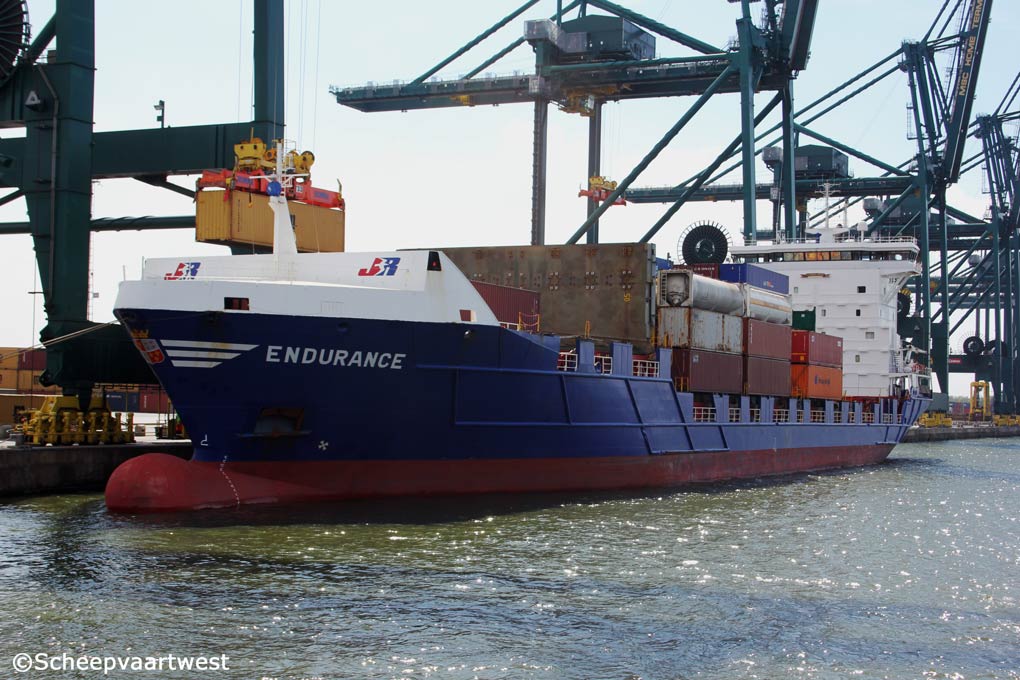

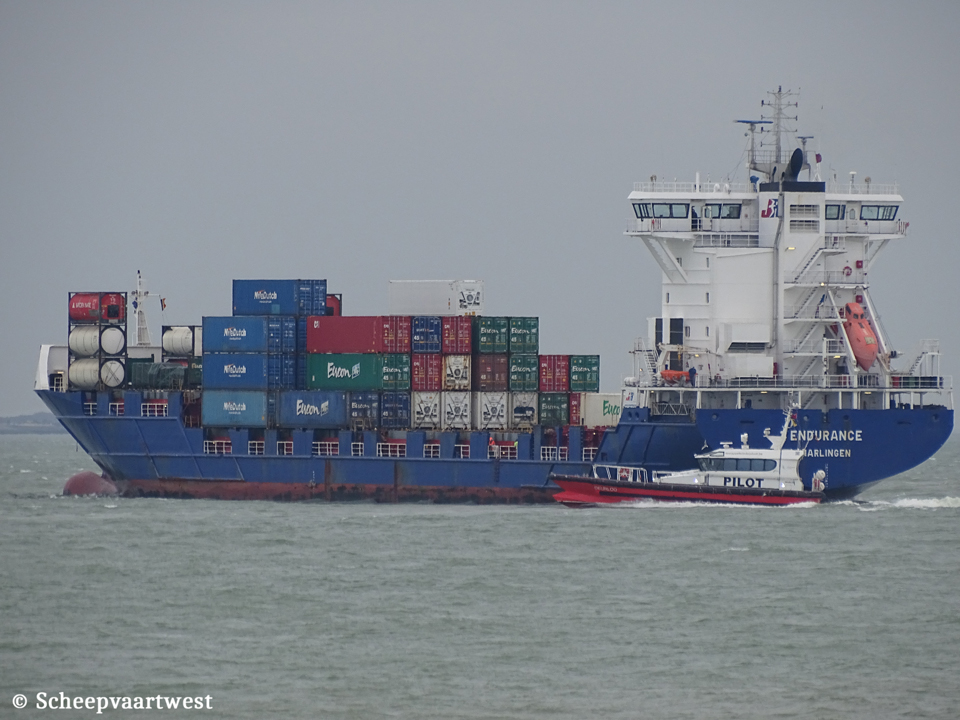

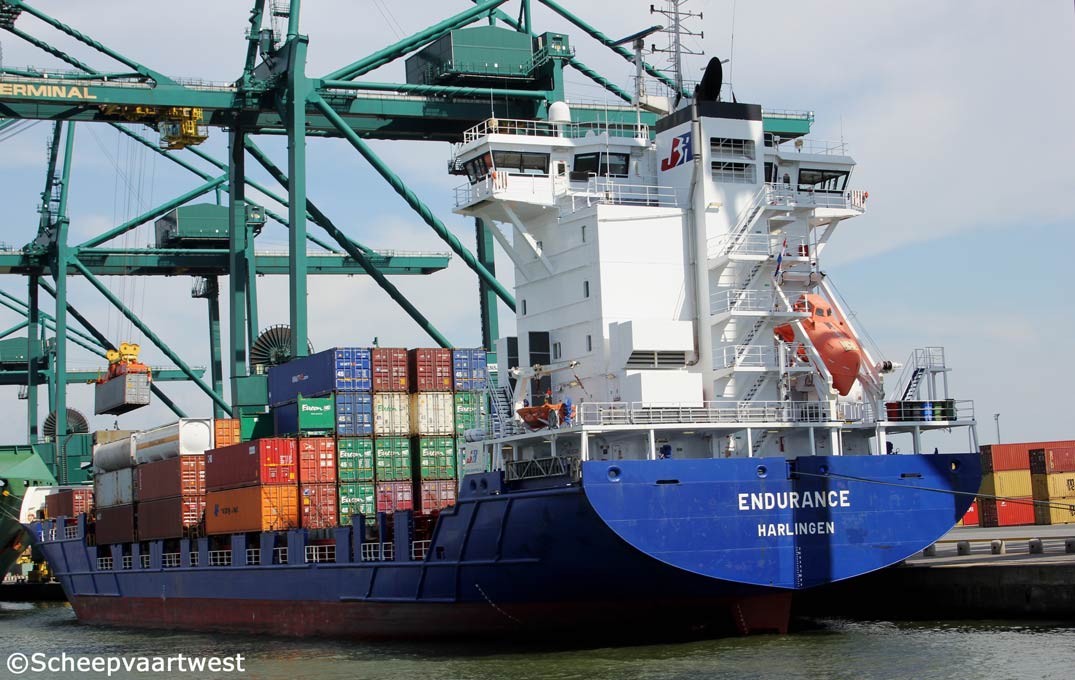

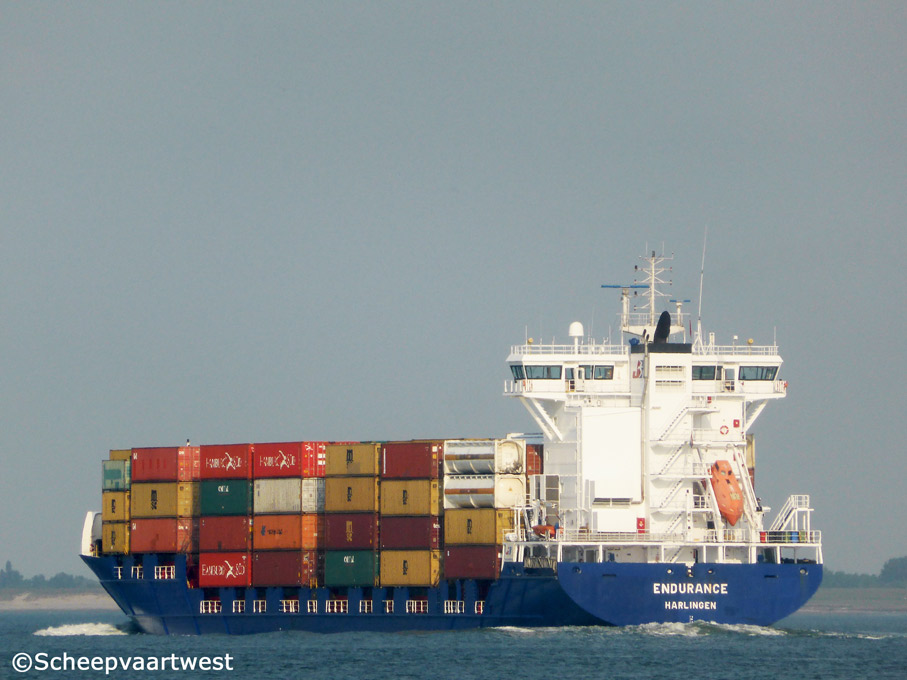

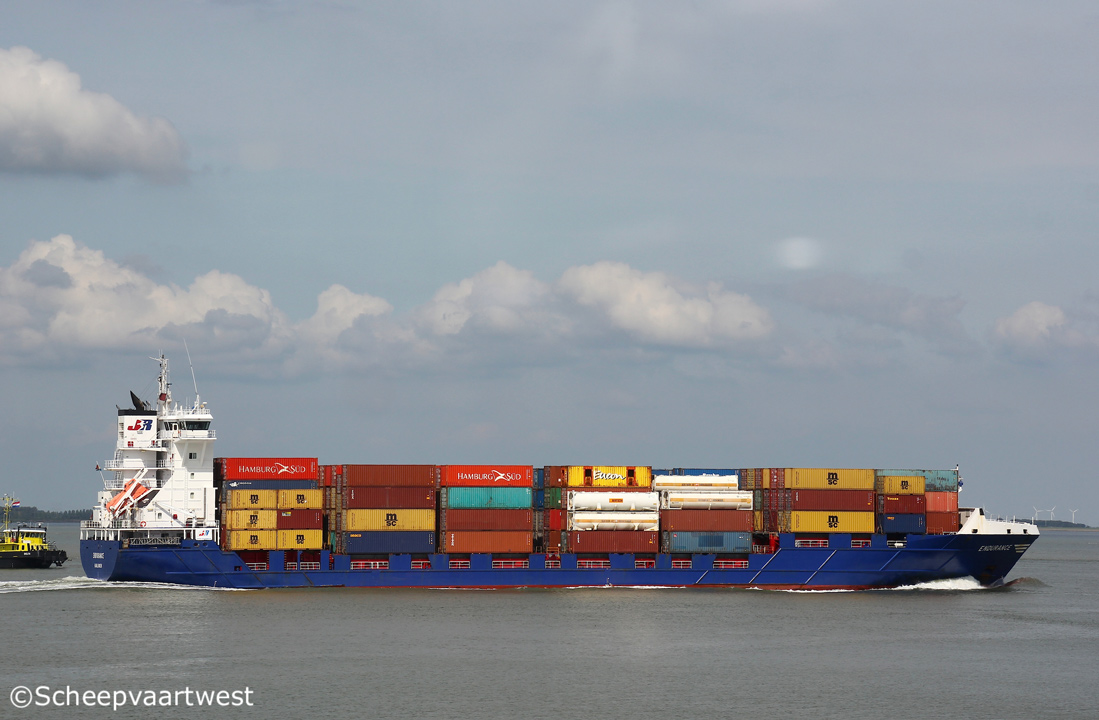

Endurance IMO 9312200 12   Endurance 04 Endurance 06   Endurance 03   Endurance 07   Endurance 02
Westerschelde 07/03/2 Westerschelde 07/06/14 Westerschelde 06/12/15 Antwerpen 24/07/14 Terneuzen 21/08/17 Antwerpen 24/07/14

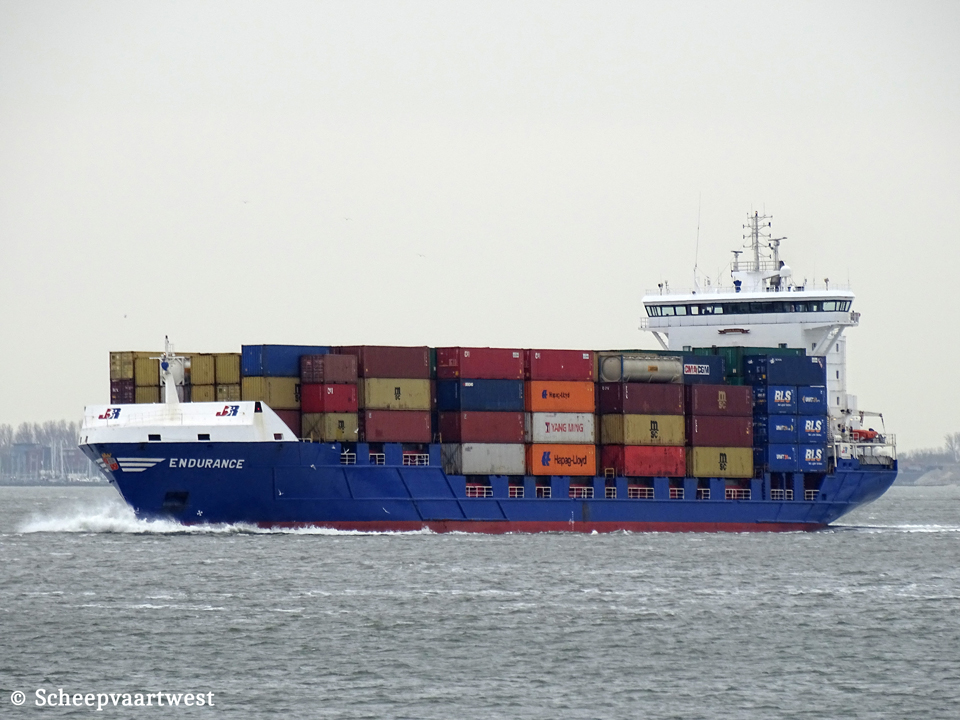

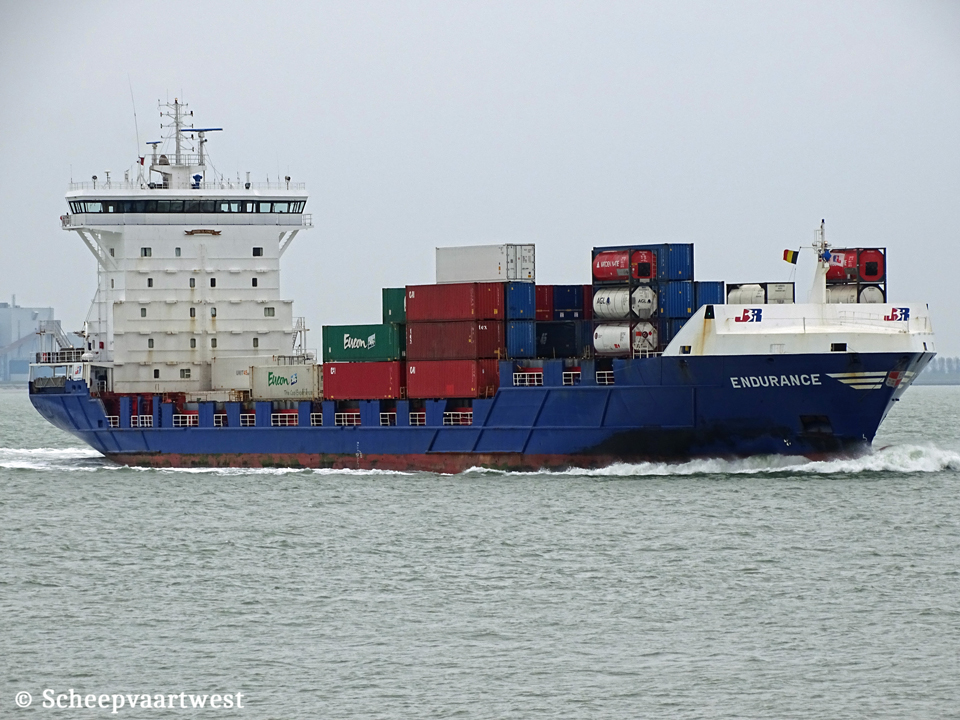

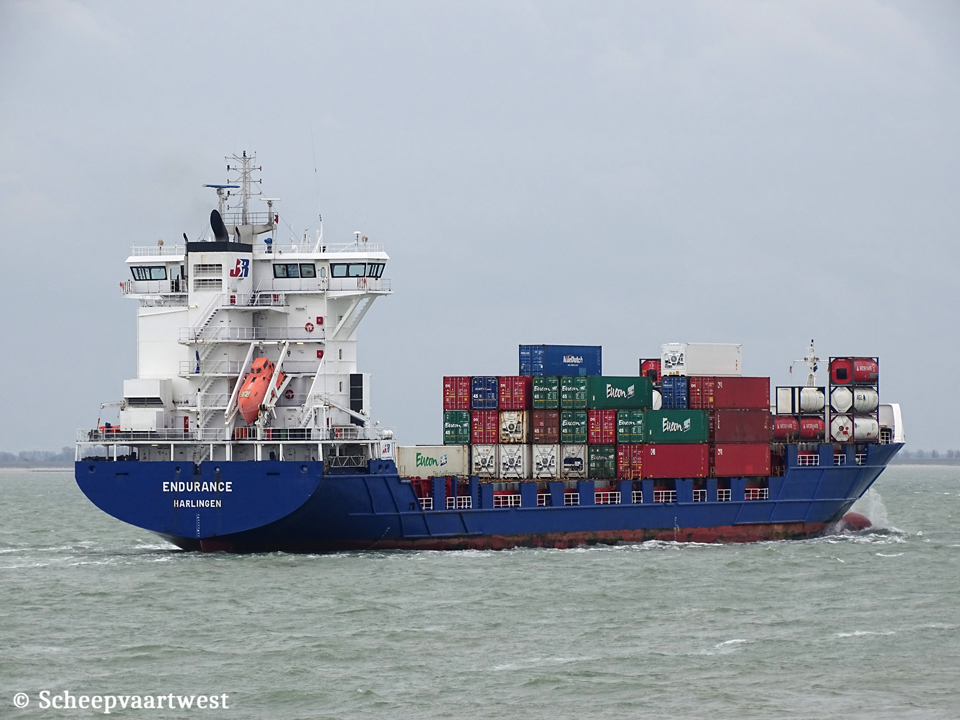

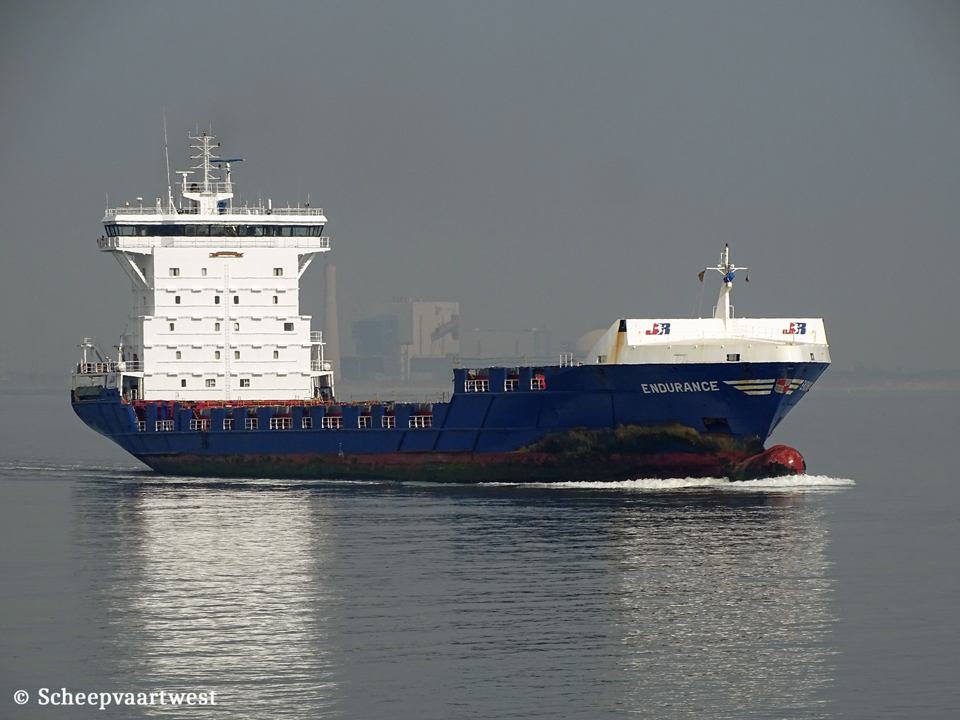

Endurance IMO 9312200 10   Endurance IMO 9312200 09   Endurance IMO 9312200 13   Endurance IMO 9312200 14
Westerschelde 07/03/20   Westerschelde 07/03/20   Westerschelde 22/04/16   Westerschelde 11/08/20


Name

ENDURANCE

Previous names

10/2005 Launch as: Endurance

2005 - 10.2008 Uppland

2008 - 09.2009 Endurance

2009 - 10.2010 X Press Monte Rosa

Type

Containership

IMO-number

9312200

Call sign

PBKO

Flag

The Netherlands

Port of registry

Harlingen

GT

7.642 t

DWT

Summer: 9.146 t

NT

4.200 t

Number of 20ft containers

750

Number of 40ft containers

356 FEU + 22 TEU

Container capacity 14t

507

Reefer capacity

On deck: 120

In hold: 70

190

Length

134,58 m overall

125,67 m between perpendiculars

Breadth

21,50 m moulded

Draught

Max.: 7,10 m

Forecastle

36,28 m

Poop

9,26 m

Freeboard

2.220 mm

Depth

9,30 m moulded

Speed

18,3 knots

Built

2005

Keel laid

22/12/2004

Launch date

03/06/2005

Delivery date

22/10/2005

Builder casco

Daewoo Mangalia Heavy Industries S.A.

Strada Portului 1

905500 Mangalia, Constanta

Romania

yard number: 4049

Builder completion

Bodewes Scheepswerf Volharding B.V.

Eemshaven

The Netherlands

Yard number: 573

Hull material

Shipbuilding steel (higher tensile)

Hull type

Double bottom, continuous from peak to peak bulkhead

Watertight bulkheads

8

Continuous decks

1

Main engine

1x MaK 8M43 - 4 stroke single acting 8 cylinder 430 x 610 mm combustion engine 7.200 kW at 500 rpm

Year of manufacture:2005

Manufacturer: Caterpillar Motoren GmbH & Co. KG

Falckensteiner Str. 2

24159 Kiel

Federal Republic of Germany

Propellers

1x Controllable pitch propeller - aft at 144 rpm

Boilers

Thermal oil heater, exhaust gas heated - 10,0 bar

Heating surface : 83,0 m²

Year of manufacture: 2004

Manufacturer: Alfa Laval Aalborg B.V.
Ohmweg 8

3208 KE Spijkenisse

The Netherlands

Thermal oil heater, oil fired - 13,0 bar

Heating surface : 22,0 m²

Year of manufacture: 2007

Alfa Laval Aalborg A/S Division Boiler Production

Gasvaerksvej 24

9100 Aalborg

Denmark

Electric installations

2x Plants each 440/220 V - 544 kVA

1x Plant 440 V - 1437 kVA

1x Plant 440 V - 544 kVA

1x Plant 24 V - 180 Ah

1x Plant 24 V - 200 Ah

1x Plant 24 V - 200 Ah

1x Plant 24 V - 200 Ah

Shaft generator

1x 1.437 kVA

Generators

2x Main diesel generatorsets each 544 kVA

Emergency generator

1x Diesel generatorset 544 kVA

Batteries

1x Battery for UPS radio 200 Ah

1x Battery for start auxiliary engine 200 Ah

1x Battery for start emergency engine 200 Ah

1x Battery for automation 180 Ah

Compressed air receivers

2x Receivers each 1.000 litres - 30,0 bar

Bow thruster

1x Transverse thruster controllable pitch propeller 750 kW, forward

Tank capacities

Water ballast: 4.908 m³

Fuel oil: 743 m³

Fresh water: 81 m³

Gas oil: 112 m³

Anchor equipment

3x Anchors weight each 4.890 kg

Chain length: 550,00 m

Diameter: 54 mm

Crew size

16

Manager

JR Fleet Fund C.V.

Korte Lijnbaan 25

8861 NS Harlingen

The Netherlands

Operator

JR Shipping

Korte Lijnbaan 25

8861 NS Harlingen

The Netherlands

Registered owner

MS "ENDURANCE" Bewaarder B.V.

Korte Lijnbaan 25

8861 NS Harlingen

The Netherlands

Latest data adjustment

26 March 2022
